1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools

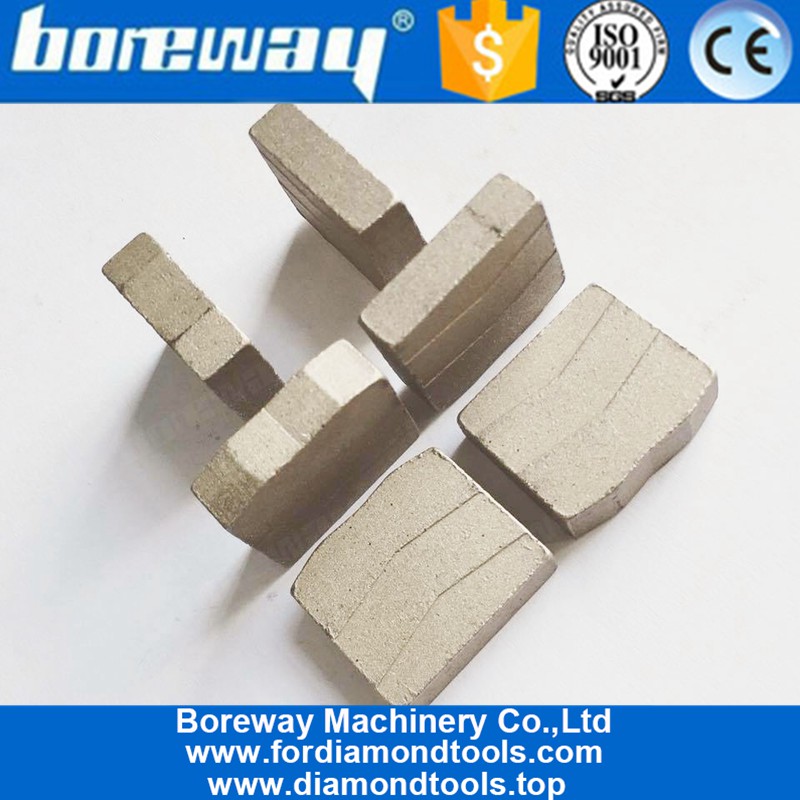

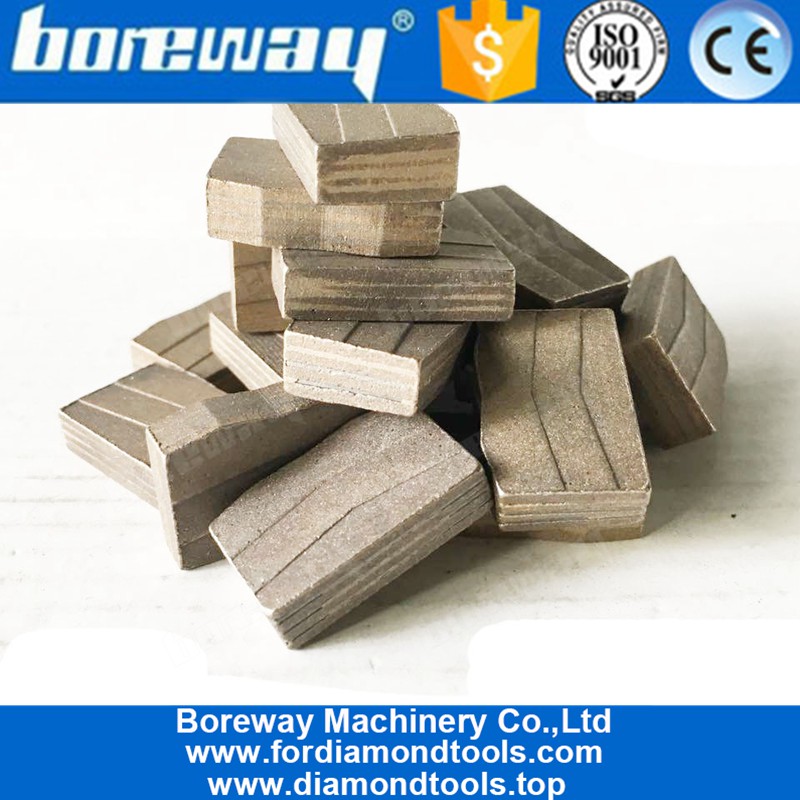

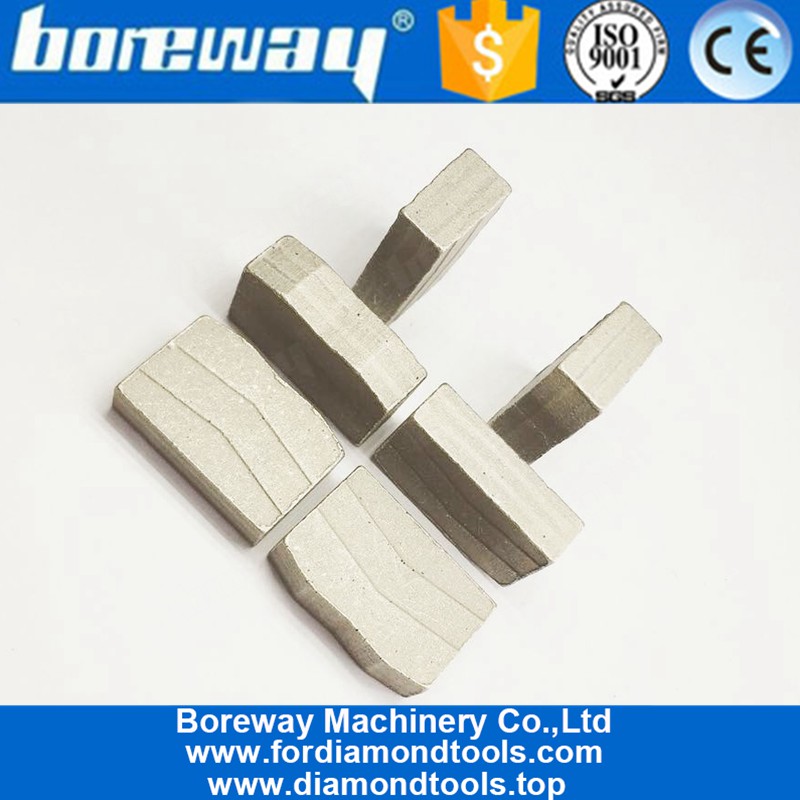

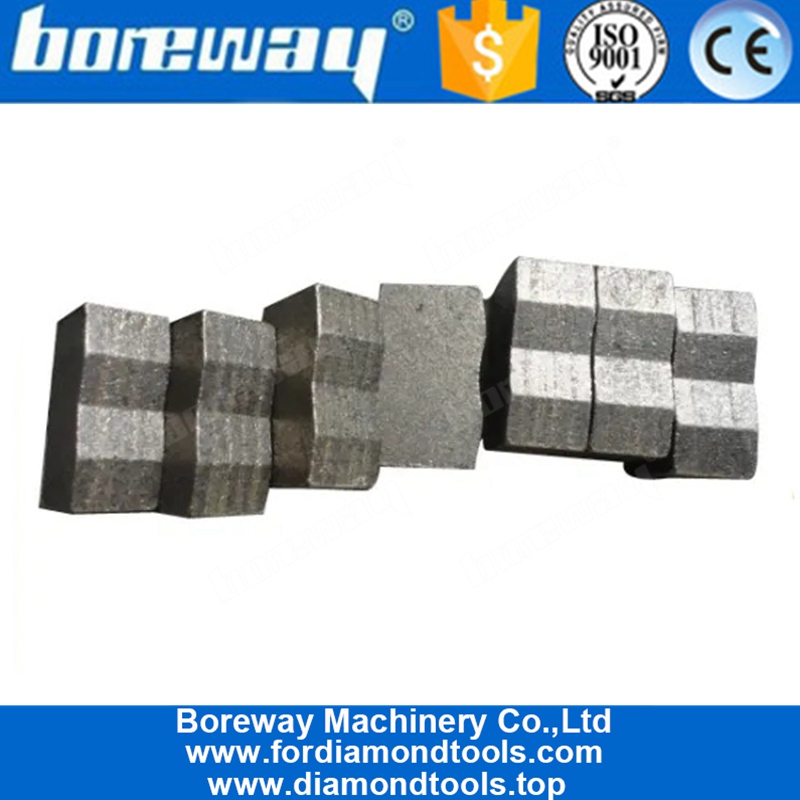

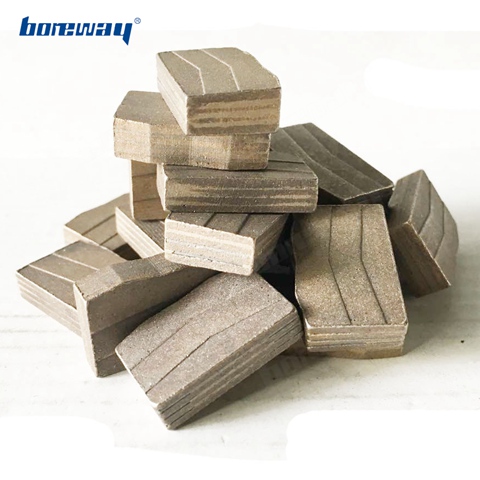

1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools

  • Port: Xiamen
  • Brand Name: Boreway
  • Model Number: BW-DSGB-00
  • Type:Wet Use only
  • Service: OEM & ODM
  • Application: Cutting Granite
  • Segment Size(L*W*H): 24*7.5/7.0*15mm
  • Advatage: Good sharpness and Long lifespan
  • Usage: Block Cutting of Granite, Sandstone, various hard stone with quartz
  • Machine: Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine

Descriptions:

1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools:





This kind Granite Block Cutting Segment is designed for granite saw blade, the standard size is 24*7.5*15 mm, it can be used in diameter 1200mm saw blades.



Our Granite Block Cutting Segment are made by high-quality diamond powder and metal powder mixture,produced by pressing and sintering, diamond powder and metal powder combine closely, the quality is higher and the effect is better.

Such diamond segment are highest ratio of performance to price!


Specifications:

We are instrumental in providing to our valuable customers excellent quality
Granite Block Cutting Segment which are available with following specification:

      1000-3500 mm Granite Segment Blade dimension
  Diameter    Dimension of Segment  No.of teeth
 Inch  mm  length  Thickness  Height  Number
 40  1000  24  7.4/6.8  15  70
 44  1100  24  7.4/6.8  15  74
 48  1200  24  7.5/7.0  15/20  80
 52  1300  24  8.0/7.4  15/20  88
 56  1400  24  9.0/8.4  15/20  96
 64  1600  24  9.0/8.4  15/20  108
 72  1800  24  10/9.0  15/20  120
 80  2000  24  10.6/9.8  15/20  128
 88  2200  24  11.5/10.5  15/20  136
 100  2500  24  11.8/10.8  15/20  140
 120  3000  24  13.0/12  15/20  160
 140  3500  24  13.5/12.5  15/20/30  180

Besides 1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools, All of our
products have been strictly tested before access to market. Other specifications can be customized according to requirements.

Product Details:

1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools:

  

Applications:

1200 mm Multi Layer Structure Granite Block Cutting Segment Diamond Cutting Tools. Block Cutting of Granite, Sandstone, various hard stone with quartz.




Advantages:

1.Ideal edge trimming quality best .

2.Excellent comprehensive cutting performance.

3.High cutting efficiency, meanwhile, it has a long lifespan.


Related Products:
     
             



Diamond Granite Segment Diamond Marble Segment

                              


About us:

We have a strict quality control system:

270MM Bush Hammered Plate For HTC Grinders

Packing & Delivery:
Packing:
Packing in carton cases:

Delivery:

Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use
 Chinese products because of their high quality and high cost performance. We are a professional diamond
 tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them
because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them
 get more. We are ready to offer our potential customers a special discount on samples. It's very important that
 you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own
label and company brand. If you want us to make any new products for you, just send your products to us. Whether
it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others,
 only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
