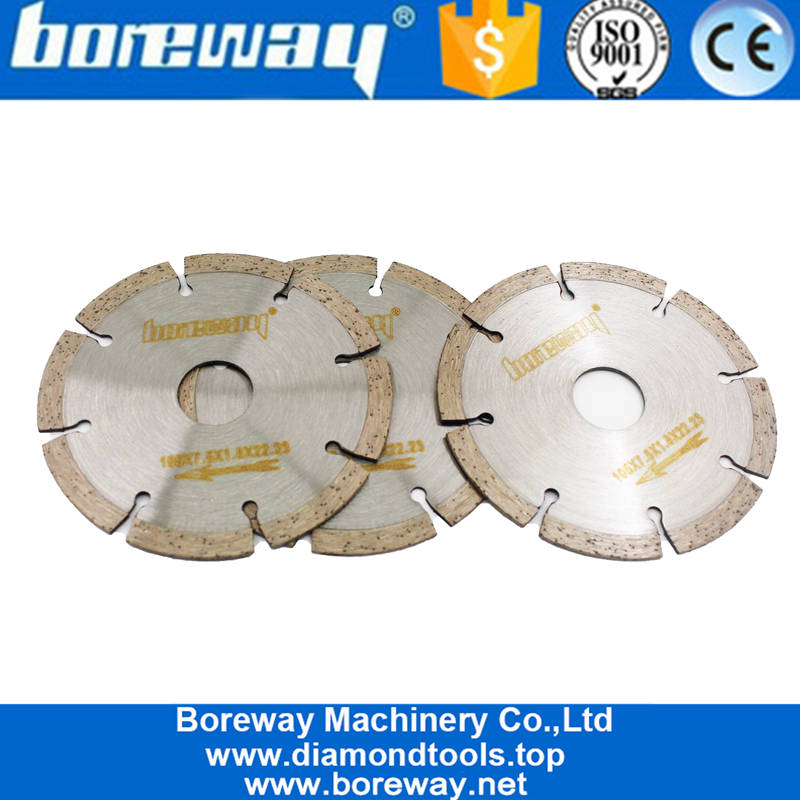

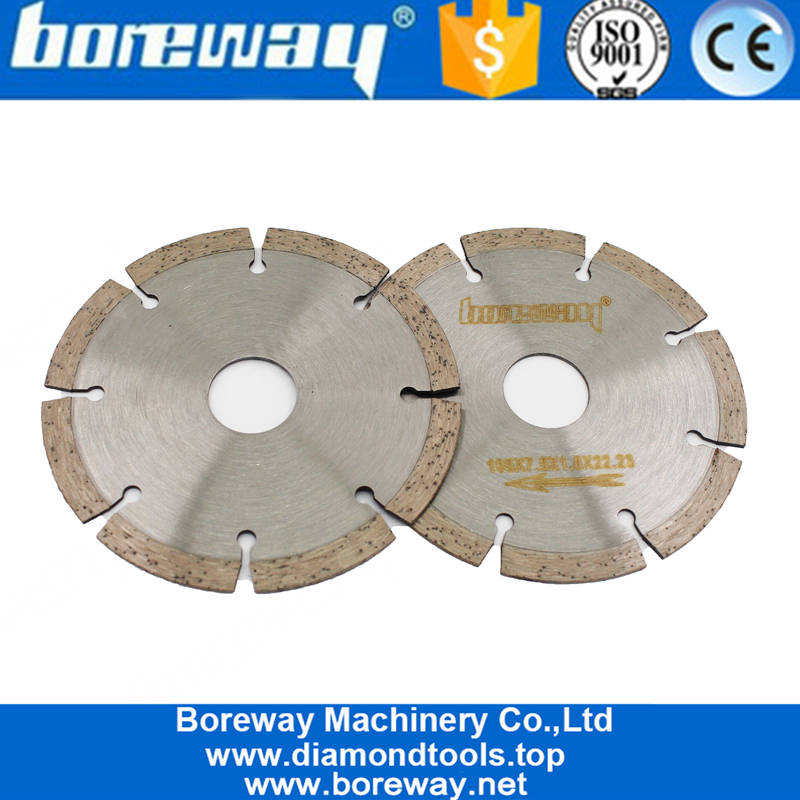

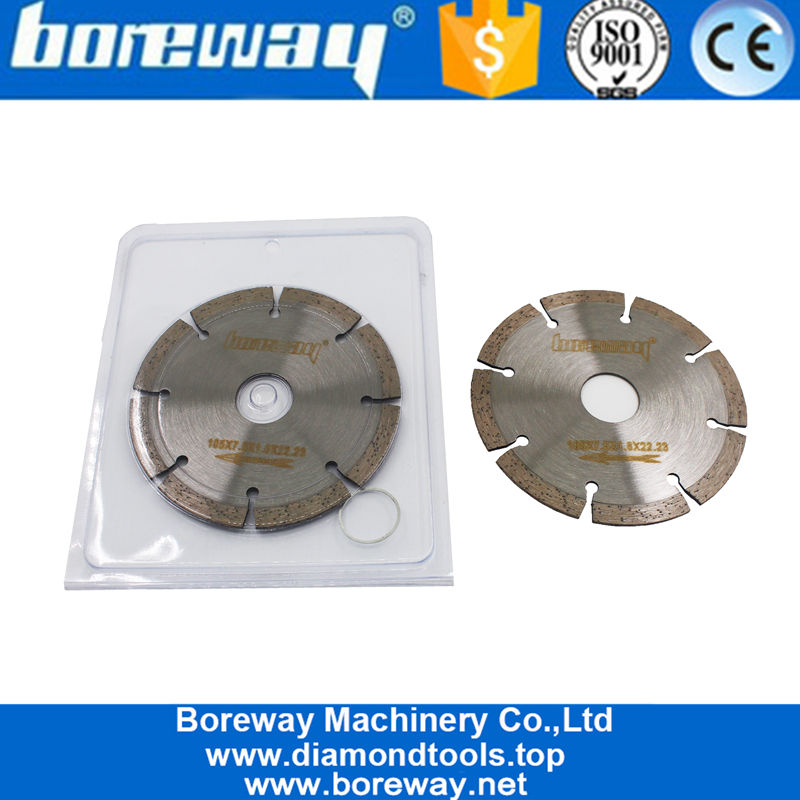

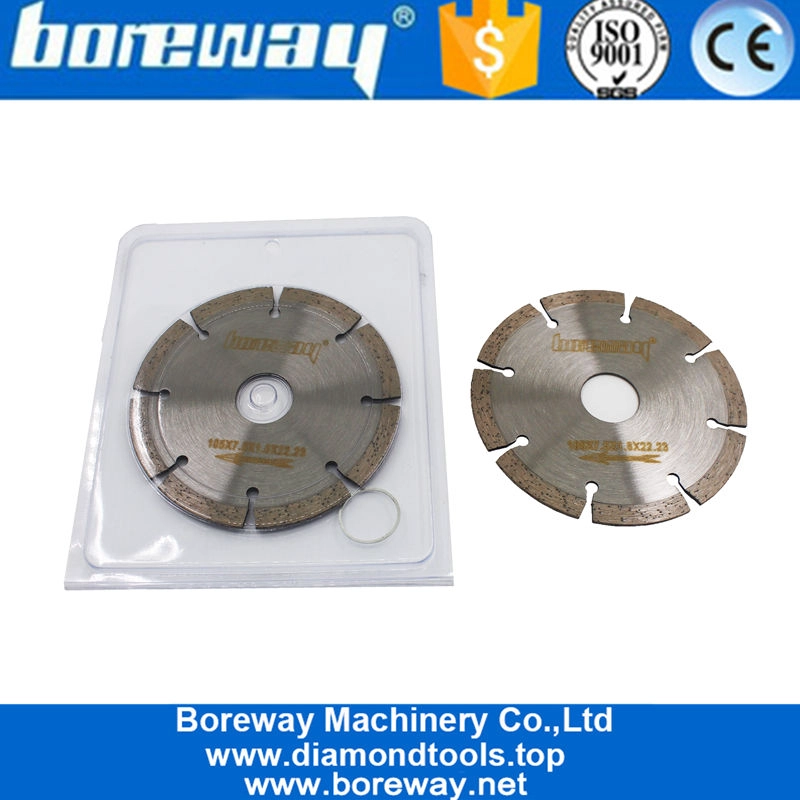

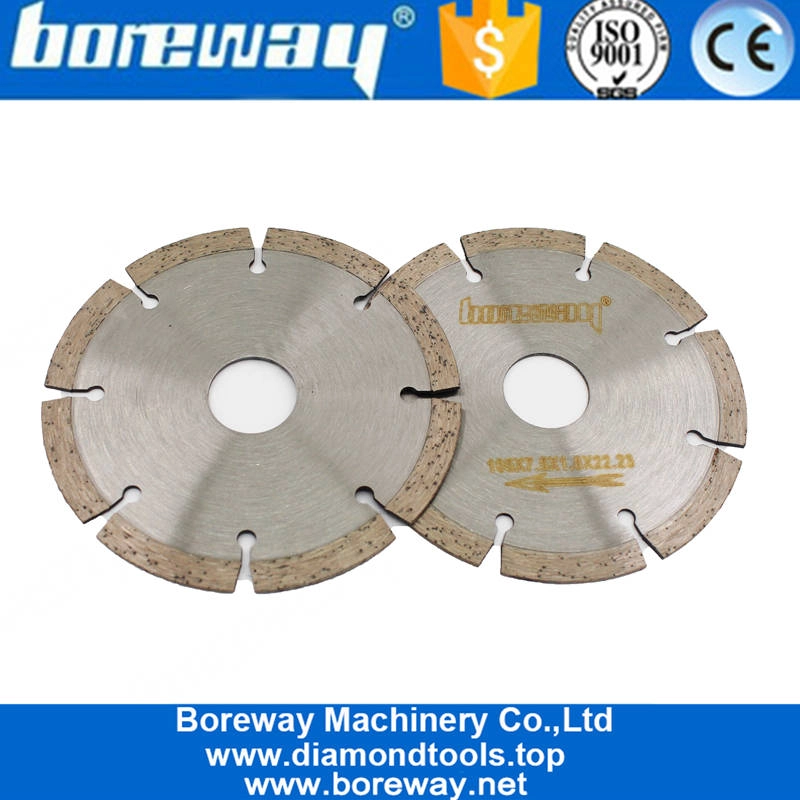

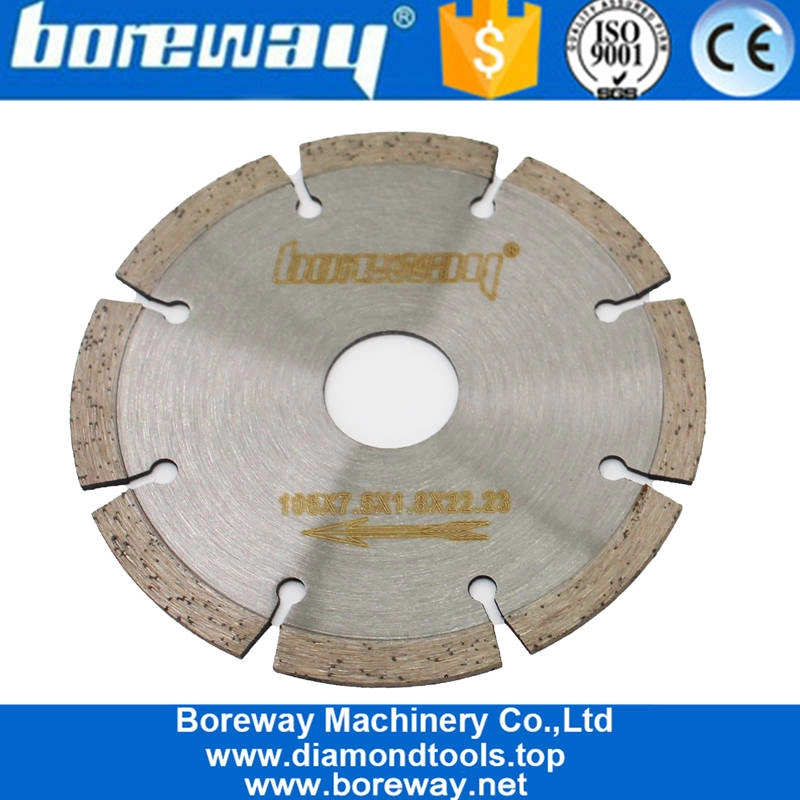

Dry Wet Segmented Diameter Saw Blade 105mm Diamond Title Granite Concrete Marble Cutting Disc Tools Form BorewayDry Wet Segmented Diameter Saw Blade 105mm Diamond Title Granite Concrete Marble Cutting Disc Tools Form BorewayDry Wet Segmented Diameter Saw Blade 105mm Diamond Title Granite Concrete Marble Cutting Disc Tools Form BorewayDry Wet Segmented Diameter Saw Blade 105mm Diamond Title Granite Concrete Marble Cutting Disc Tools Form Boreway

Dry Wet Segmented Diameter Saw Blade 105mm Diamond Title Granite Concrete Marble Cutting Disc Tools Form Boreway

  • Size:105mm,4inch
  • Brand Name:Boreway
  • Slot Type:Key Hole Type
  • Blade Material:Alloy Steel
  • Number of Segments:6/8 Pcs
  • Segment Height:8/10/12mm
  • Model Number:BW-DC-01-01
  • Business Type:Manufacturer
  • Blade Type:Segmented Type
  • Place Of Origin:Fujian, China
  • Usage:For Stone Concrete Cutting
  • Inner Hole:16/20mm,22.23mm,25.4mm,50mm
Dry Wet Segmented Diameter Saw Blade 105mm Diamond Title Granite Concrete Marble Cutting Disc Tools Form Boreway


Specification:
Dry Wet Segmented Diameter Saw Blade

The following are normal specifications Dry Wet Segmented Diameter Saw Blade:

Diameter  Bore Segment
Number of Segments
  Segment
Inch
 mm  Size(mm/inch)  Thickness(mm)  PCS  Height(mm)
4 105 16/20
22.23
25.4
50
35 6/8  8/10/12
4.3 110 32.3 6/8/9  8/10/12
4.5 115 38.5 8  8/10/12
5 125   37.5   8/10/12
150  33.5  12   8/10/12
180  35  14   8/10/12
8 200 39.2 14   8/10/12
9   230 34.4  18   8/10/12

The above specifications is only for reference, other specifications may be available as per customer's demand.

Feature:

1. Great adaptability & No chipping

2. Different bonds are for different applications & precise segment size

3. Dry Wet Segmented Diameter Saw Blade Working safe, quiet, and precise, reducing cutting & working time

4. Fast cutting & long life & Stable performance, High grade of diamonds


Factory=Quality Control=Competitive Price=Own technology=OEM

Dry Wet Segmented Diameter Saw Blade
Dry Wet Segmented Diameter Saw Blade
Attention when use:

1.  Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
 when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools

2. Do not use any saw blade that has been deformed for being pressed of crashed

3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on

4. Electric tools shall have protective cover

Advantage:


1. The substrate is made of 65 manganese alloy steel, the thickness strictly abides by the product implementation standards, high strength, strong and stable;

2. The cutter head is made of high-quality diamond and metal powder mixed and sintered for sharp and ultra-long cutting;

Dry Wet Segmented Diameter Saw Blade

3. The optimized and reasonable cooperation of the base body and the cutter head makes the saw blade not burn teeth, lack of saws, and does not shake, and the feel is easy and fast;

4. The manufacturers ship directly, various specifications are flexibly customized, and the quality is reliable and the price is affordable.
5. Because the size of the saw blade is small and medium, it is easy to use, stable cutting without deformation, and flexible usage. It is one of the commonly used diamond cutting series.
Dry Wet Segmented Diameter Saw Blade

Applications:

Dry Wet Segmented Diameter Saw Blade
Dry Wet Segmented Diameter Saw Blade
Suitable for cutting ceramic tile, vitrified brick, microcrystalline stone, etc

Hot Sintered, Dry or Wet Use!


Applications machine:

Dry Wet Segmented Diameter Saw Bladeuse for angle grinder,circular saw,masonry saw,table saw

Dry Wet Segmented Diameter Saw Blade
Cutting effect:

Dry Wet Segmented Diameter Saw Blade
Cutting Blade Dry Wet Segmented Disk



Related Products:
     
             



Cutting Blade Dry Wet Segmented Disk Dry Wet Segmented Diameter Saw Blade
5 Inch Hot Pressed Segments Cutting Disc Cross Cutting Diamond Segmented Saw Blades

                              


About us:



Dry Wet Segmented Diameter Saw Blade

Dry Wet Segmented Diameter Saw Blade

Packing & Delivery:
PS:
1.Tools packing in carton cases

2.By Air/Sea for batch goods, Airport/Port receiving

3.Less than 45kg, generally delivery by express(Door to Door)

4.When tools are in large quantities, they are packing in wooden cases
Cutting Blade Dry Wet Segmented Disk
Our service:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
