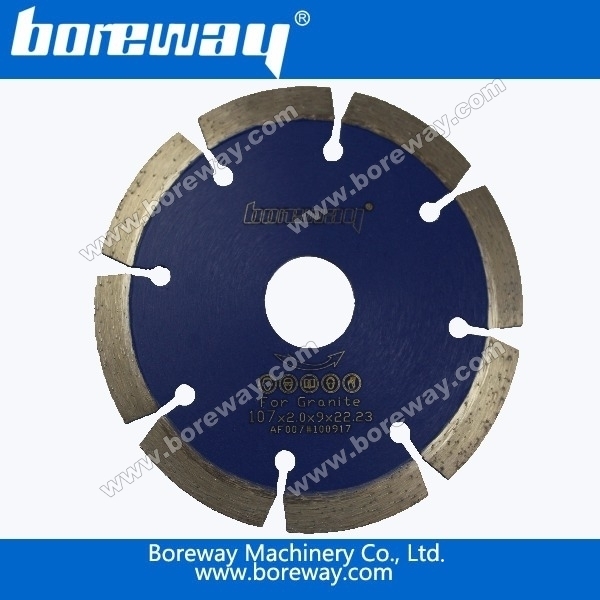

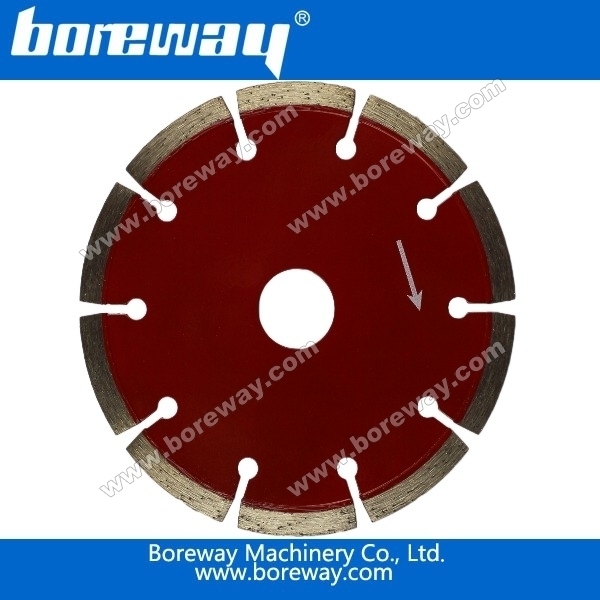

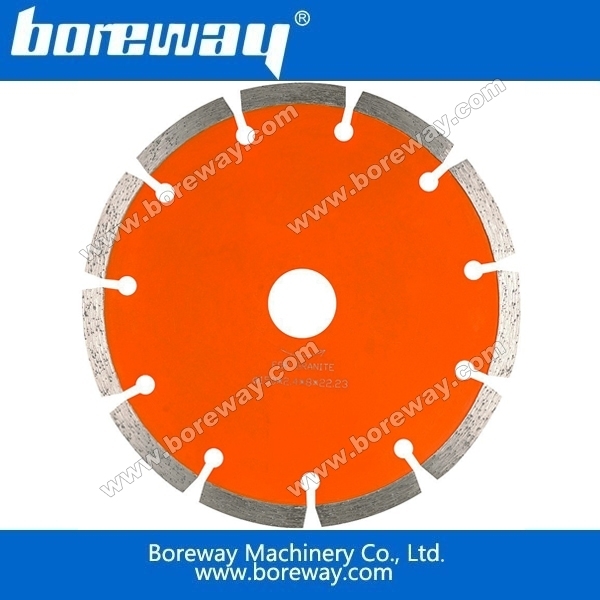

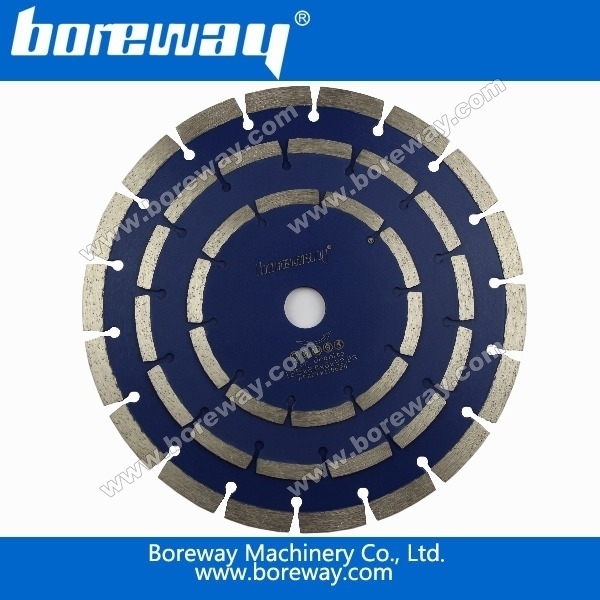

Sintered Segmented Diamond Saw Blade For Wet Cutting Granite Ceramic Concrete
- Technology: Sintered
- Model Number:BW-DC-01
- Type: Dry and Wet Use
- Diameter: 105MM To 230MM
- Industry: Diamond Cutting Tools
- Segment Width: 1.8 MM To 2.8 MM
- Segment Height: 8MM Or 12MM
- Segment Number: 8,10,12,14,16,18
- Machine: Hand-Held Cutting Machine And Other Cutting Machine.
- Advantage: Good Sharpness And Long Lifespan.
- Applications: Boreway Diamond Sintered Segmented Blade is Wet Use For Cutting Granite Ceramic And Concrete Etc.
| Introduction: |
Diamond Segmented Circular Saw Blades Factory
Normal Segmented Diamond Dry Cutters (Small Saw Blade), diameter from 4"(105mm) - 9"(230mm), for fast cutting kinds of hard, medium hard, soft stone, like Granite, Marble, Sandstone, Limestone etc., and other construction materials like Concrete, Asphalt, Ceramic, Porcelain, Bricks, etc.
These diamond sintered segmented blades are usually used on manual hand held cutting machines for cutting and nondestructive grooving on marble,granite,ceramic tile,concrete and many other general construction materials.
1.Universal dry and wet cutting blades.
2.Designed for hand held circular saws and mos angle grinders.
3.Fast and smooth cutting,high performance.
The followings are the normal specifications of our diamond sintered segmented blades:
The above specifications are for reference, other specifications can be ordered by customers.
（Multi Saw Blade Diamond Cutting Segment For Suppliers ）
1.How could we know the quality, if we want to order your products?
These diamond sintered segmented blades are usually used on manual hand held cutting machines for cutting and nondestructive grooving on marble,granite,ceramic tile,concrete and many other general construction materials.
| Features: |
1.Universal dry and wet cutting blades.
2.Designed for hand held circular saws and mos angle grinders.
3.Fast and smooth cutting,high performance.
| Specifications: |
The followings are the normal specifications of our diamond sintered segmented blades:
|
Product Name |
Outer Diameter |
Segment Width |
Arbor |
Segment Height |
Segment Number |
Applications |
||
|
Diamond Sintered Segmented Blade |
inches |
mm |
inches |
mm |
mm |
mm |
pcs |
Granite Ceramic Concrete etc. |
|
4’’ |
105 |
0.070’’ |
1.8 |
16/20 22.23 25.4/50 |
8mm |
8 |
||
|
4.5’’ |
115 |
0.070’’ |
1.8 |
12mm |
8 |
|||
|
5’’ |
127 |
0.080’’ |
2.0 |
8mm |
10 |
|||
|
6’’ |
152 |
0.085’’ |
2.2 |
8mm |
12 |
|||
|
7’’ |
178 |
0.085’’ |
2.2 |
8mm |
14 |
|||
|
8’’ |
203 |
0.095’’ |
2.4 |
8mm |
16 |
|||
|
9’’ |
229 |
0.110’’ |
2.8 |
8mm |
18 |
|||
The above specifications are for reference, other specifications can be ordered by customers.
（Multi Saw Blade Diamond Cutting Segment For Suppliers ）
| Product show |
| Factory Show |
| FAQ |
1.How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 8 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.
2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.
3.Does your company accept custom-made?
Surely, we accept it. Including differentcolor, grit etc. We also can mark your ownlogo and brand on the pad. Any new productsyou want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.
Logistics:
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours
