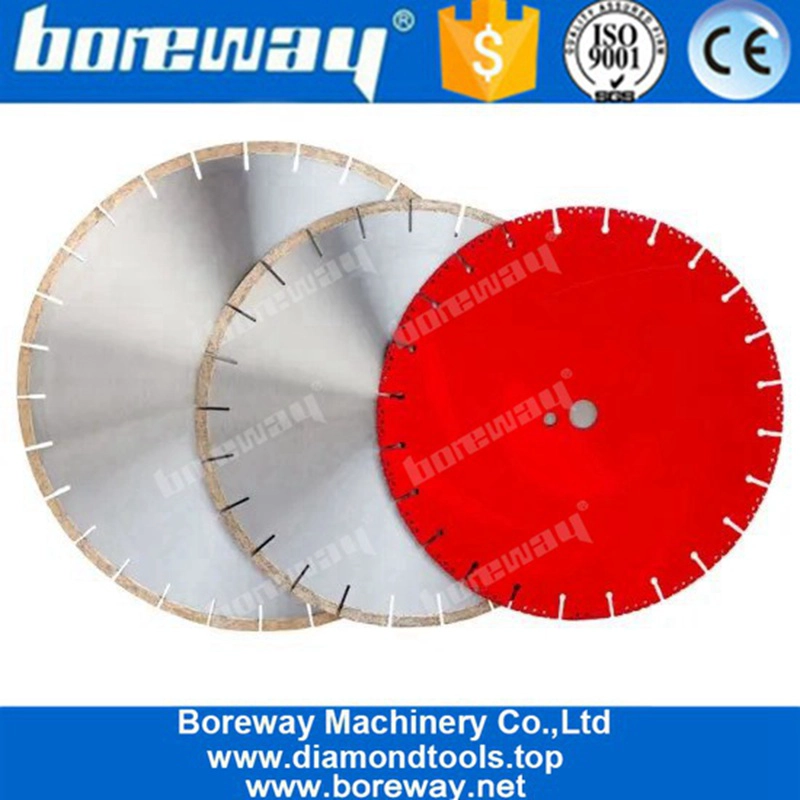

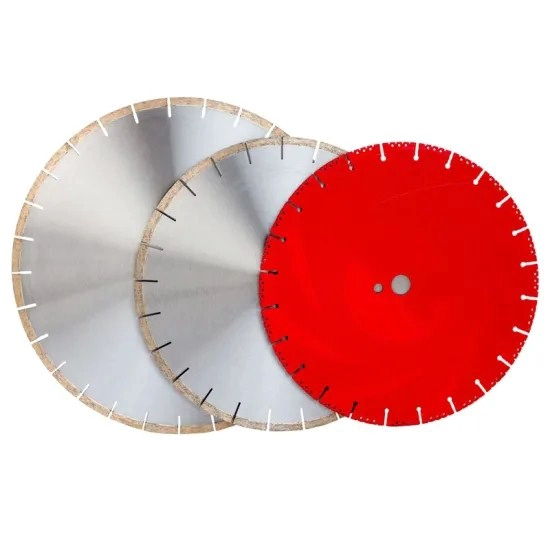

China Cross Cutting Diamond Segmented Saw Blades for Stone

  • Thickness: 15mm
  • Diameter: 500mm
  • Used: Wet Cutting
  • Graininess: 1000#
  • Segment Number: 30
  • Application: Granite
  • Steel Core Thickness: 7.5/3.0

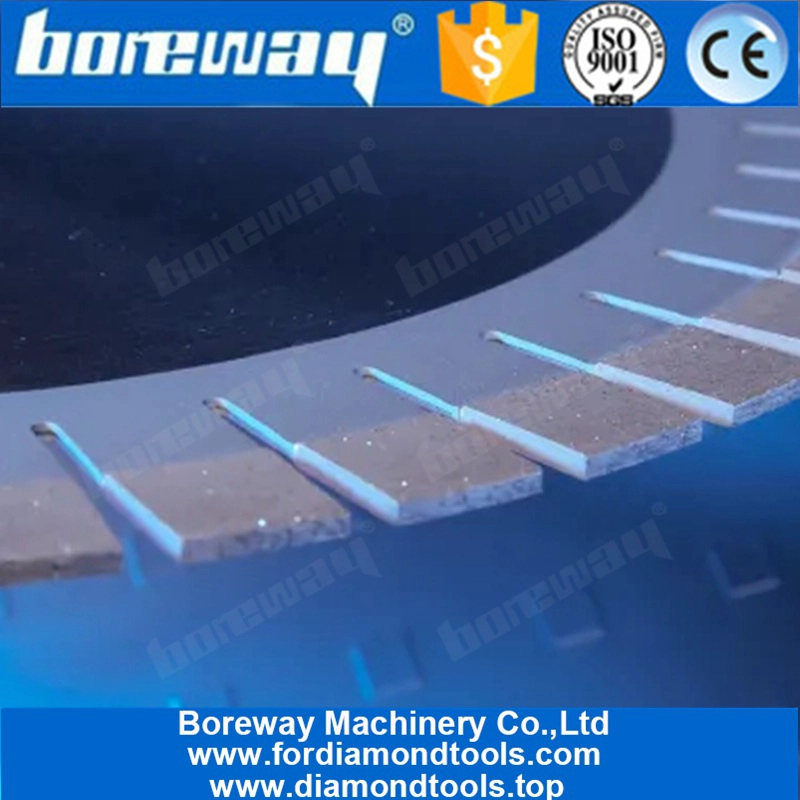

  • Segment Dimension: 40*5.0*10(15)
  • Saw Blade External Diameter: 500mm
  • Model NO.: 500mm horizontal cutting blade and segment

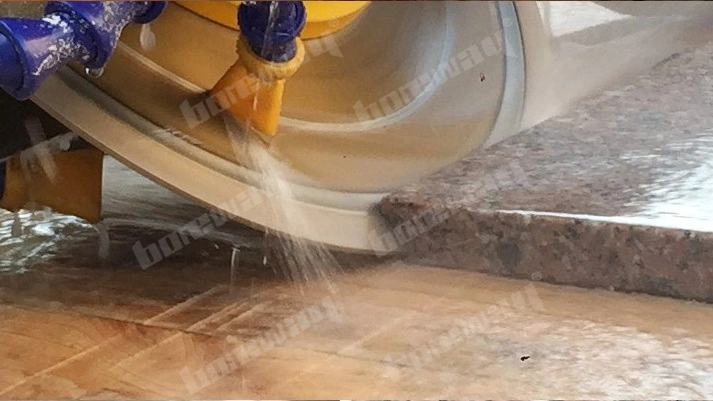

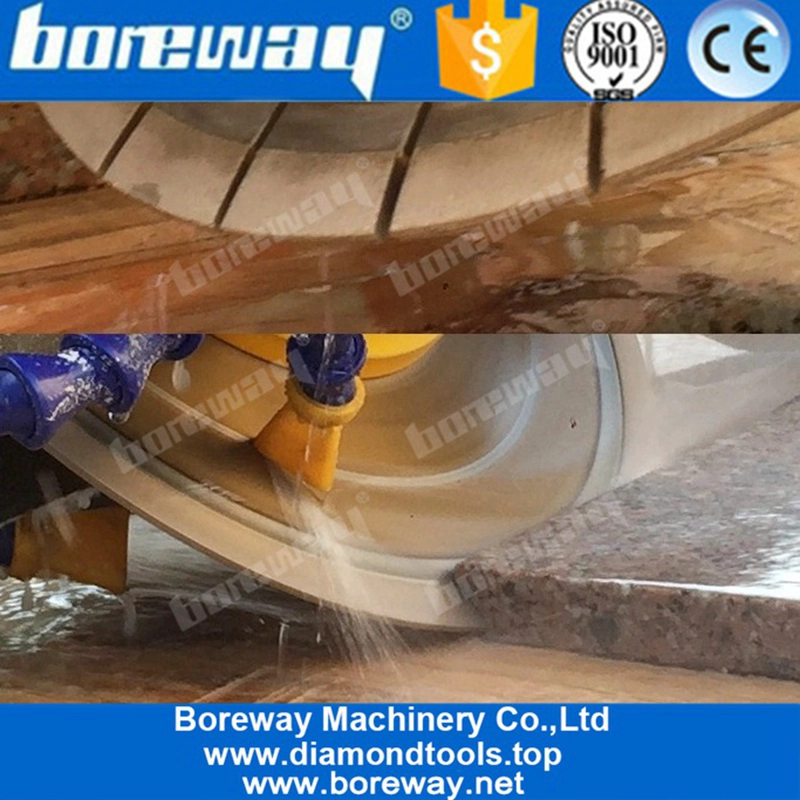

Introduction:These cross cutting diamond segmented saw blades for stone are widely used for cutting granite.


1.Fast Cutting Efficiency.

2.Competitive and Best Price .

3.Excellent comprehensive cutting performance.

4.The blade(diameter=500mm) has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.

Specifications:Cross Cutting Diamond Segmented Saw Blades for Stone, Cross Cutting Diamond Segmented Saw Blades for Stone 

The followings are the normal specifications of Cross Cutting Diamond Segmented Saw Blades for Stone.

Other specifications are available upon request.
Silent and non-silent blades are available for choice.

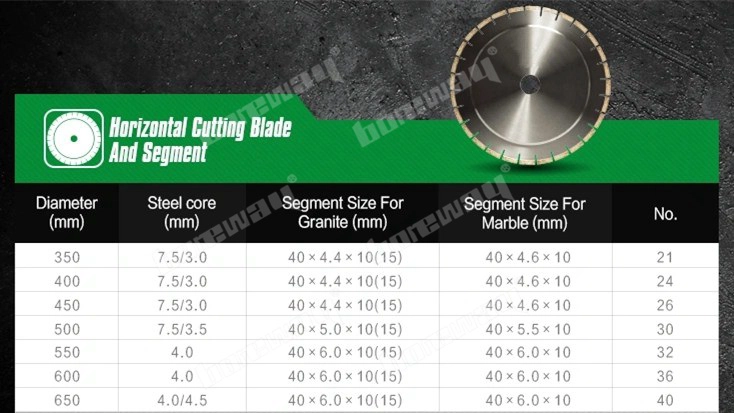

 Diameter   (mm)  Steel Core Thickness(mm) Segment Dimension(mm)   Segment Number
 350  7.5/3.0
 400  7.5/3.0  40*4.4*10(15)  24
 450  7.5/3.0  40*4.4*10(15)  26
 500  7.5/3.0  40*5.0*10(15)  30
 550  4.0  40*5.5*10(15)  32
 600  4.0  40*5.5*10(15)  36
 650  4.5  40*6.0*10(15)  40

The above specifications are for reference, other specifications can be ordered by customers.
