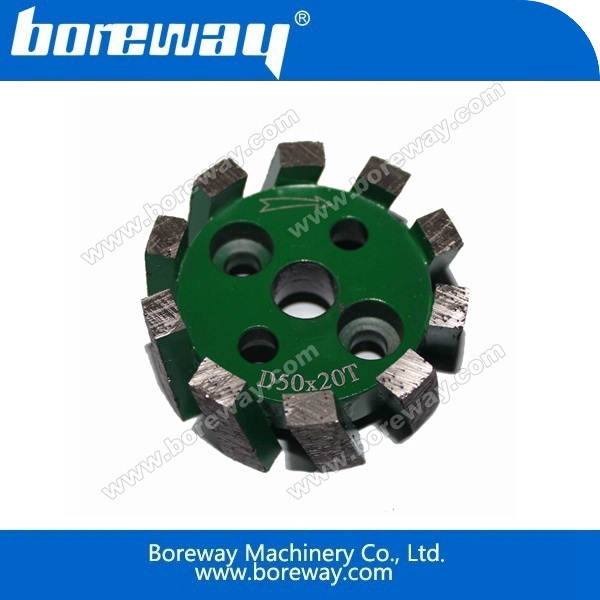

Diamond standard stubbing wheel 50mm
- Model Number: BW-DSSW
- Type: Wet Use
- Diameter: 50mm
- Inner hole: 10mm
- Segment height:20mm
- Applications: Diamond standard stubbing wheel are used for milling and materialremoval for stones.
- Machine: Diamond standard stubbing wheels are used for CNC machine or other stone machine.
- Advantage: Good sharpness and Long lifespan.
Introduction:
Standard stubbing wheels are used for surface milling and material removal for various granite and marble
stone on router machines.Their merits are high efficiency of production,accuracy in shape and size.
Features:
1.The unique design with good sharpness allows easy dust removal, low noise and safety.
2.With feature of high efficiency,accuracy in shape and size.
3.Good performance and long lifespan.
Specifications:
The followings are the normal specifications of our diamond standard stubbing wheel:
|
Diameter/mm |
Segment height/mm |
Inner hole/mm |
Connection |
Grit No. |
Machine |
|
50 |
20 |
10 |
Φ10-2+2Hole |
30/40# 60# 100# 200# |
CNC machine and radial arm machine |
|
30 |
|||||
|
40 |
|||||
|
86 |
20 |
50 |
Φ50-3+3Hole |
||
|
30 |
|||||
|
40 |
|||||
|
100 |
20 |
Φ50-3+3Hole |
|||
|
30 |
|||||
|
40 |
Contact with me if you need rod of wheels.
Above specification just a reference for customers.Other specifications can be ordered by customers.
