CNC Diamond Stubbing Milling Wheel For Countertop Suppliers Or Manufacturer 01CNC Diamond Stubbing Milling Wheel For Countertop Suppliers Or Manufacturer 01CNC Diamond Stubbing Milling Wheel For Countertop Suppliers Or Manufacturer 01CNC Diamond Stubbing Milling Wheel For Countertop Suppliers Or Manufacturer 01

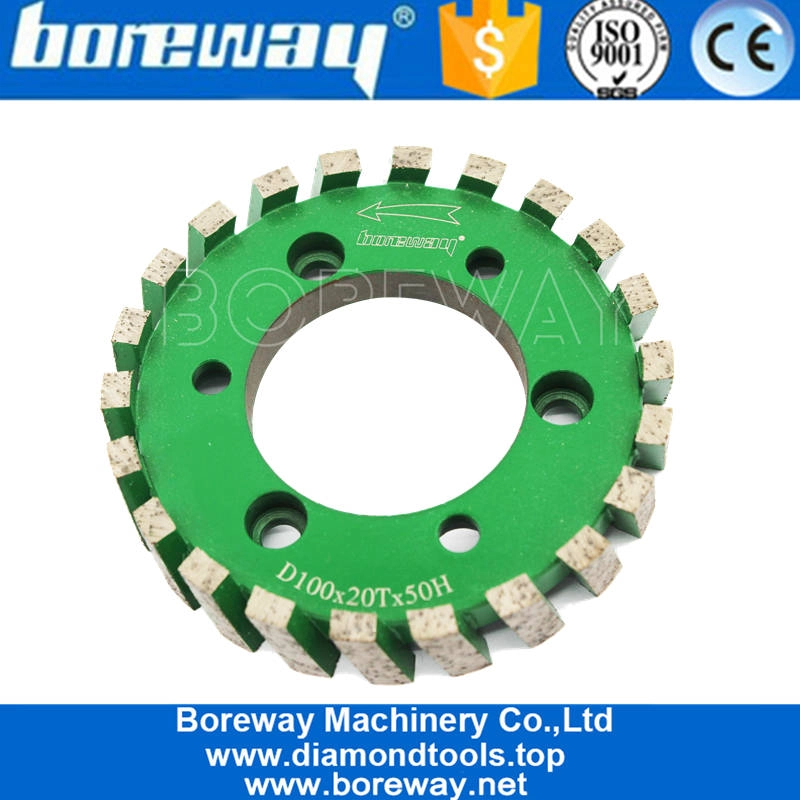

CNC Diamond Stubbing Milling Wheel For Countertop Suppliers Or Manufacturer 01

  • Diameter:100MM
  • Thickness:20MM
  • Inner Hole:50MM
  • Dry or Wet:Wet
  • Size:D100x20Tx50H
  • Type:Segmented Type
  • Machine:For CNC Machine
  • Model: BW-DSSW-C100S-20
  • Usage:Fast Removal Stock On Stone


Descriptions:

  • Comparing to other drum wheels,CNC Milling Wheel for Countertop could avoid breaking the slab.

  • ChinaFactory Price CNC Milling Wheel for Countertop are for grinding and polishing sinkholes on the slab, kitchens etc., which is the most effective way to grind and polish the tight radius.

  • Be designed for stock removal on granite marble by grinding away an excess stone. It is the fastest way to remove material after cutting out sinkholes.

  • CNC Milling Wheel for Countertop, are used for very aggressive grinding applications and removal of stock on various materials including granite, concrete, limestone, marble, block, terrazzo and more.

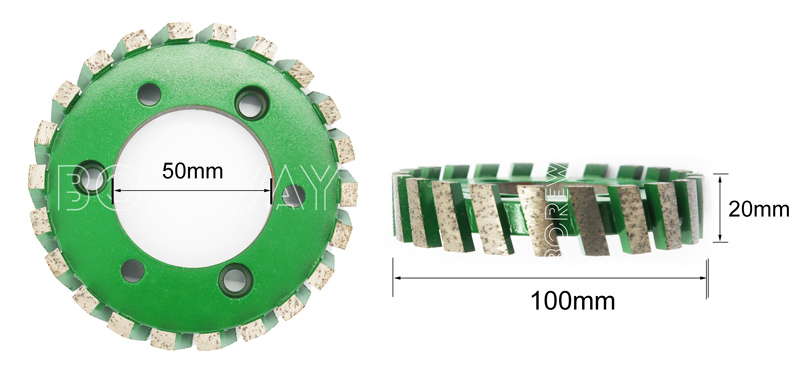

  Specification:

The normal size of China Factory CNC Milling Wheel for Countertop:

 Diameter
 Segment Height

 Inner Hole
 100mm
20mm

 50mm

To improve the efficiency of standard stubbing wheel,here some machine parameters we suggest:


RPM Feed Rate
Recommended Depth

4500 400-600MM/Minute
3MM



More normal specification of diamond standard stubbing wheel we supply:


Diameter 50mm, 86mm, 90mm, 100mm
Segment
 Height/MM
20mm, 30mm, 40mm
Inner Hole 10mm, 50mm
 Connection Φ10-2+2Hole
Φ10-3+3Hole
Φ50-3+3Hole
 Grit No. 30/40#, 60#, 100#, 200#
 Machine CNC Machine & Radial Arm Machine

If you need customization, please contact us

Click Here To Browse More:Diamond Stubbing Wheel For Suppliers

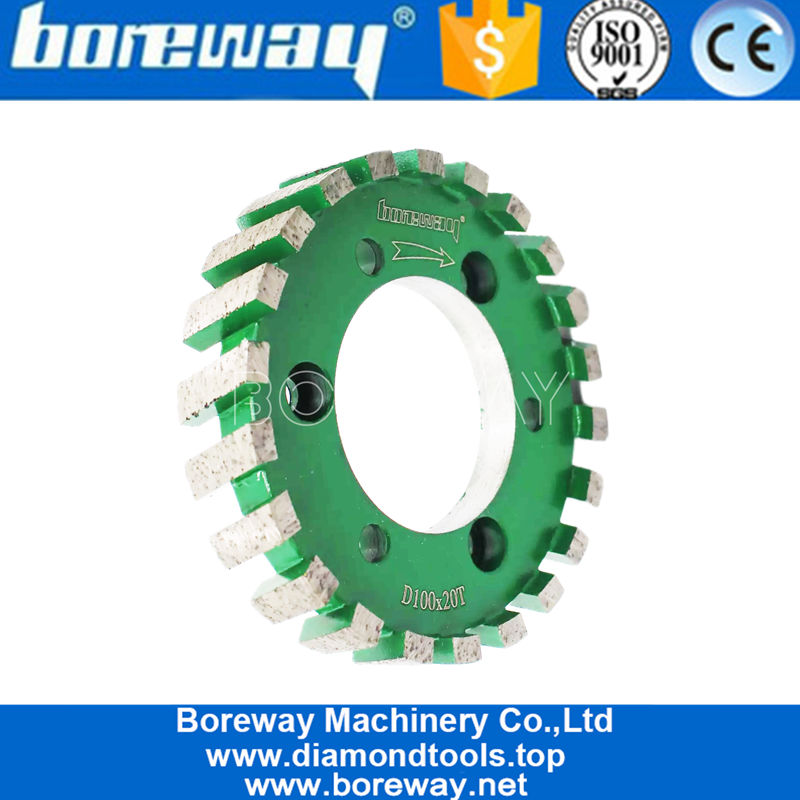

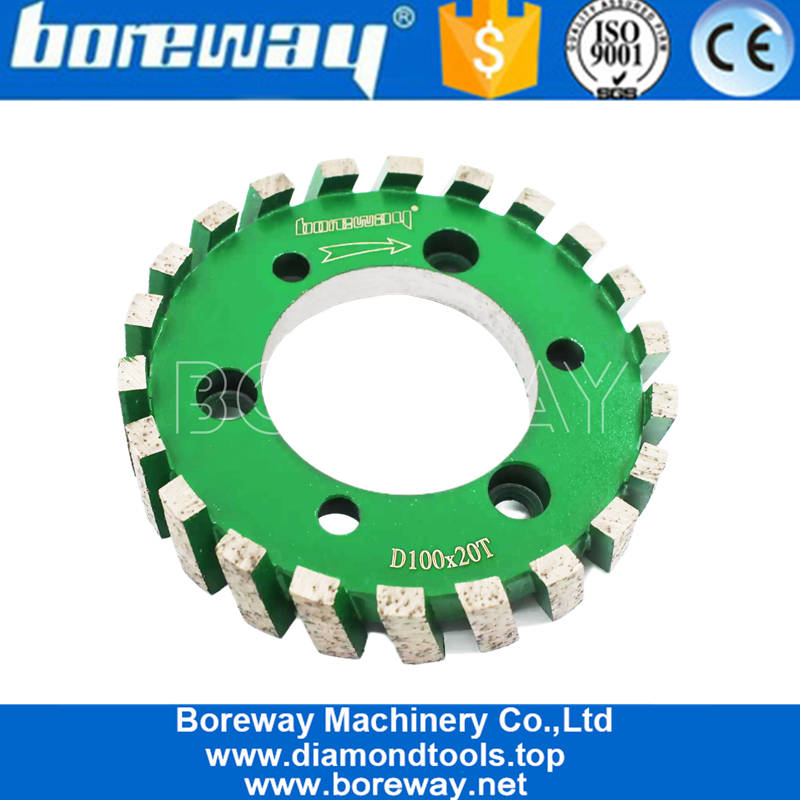

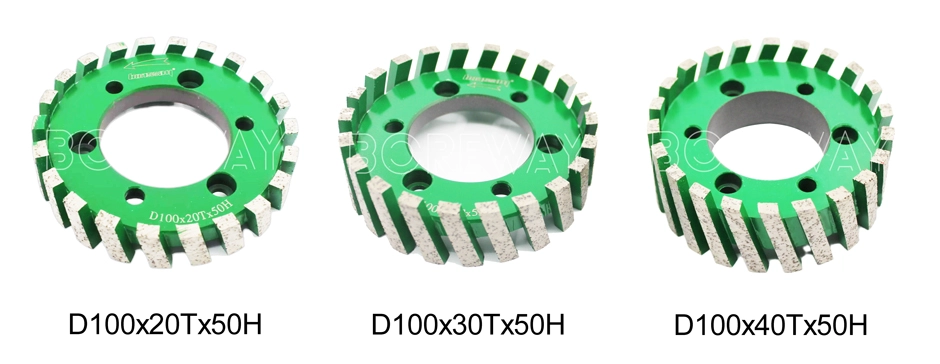

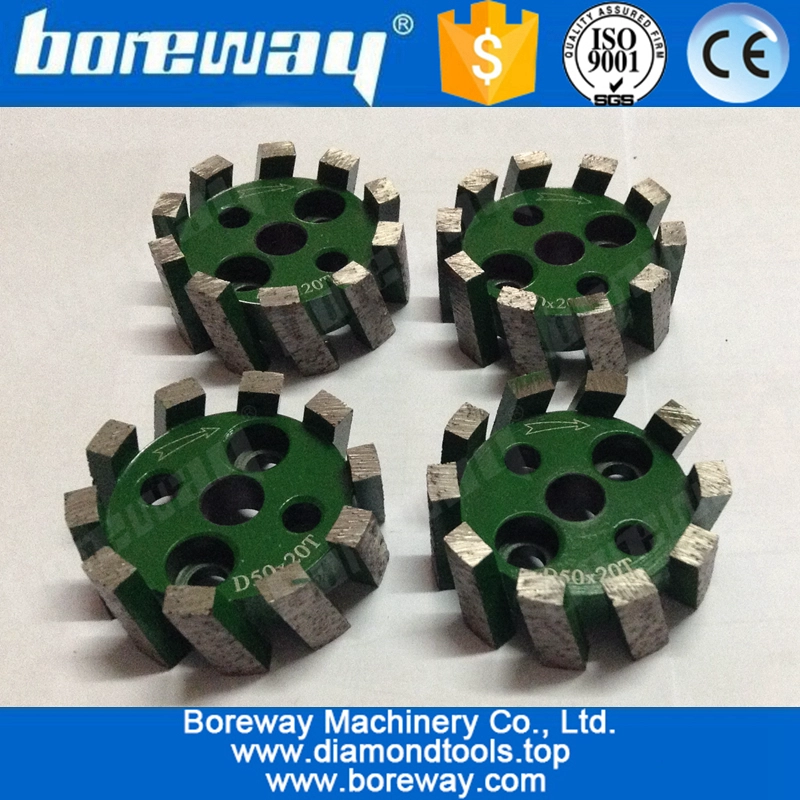

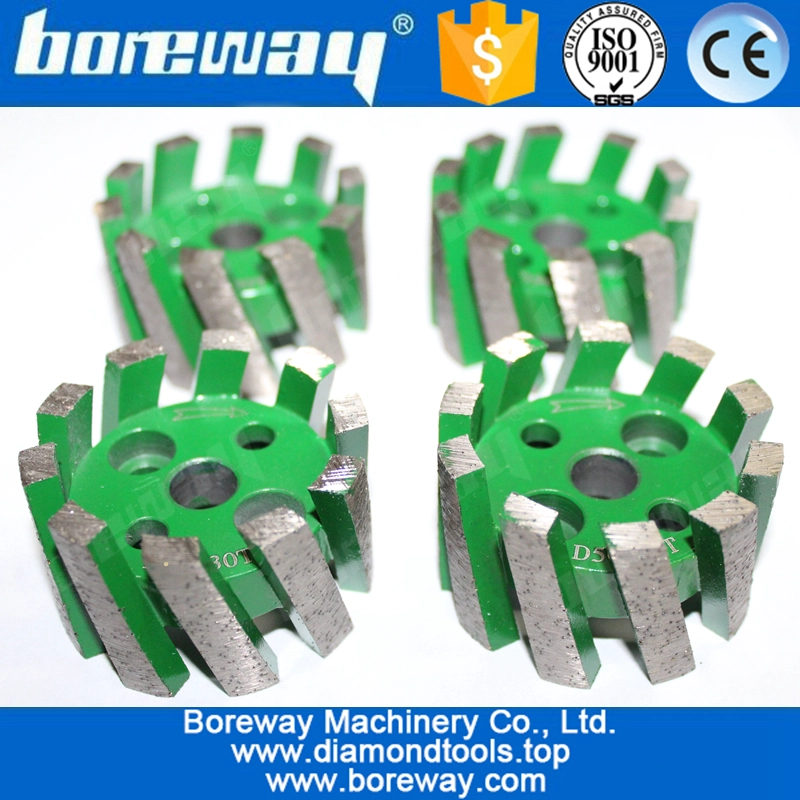

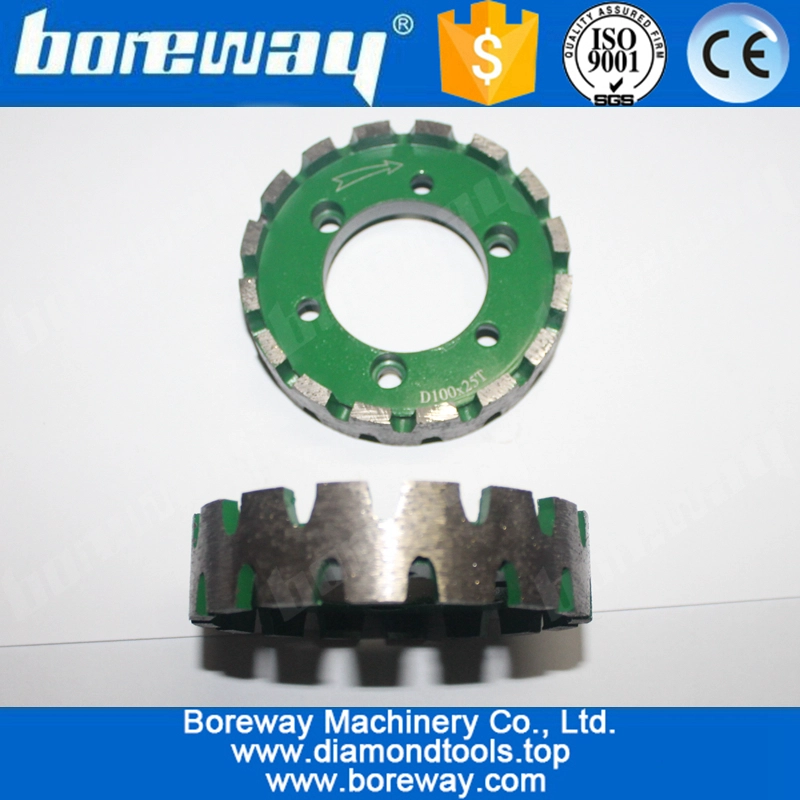

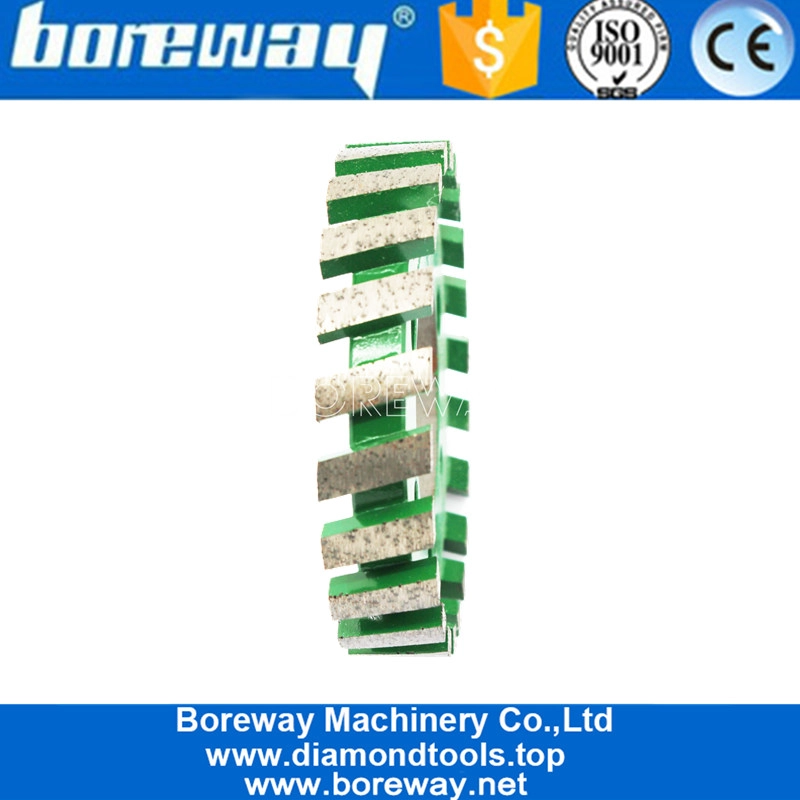

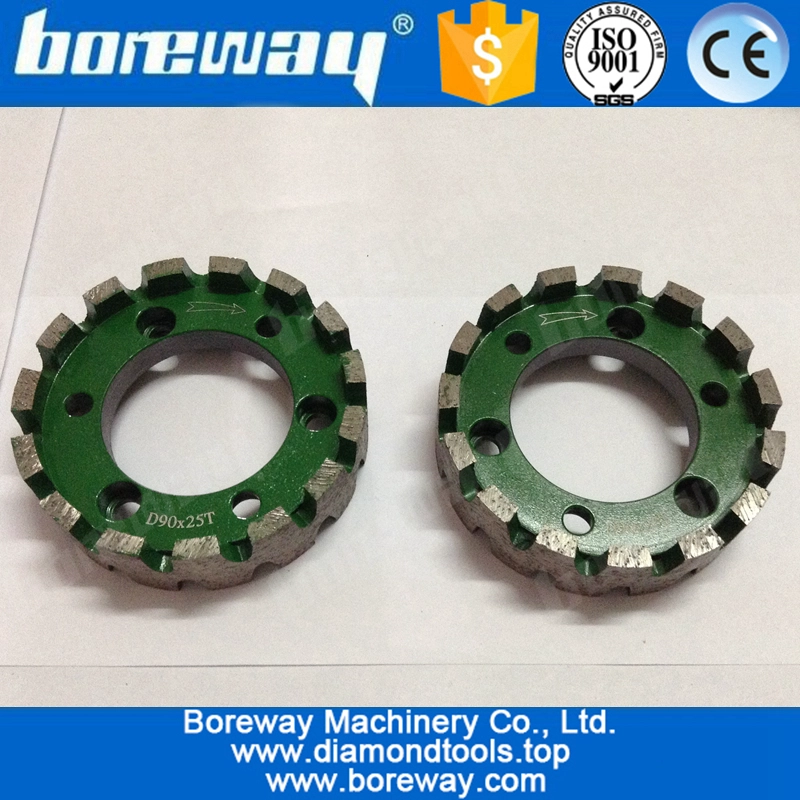

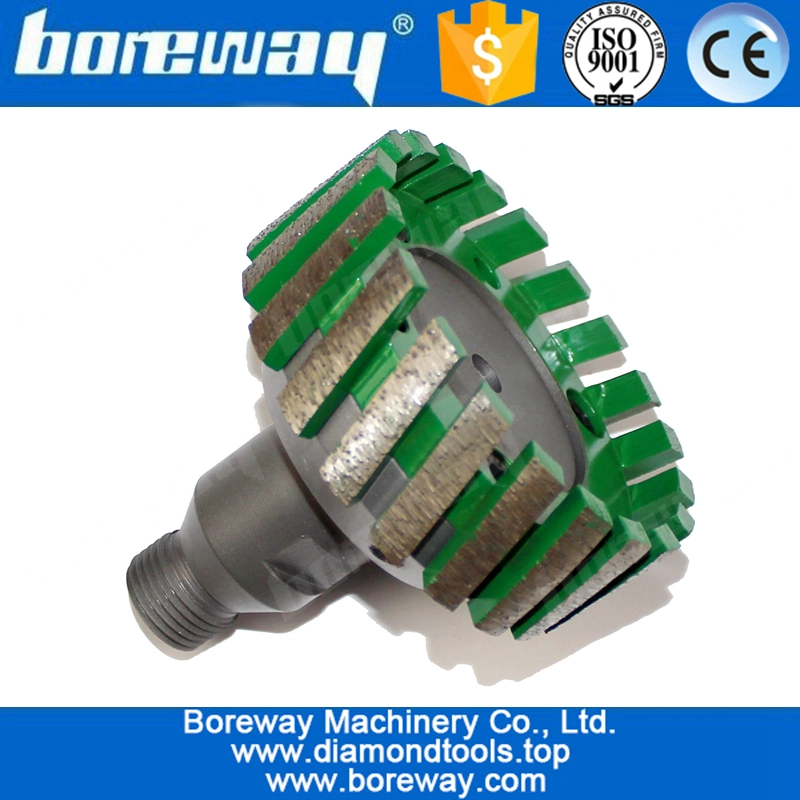

Different heights of 100mm diameter milling wheels display product pictures:

diamond milling wheel

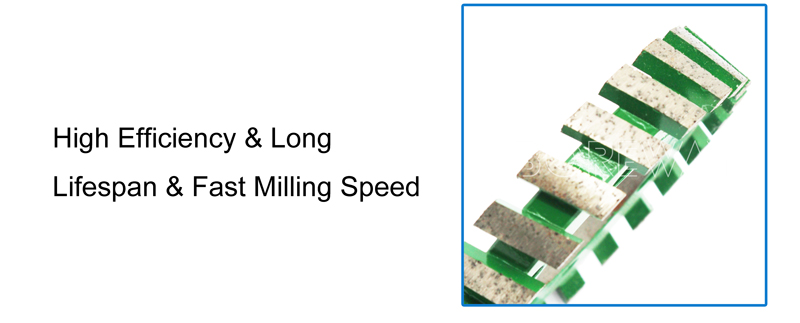

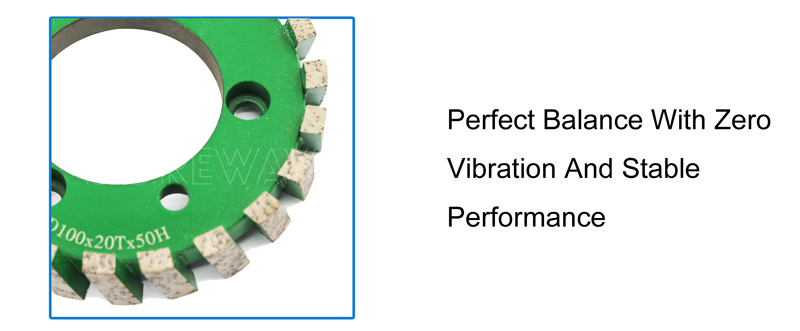

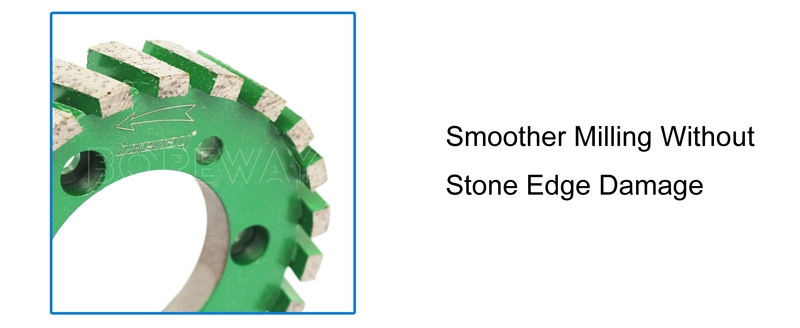

Feature:

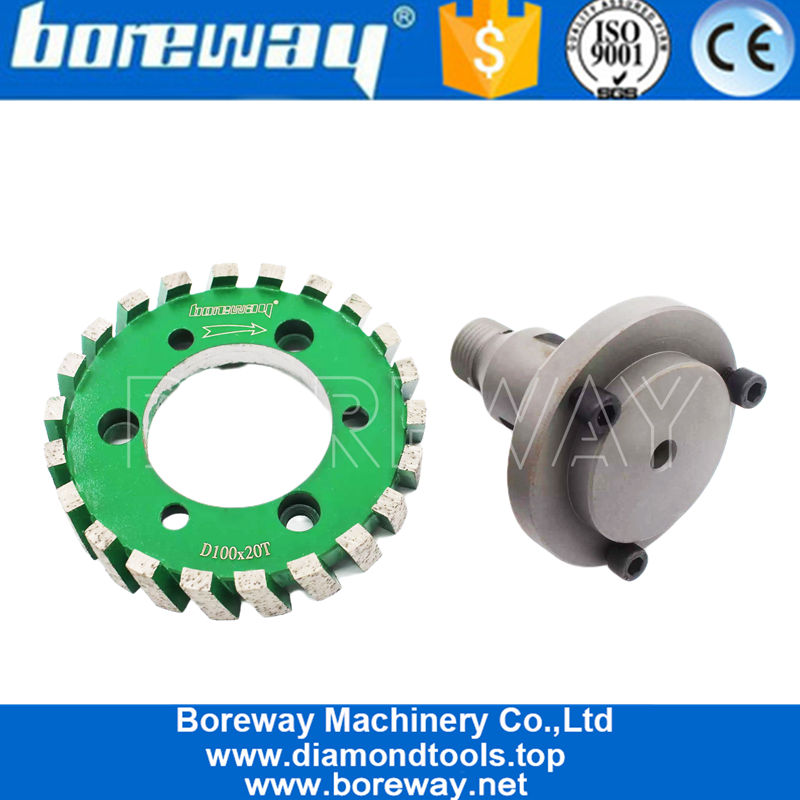

Images:

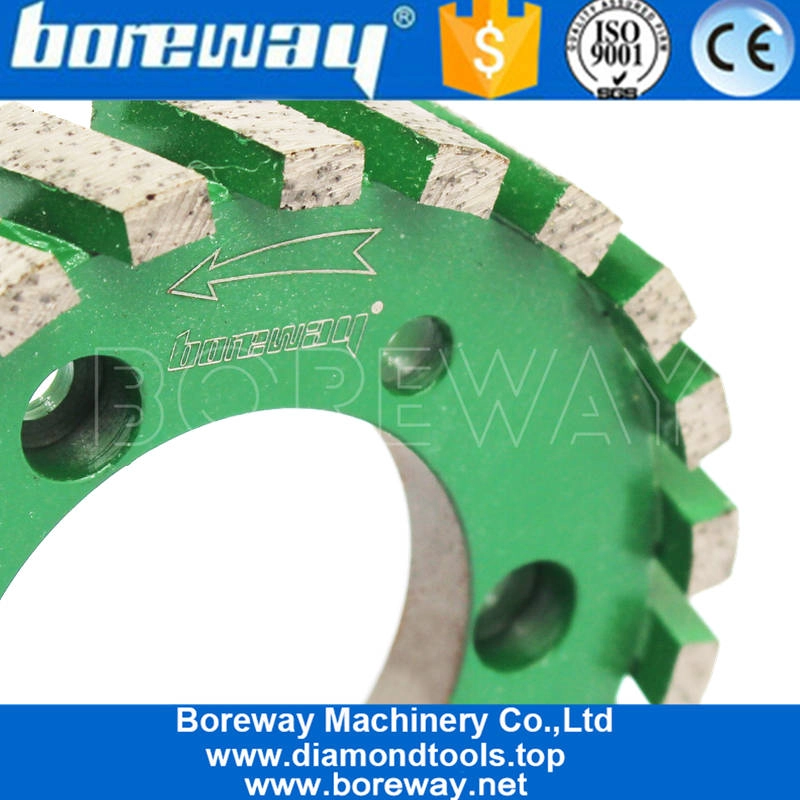

CNC Milling Wheel for Countertop

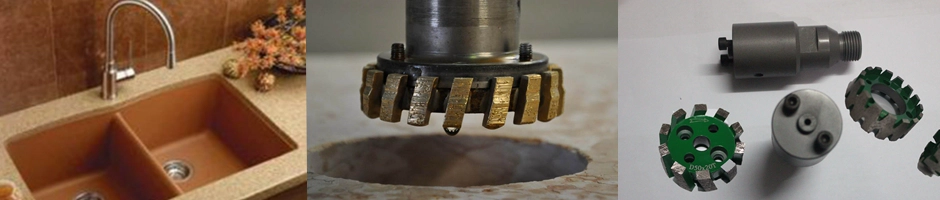

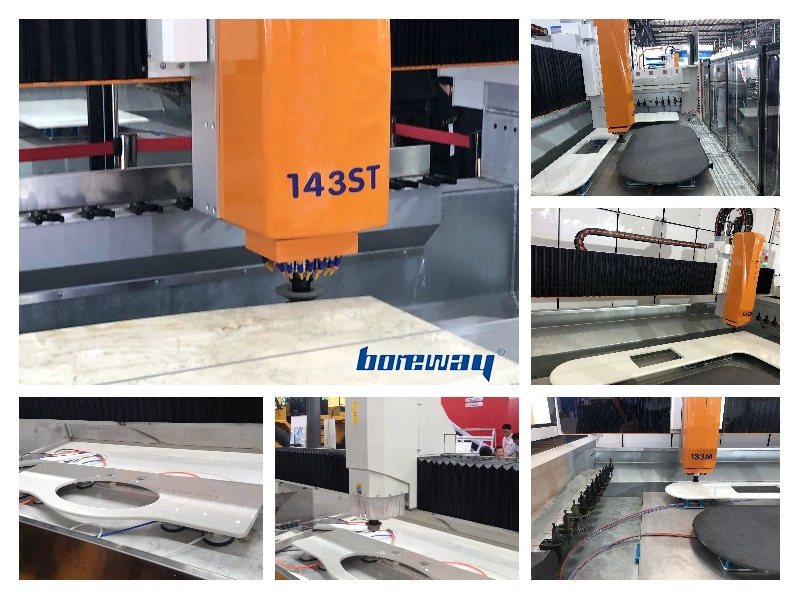

Application:

Use Type:Wet Use

Machine: CNC machine

CNC Milling Wheel for Countertop

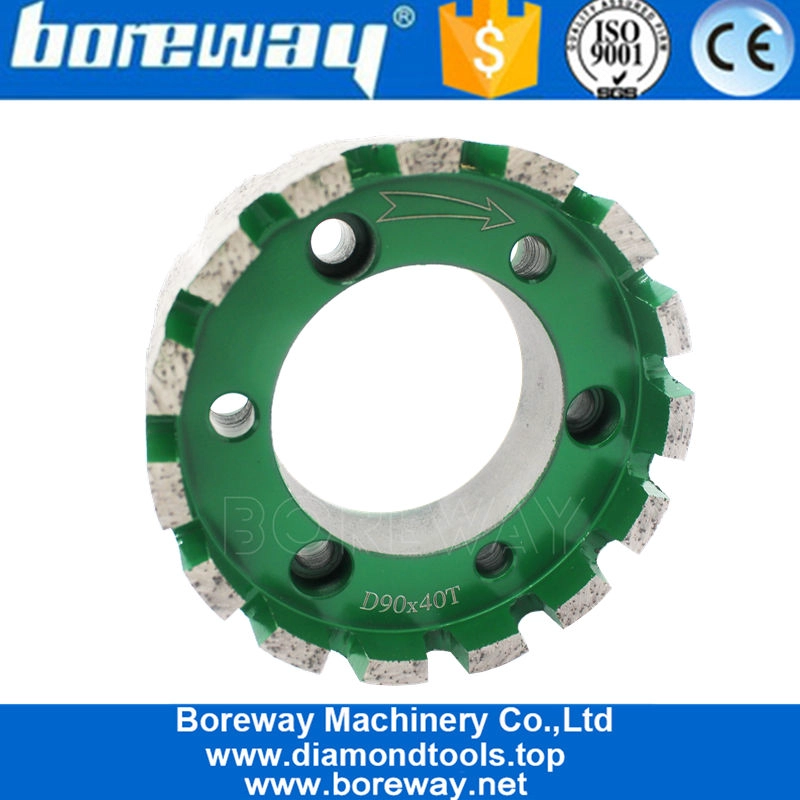

Boreway Factor Price 90mm Diamond Standard Stubbing Wheel For CNC Machine
