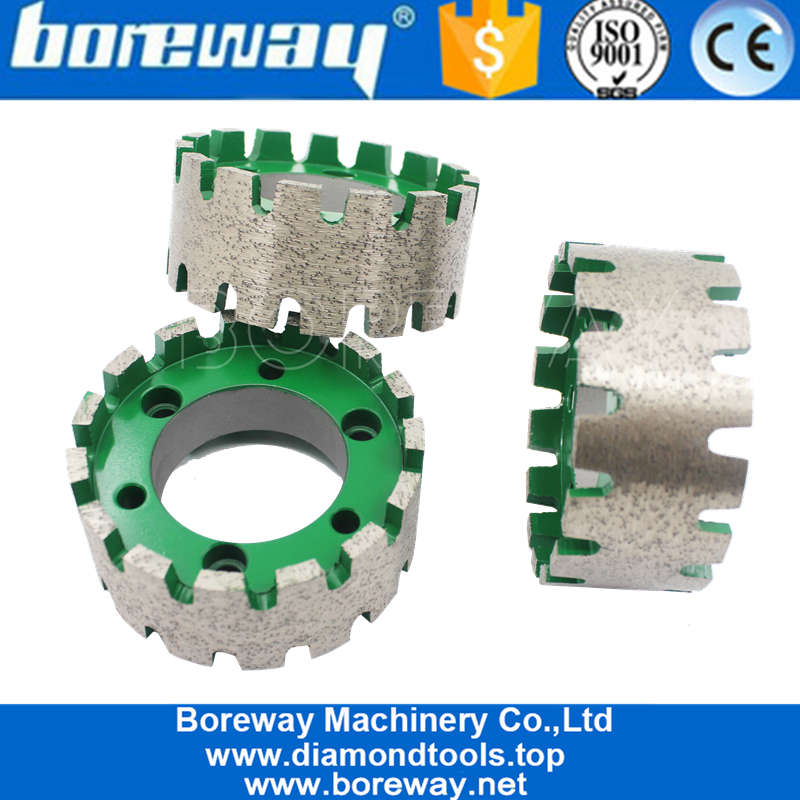

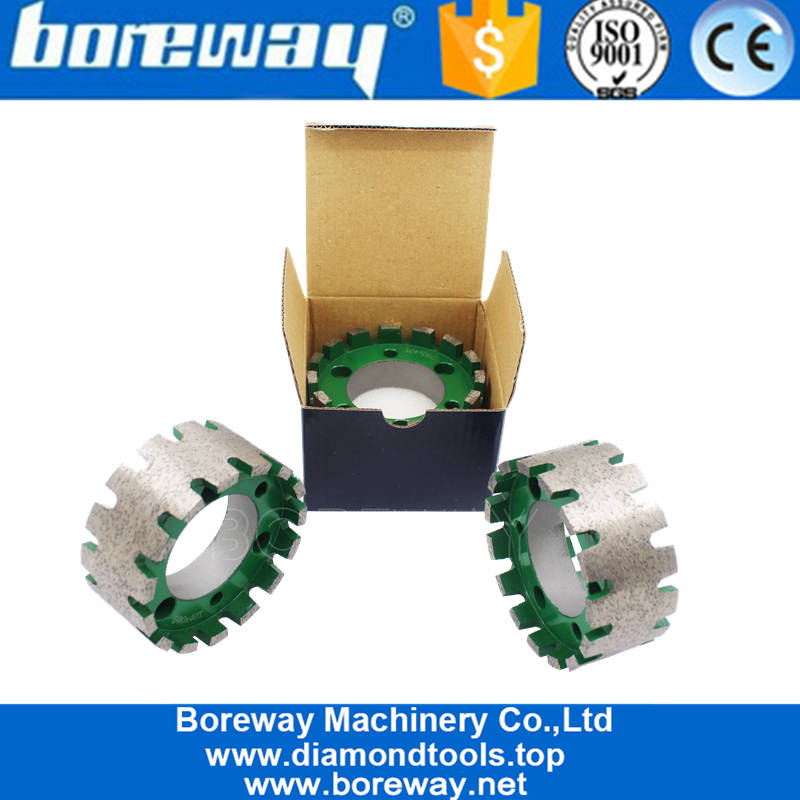

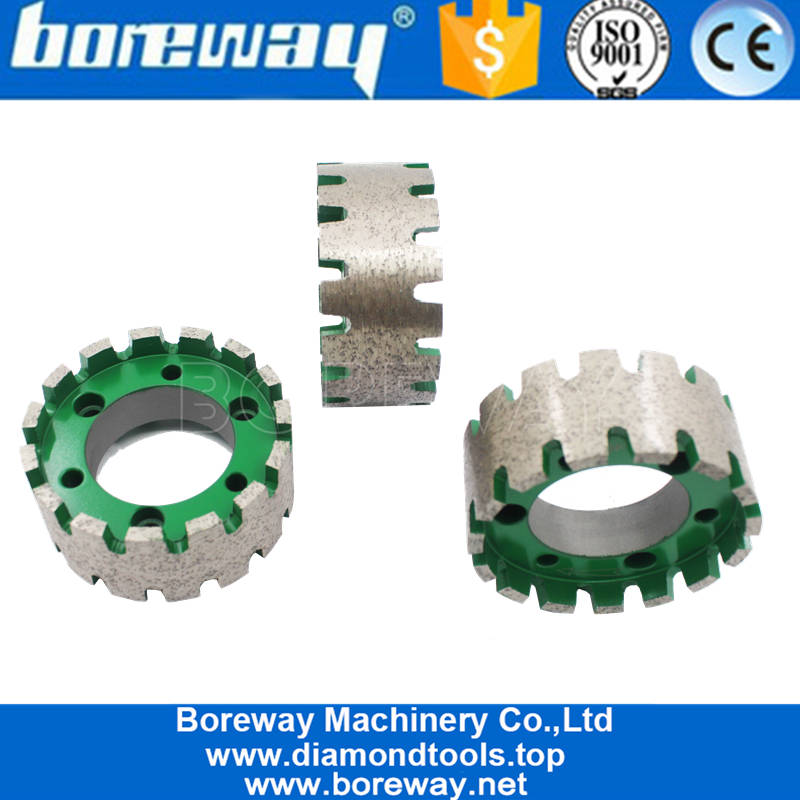

Diamond CNC Continuous Stubbing Wheel for Calibrating Stone Slab Edge
- Diameter: 90MM
- Inner Hole: 50mm
- Size: D90x40Tx50H
- Brand Name: Boreway
- Wet or Dry: Wet Use
- Type: Continuous Type
- Height Of Segment:40mm
- Machine: For CNC Machines
- Model Number: BW-DSSW-C90-40
- Usage: For Surface Milling And Material Removal On Stone
| Descriptions: |
- Use Type: Wet Use
- Size: D90x40Tx50H
- Type: CNC Standard Stubbing Wheel
- Stone standard stubbing wheels is specially designed for calibrating granite, marble, ceramics and well-designed stone processing, providing high precision and smooth surface
- Be designed for stock removal on granite marble by grinding away an excess stone. Stone standard stubbing wheels is the fastest way to remove material after cutting out sinkholes.
| Specification: |
The normal size of China Factory Stone Standard Stubbing Wheels:
| Diameter | Segment Height |
Inner Hole |
| 90mm | 40mm |
50mm |
To improve the efficiency of standard stubbing wheel,here some machine parameters we suggest:
| RPM | Feed Rate | Recommended Depth |
| 4500 | 400-600MM/Minute | 3MM |
More normal specification of diamond standard stubbing wheel we supply:
| Diameter | 50mm, 86mm, 90mm, 100mm |
| Segment Height/MM |
20mm, 30mm, 40mm |
| Inner Hole | 10mm, 50mm |
| Connection | Φ10-2+2Hole Φ10-3+3Hole Φ50-3+3Hole |
| Grit No. | 30/40#, 60#, 100#, 200# |
| Machine | CNC Machine & Radial Arm Machine |
If you need customization, please contact us
Click Here To Browse More:Diamond Stubbing Wheel For Suppliers

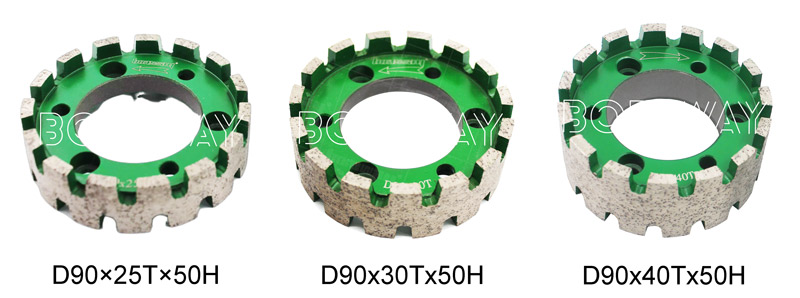

90mm diameter milling wheels with different heights:
1.Sintering Standard Stubbing Wheels without stone edge damage.
2.High efficiency & long lifespan and fast milling speed.
3.Perfect balance with zero vibration and stable performance.
4.Comparing to other drum wheels, it could avoid breaking the slab.
5.High Quality: Unique design has good clarity, can easily remove dust, low noise and safety
| Application: |
1. Stone standard stubbing wheels is used on CNC machine.
2. Be used for sink hole on the wash basin, bathtub, sink and other products
3. Also can use for calibrating the stone slab, these wheels have large segments for fast stock removal.
