Diamond Segment Cold Press Machine 35T-60T factory price Fully Automatic Mechanical diamond tools machine

  • Name:Fully automatic mechanical cold press machine
  • Model:BWM-35T/BWM-60T
  • Maximum working pressure:35T / 60T
  • Maximum volume of hopper box:30 kg
  • Weight accuracy of piece:±2%
  • Quantity of piece per time:1-4 PCS
  • Work efficiency:21-25 Times/Min
  • Device dimension:L850 * W1150 * H1800
  • Place of origin:China

Product Description:
Introduction:
Fully Automatic Mechanical cold press machine for diamond segment is divided into two different models according to the different pressure ( BWM-35T and BWM-60T). On the basis of the commonly used mechanical cold press machines, We made too much improvement and adjustment. It can be used for pressing of large, medium and small saw blade segment, fan-shape segment, diameter of 14, 12, 10, 8, 6 mm drill bit segment and some special shape segment, etc,this machine can also press other powders such as ceramic powder, metal powder and so on.Now , in china , most of factories use this series of machines in the field of diamond tools.
Features:
1. The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply;
2. The screen is working together with the brake, greatly increasing safety factor for operator;
3. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipment,increasing service life of the machine;
4. Small and delicate LED work light;
5. Feeding the metal powder in the way of pneumatic, feeding more twice extraly in a short distance and more accurate;
6. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
7. It also can be used for press ceramic powder and metal powder etc.
Advantage:
Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , more than 20 different countries . In these overseas markets,our products enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

Details:
Specification of fully automatic mechanical cold press machine:

Parameter

Maximum working pressure

35000 Kg

60000KG

Maximum size of mould cavity

40*70 MM

50*70MM

Size of the mould

L (220-250) * W 130 * H (20-30) MM

L(220-250)*W(130-150)*H(20-40) MM

The largest volume of hopper box

30 Kg

30 KG

Maximum height of metal powder

0.5-20 MM

0.5-30 MM

Weight accuracy of metal piece

±2%

±2%

Quantity of metal piece per time

1 - 4 PCS

1-4 PCS

Motor Power

2.2 KW

4 KW

The rated voltage

380 V

380 V

The rated current

6 A

10 A

Work efficiency

25 Times/Min

21 Times/Min

Distance of upward

64 MM

80 MM

Device dimension

L810 * W1000 * H1600

L850 * W1150 * H1800

Net weight

760 Kg

1000 KG

Other specifications can be customized according to requirements.

The following shows only part of the product,other products can be customized according to your needs
If you do not find the product you want,please contact us for more product images.

        
Pictures:

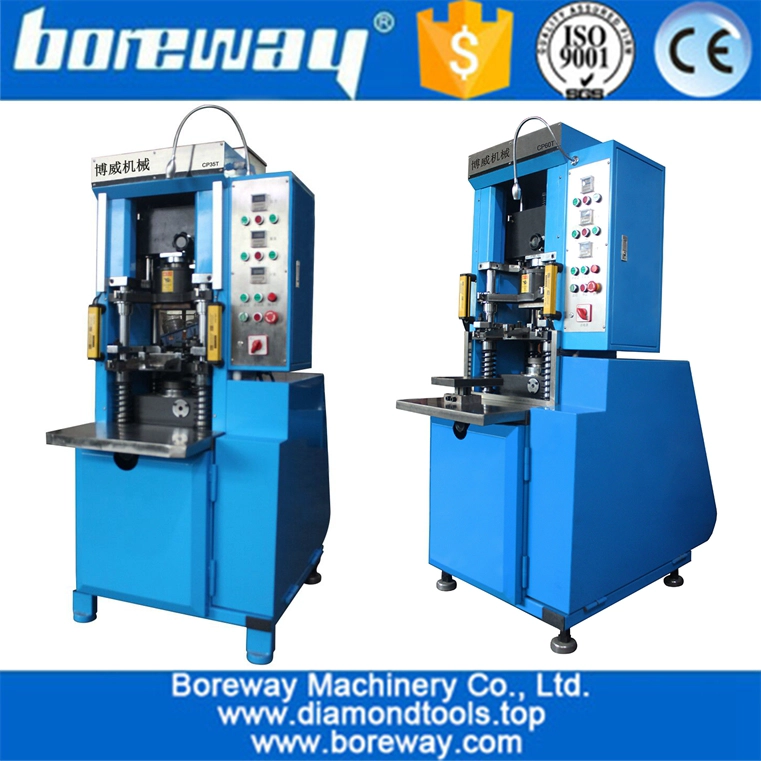

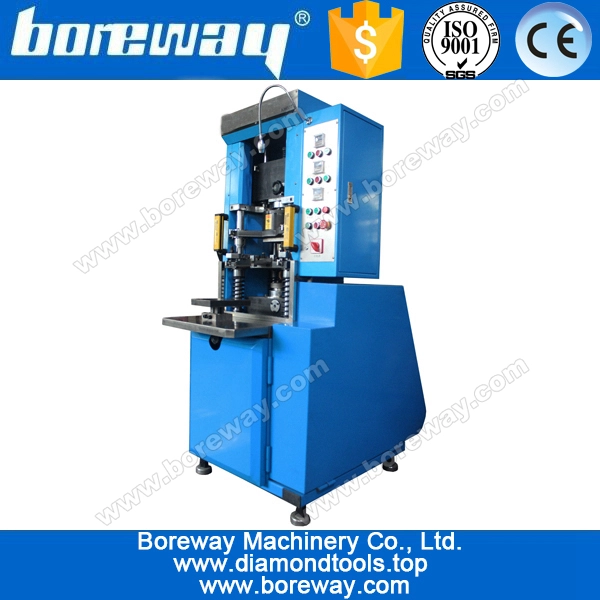

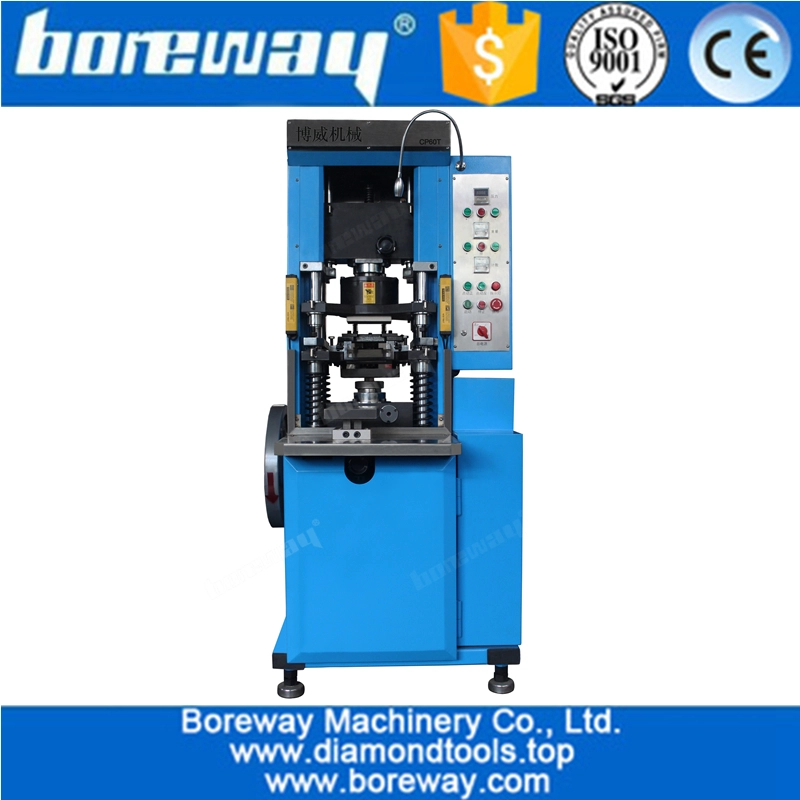

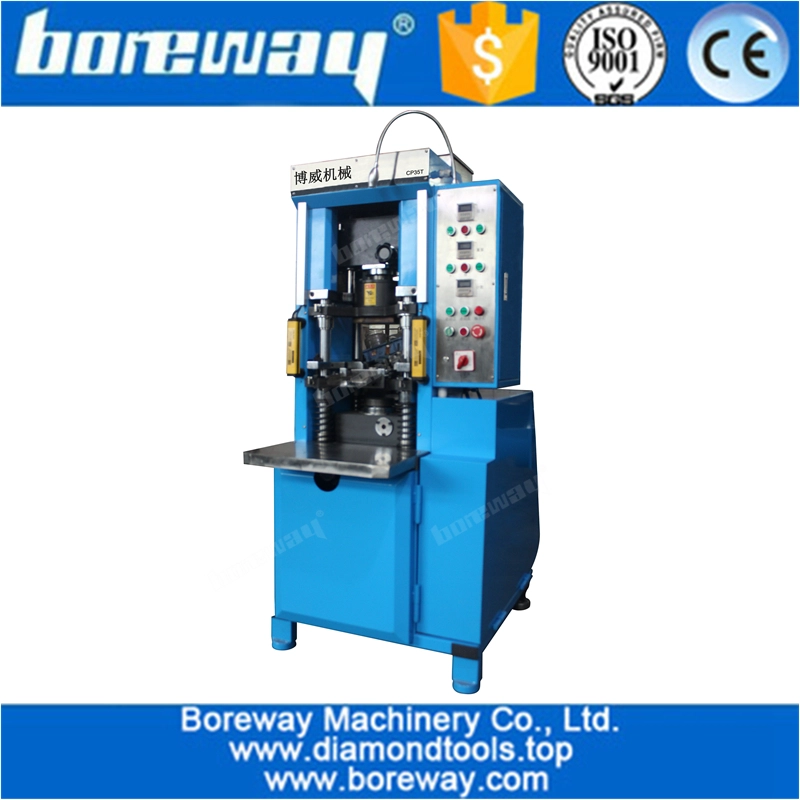

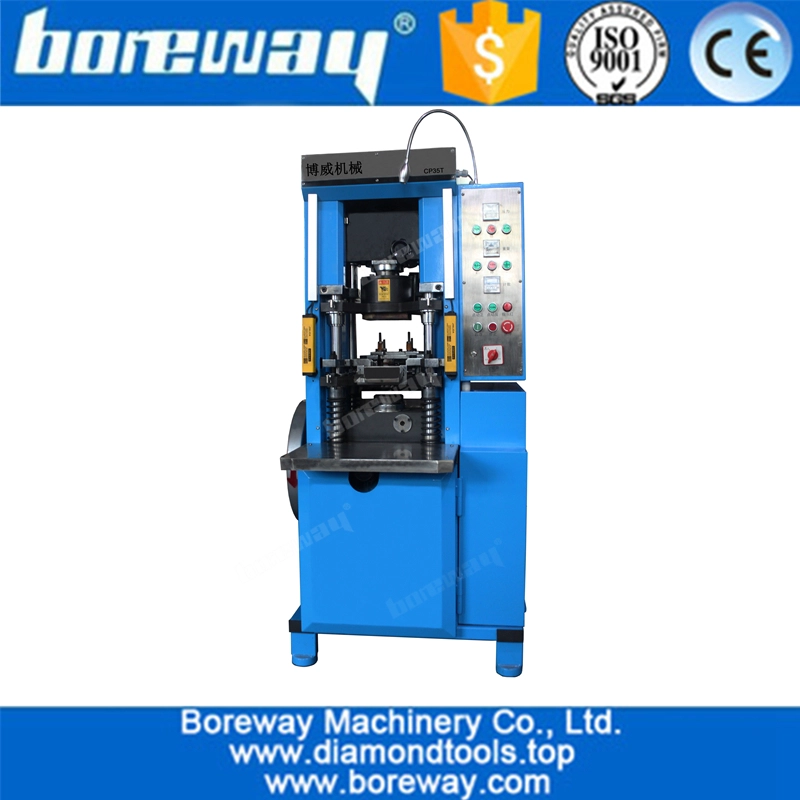

Automatic Mechanical cold press machine for diamond segments 35T

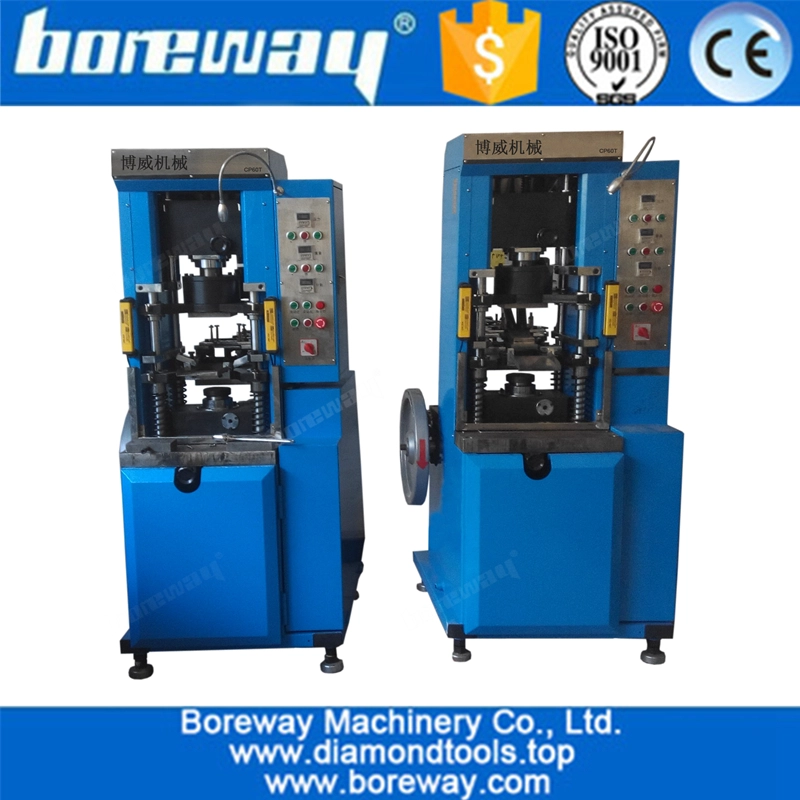

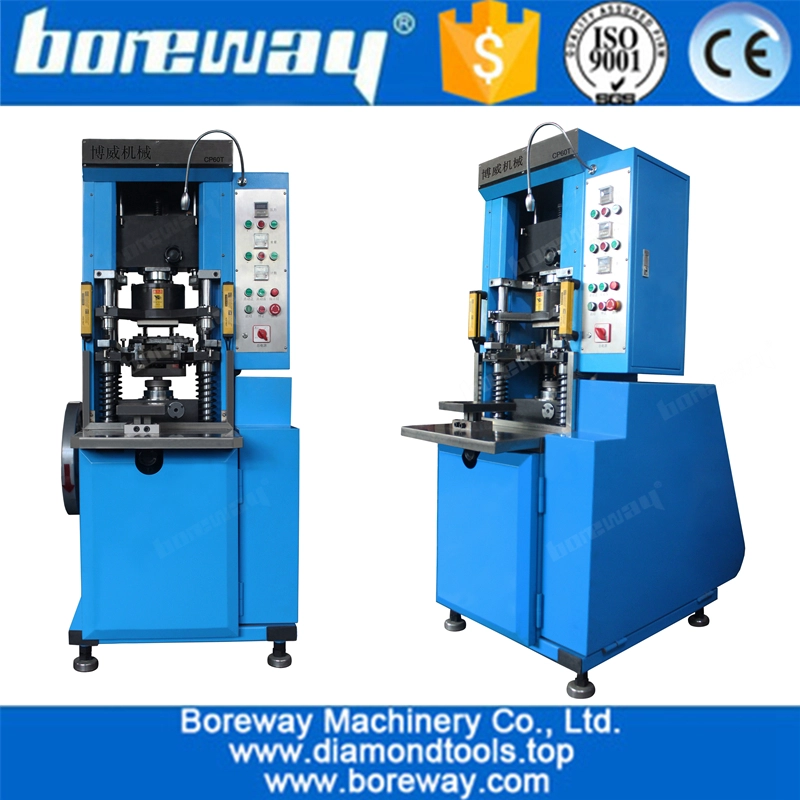

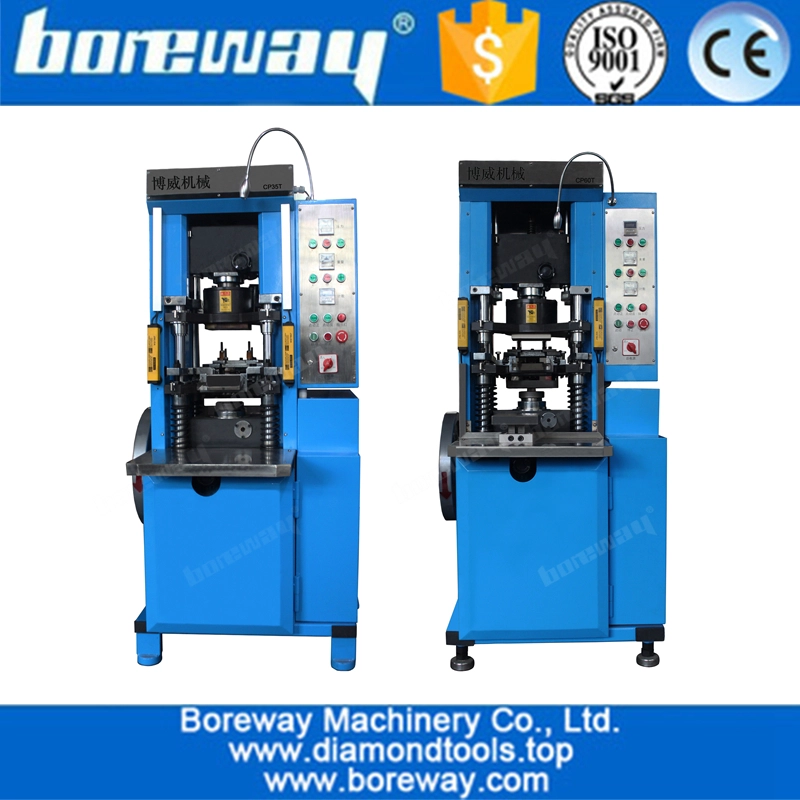

Automatic Mechanical cold press machine for diamond segments 35T 60T
Automatic Mechanical cold press machine for diamond segments 60T

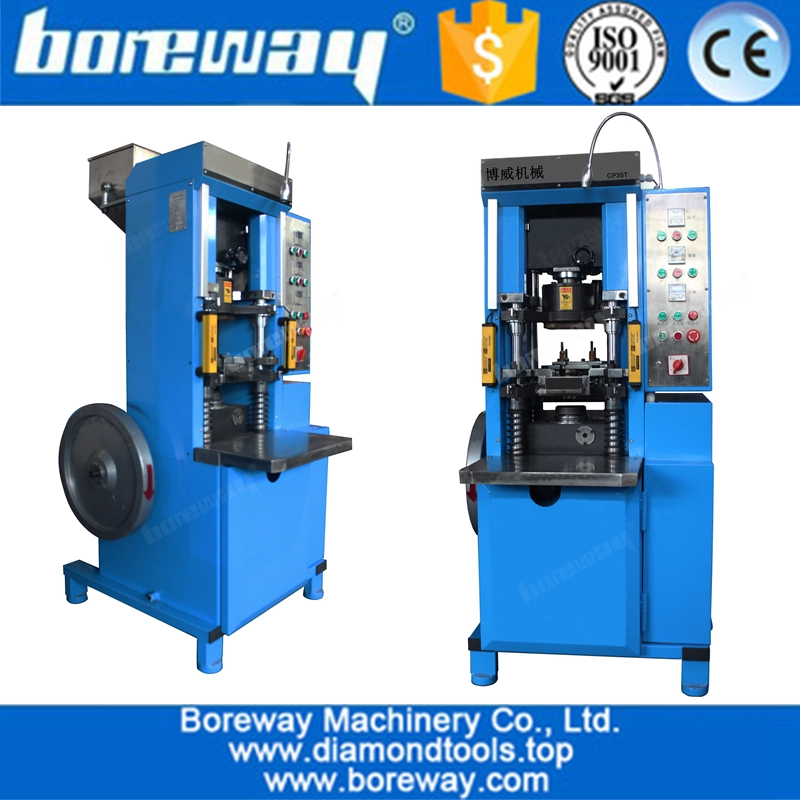

Automatic Mechanical cold press machine for diamond segments 35T 60T

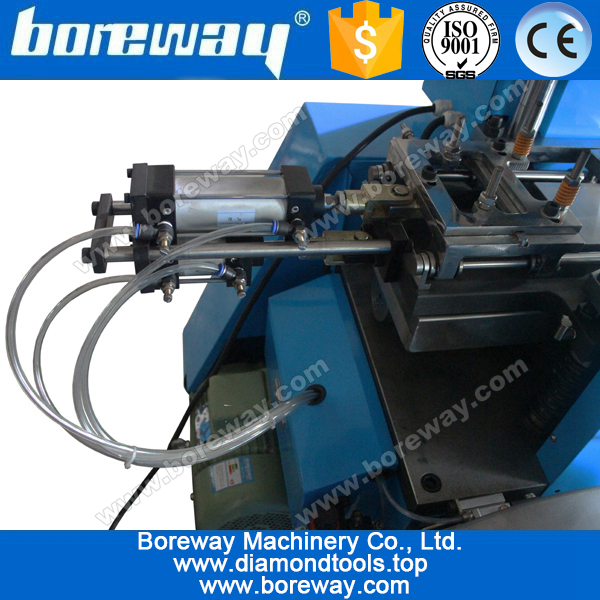

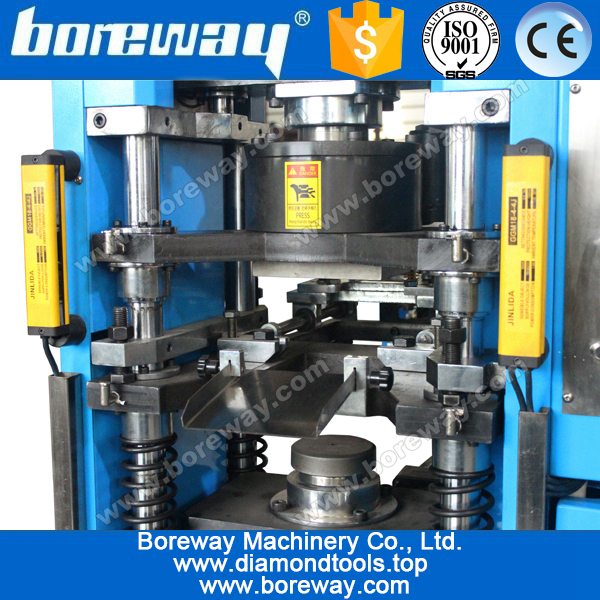

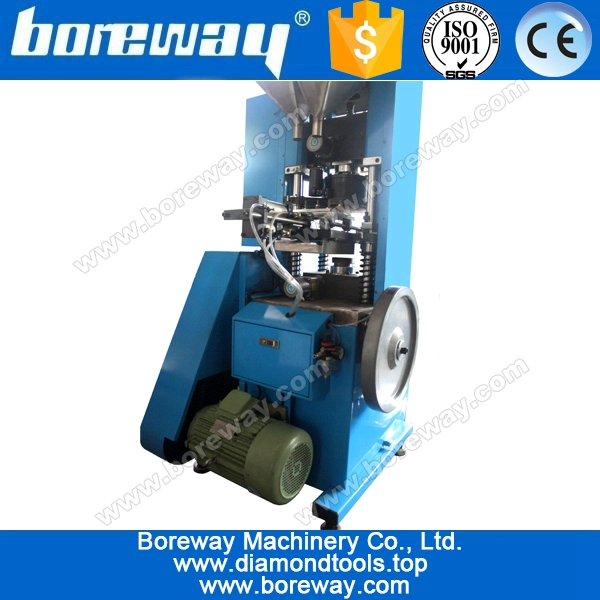

The Details ofDiamond Segments Cold Press Machine                                                                   
automatic mechanical cold press machine for segment  automatic mechanical cold press machine for segment
  automatic mechanical cold press machine for segment automatic mechanical cold press machine for segment

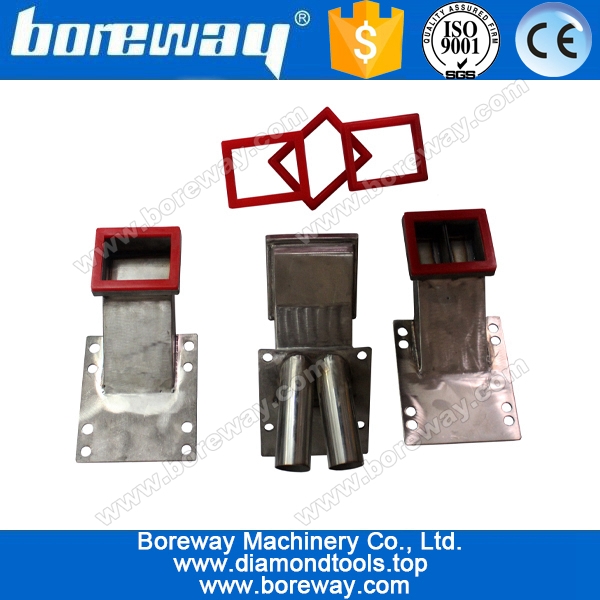

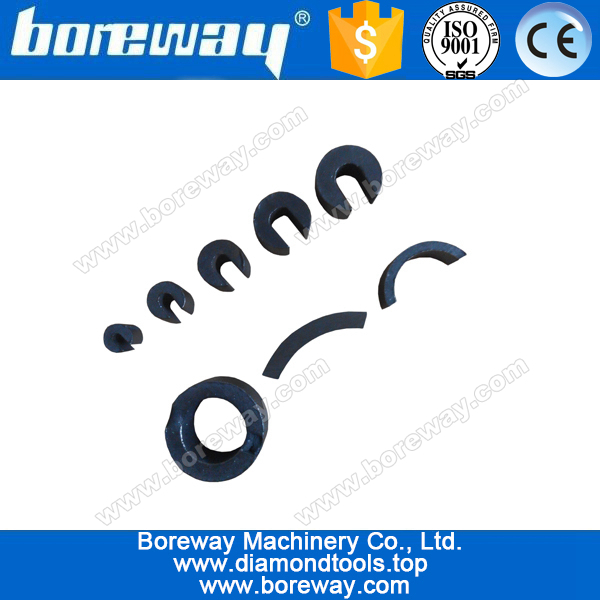

Automatic Cold Press Machine Tools Accessories
Automatic Cold Press Machine Tools Accessories

Packing and shipping:
We will deliver within seven days of your payment,products are packed in wooden.
We can also pack the products according to your requirements.
Special specifications need to be negotiated for delivery times.

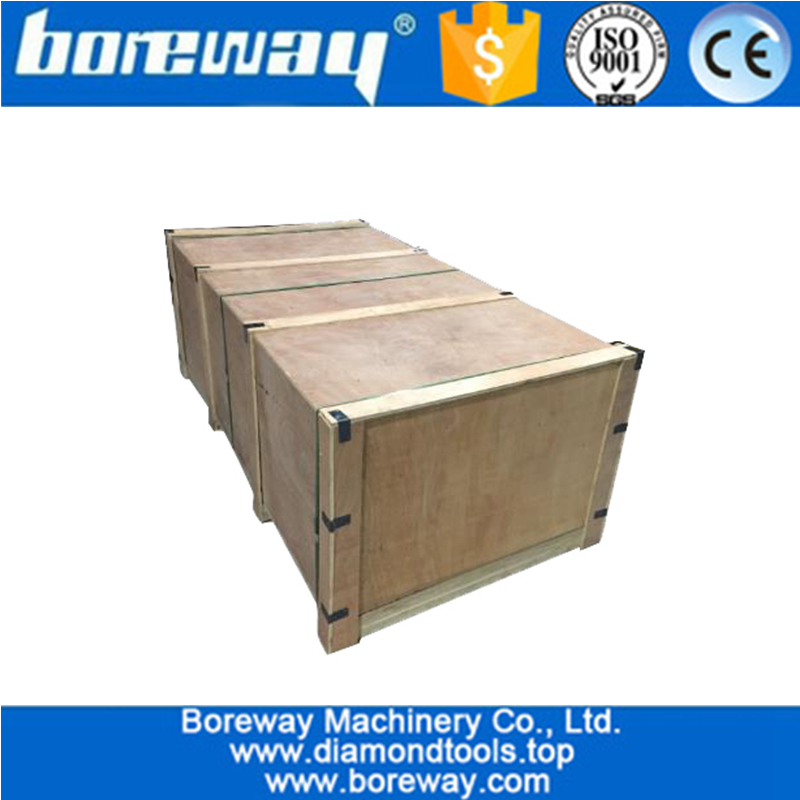

automatic cold press machine packing wooden box
boreway machine delivery
