Newest fully automatic 35 ton and 60 ton pressure mechanical cold press machine for diamond powder

Name:Fully automatic mechanical cold press machine
Model:BWM-35T/BWM-60T
Maximum working pressure:35T / 60T
Maximum volume of hopper box:30 kg
Weight accuracy of piece:±2%
Quantity of piece per time:1-4 PCS
Work efficiency:21-25 Times/Min
Device dimension:L810 * W1000 * H1600 L850 * W1150 * H1800
Place of origin:China

Get A Quote Contact Now

Product Description:

Introduction:

Fully Automatic Mechanical cold press machine for diamond segment is divided into two different models according to the different pressure ( BWM-35T and BWM-60T). On the basis of the commonly used mechanical cold press machines, We made too much improvement and adjustment. It can be used for pressing of large, medium and small saw blade segment, fan-shape segment, diameter of 14, 12, 10, 8, 6 mm drill bit segment and some special shape segment, etc,this machine can also press other powders such as ceramic powder, metal powder and so on.Now , in china , most of factories use this series of machines in the field of diamond tools.

Features:

1. Small and delicate LED work light;

2. It also can be used for press ceramic powder and metal powder etc.

3.The screen is working together with the brake, greatly increasing safety factor for operator;

4. Feeding the metal powder in the way of pneumatic, feeding more twice extraly in a short distance and more accurate;
5. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;

6. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipment,increasing service life of the machine;

7.The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply;

Advantage:

Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , Iran, Pakistan, etc., more than 20 different countries. In these overseas markets,our products enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.

All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

Details:

Specification of fully automatic mechanical cold press machine:

Parameter
Maximum working pressure	35000 Kg	60000KG
Maximum size of mould cavity	40*70 MM	50*70MM
Size of the mould	L (220-250) * W 130 * H (20-30) MM	L(220-250)W(130-150)H(20-40) MM
The largest volume of hopper box	30 Kg	30 KG
Maximum height of metal powder	0.5-20 MM	0.5-30 MM
Weight accuracy of metal piece	±2%	±2%
Quantity of metal piece per time	1 - 4 PCS	1-4 PCS
Motor Power	2.2 KW	4 KW
The rated voltage	380 V	380 V
The rated current	6 A	10 A
Work efficiency	25 Times/Min	21 Times/Min
Distance of upward	64 MM	80 MM
Device dimension	L810 * W1000 * H1600	L850 * W1150 * H1800
Net weight	760 Kg	1000 KG

Other specifications can be customized according to requirements.

The following shows only part of the product,other products can be customized according to your needs
If you do not find the product you want,please contact us for more product images.

Pictures:

Automatic Mechanical cold press machine for diamond segments 35T

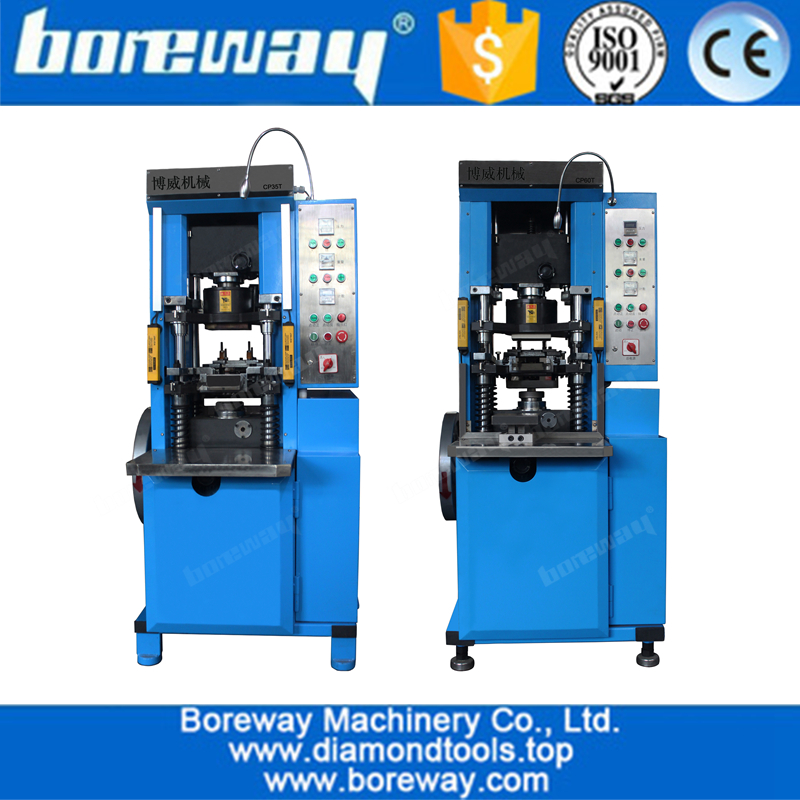

Automatic Mechanical cold press machine for diamond segments 60T

The Details of Diamond Segments Cold Press Machine

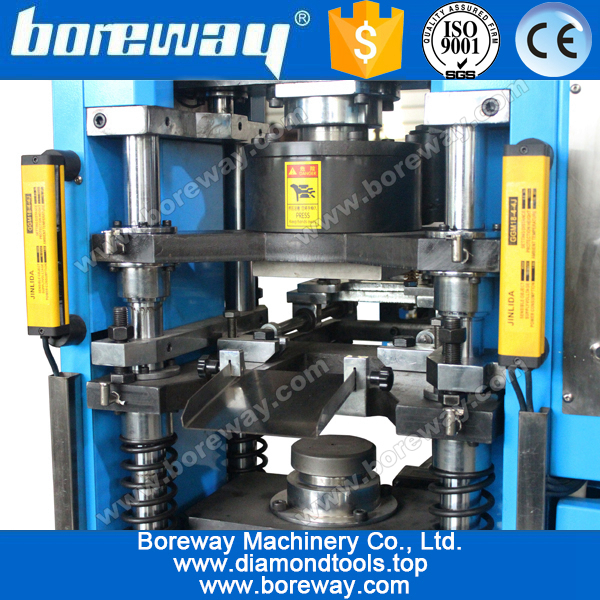

automatic mechanical cold press machine for segment

Automatic Cold Press Machine Tools Accessories included

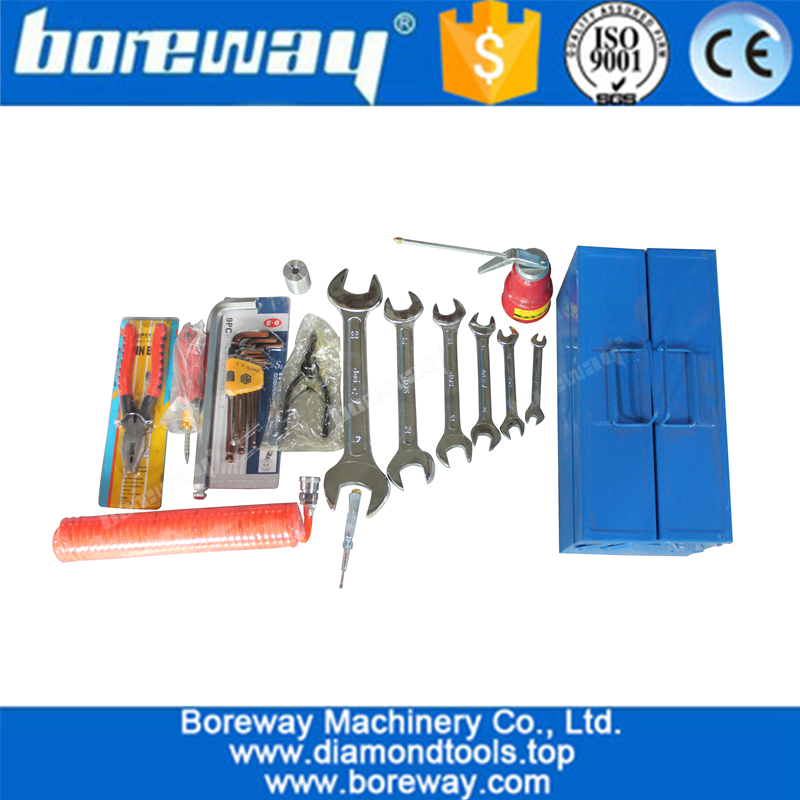

Fully Auto Cold Press machine Tool Box included

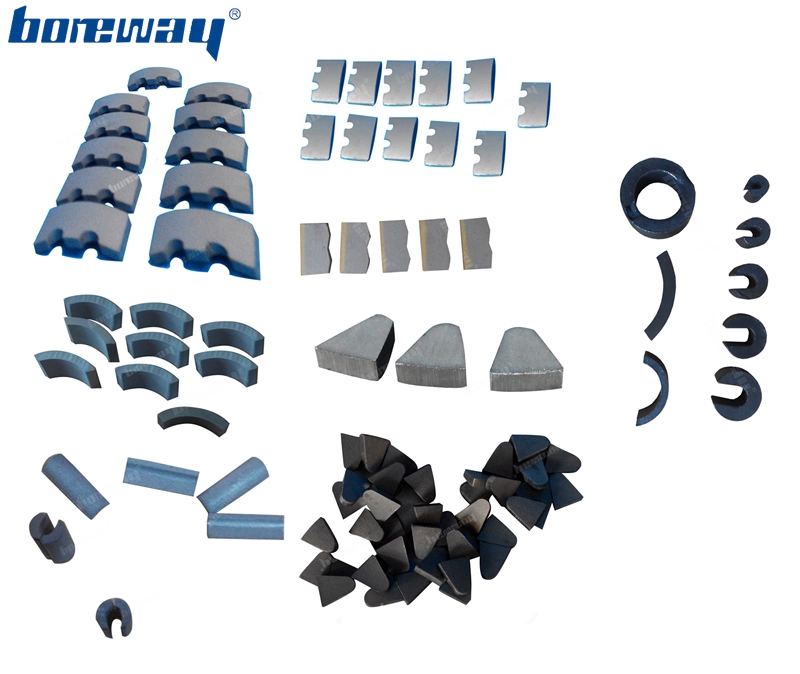

This cold press machine can make the following diamond segments,also can make other kinds.

More Pics in details, Pls contact with us :)

fully automatic cold press machine making diamond segments

Packing and shipping:

We will deliver within seven days of your payment,products are packed in wooden.
We can also pack the products according to your requirements.
Special specifications need to be negotiated for delivery times.

automatic cold press machine wooden box packing
