Fully Automatic Mechanical Diamond Segment Cold Press Machine Model BWM-35T for saw blade drill bit pressing etc.
- Model: BWM-35T
- Motor Power: 2.2KW
- The rated voltage: 380V
- The rated current: 6A
- Distance of upward: 64MM
- Work efficiency: 34Times / Min
- Maximum working pressure: 35000KGS
- Weight accuracy of metal piece: ±2%
- The largest volume of hopper box: 30KGS
- Maximum height of metal powder: 0.5-20MM
- Quantity of metal piece per time: 1- 4PC
- Maximum size of mould cavity: 40*70MM
Introduction:
Fully Automatic Mechanical Cold Press Machine For Diamond Segments is divided into two different models according to the different pressure (BWM-35T and BWM-60T). On the basis of the commonly used mechanical cold press machines, We made too much improvement and adjustment. It can be used for pressing of large, medium and small saw blade segment, fan-shape segment, diameter of 14, 12, 10, 8, 6 mm drill bit segment and some special shape segment, etc.
Features:
1. The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply;
2. The screen is working together with the brake, greatly increasing safety factor for operator;
3. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipments, increasing service life of the machine;
4. Small and delicate LED work light;
5. Feeding the metal powder in the way of mechnical, feeding more twice extraly in a short distance and more accurate;
6. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
7. It also can be used for pressing the segment with a base layer of metal powder (welding layer).
2. The screen is working together with the brake, greatly increasing safety factor for operator;
3. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipments, increasing service life of the machine;
4. Small and delicate LED work light;
5. Feeding the metal powder in the way of mechnical, feeding more twice extraly in a short distance and more accurate;
6. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
7. It also can be used for pressing the segment with a base layer of metal powder (welding layer).
Advantage:
Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , more than 20 different countries . In these overseas markets,our products enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
Other specifications can be customized according to requirements.
Specification of fully automatic mechanical cold press machine:
Model: BWM-35T
| Maximum working pressure | 35000KGS |
| Maximum size of mould cavity | 40*70MM |
| Size of the mould | L (220-250) * W 130 * H (20-30)CM |
| The largest volume of hopper box | 30KGS |
| Maximum height of metal powder | 0.5-20MM |
| Weight accuracy of metal piece | ±2% |
| Quantity of metal piece per time | 1- 4PC |
| Motor Power | 2.2KW |
| The rated voltage | 380V |
| The rated current | 6A |
| Work efficiency | 34Times / Min |
| Size of the mould | L (220-250) * W 130 * H (20-30)CM |
| Device dimension | L810 * W1000 * H1600(Face angle) |
| Net Weight | 760KGS |
Other specifications can be customized according to buyer's requirements.
Another model, Pls click here: Automatic Mechanical Cold Press Machine for diamond segment
The following shows only part of the product,other products can be customized according to your needs
If you do not find the product you want,please contact us for more product images.
| Pictures: |

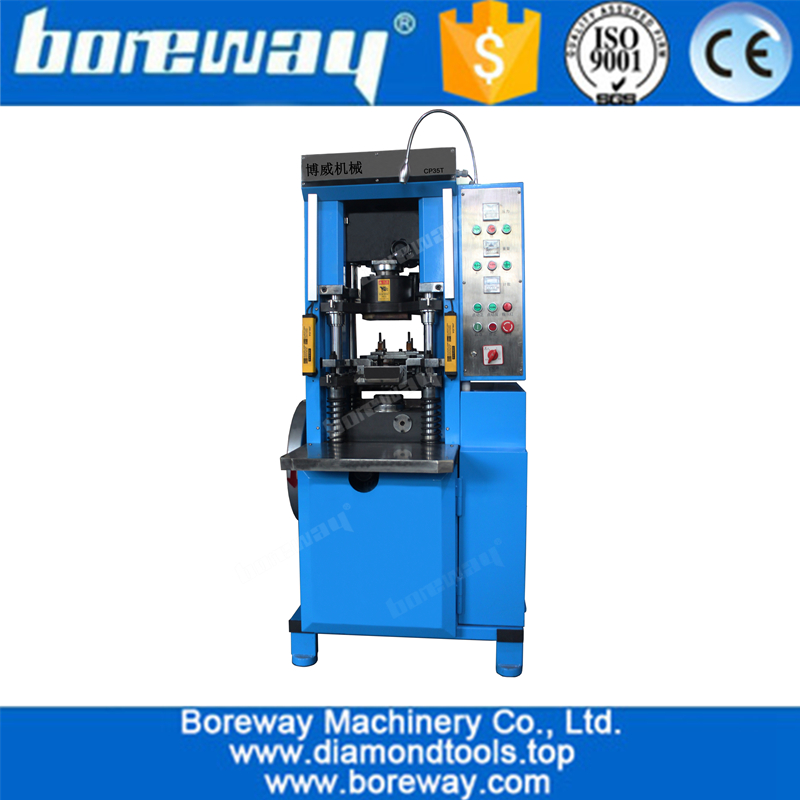

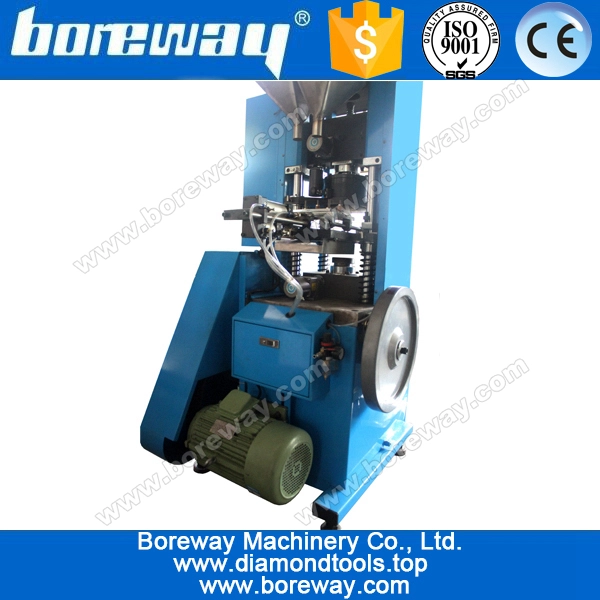

Automatic Mechanical cold press machine for diamond segments 35T

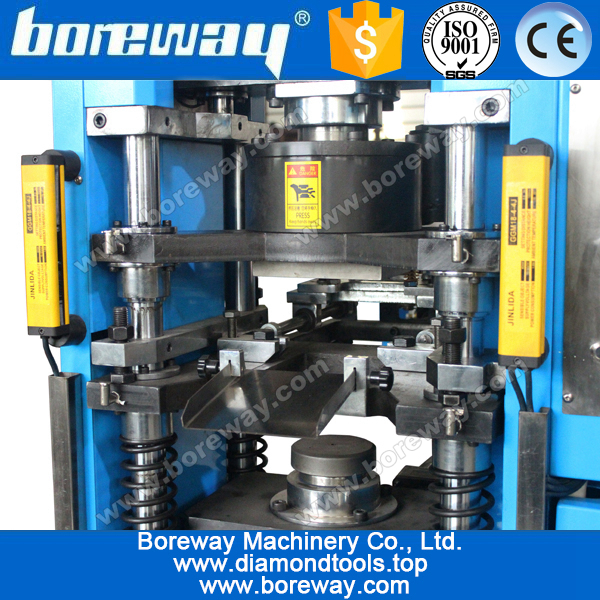

Diamond Segments Cold Press Machine Details

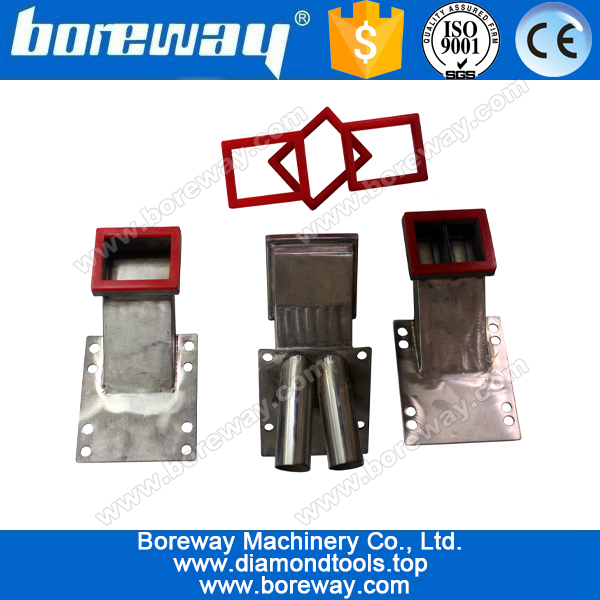

Automatic Cold Press Machine Tools Accessories included

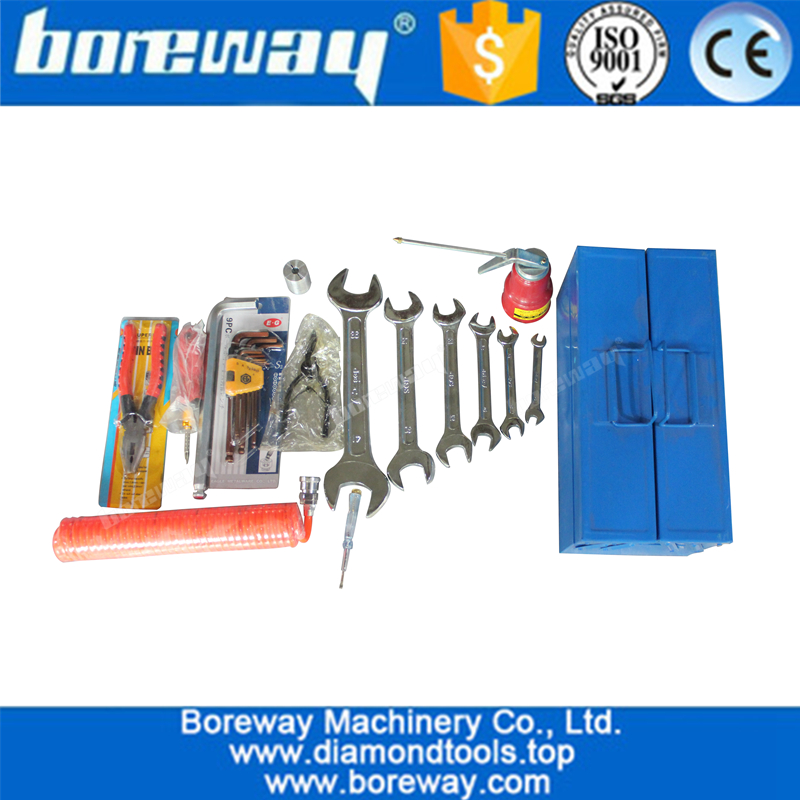

Fully Auto Cold Press machine Tool Box included

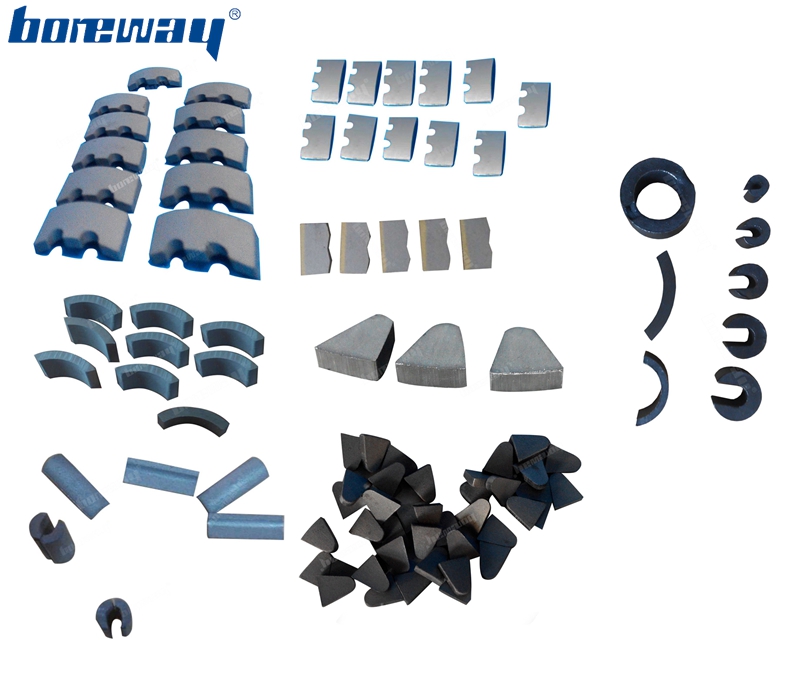

his cold press machine can make the following diamond segments,also can make other kinds.
More Pics in details, Pls contact with us :)

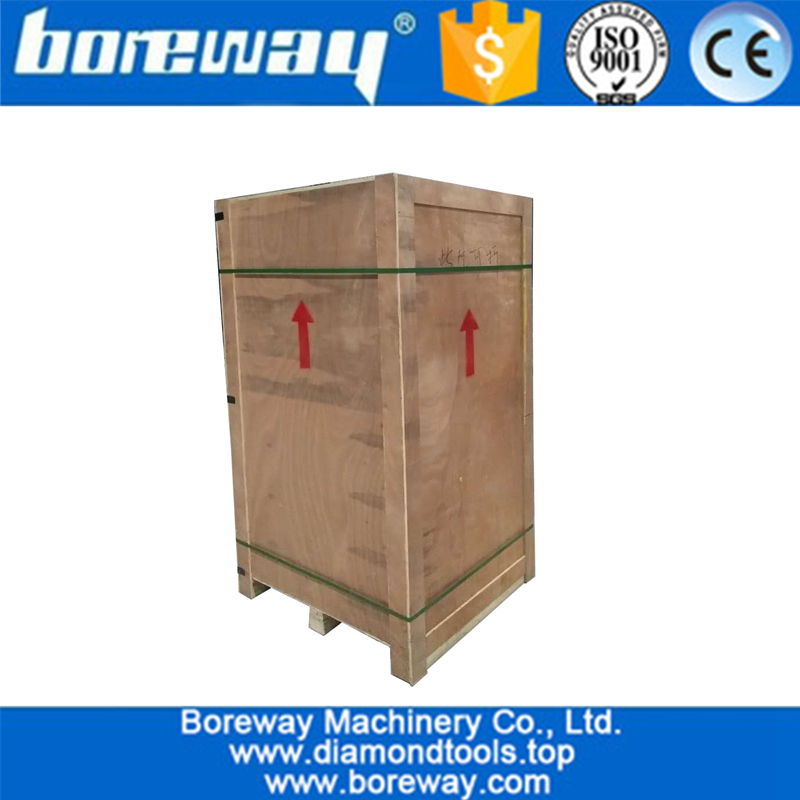

We will deliver within seven days of your payment,products are packed in wooden.
We can also pack the products according to your requirements.
Special specifications need to be negotiated for delivery times.
We can also pack the products according to your requirements.
Special specifications need to be negotiated for delivery times.
