Diamond Rock Concrete Core Drill Bit With Detachable Adapter
- Model Number: BW-DCDB-00
- Type: Dry or wet use
- Diameter: 20mm to 127mm
- Pipe Length: 100mm or 85mm
- Segment Height: 8mm to 10mm
- Industry: Diamond drilling tools
- Technology: Sintered
- Advantage: Good sharpness and detachable adapter.
- Machine: Hand-held drill and other drilling machine.
- Applications: Diamond rock concrete core drill bit with detachable adapter is used for drilling concrete artificial stone and quartz etc.
Introduction:
Diamond rock concrete core drill bit with detachable adapter is suitable for stand drilling machine,electrical hand-held
drillers to drill concrete and other construction materials. The detachable adapter method prove the advantages as
high efficiency and flexible.
Features:
1. High efficiency and long lifespan.
2. Ideal design of detachable adapter can offer high flexible drilling.
Specifications:
The followings are the normal specifications of our diamond rock concrete core drill bit with detachable adapter:
| Code No. | Diameter | Segment Size | Use | Pipe Length | Welding Method | Adaptor |
| BW-DCDB-00 | 20mm (3/4”) | 17/12x3x10 | Dry or Wet |
85mm |
Silver Welding or Laser Welding | 5/8"-11 M14 1/2" Gas |
| 22mm (7/8”) | 17/12x3x10 | |||||
| 25mm (1”) | 17/12x3x10 | |||||
| 29mm (1-1/8") | 17/12x3x10 | |||||
| 32mm (1-1/4”) | 16x3x10 | |||||
| 35mm (1-3/8”) | 16x3x10 | |||||
| 38mm (1-1/2”) | 16x3x10 | |||||
| 42mm (1-5/8") | 16x3x10 | |||||
| 45mm (1-3/4”) | 16x3x10 | |||||
| 50/51mm (2”) | 16x3x10 | |||||
| 57mm (2-1/4”) | 22x3.5x10 | |||||
| 60mm (2-3/8”) | 22x3.5x10 | |||||
| 63mm (2-1/2”) | 22x3.5x10 | |||||
| 70mm (2-3/4”) | 22x3.5x10 | |||||
| 76mm (3”) | 22x3.5x10 | |||||
| 80mm (3-1/8” | 22x3.5x10 | |||||
| 89mm (3-1/2”) | 22x3.5x10 | |||||
| 102mm (4”) | 22x3.5x10 | |||||
| 110mm (4-3/8”) | 22x3.5x10 | |||||
| 127mm (5”) | 24x4x10 |
The above specifications are for reference, other specifications can be ordered by customers.

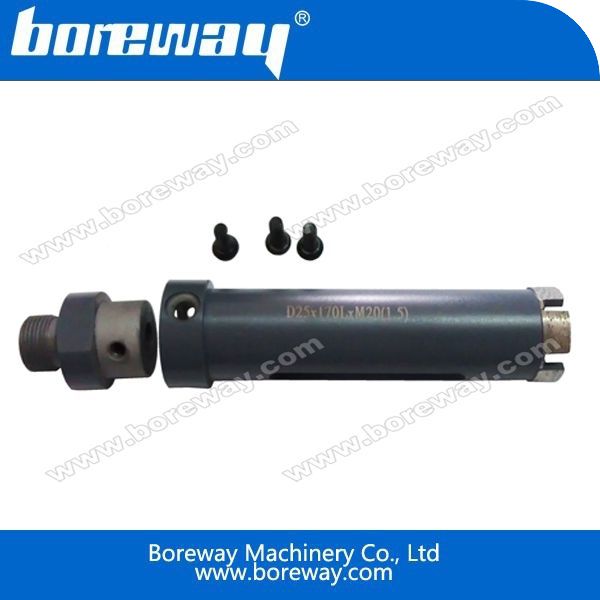

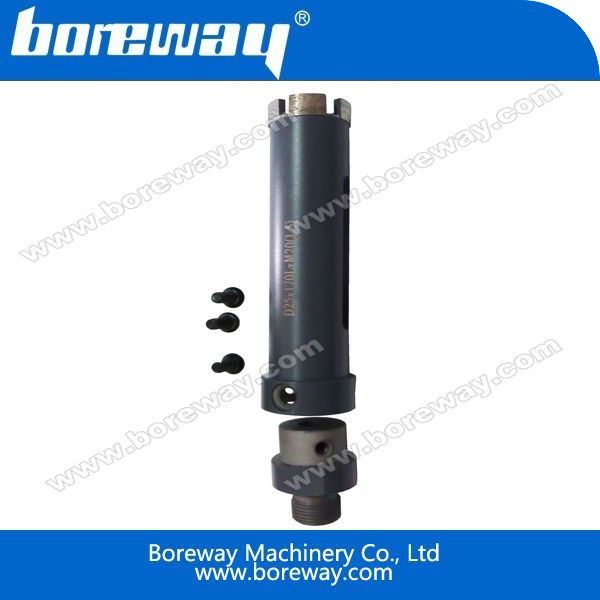

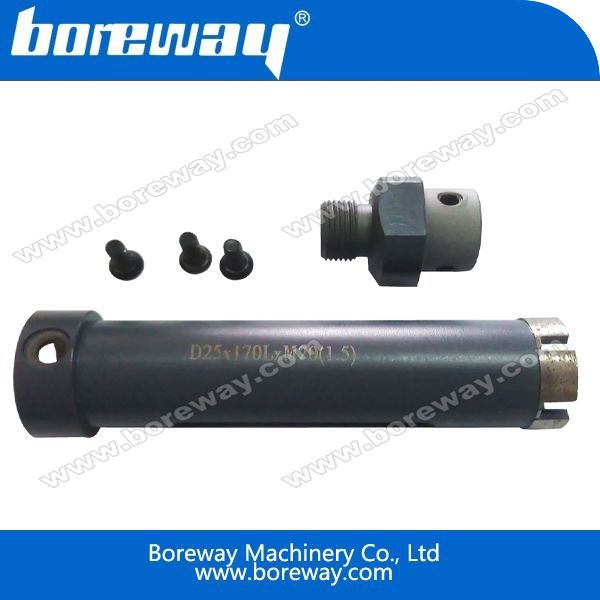

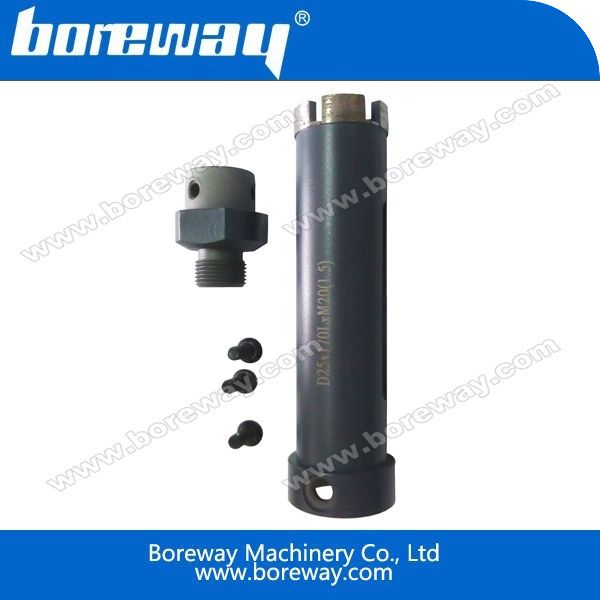

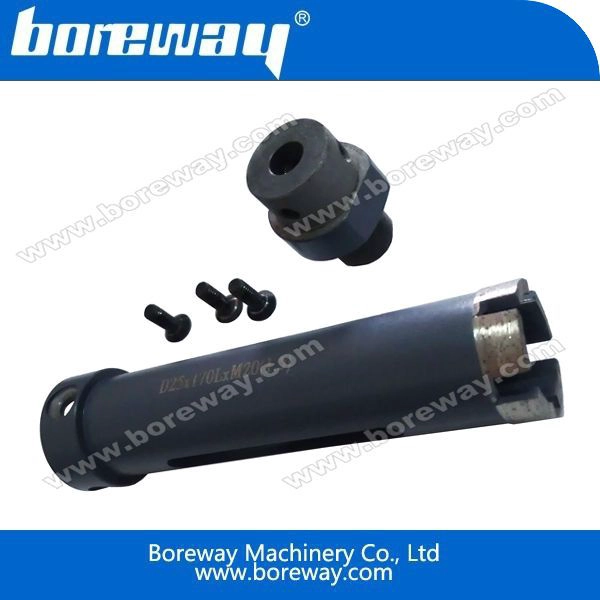

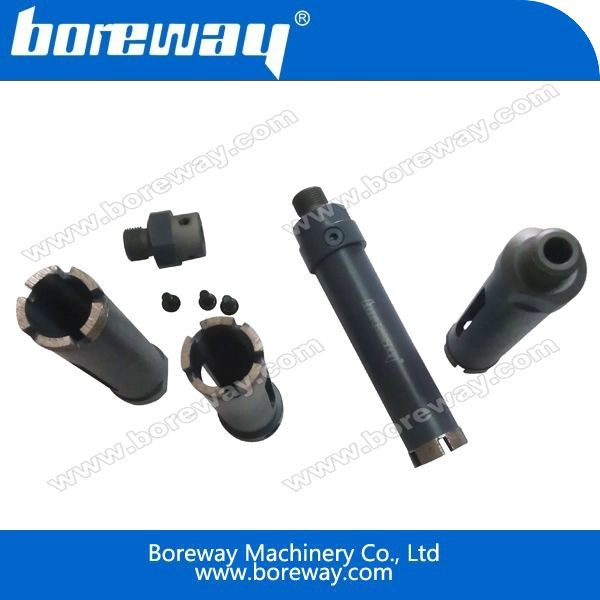

Picture Of Product:
Diamond rock concrete core drill bit with detachable adapter
