Supply Thin Wall Diamond Coring Drill Cutter For Reinforced Concrete
- Model Number:BW-DCD
- Type:Wet use
- Technology:Sintered
- Applications:Drilling concrete,brick,masonry etc.
- Machine:Stand drilling machine,electrical hand-held drillers
- Advantage:Good sharpness and long lifespan.
Introduction:
Thin Wall Diamond Coring Drill Cutter For Reinforced Concrete are suitable for stand drilling machine,electrical hand-held drillers to drill concrete,
masonry,brick etc. The flowing of water keeps the drill bit cool and provide fast removal of drilling debris.
Features:
1.Applicable for most stand drilling machines,hand-held drillers.
2.Good balance and stable performance.
Specifications:
The followings are the normal specifications of our Thin Wall Diamond Coring Drill Cutter For Reinforced Concrete :
|
Product Name |
Diameter |
Segment Size |
Segment No. |
Length |
Applications |
|
Wet Construction Diamond Core Drill Bit |
7/8"(22mm) |
12x3.0x10 |
3 |
Can be customized |
Concrete Brick Masonry |
|
1"(25mm) |
12x3.0x10 |
4 |
|||
|
1.18"(29mm) |
12x3.0x10 |
4 |
|||
|
1.25"(32mm) |
16x3.0x10 |
4 |
|||
|
1.38"(35mm) |
16x3.0x10 |
4 |
|||
|
1.50"(38mm) |
16x3.0x10 |
5 |
|||
|
1.63"(42mm) |
16x3.0x10 |
5 |
|||
|
1.75"(45mm) |
16x3.0x10 |
6 |
|||
|
1.88"(48mm) |
16x3.0x10 |
6 |
|||
|
2"(52mm) |
16x3.0x10 |
7 |
|||
|
2.25"(57mm) |
22x3.5x10 |
5 |
|||
|
2.50"(63mm) |
22x3.5x10 |
6 |
|||
|
2.75"(70mm) |
22x3.5x10 |
7 |
|||
|
3"(76mm) |
22x3.5x10 |
8 |
|||
|
3.25"(82mm) |
22x3.5x10 |
9 |
|||
|
3.50"(89mm) |
22x3.5x10 |
10 |
|||
|
4"(102mm) |
22x3.5x10 |
10 |
|||
|
4.25"(108mm) |
22x3.5x10 |
11 |
|||
|
4.50"(114mm) |
22x3.5x10 |
11 |
|||
|
4.75"(120mm) |
24x4.0x10 |
11 |
|||
|
5"(127mm) |
24x4.0x10 |
11 |
|||
|
5.5"(140mm) |
24x4.0x10 |
12 |
|||
|
5.75"(146mm) |
24x4.0x10 |
13 |
|||
|
6"(152mm) |
24x4.0x10 |
13 |
|||
|
6.25"(159mm) |
24x4.0x10 |
14 |
|||
|
6.5"(165mm) |
24x4.0x10 |
15 |
|||
|
7"(178mm) |
24x4.0x10 |
16 |
|||
|
8"(203mm) |
24x4.5x10 |
18 |
|||
|
9"(229mm) |
24x4.5x10 |
20 |
|||
|
10"(254mm) |
24x4.5x10 |
23 |
|||
|
11"(280mm) |
24x5.0x10 |
25 |
|||
|
12"(305mm) |
24x5.0x10 |
27 |
|||
|
13"(330mm) |
24x5.5x10 |
30 |
|||
|
14"(356mm) |
24x5.5x10 |
32 |
The above specifications are for reference, other specifications can be ordered by customers.
Picture:

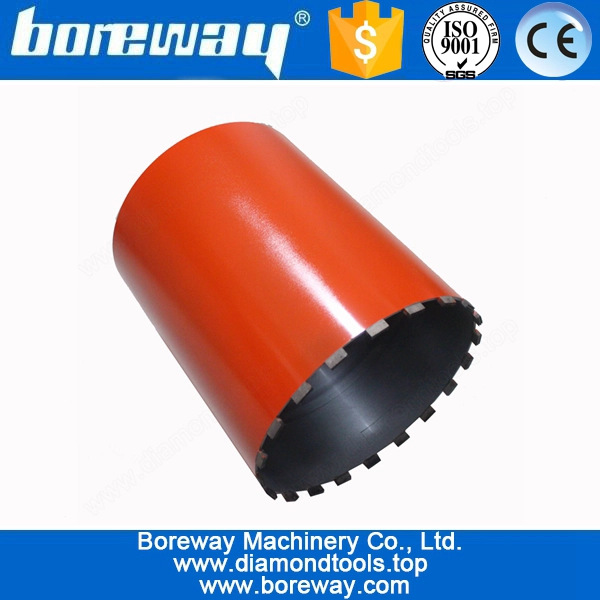

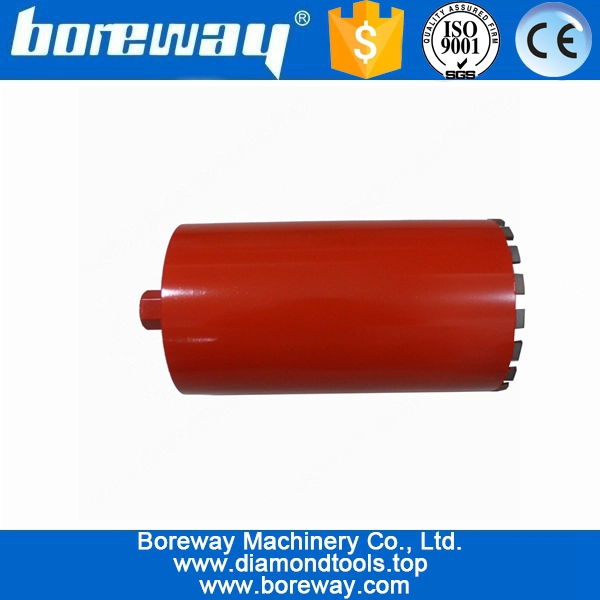

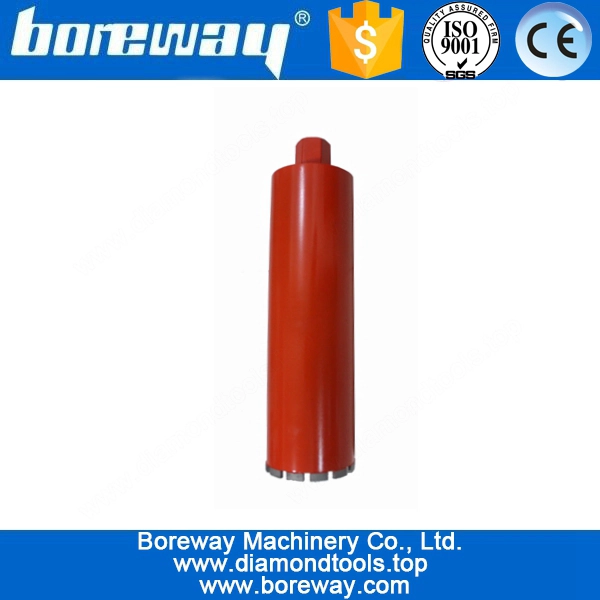

Thin Wall Diamond Coring Drill Cutter For Reinforced Concrete
