Supply Diamond Core Drill Bit For Reinforced Concrete D54(D50)*140L*M20*1.5P

  • Model Number:BW-DCD-10
  • Type:Wet use
  • Diameter:54mm
  • Length :140mm
  • Connection:M20
  • Pitch thread:1.5
  • Machine:Stand drilling machine,electrical hand-held drillers
  • Technology:Sintered
  • Advantage:Good sharpness and long lifespan.
  • Applications:Drilling concrete,brick,masonry etc.

Introduction:

Diamond core drill bits are suitable for stand drilling machine,electrical hand-held drillers to drill concrete,

masonry,brick etc. The flowing of water keeps the drill bit cool and provide fast removal of drilling debris.


Features:

1.Applicable for most stand drilling machines,hand-held drillers.

2.Good balance and stable performance.


Specifications:

The followings are the normal specifications of our Diamond core drill bit for reinforced concrete:

Product Name

Diameter

Segment Size

Segment No.

Length

Applications

Wet

Construction

Diamond

Core

Drill Bit

7/8"(22mm)

12x3.0x10

3

Can be customized

Concrete

Brick

Masonry

1"(25mm)

12x3.0x10

4

1.18"(29mm)

12x3.0x10

4

1.25"(32mm)

16x3.0x10

4

1.38"(35mm)

16x3.0x10

4

1.50"(38mm)

16x3.0x10

5

1.63"(42mm)

16x3.0x10

5

1.75"(45mm)

16x3.0x10

6

1.88"(48mm)

16x3.0x10

6

2"(52mm)

16x3.0x10

7

2.25"(57mm)

22x3.5x10

5

2.50"(63mm)

22x3.5x10

6

2.75"(70mm)

22x3.5x10

7

3"(76mm)

22x3.5x10

8

3.25"(82mm)

22x3.5x10

9

3.50"(89mm)

22x3.5x10

10

4"(102mm)

22x3.5x10

10

4.25"(108mm)

22x3.5x10

11

4.50"(114mm)

22x3.5x10

11

4.75"(120mm)

24x4.0x10

11

5"(127mm)

24x4.0x10

11

5.5"(140mm)

24x4.0x10

12

5.75"(146mm)

24x4.0x10

13

6"(152mm)

24x4.0x10

13

6.25"(159mm)

24x4.0x10

14

6.5"(165mm)

24x4.0x10

15

7"(178mm)

24x4.0x10

16

8"(203mm)

24x4.5x10

18

9"(229mm)

24x4.5x10

20

10"(254mm)

24x4.5x10

23

11"(280mm)

24x5.0x10

25

12"(305mm)

24x5.0x10

27

13"(330mm)

24x5.5x10

30

14"(356mm)

24x5.5x10

32

The above specifications are for reference, other specifications can be ordered by customers.


Picture:

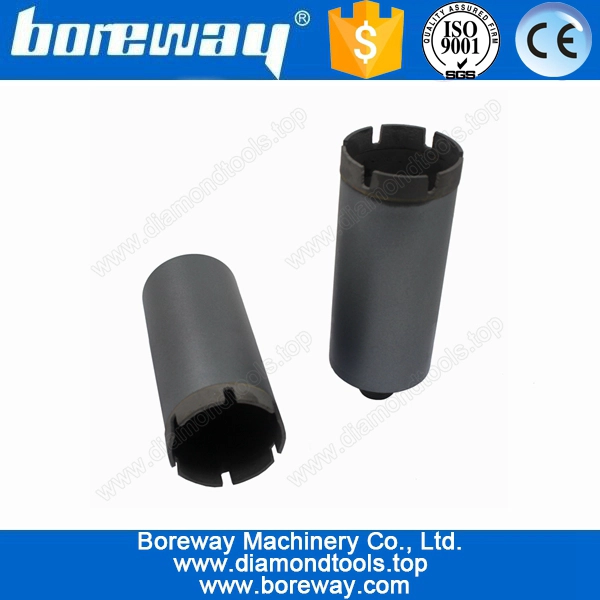

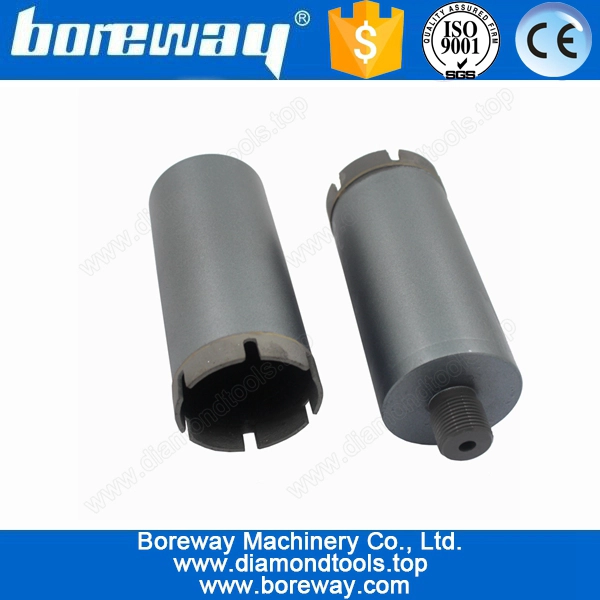

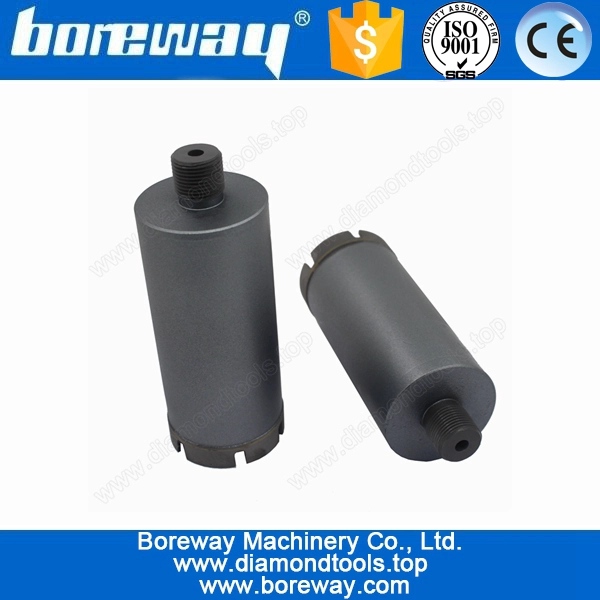

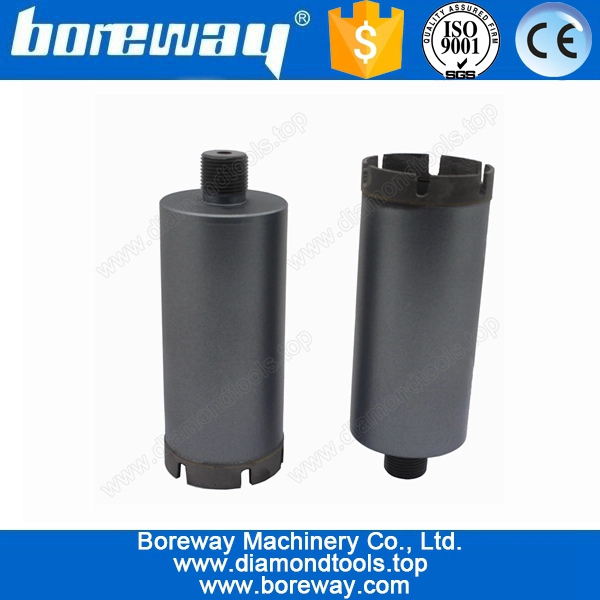

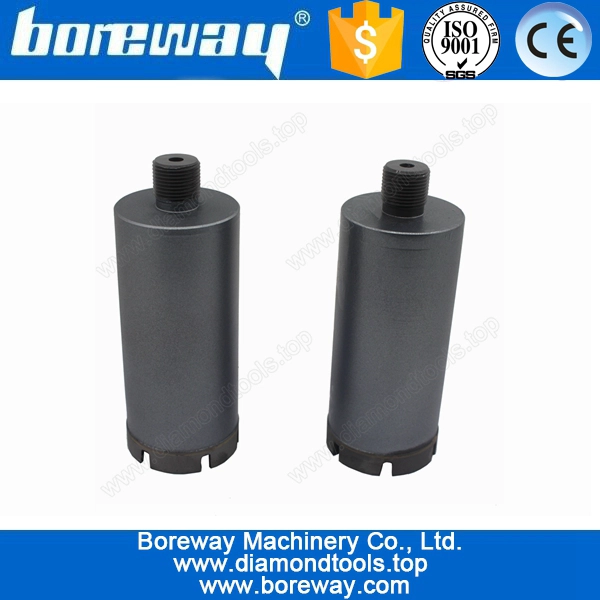

Diamond Core Drill Bit For Reinforced Concrete D54(D50)*140L*M20*1.5P

Diamond Core Drill Bit For Reinforced Concrete D54(D50)*140L*M20*1.5P


Related product:

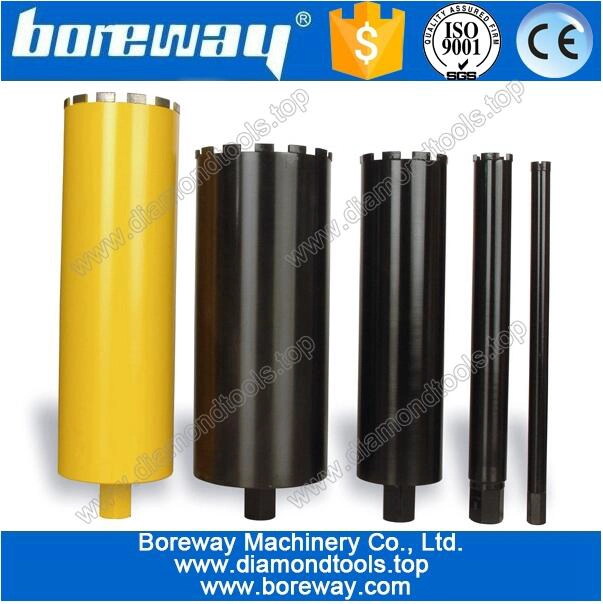

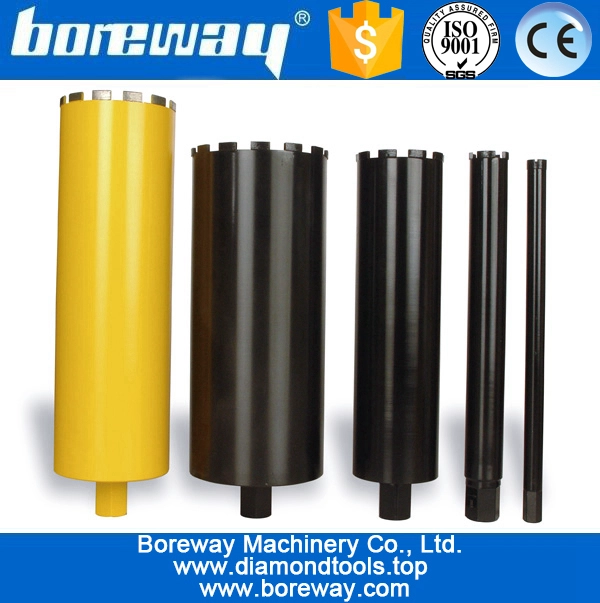

Construction diamond core drill bit,diamond wet core bit for drilling concrete
