D50*25T*10H continious standard diamond stubbing wheelD50*25T*10H continious standard diamond stubbing wheelD50*25T*10H continious standard diamond stubbing wheelD50*25T*10H continious standard diamond stubbing wheel

D50*25T*10H continious standard diamond stubbing wheel

  • Model Number:BW-DSW-C-0502510
  • Diameter:50mm
  • Segment height:25mm
  • Inner hole:10mm
  • Applications:Stone
  • Machine:CNC machine or other stone machine.
  • Advantage:High efficiency good performance
Introduction:
1. Diamond stubbing wheels usually used for sink hole on the wash basin, bathtub, sink and other products;
2. Stubbing wheels also can use for calibrating the stone slab, these wheels have large segments for fast stock removal;
3. The diameter of the stubbing wheels is 50mm, segment hight is 25mm, connection is 10mm, diamond segment type is continious rim, the wheels usually used on CNC machines;
4. We offer a variety of different grits, types, and sizes of stubbing wheels, the stubbing wheels can process many kinds materials.
Features:
1. With feature of high efficiency,accuracy in shape and size;
2. Stubbing wheels can process variety materials, wide applicability;
3. Other specifications can be customized after communication.
Specification:
Diameter Segment Height Inner Hole Connection Grit Machine
50
86
90
100
20
25
30
40
10
50
Φ10-2 + ​​2Hole
Φ50-3 + 3Hole
Φ50-3 + 3Hole
30/40#
60#
100#
120#
CNC machine
Other connection and specification can be customized according to need.
Images:

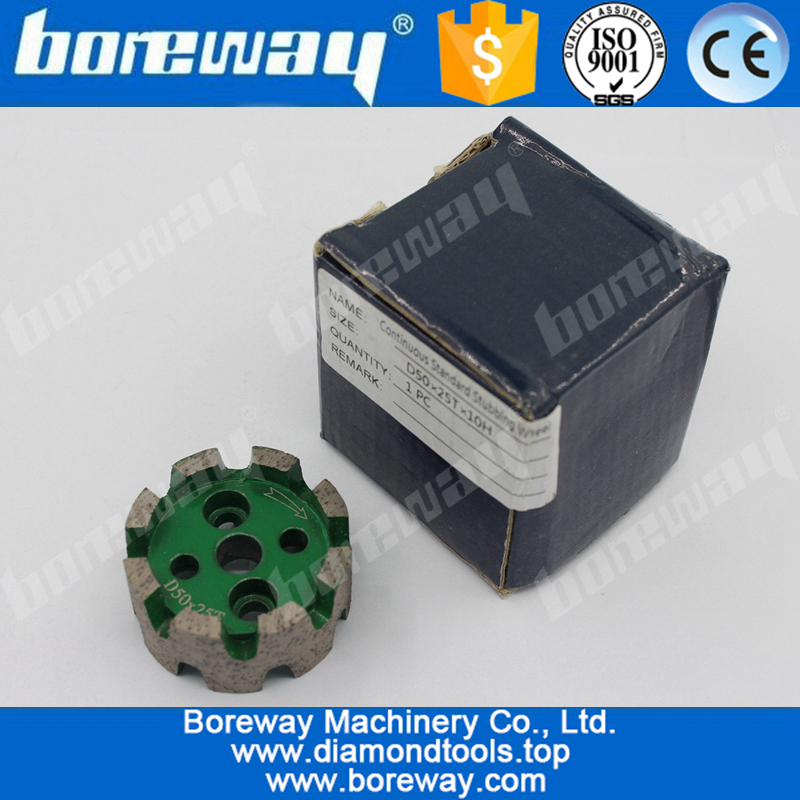

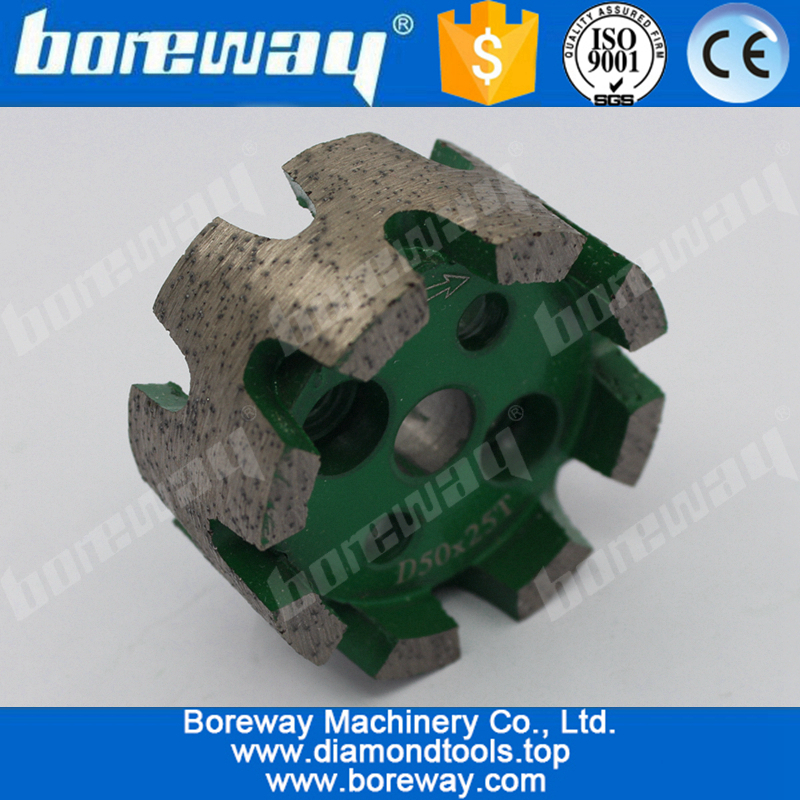

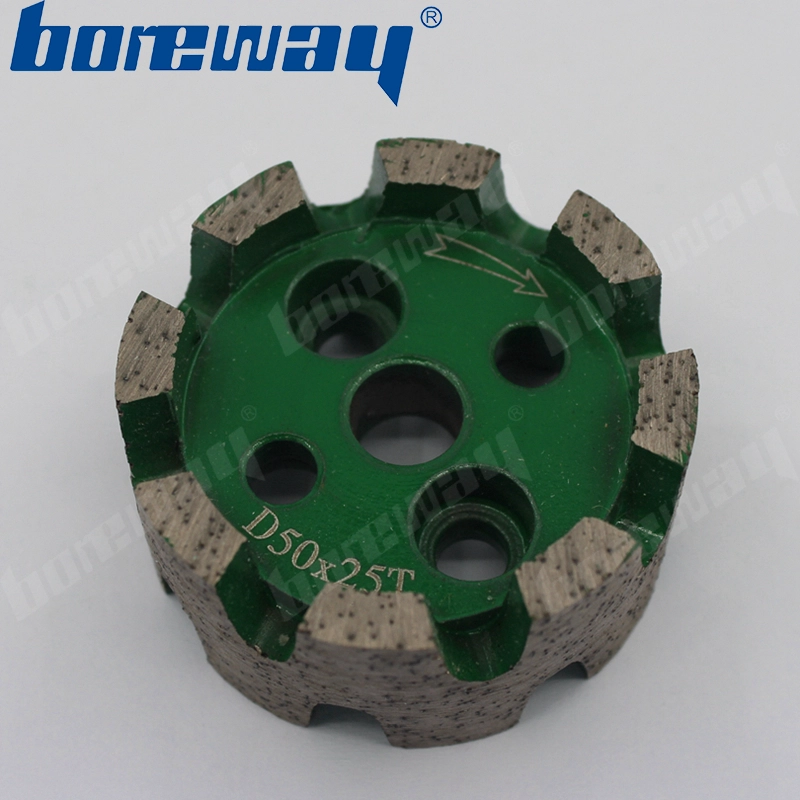

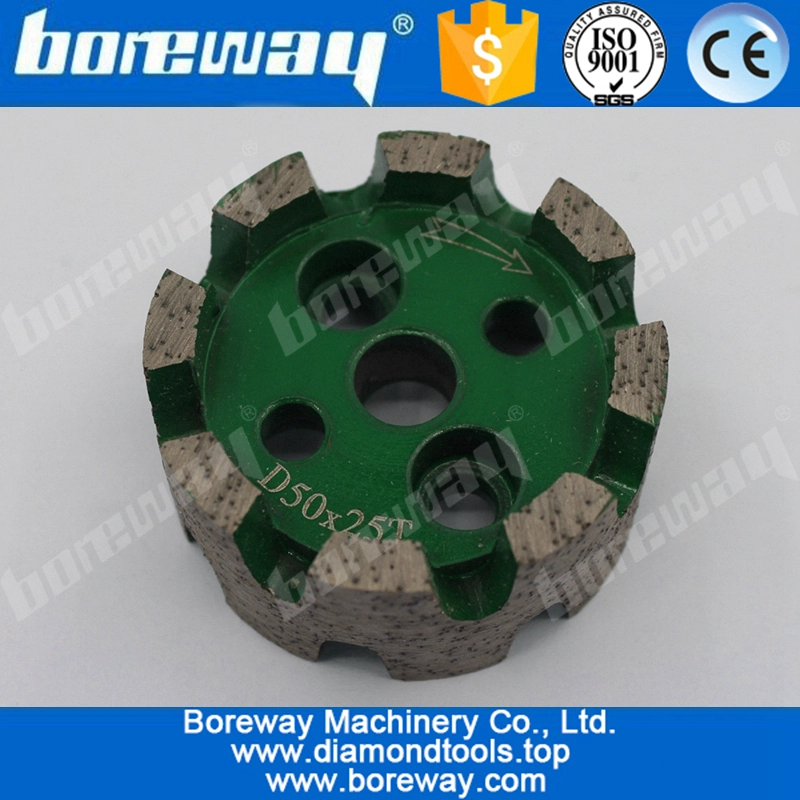

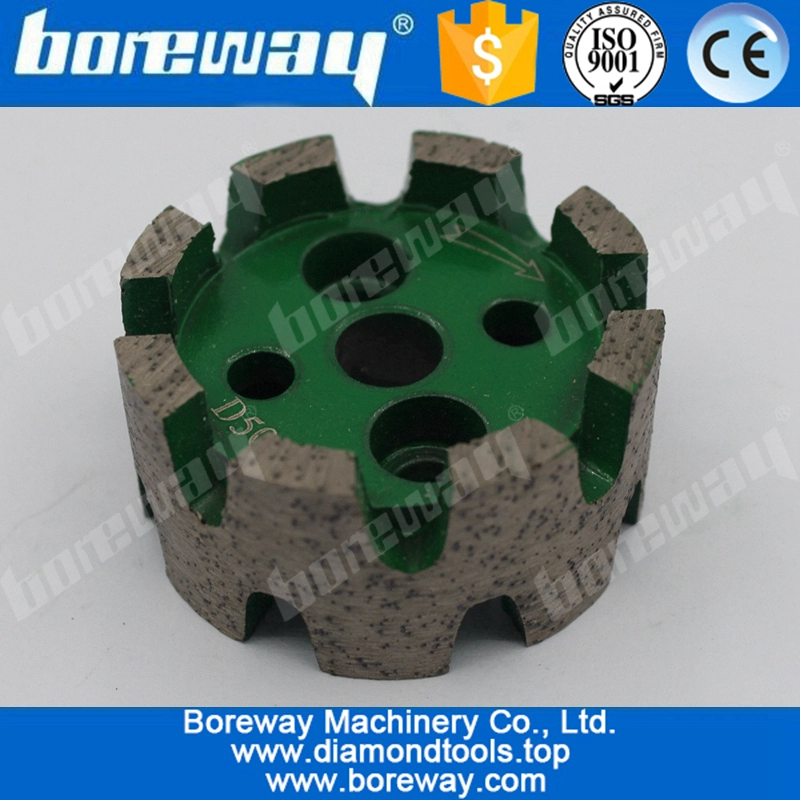

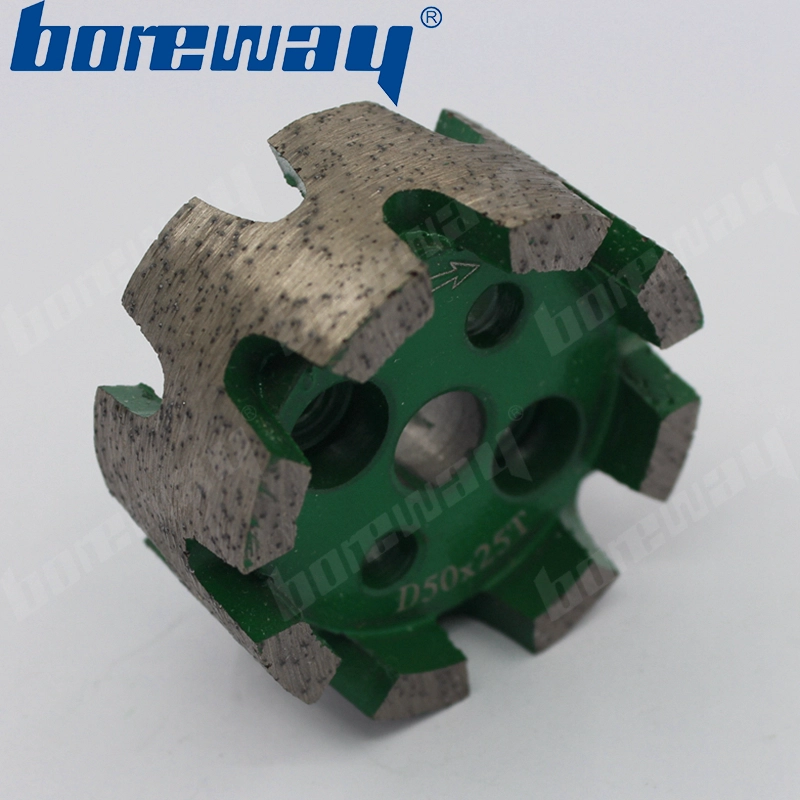

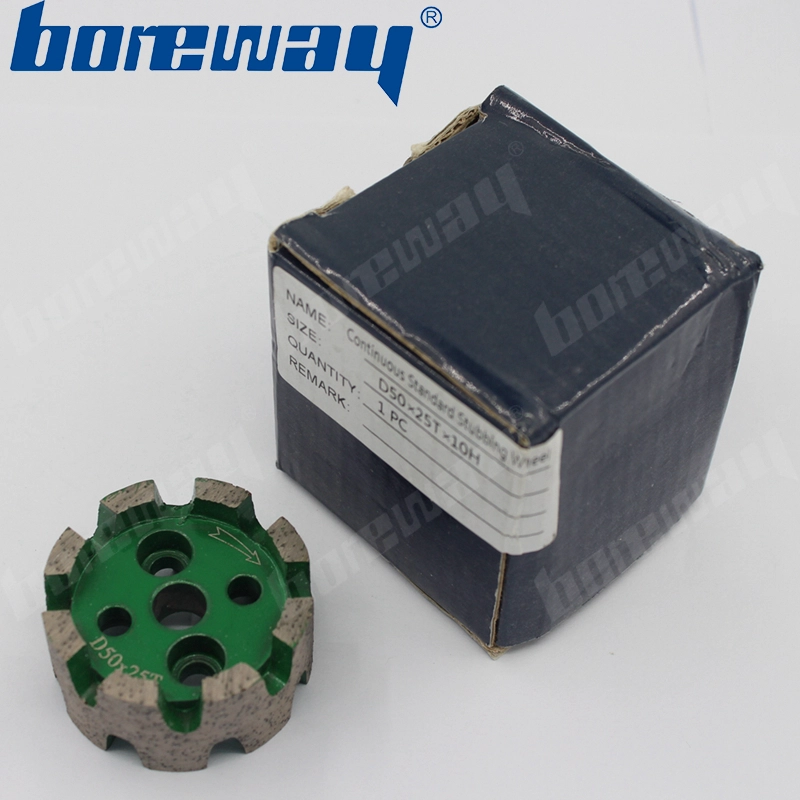

D50*25T*10H continious standard diamond stubbing wheel

D50*25T*10H continious standard diamond stubbing wheel

D50*25T*10H continious standard diamond stubbing wheel
If you want know more images, please contact us.
