D100x30Tx50H Diamond Split Calibrate Wheel For Granite

  • Model Number:BW-DSSW-C100(30T)
  • Diameter:100mm
  • Segment height:30mm
  • Inner hole:50mm
  • Applications:D100x30Tx50H Diamond Split Calibrate Wheel For Granite is used for milling and material removal for stones.
  • Machine:CNC machine or other stone machine.
  • Advantage:High efficiency good performance
Introduction:
1.D100x30Tx50H Diamond Split Calibrate Wheel For Granite are used for surface milling and material removal for various granite and marble stone
2. It is been applied to router machines or CNC machines.
3.It is used to level off your slab before running your profile wheels.
Feature:
1.The unique design with good sharpness allows easy dust removal, low noise and safety.
2.With feature of high efficiency,accuracy in shape and size.
3.Good performance and long lifespan.
Specification:
Mill milling wheel of the conventional specifications:
Diameter / mm
Segment height / mm
Inner Hole / mm   Connection Grit NO. Machine
 50
 86
 100
 90
20
30
40
10
50
 Φ10-2 + ​​2Hole
 Φ50-3 + 3Hole
Φ50-3 + 3Hole
  30/40 #
60 #
100 #
200 #
CNC machine
and
radial arm    machine
In order to improve the grinding efficiency of grinding wheel, we have some suggestions for the machine speed:
 RPM Feed rate  Recommended depth
 4500  400-600mm / min  3mm
Other specifications can be customized after communication
Images:

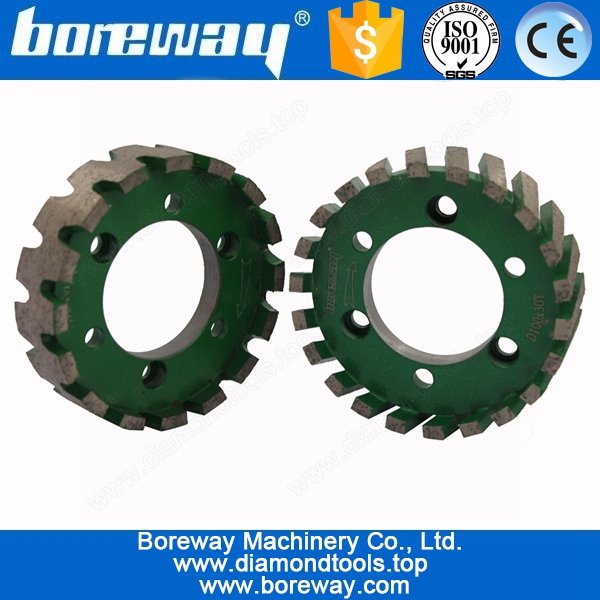

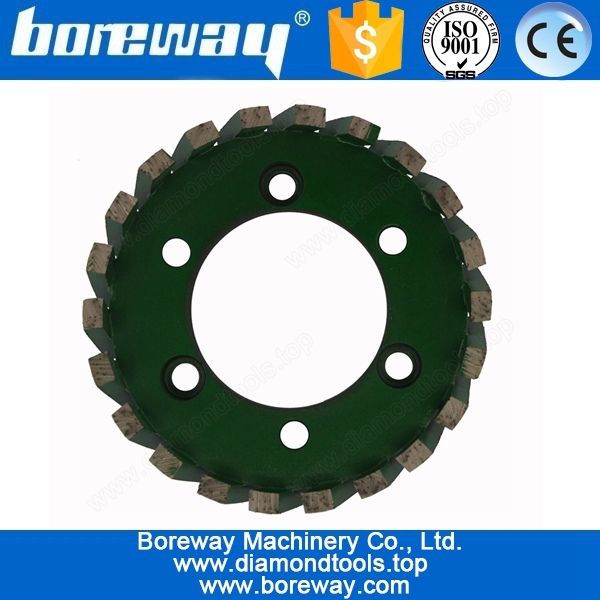

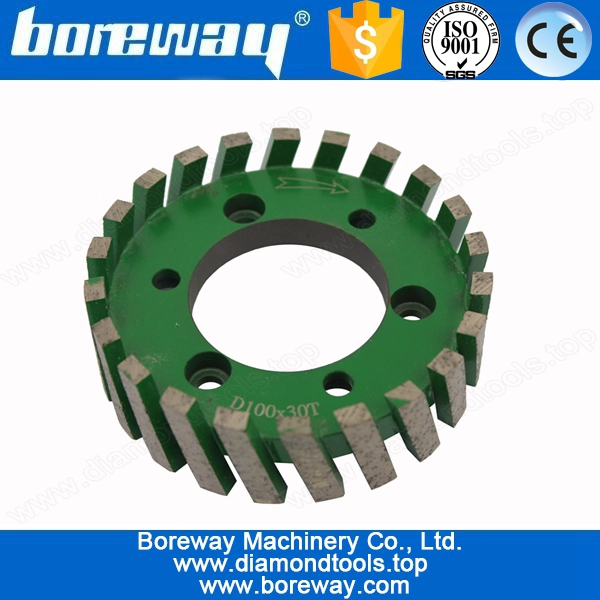

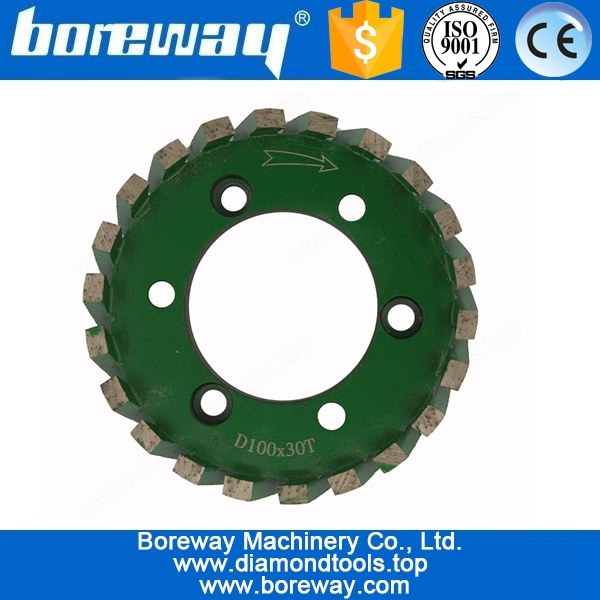

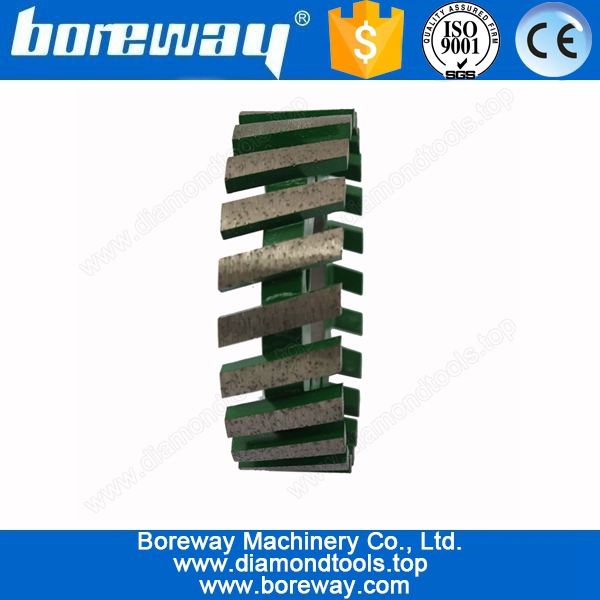

D100x30Tx50H Diamond Split Calibrate Wheel For Granite

D100x30Tx50H Diamond Split Calibrate Wheel For Granite
