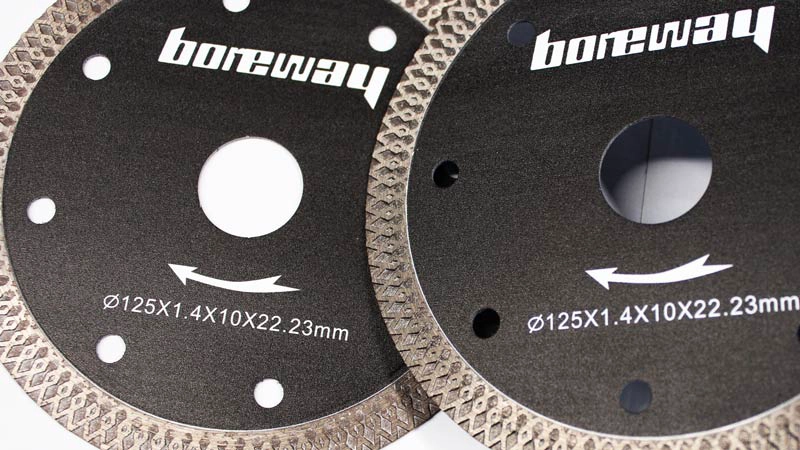

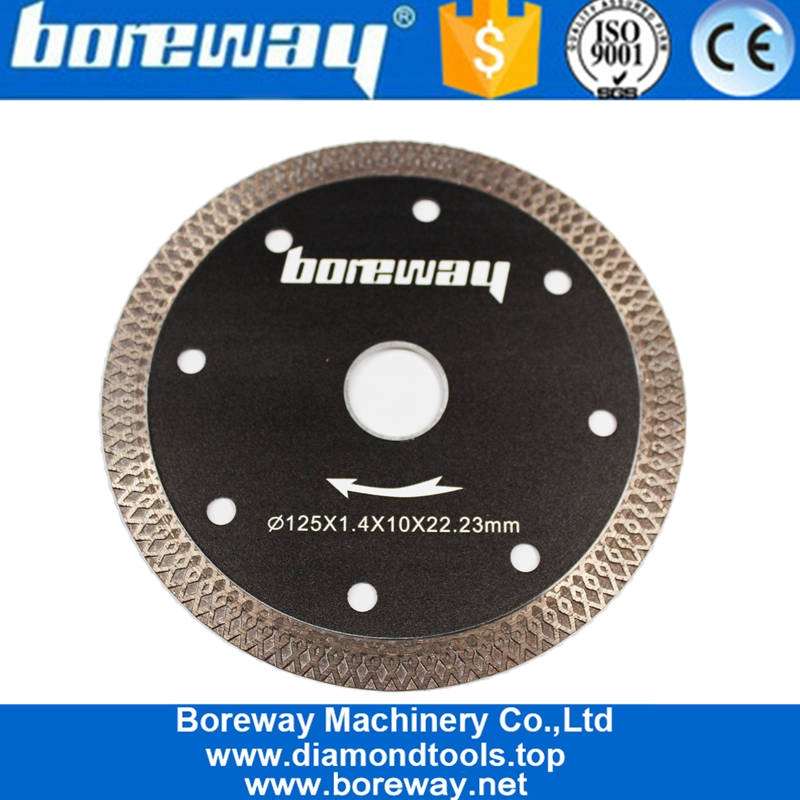

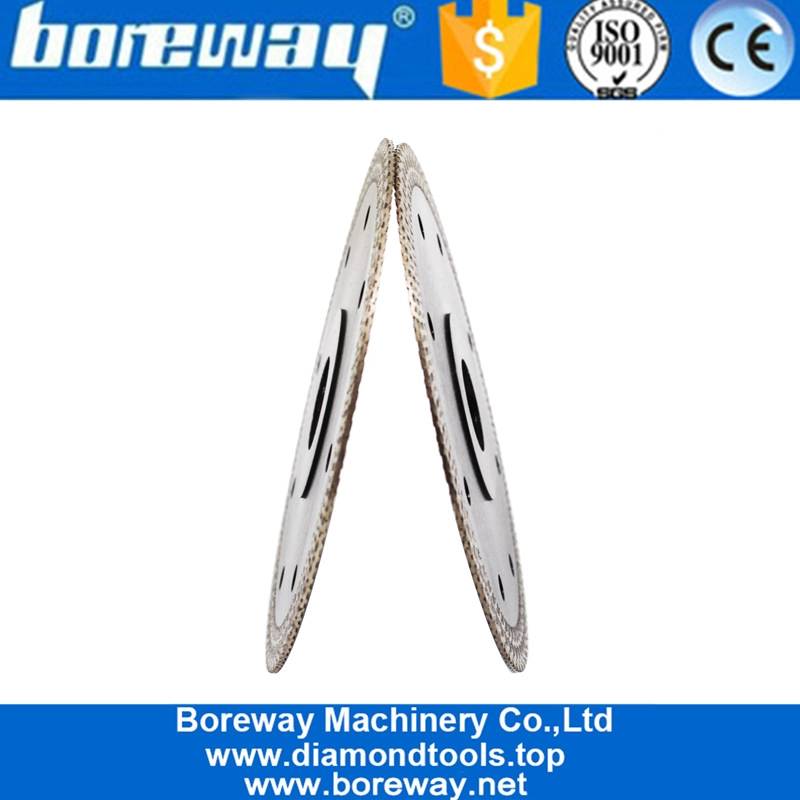

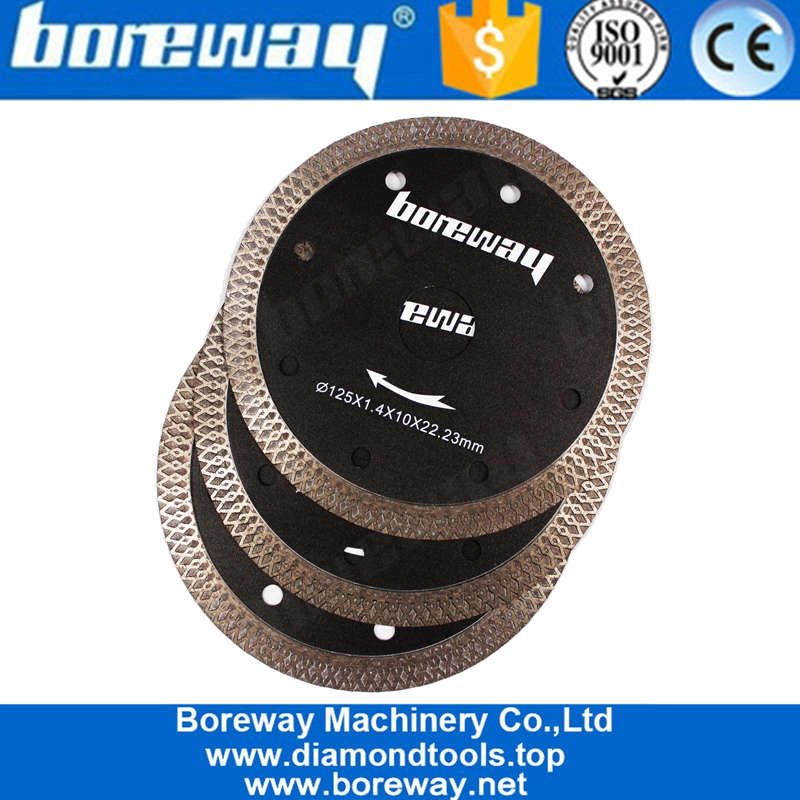

Boreway Wholesale 105Mm Hot Press Sintered Turbo-Mesh Blade Diamond Saw Blade for Ceramic Tile Porcelain Glass Cutting
- Type:Cutter Disc
- Size:105mm,4inch
- Brand Name:Boreway
- Segment Height:10mm
- Segment Thickness:1.4mm
- Model Number:BW-DC-12-01
- Inner Hole Diameter:20mm
- Manufacture Method:Sinter
- Business Type:Manufacturer
- Segment Type:Fish Mesh Type
- Feature:Sharp Cut,No Chip,Long Life
- Application:Cutting Ceramic Tile, Vitrified Brick, Microcrystalline Stone, Etc
Boreway Wholesale 105Mm Hot Press Sintered Turbo-Mesh Blade Diamond Saw Blade for Ceramic Tile Porcelain Glass Cutting
1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools
2. Do not use any saw blade that has been deformed for being pressed of crashed
3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on
4. Electric tools shall have protective cover
Wholesale 105Mm Hot Press Sintered Turbo-Mesh Blade Suitable for cutting ceramic tile, vitrified brick, microcrystalline stone, etc
No.605 Huahui Center, Shuitou Town 362342 Quanzhou, Fujian, China
TEL: (+86)595-86990206 /
Fax: (+86)595-86990220
Mobile/WhatsApp/Wechat: (+ 86) 18650679939
Lyon Chang
|
Advantage:
|
1.The cutting edge is sharp, and Wholesale 105Mm Hot Press Sintered Turbo-Mesh Blade is made of imported diamond, which is not only hard and hard to break, but also has a long service life
2.The diamond cutting segment is wear-resistant, sharp and free from edge collapse by using hot pressing technology and advanced Japanese matching technology
3.Ultra thin, smooth and ultra-thin design, the cutting edge is greener and smoother, and the cutting time is more material saving
4.Heat dissipation and chip removal, professional heat sink technology, help heat dissipation and layer removal, improve sharpness
| Specification: |
The following are normal specifications Wholesale 105Mm Hot Press Sintered Turbo-Mesh Blade:
| Diameter | Bore | Segment |
Segment |
|
| Inch |
mm | Size(mm/inch) | Thickness(mm) | Height(mm) |
| 4 | 105 | 20 | 1.4 | 10 |
| 4.5 | 115 | 22.23 | 1.4 | 10 |
| 5 | 125 | 22.23 | 1.4 | 10 |
| 9 | 230 | 22.23 | 2.0 | 10 |
The above specifications is only for reference, other specifications may be available as per customer's demand.
Factory=Quality Control=Competitive Price=Own technology=OEM
Attention when use:
1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools
2. Do not use any saw blade that has been deformed for being pressed of crashed
3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on
4. Electric tools shall have protective cover
| Applications: |
Hot Sintered, Dry or Wet Use!
| Applications machine: |
Wholesale 105Mm Hot Press Sintered Turbo-Mesh Blade use for angle grinder,circular saw,masonry saw,table saw
Cutting effect:
| Related Products: |
| About us: |
| Packing ＆ Delivery: |
PS:
1.Tools packing in carton cases
2.By Air/Sea for batch goods, Airport/Port receiving
3.Less than 45kg, generally delivery by express(Door to Door）
4.When tools are in large quantities, they are packing in wooden cases
| Our service: |
1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
| FAQ: |
1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.
3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.
3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.
| Please note: |
Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
