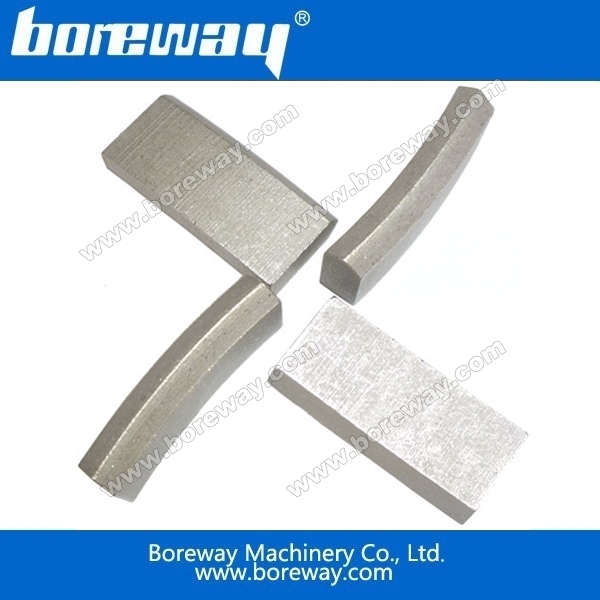

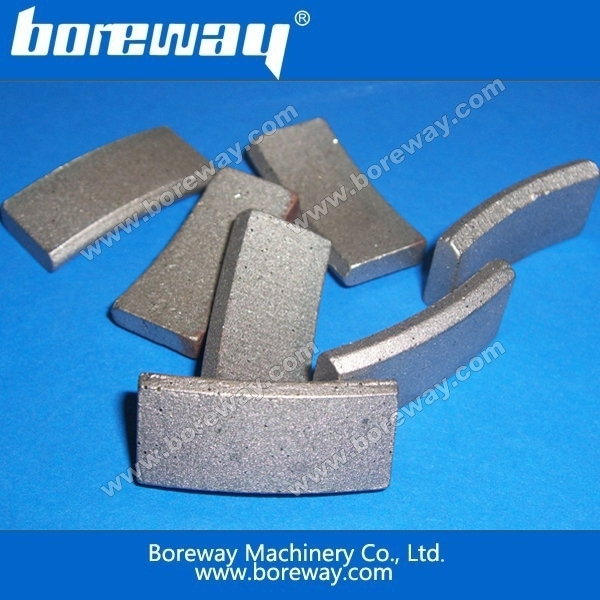

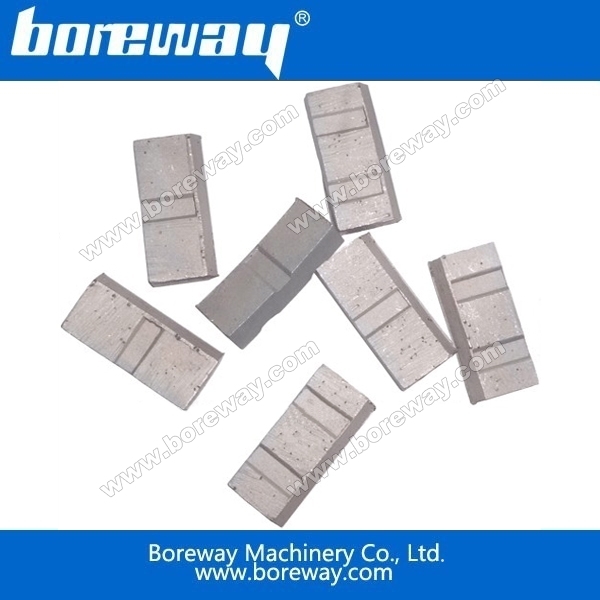

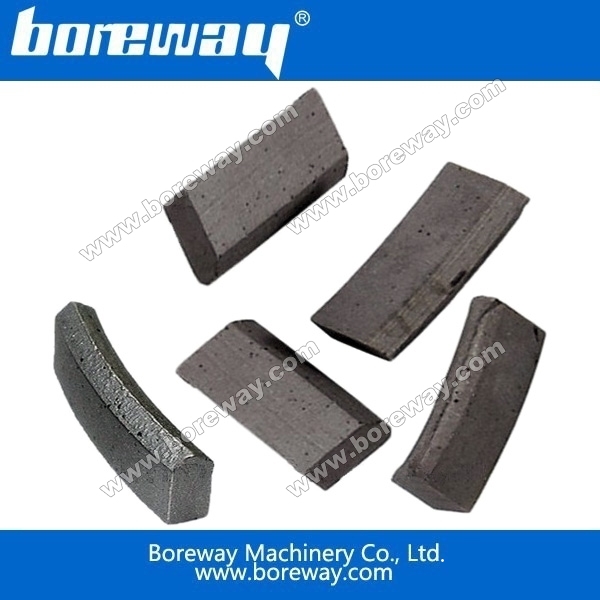

Diamond rectangle segment for drill bits
- Model Number: BW-CDCDB-001
- Type: Wet Use
- Segment Length: 22mm-24mm
- Segment Thickness: 3.5mm-5.5mm
- Segment Hight: 10mm
- Industry: Diamond drilling tools
- Technology: Sintered
- Advantage: Good sharpness and Long lifespan.
- Machine: High-frequency soldering machine
- Applications: Diamond rectangle segment is welded for drilling bits to drill concrete brick and masonry.
Introduction:
Diamond rectangle segment for drill bits are suitable for drilling cured reinforced concrete green concrete or stone material. Under same bond conditions, the drilling speed of this turbo segments is much faster than normal flat segments.
Features:
1. Higher drilling efficiency.
2. Long lifespan and stable performance.
Specifications:
The followings are the normal specifications of our diamond rectangle segment for drill bits:
Product Name |
Diameter |
Segment Width |
Segment No. |
Applications |
Diamond rectangle segment for drill bits |
2.25"(57mm) |
22x3.5x10 |
5 |
Concrete Brick Masonry |
2.50"(63mm) |
22x3.5x10 |
6 |
||
2.75"(70mm) |
22x3.5x10 |
7 |
||
3"(76mm) |
22x3.5x10 |
8 |
||
3.25"(82mm) |
22x3.5x10 |
9 |
||
3.50"(89mm) |
22x3.5x10 |
10 |
||
4"(102mm) |
22x3.5x10 |
10 |
||
4.25"(108mm) |
22x3.5x10 |
11 |
||
4.50"(114mm) |
22x3.5x10 |
11 |
||
4.75"(120mm) |
24x4.0x10 |
11 |
||
5"(127mm) |
24x4.0x10 |
11 |
||
5.5"(140mm) |
24x4.0x10 |
12 |
||
5.75"(146mm) |
24x4.0x10 |
13 |
||
6"(152mm) |
24x4.0x10 |
13 |
||
6.25"(159mm) |
24x4.0x10 |
14 |
||
6.5"(165mm) |
24x4.0x10 |
15 |
||
7"(178mm) |
24x4.0x10 |
16 |
||
8"(203mm) |
24x4.5x10 |
18 |
||
9"(229mm) |
24x4.5x10 |
20 |
||
10"(254mm) |
24x4.5x10 |
23 |
||
11"(280mm) |
24x5.0x10 |
25 |
||
12"(305mm) |
24x5.0x10 |
27 |
||
13"(330mm) |
24x5.5x10 |
30 |
||
14"(356mm) |
24x5.5x10 |
32 |
The above specifications are for reference, other specifications can be ordered by customers.
