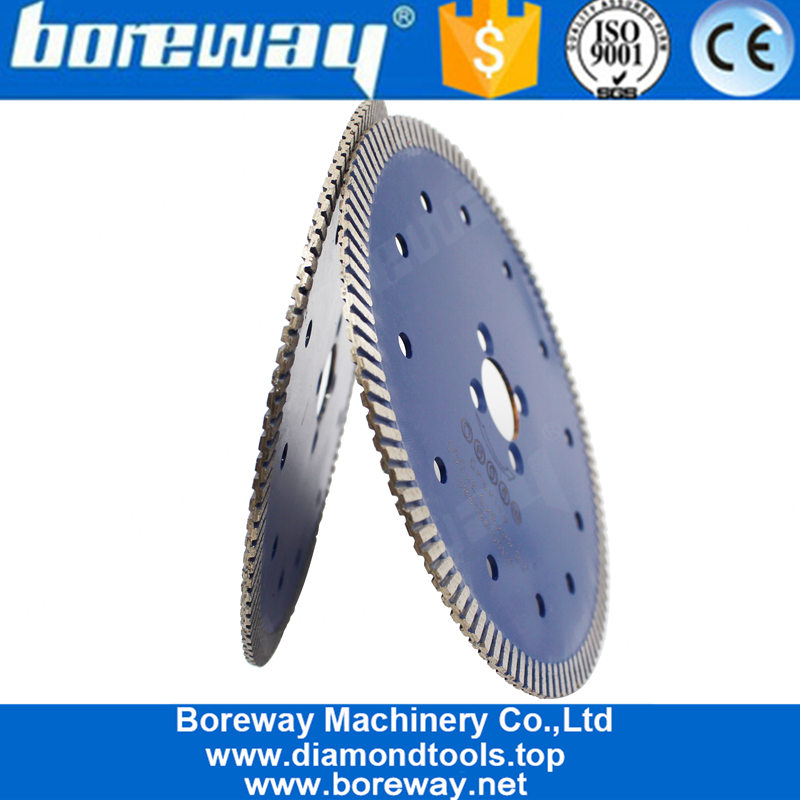

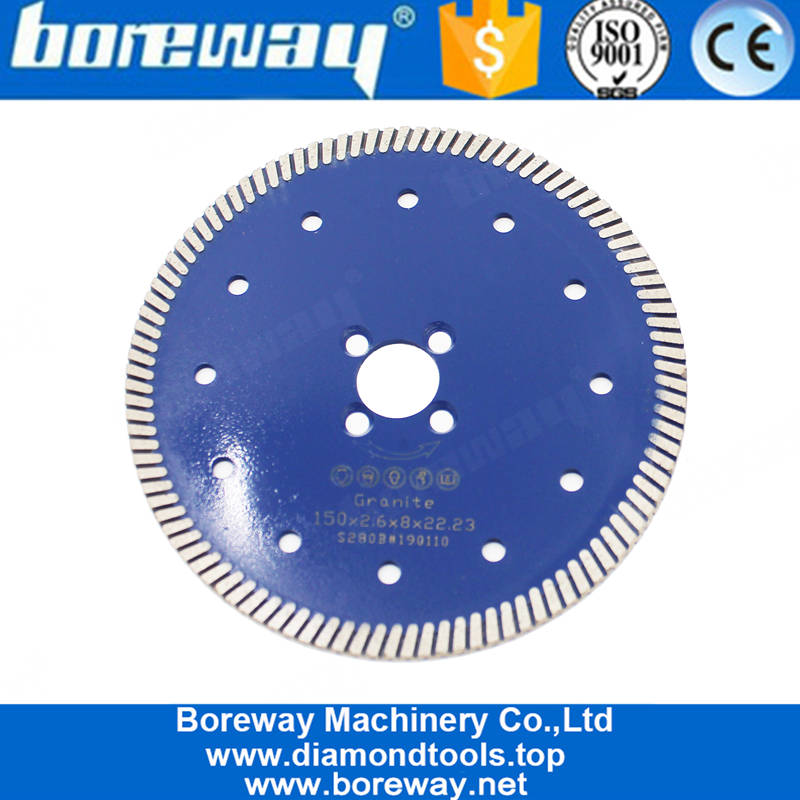

6 Inch Factory Outlet Turbo Dry Use Blade Disc For Cutting Porcelain Ceramic Tile Granite Limestone Marble Soft Stone6 Inch Factory Outlet Turbo Dry Use Blade Disc For Cutting Porcelain Ceramic Tile Granite Limestone Marble Soft Stone6 Inch Factory Outlet Turbo Dry Use Blade Disc For Cutting Porcelain Ceramic Tile Granite Limestone Marble Soft Stone6 Inch Factory Outlet Turbo Dry Use Blade Disc For Cutting Porcelain Ceramic Tile Granite Limestone Marble Soft Stone

6 Inch Factory Outlet Turbo Dry Use Blade Disc For Cutting Porcelain Ceramic Tile Granite Limestone Marble Soft Stone

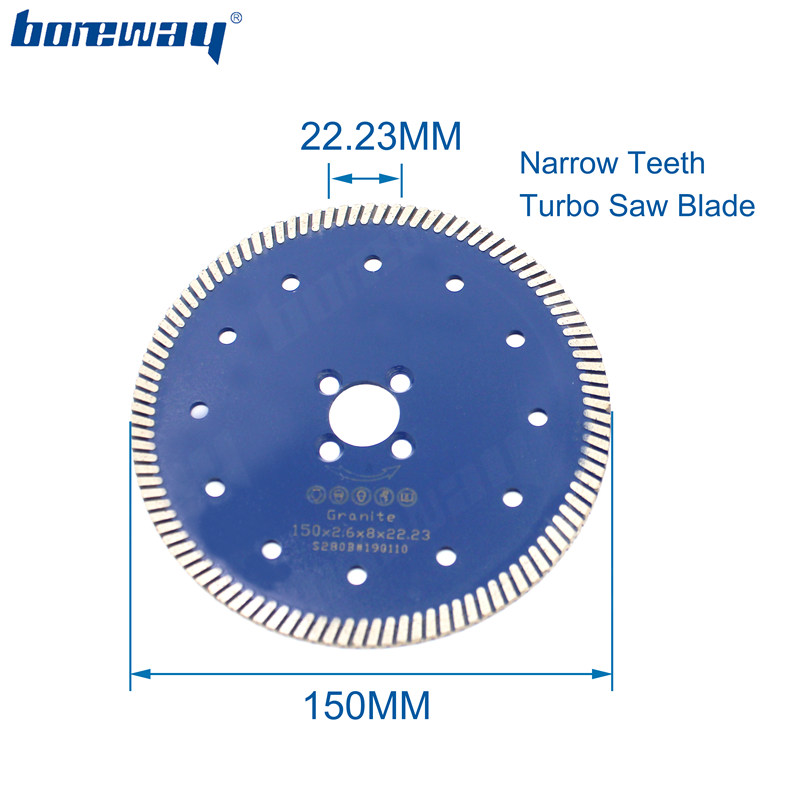

  • Size:150m,6inch
  • Type:Saw Blade
  • Brand Name:Boreway
  • Blade Material:Diamond
  • Model Number:BW-TSB-012-5
  • Segment Length(Mm):33.5mm
  • Number of Segments:12 Pcs
  • Bore Size:16/20mm,22.23mm,25.4mm,50mm
  • Inner Hole:50mm,25.4mm, 22.3mm, 20mm,16mm
  • Feature:Cold Press Technology, But Hot Press Performance
  • Application:Stone, Concrete, Ceramic, Porcelain, Tile, Masonry
6 Inch Factory Outlet Turbo Dry Use Blade Disc For Cutting Porcelain Ceramic Tile Granite Limestone Marble Soft Stone


Advantage:

6 Inch Factory Outlet Turbo Dry Use Blade is usually for cutting Ceramic or Porcelain Tiles.

1.6 Inch Factory Outlet Turbo Dry Use Blade great adaptability.

2.Cutting method:Wet cutting,Dry cutting.

3.Fast cutting & long life & Stable performance.

4.Working safe,quiet,and precise.reducing cutting & working time.

5.Can reduce cutting friction a lot, improve slab flatness, save energy.

Factory=Quality Control=Competitive Price=Own technology=OEM
6 Inch Factory Outlet Turbo Dry Use Blade Disc For Cutting Porcelain Ceramic Tile Granite Limestone Marble Soft Stone

Description:

6 Inch Factory Outlet Turbo Dry Use Blade is a particularly stable and mature diamond saw blade, especially suitable for cutting ceramics, porcelain, vitrified tiles, granite, stoneware, hard tiles and other stone.
6 Inch Factory Outlet Turbo Dry Use Blade Disc For Cutting Porcelain Ceramic Tile Granite Limestone Marble Soft Stone

Feature:

6 Inch Factory Outlet Turbo Dry Use Blade

1.Long working life and superior performance

2.Excellent performance on hard construction material ,reinforced concrete ,brick stone ,smooth cutting on variety tile ,masonry and stone.
6 Inch Factory Outlet Turbo Dry Use Blade
6 Inch Factory Outlet Turbo Dry Use Blade


Specification:

The following are normal specifications 6 Inch Factory Outlet Turbo Dry Use Blade:

Diameter Bore Segment
Number of Segments
Segment
Inch/mm Size
(mm)
Thickness
(mm)

Pcs Height
(mm)
4 105 16/20
22.23
25.4
50
35 6/8 8/10/12
4.3 110 32.3 6/8/9 8/10/12
4.5 115 38.5 8 8/10/12
5 125  37.5 8/10/12
150  33.5 12 8/10/12
180  35 14 8/10/12
8 200 39.2 14 8/10/12
9  230 34.4 18 8/10/12

The above specifications is only for reference, other specifications may be available as per customer's demand.

6 Inch Factory Outlet Turbo Dry Use Blade

Attention when use:

1.  Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
 when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools.

2. Do not use any saw blade that has been deformed for being pressed of crashed.

3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on

4. Electric tools shall have protective cover.

Applications:

Hot Sintered, Dry or Wet Use!

6 Inch Factory Outlet Turbo Dry Use Blade
is suitable for kinds of granite,stone, limestone, sandstone,basalt ,natural stone lava stone etc.

6 Inch Factory Outlet Turbo Dry Use Blade

Applications Machine:

6 Inch Factory Outlet Turbo Dry Use Bladeuse for angle grinder,circular saw,masonry saw,table saw
6 Inch Factory Outlet Turbo Dry Use Blade
6 Inch Factory Outlet Turbo Dry Use Blade


Related Products:
About us:

6 Inch Factory Outlet Turbo Dry Use Blade

6 Inch Factory Outlet Turbo Dry Use Blade

Packing & Delivery:
PS:
1.Tools packing in carton cases

2.By Air/Sea for batch goods, Airport/Port receiving

3.Less than 45kg, generally delivery by express(Door to Door)

4.When tools are in large quantities, they are packing in wooden cases
Wet Use Turbo Blade Porcelain Disc
Our service:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
