Circular Saw Blade Dry Diamond Cutting Disc For Brick Ceramics Marble Granite Stone Concrete Saw ToolsCircular Saw Blade Dry Diamond Cutting Disc For Brick Ceramics Marble Granite Stone Concrete Saw ToolsCircular Saw Blade Dry Diamond Cutting Disc For Brick Ceramics Marble Granite Stone Concrete Saw ToolsCircular Saw Blade Dry Diamond Cutting Disc For Brick Ceramics Marble Granite Stone Concrete Saw Tools

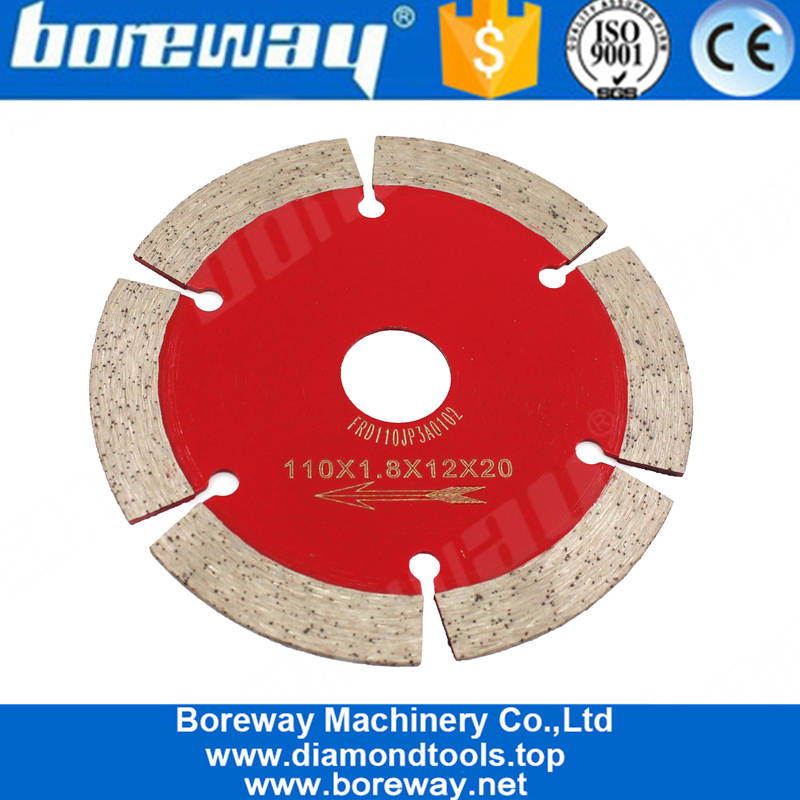

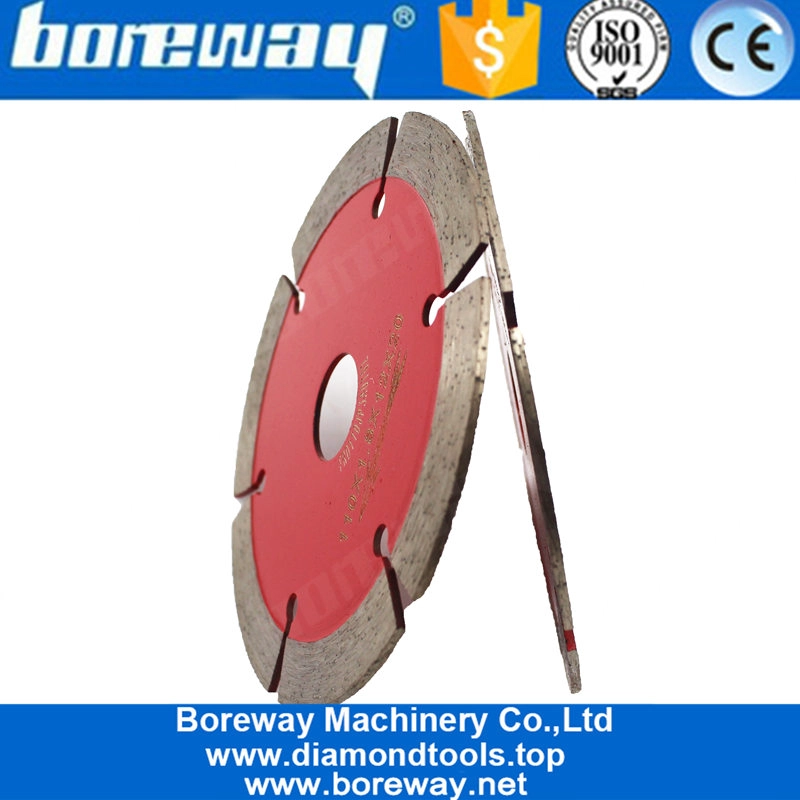

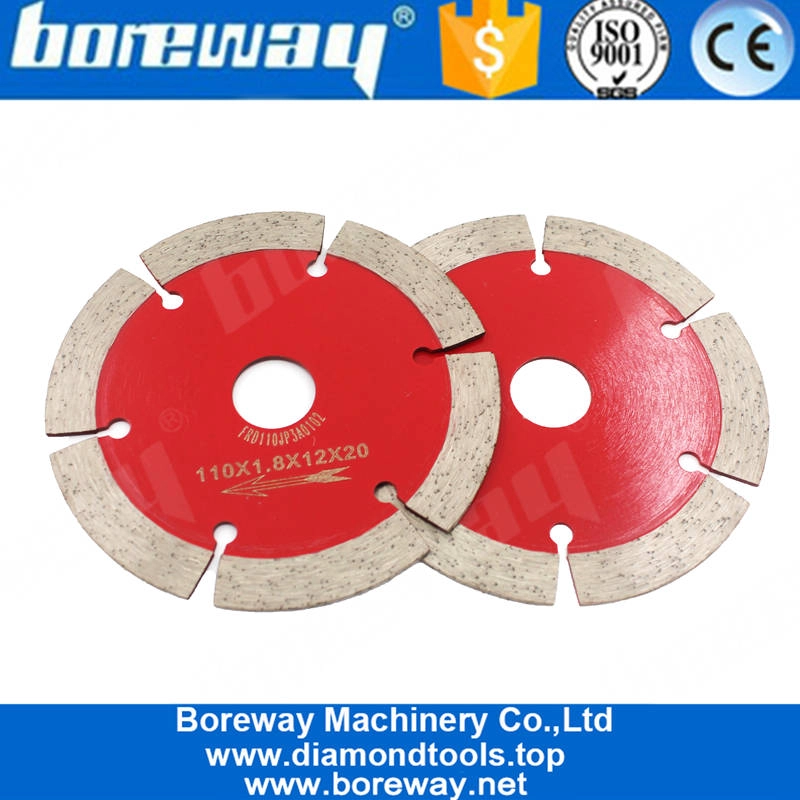

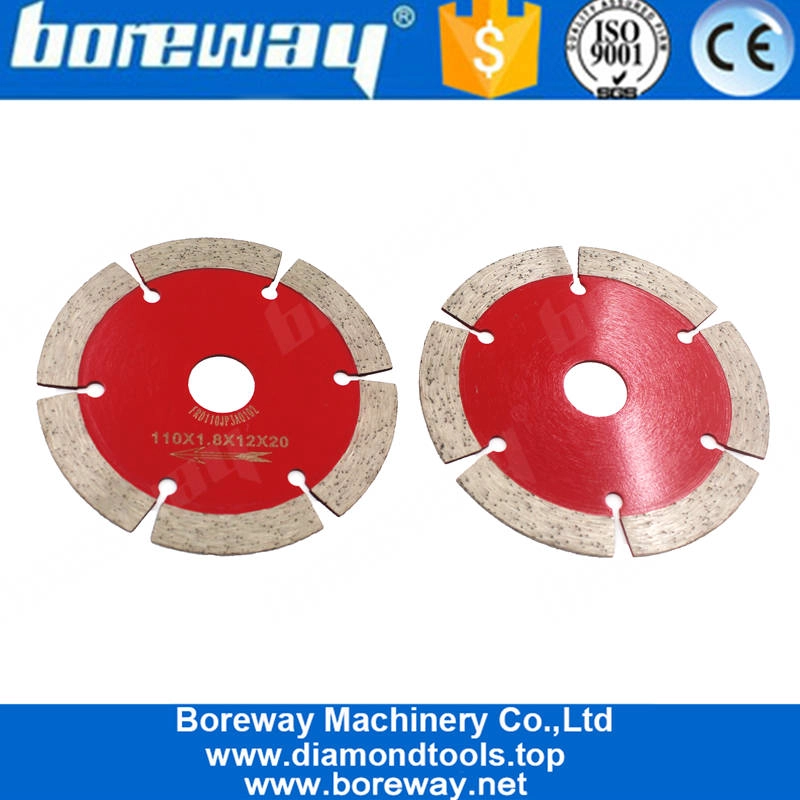

Circular Saw Blade Dry Diamond Cutting Disc For Brick Ceramics Marble Granite Stone Concrete Saw Tools

  • Diameter:115mm,4.5inch
  • Brand Name:Boreway
  • Technology:Sintered
  • Number of Segments:8 Pcs
  • Segment Height:8/10/12mm
  • Segment Length:38.3mm
  • Model Number:BW-DC-01-03
  • Business Type:Manufacturer
  • Blade Material:Alloy Steel
  • Saw Blank Material:Manganese Steel
  • Payment Terms:Western Union, L/C, T/T

Circular Saw Blade Dry Diamond Cutting Disc For Brick Ceramics Marble Granite Stone Concrete Saw Tools


Advantage:

1. Circular Saw Blade Cutting Disc is adaptability, widely used in a variety of stone cutting, with sharpness, scientific segment design make the segment geometric consumed and clamp avoided.

2. High quality material and unique segment design bring chip removal and sharp cutting

3. Because the size of the saw blade is small and medium, it is easy to use, stable cutting without deformation, and flexible usage. It is one of the commonly used diamond cutting series.

4. It also serves as grooving wheels for stone and soft building materials, ideal for marble and limestone, fast grooving or milling on the stone surface.

Factory=Quality Control=Competitive Price=Own technology=OEM

Specification:

The following are normal specifications Circular Saw Blade Cutting Disc:

Diameter Bore Segment
Number of Segments
Segment
Inch
mm Size
(mm)
 Thickness
(mm)

Pcs Height
(mm)
4 105 16/20
22.23
25.4
50
35 6/8 8/10/12
4.3 110 32.3 6/8/9 8/10/12
4.5 115 38.5 8 8/10/12
5 125  37.5 8/10/12
150  33.5 12 8/10/12
180  35 14 8/10/12
8 200 39.2 14 8/10/12
9  230 34.4 18 8/10/12

The above specifications is only for reference, other specifications may be available as per customer's demand.

Circular Saw Blade Cutting Disc
Attention when use:

1.  Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
 when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools.

2. Do not use any saw blade that has been deformed for being pressed of crashed.

3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on

4. Electric tools shall have protective cover.

Feature:

Circular Saw Blade Cutting Disc

1.Fast cutting speed Saw Blade

2. Durable for long life use Saw Blade


3. Different quality grade for clients choose

4. Other special specifications and colors can be produced by clients require.

Circular Saw Blade Cutting Disc

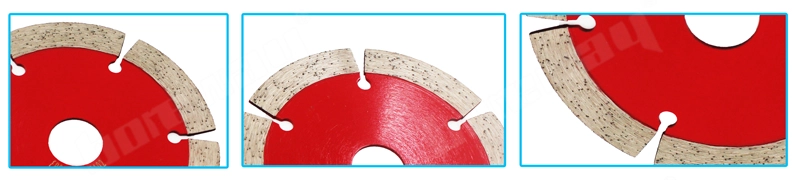

Product Detail:

Circular Saw Blade Cutting Disc
Circular Saw Blade Cutting Disc

Circular Saw Blade Cutting Disc
Circular Saw Blade Cutting Disc


Applications:

Circular Saw Blade Cutting Disc is suitable for kinds of granite,stone, limestone, sandstone,basalt ,natural stone lava stone etc.

Hot Sintered, Dry or Wet Use!

Circular Saw Blade Cutting Disc

Applications machine:

Circular Saw Blade Cutting Discuse for angle grinder,circular saw,masonry saw,table saw

Circular Saw Blade Cutting Disc


Related Products:
About us:

Circular Saw Blade Cutting Disc

Circular Saw Blade Cutting Disc

Packing & Delivery:
PS:
1.Tools packing in carton cases

2.By Air/Sea for batch goods, Airport/Port receiving

3.Less than 45kg, generally delivery by express(Door to Door)

4.When tools are in large quantities, they are packing in wooden cases
Circular Saw Blade Cutting Disc
Our service:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
