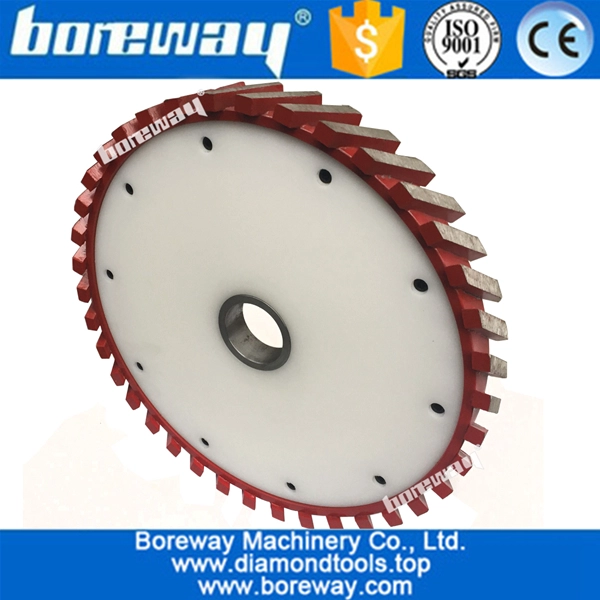

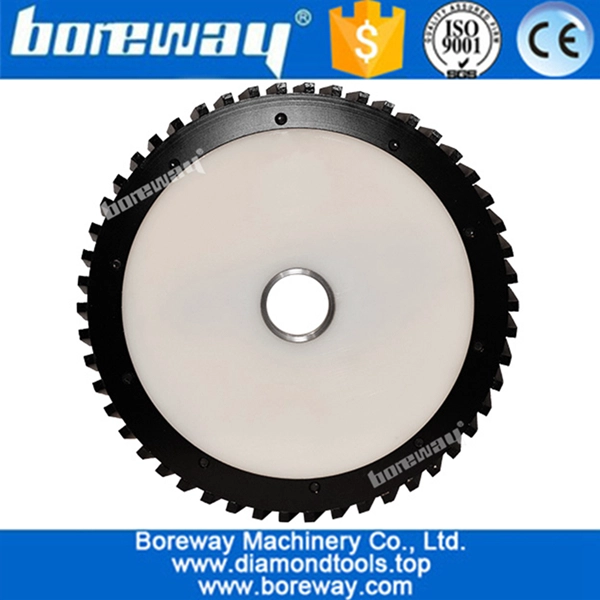

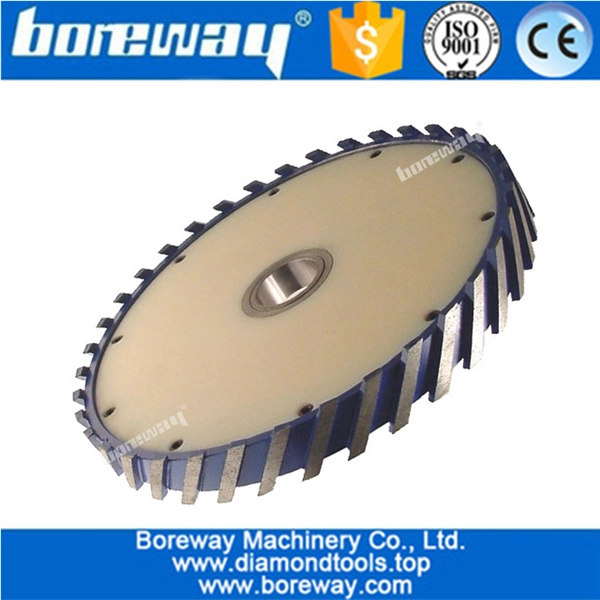

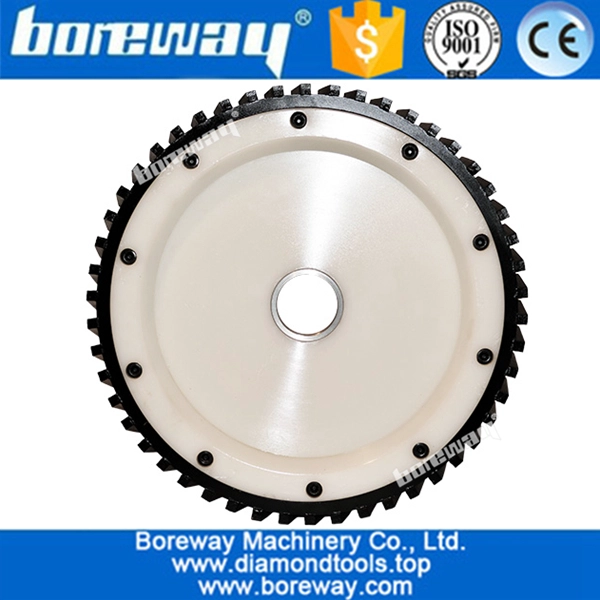

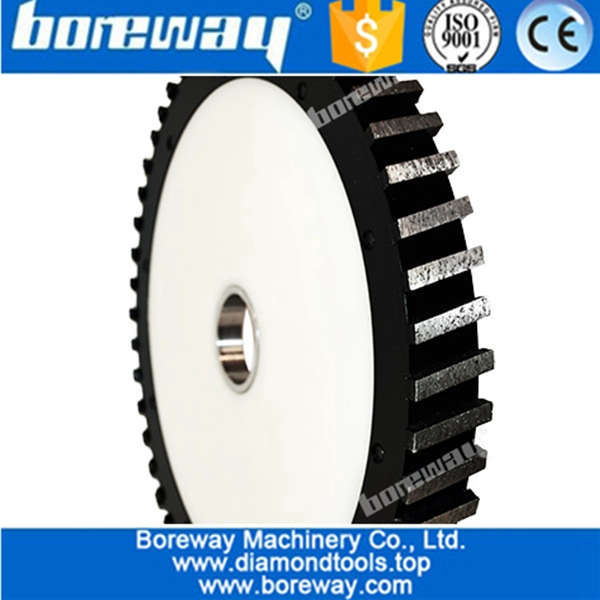

14" Stone Segmented Silent Diamond Milling Wheel For Granite and Marble

  • Size:          14inch
  • Inner hole:    50mm,60mm
  • Type:         Sintered
  • Diameter: D300mm  350mm 400mm etc
  • Thickness: 10mm,20mm,30mm,40mm.
  • Segment type:  Straight and Oblique
  • Core:          Normal or silent core
  • Industry:      Diamond milling tools
  • Application: For milling granite , marble
  • Advantage: Good sharpness and long lifespan.
  • Machine: Milling machine and bridge cutting machines.
Diamond milling wheel is been applied to router machines or CNC machines.It is used to level off your slab before running your profile wheels.Diamond silent milling wheels are widely used for grinding surface of granite and marble. With special material,it save lots of weights and make no any noise when working.

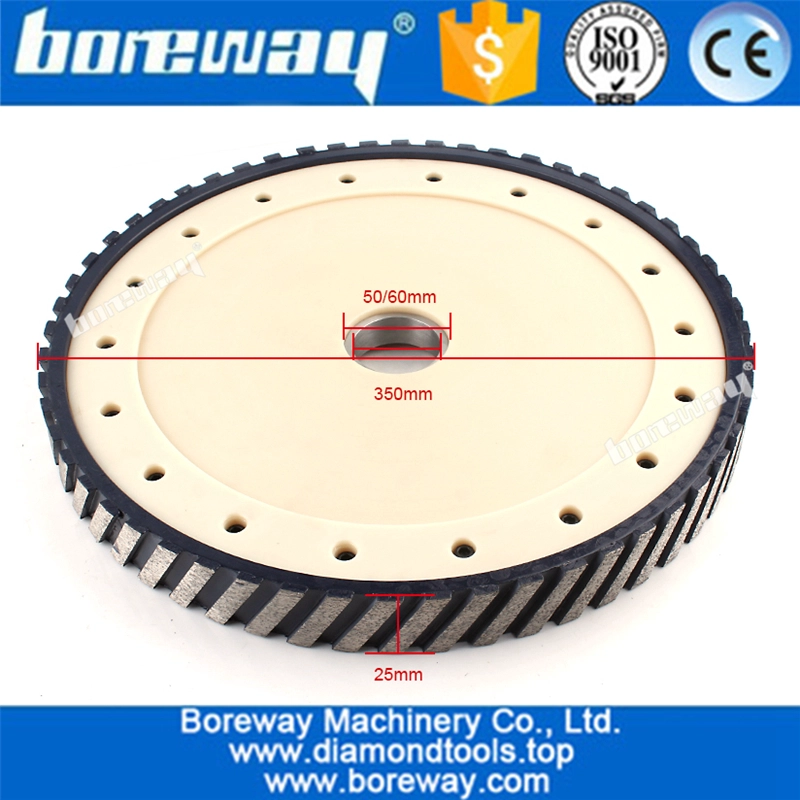

D350mm CNC segment wide 40mm diamond silent core milling wheel for grinding granite and marble are used for surface milling and material removal for various granite and marble stone.

1.Good performance and long lifespan.
2.With feature of high efficiency,accuracy in shape and size.
3.Wet cutting; Nylon body with lightweightAebor 50 or 60mm available
4. The diamond silent milling wheel was designed for stationary saws and milling.
5. The unique design with good sharpness allows easy dust removal, low noise and safety.machine. It is available in a granite and a marble surface, both options feature an ultra quiet core and high quality segment.

Diamond Milling wheel of the conventional specifications:
Diameter / mm Segment
Width / mm
Inner Hole / mm   Connection Grit NO. Machine


 Φ10-2 + ​​2Hole
 Φ50-3 + 3Hole

  30/40 #
60 #
100 #
200 #
CNC machine
radial arm    machine

In order to improve the grinding efficiency of grinding wheel, we have some suggestions for the machine speed:

 RPM Feed rate  Recommended depth
 4500  400-600mm / min  3mm
Other specifications can be customized after communication

diamond silent core milling wheel for grinding granite and marble
Designed for grinding or milling surface of stone
silent core diamond calibrating wheel for granite and marble stone
diamond silent core milling wheel for grinding granite and marble
diamond silent core milling wheel for grinding granite and marble

If you want to know more Diamond Milling Wheel, please click here
Packing & Delivery:

1. Tools packing in carton cases;

2. When tools are in large quantities, they are packing in wooden cases.

Kindly Noted: 

When place order for diamond Milling Wheel please inform the following:

Grit No.

Order Quantity

Dry or Wet Use

Diameter (Inch or mm)

Expected Shipping Date

Special Requirements (If)

Code No. of Diamond Milling Wheel

Diameter or Specifications (Inch or mm)
Material Milling:For Granite, Marble, or other material?
