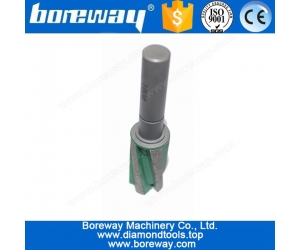

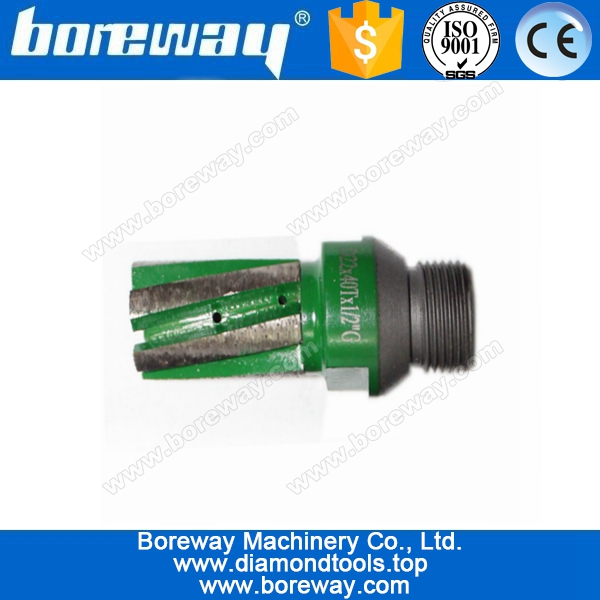

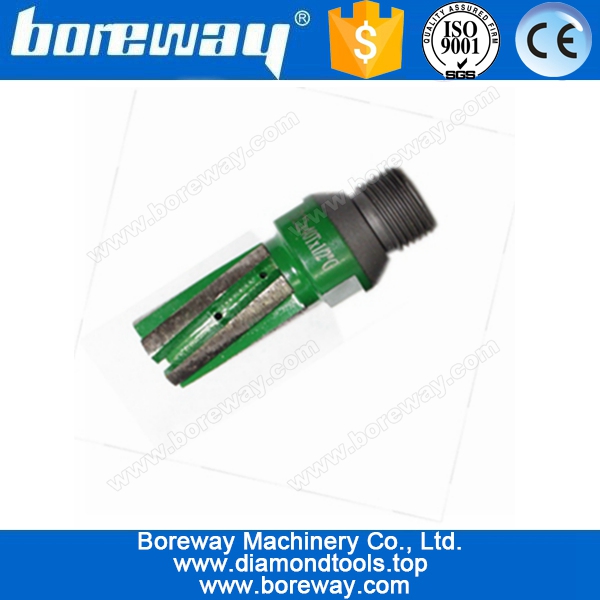

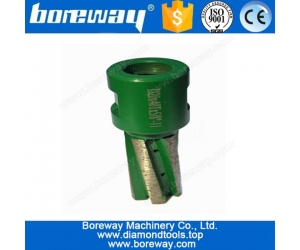

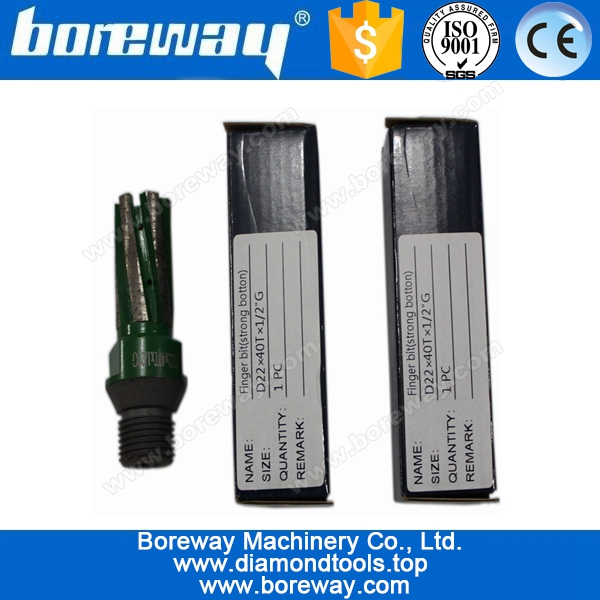

finger cutter bit 22mm
- Model Number: BW-DRB-03
- Type: Wet Use
- Diameter: 22mm
- Length size: 40mm
- Connection: 1/2G"
- Grinding result:High gloss and lasting shining
- Advantage: Good sharpness ,long lifespan,high stable
- Machine: CNC machine,radial arm machine
- Applications: Finger cutter bits are used for cut granite,engineered stone and marble and other material
Introduction:
Finger cutter bits are usually use after diamond core drill bits,fast removing dust,diamond sink wheel.
Finger cutter bits are ideal for fast stock removal as well as truing up saw lines, which is designed
to cut granite, engineered stone and marble,counter tops, kitchen tops and basins.
Finger cutter bits are usually mounted on CNC or Radial Arm machines, for hole grinding, anchor
and blind hole.
Center water feed holes in each bit.
Wet use only.
Feature:
1.Faster Speed and Lasting longer
2. Less Noise and Low Ampere
Specifications:
The following are the normal specifications about the finger cutter bit:
|
Diameter |
Bore (mm) |
Segment Length |
Segment No. |
|
20mm (3/4") |
1/2 Gas |
40mm |
4-6pcs |
|
25mm (1") |
|||
|
30mm (1-1/4") |
|||
|
35mm (1-3/8") |
|||
|
40mm (1-5/8") |
|||
|
50mm (2") |
|||
|
60mm (2-3/8") |
The above specifications are for reference, other specifications can be ordered by customers.
