D15 Diamond Vacuum Brazed Ball Shape Finger Bit For Stone Sink Hole 1/2D15 Diamond Vacuum Brazed Ball Shape Finger Bit For Stone Sink Hole 1/2D15 Diamond Vacuum Brazed Ball Shape Finger Bit For Stone Sink Hole 1/2D15 Diamond Vacuum Brazed Ball Shape Finger Bit For Stone Sink Hole 1/2D15 Diamond Vacuum Brazed Ball Shape Finger Bit For Stone Sink Hole 1/2D15 Diamond Vacuum Brazed Ball Shape Finger Bit For Stone Sink Hole 1/2

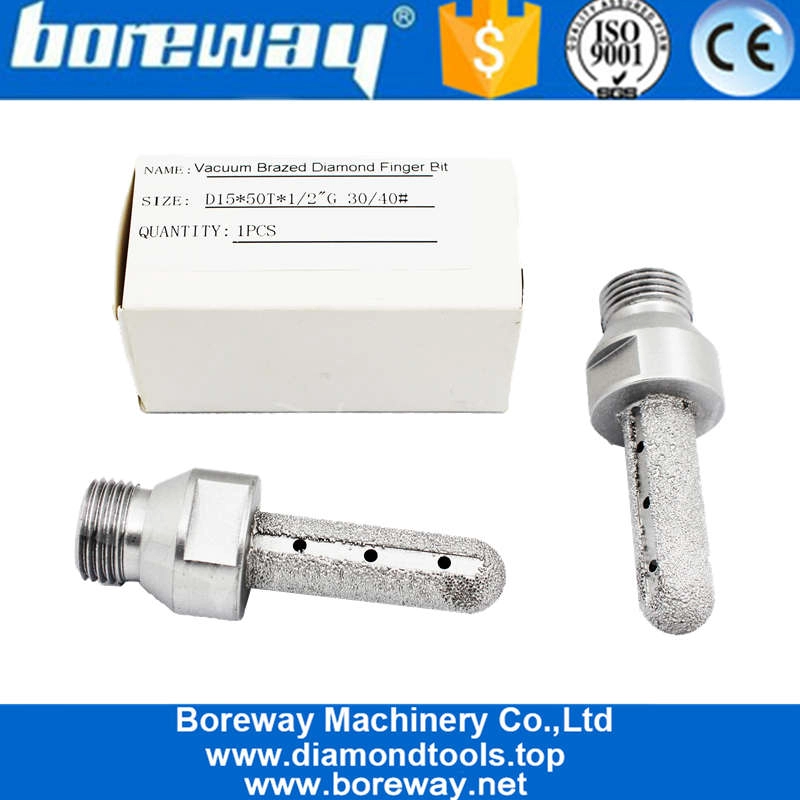

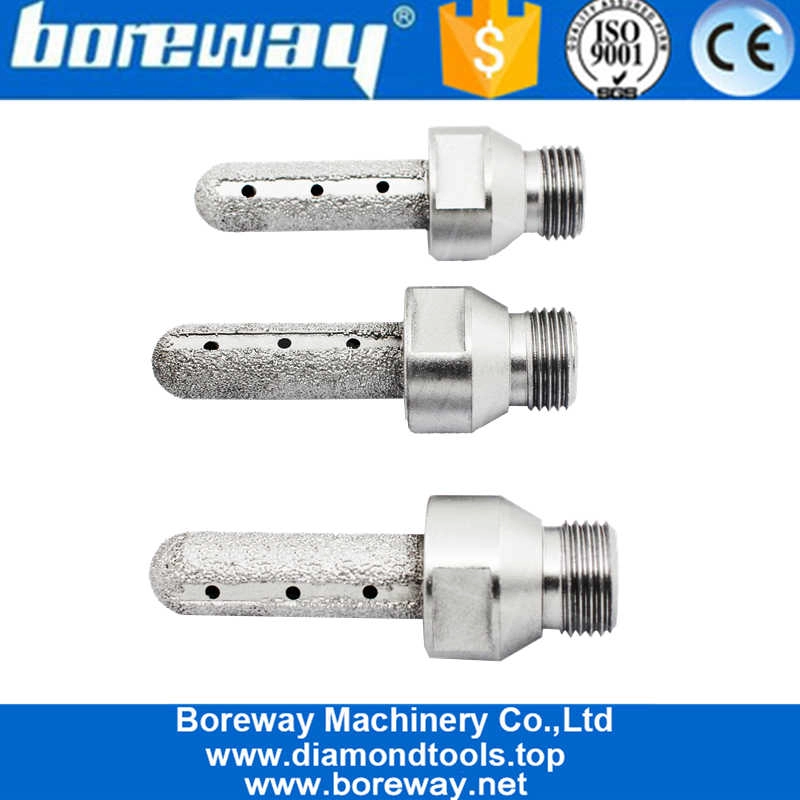

D15 Diamond Vacuum Brazed Ball Shape Finger Bit For Stone Sink Hole 1/2"G Connection Manufacturer

  • Usage: Wet Use
  • Size: D15*50T*1/2"G
  • Brand Name:Boreway
  • Grit No.:30/40#,50/60#-200#
  • Feed Speed: 200~450mm/min
  • Recommend Speed:4500 RPM
  • Type: Vacuum Brazed Finger Bit
  • Model Number:BW-DFB-VB02-15-050
  • Machine:Semi-CNC Machines And CNC Machine
  • Application:On Granite,Marble,Sandstone And Other Stone

Product Description:

Vacuum Brazed Finger Bit Wholesales is manufactured to outperform any other vacuum brazed types on the market. This bit is specifically created for soft stones such as marble, travertine and limestone.


Our finger bits are engineered for natural stone slabs, making granite finger bits, marble finger bits, and other stone finger bits accessible to even budget-conscious professionals.

Vacuum Brazed Finger Bits are manufactured to outperform any other vacuum brazed types on the market.


1.Please vertical using and add water when grinding,mostly for side grinding.

2.Vacuum Brazed Finger Bit Wholesales are usually use after diamond core drill bits, fast removing dust,diamond sink wheel.

3.They are ideal for fast stock removal as well as truing up saw lines, which is designed to cut granite, engineered  stone and marble,counter tops, kitchen tops and basins.

4.Usually mounted on CNC or Radial Arm machines, for hole grinding, anchor and blind hole. Center water feed holes in each bit.




Feature:

1. Vacuum Brazed Finger Bits Wholesales are used to cut soft materials like Marble and Limestone;


2. Smooth and Fast Milling on soft materials at a very affordable price;


3. Grooved water channel design offers necessary lubrication while removing slurry from the cutting surface;


4. Fast Speed at 6, 000 to 7, 000 rpm and 400 to 800 mm/min feeding;


5. Available with connection of M14, 5/8*-11 and G 1/2* thread to fit different machine and models.


ProductSpecification:

Specification of Vacuum Brazed Finger Bit Wholesales :

 Diameter  Segment
Length
 Connection
 15MM  50MM  1/2"G

 Diameter  Bore(mm)  Segment
Length
 SegmentNo.
 20mm(3/4")  1/2Gas
(Male
Thread)
M145/8"-11
 40mm ​45mm ​50mm ​60mm  4-6pcs
 25mm(1")
 30mm(1-1/4")
 35mm(1-3/8")

The above specifications are for reference, other specifications can be ordered by customers.(China Factory Diamond Finger Bits Price)






Advantages:

BOREWAY Diamond Finger Bit Wet Use Manufacturer Advantages

1.Coring/Cutting stone

2. Used for making sink


3. Coring and cutting on stone


4. Very light; Very aggressive


5. Less Noise and Low Ampere.


6. Faster Speed and Lasting longer.


7. Vacuum brazing technology process.


Application:


BOREWAY Diamond Finger Bit Wet Use Manufacturer Application:

Vacuum Brazed Finger Bit Wholesales usually mounted on CNC or Radial Arm machines, for hole grinding, anchor and blind hole. Center water feed holes in each bit.

They are ideal for fast stock removal as well as truing up saw lines, which is designed to cut granite, engineered stone and marble,counter tops, kitchen tops and basins.

Granite Tiles:

Granite is one of the hardest and most durable of all flooring tiles. Granite tile is a perfect choice for hard surface applications where durability and low maintenance is important, such as tiles for kitchen countertops, high traffic floors and tile flooring for commercial applications.

Marble Tiles:

As an elegant & high-end building material,is widely in many housing areas.we invite you to enjoy this visual feast and aunderstand marble interior flooring better.




About Us:


China Factory D25 Diamond Finger Bit with Strengthened Bottom

Our Service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


Logistics:
Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours
China Factory D25 Diamond Finger Bit with Strengthened Bottom

FAQ:

1.How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 8 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.

2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.

3.Does your company accept custom-made?
Surely, we accept it. Including differentcolor, grit etc. We also can mark your ownlogo and brand on the pad. Any new productsyou want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.

Please Note:

1. Please provide items before purchase.
2. Please provide the model number before purchase.
3. Other specifications can be customized according to requirements.
