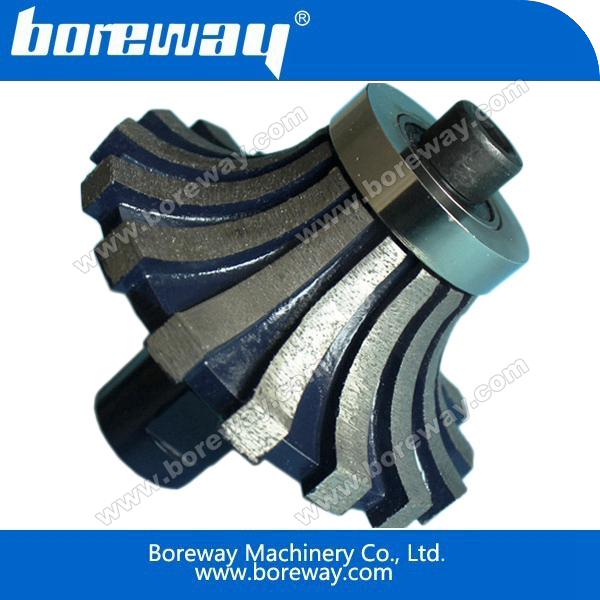

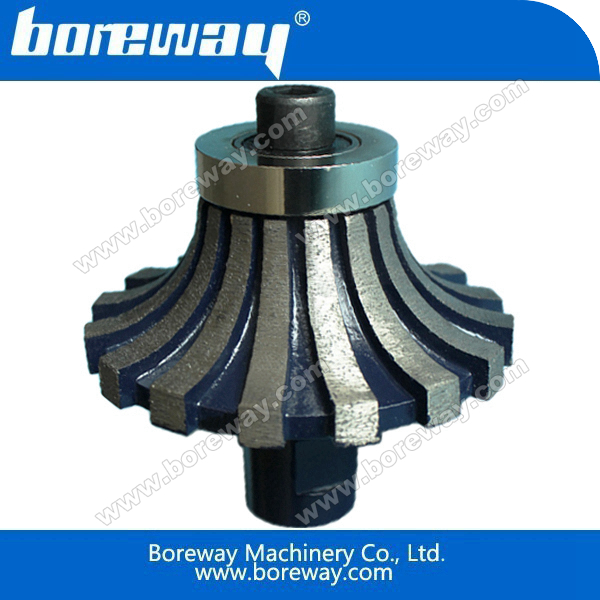

Boreway diamond segmented router bit
- Model Number: BW-DSRB-002
- Type: Wet Use
- Diameter: 50mm to 125mm
- Segment thickness：20mm to 50mm
- Segment Grit: 30# 40# 50# 80# 100# 170# 200# 400# 600# 800# 1000# Optional
- Segment shape: Segmented
- Connection: 22mm or 35mm or 1/2"Gas
- Applications: These diamond segmented router bits for stone are used for portable grinding machine,for processing counter's table-board profiling.
- Industry: Diamond drilling tools
- Welding method: Sinter welding
- Advantage: Good sharpness and Long lifespan.
Introduction:
These diamond segmented router bits for stone are used for portable grinding machine,for processing counter's
table-board profiling.Their merits are high efficiency of production,accuracy in shape and size.
Features:
1.The unique design with good sharpness allows easy dust removal, low noise and safety.
2.This product provides high accuracy and smooth surface in stone processing.
3.Its lifespan could normally reach more than 450meters.
4.With feature of high efficiency,accuracy in shape and size.
5.Using suquence:from rough grit to fine,finally polishing.
6.Various specification are available upon client's request.
Specifications:
The followings are the normal specifications of our diamond segmented router bit:
|
Product Name |
Position |
Grit |
Diameter |
Thickness |
Stone Shape |
Connection |
|
diamond segmented router bit |
Pos1 |
30/40# |
50-125mm |
20mm 30mm 40mm 50mm |
Segmented |
22mm 35mm 1/2 Gas |
|
Pos2 |
40/50# |
|||||
|
Pos3 |
80/100# |
|||||
|
Pos4 |
170/200# |
|||||
|
Pos5 |
400# |
|||||
|
Pos6 |
600# |
|||||
|
Pos7 |
1000# |
|||||
|
Pos8 |
Optional |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Premium.
Boreway diamond segmented router bit
This diamond segmented router bit applies to the BW-MX1280 multi-function cutting edge machine
and BW-MX1250 multi-function cutting edge machine.
