Sintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools SuppliersSintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools SuppliersSintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools SuppliersSintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools SuppliersSintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools Suppliers

Sintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools Suppliers

  • Thickness:20MM
  • Connection:M10
  • Shape: B+B Shape
  • Processing:Sintering
  • Working Condition: Wet Use
  • Model Number: BW-DRB-S-BB20
  • Machine: Used For CNC Machine Or Portable Machine
  • Advantage: High Efficiency,Good Blance,Long Lifespan
  • Usage:For Processing Counter's Table-Board Profiling
  • Applications:For Processing The Granite,Marble,Other Stones

Feature:


1) Using sequence: From coarse grit to fine, final polishing(B+B Shape 20mm Diamond Router Bits


2) You are free to choose only steps of them or one full set


3) For granite, marble and engineered stone slab's edge process


4) Thickness 20mm/30mm/40mm available or any others as per customer request


5)Hand used machine, easy operation. We also offer CNC machine used router bits


6)Perfect processing the edge of stone vanity top, counter top, table top etc.

Sintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools SuppliersSintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools Suppliers


Descriptions:

  • Their merits are high efficiency of production,exact figure.


  • Using sequence: from rough grit to fine, finally polishing(B+B Shape 20mm Diamond Router Bits).


  • Diamond Router Bit Marble Stone used for 20mm thick stone slabs

  • Diamond Router Bit are used for portable machine processing the granite,marble,other stones and the counter.

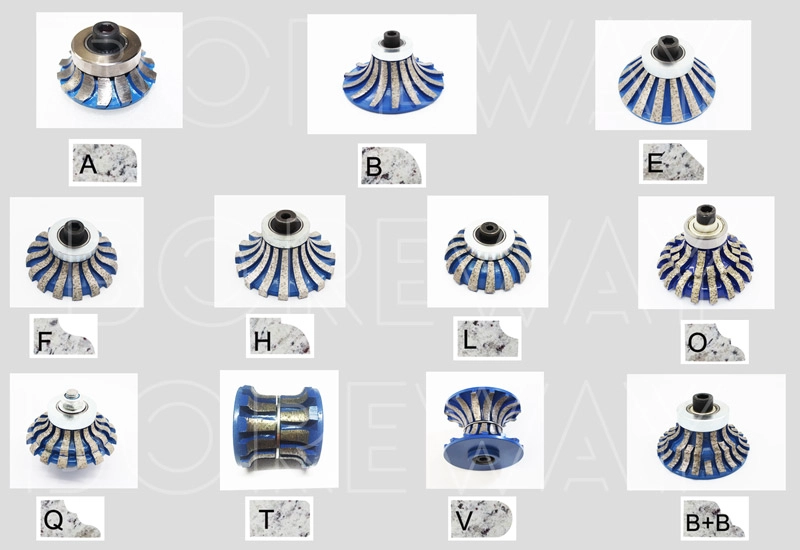

  • The following are different shapes design , including : A, B, D, E, F, G, H, I, L, M, N, O, P, Q, S, T, U, V, WF, DD, DC.

  • Good balance and stable performance(B+B Shape 20mm Diamond Router Bits).

  • Sintered segment is aggressive for easy and quick stock removal.

  • CNC granite diamond polishing wheels have different shapes and sizes are available.

  Specification:

The normal size of B+B Shape 20mm Diamond Router Bits:

Product Name Position Grit No. Diameter Thickness Stone Shape Spindle
Diamond router bit Pos 1
30/40# 50-125mm 20mm
30mm
40mm
50mm
A, B, D, E,F, G, H, I,

L, M,N, O,P,Q,S,T,U,

V,WF,DD,DC etc.
M8  M10 M14
1/2 "Gas
22mm
35mm
Pos 2 40/50#
Pos 3 80/100#
Pos 4 170/200#
Pos 5 400#
Pos 6 600#
Pos 7 1000#
Pos 8 Optional

Tips:The delivery quantity of this product is a lot (2 pcs).

Other connection and specification can be customized according to need.

(Segmeted router bit: Pos 0,metal continuous router bit:Pos1-Pos 3,resin diamond router bit:Pos 4-Pos 7)


Images:

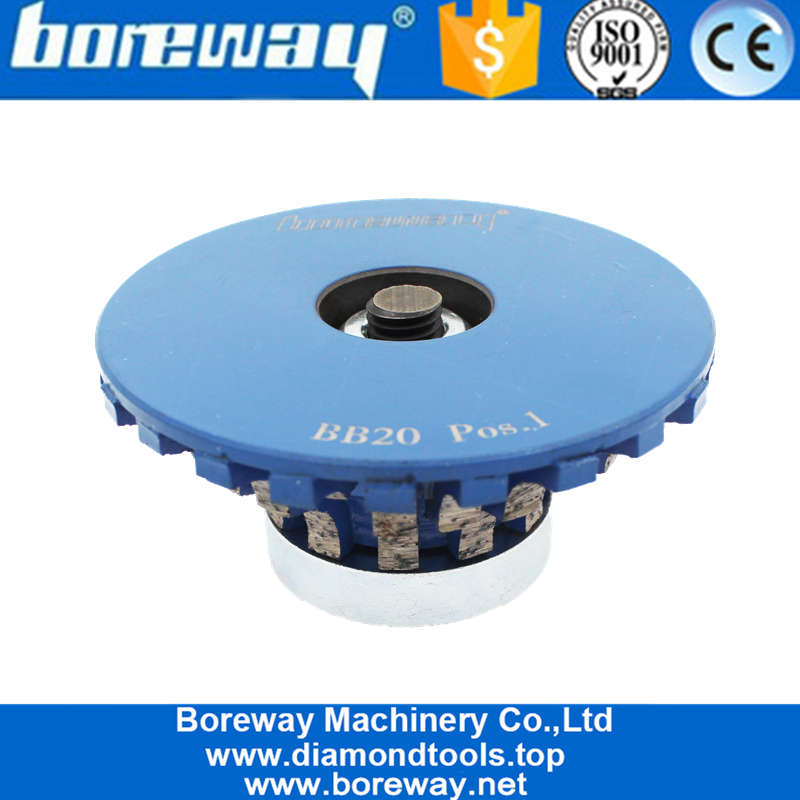

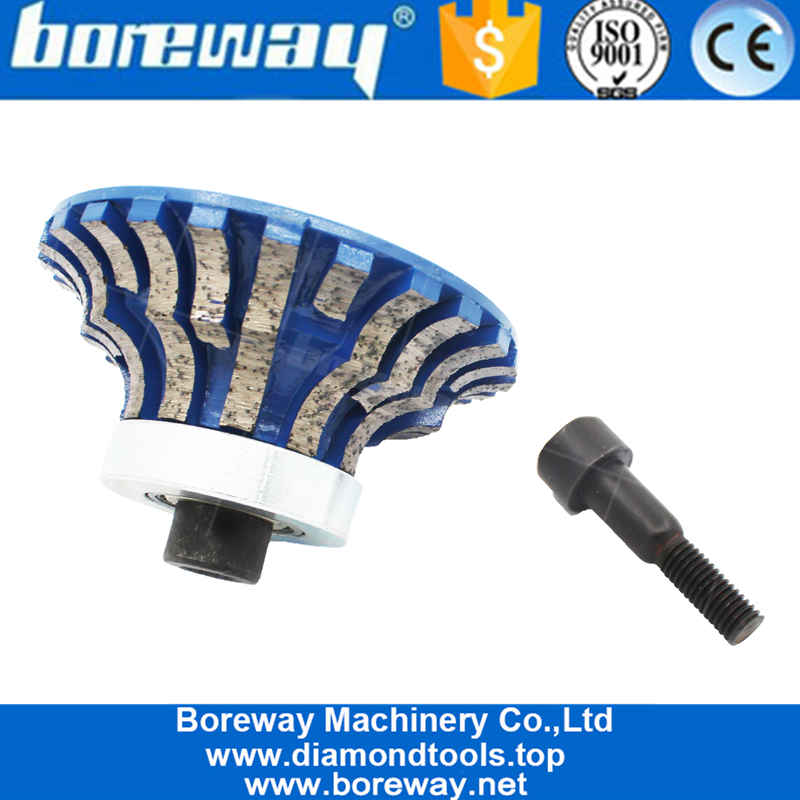

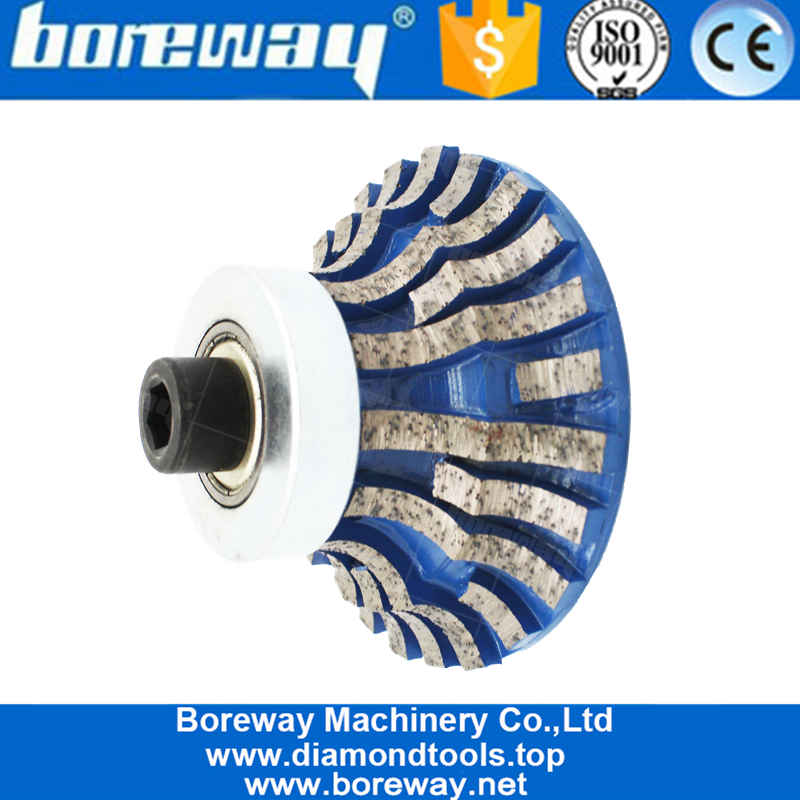

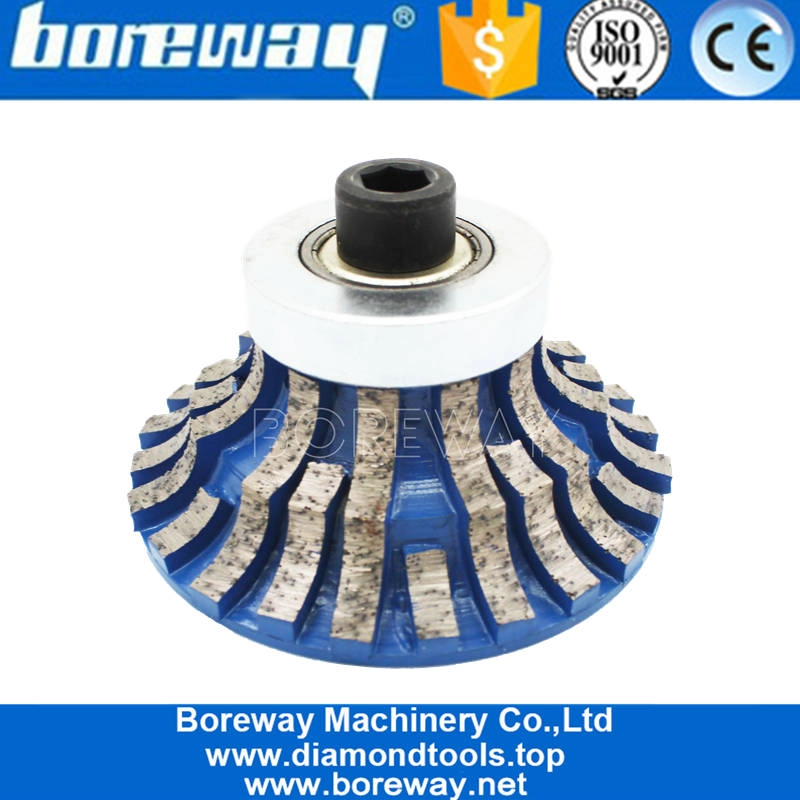

B+B Shape 20mm Diamond Router Bits

Sintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools SuppliersSintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools Suppliers

Sintered B+B Shape 20MM Diamond Router Bits for Marble Edge Processing Tools Suppliers



Application:

Use Type:Wet Use

Machine:Portable Machine and CNC machine

B+B Shape 20mm Diamond Router Bits are used for portable machine processing the granite,marble,other stones and the counter.



B+B Shape 20mm Diamond Router Bits

B+B Shape 20mm Diamond Router Bits


B+B Shape 20mm Diamond Router Bits
