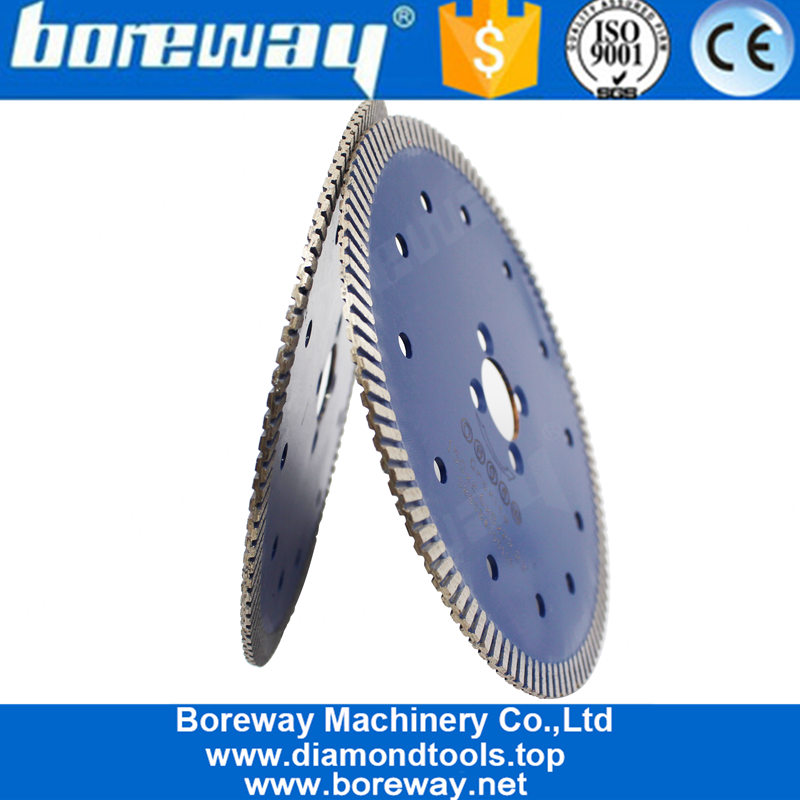

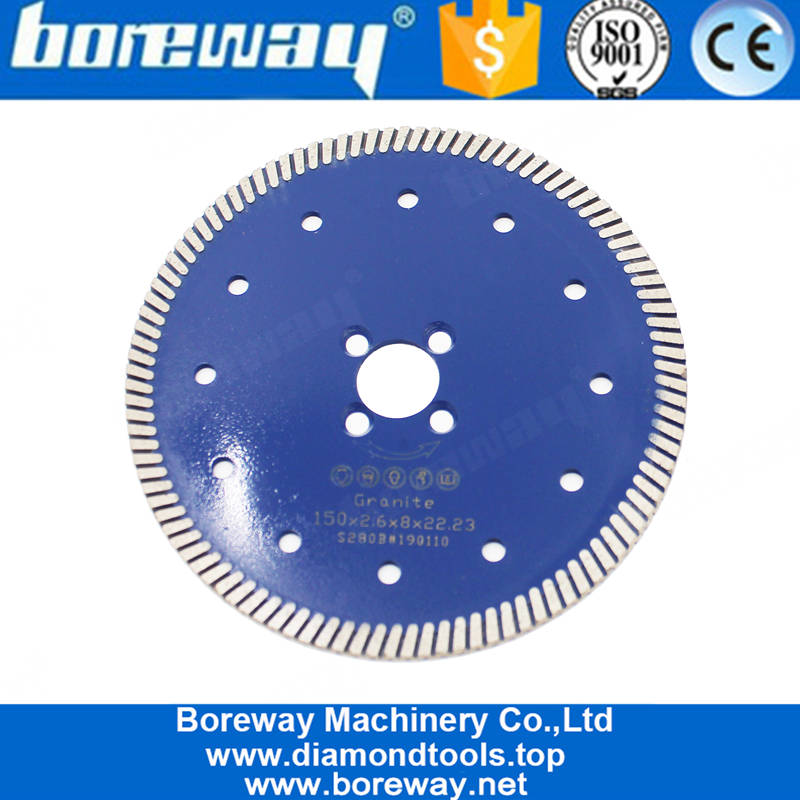

Wet or Dry Use Turbo Rim Circular Diamond Tile Porcelain Stone Concrete Cutting Blade Plates DiscWet or Dry Use Turbo Rim Circular Diamond Tile Porcelain Stone Concrete Cutting Blade Plates DiscWet or Dry Use Turbo Rim Circular Diamond Tile Porcelain Stone Concrete Cutting Blade Plates DiscWet or Dry Use Turbo Rim Circular Diamond Tile Porcelain Stone Concrete Cutting Blade Plates Disc

Wet or Dry Use Turbo Rim Circular Diamond Tile Porcelain Stone Concrete Cutting Blade Plates Disc

  • Size:230m,9inch
  • Binder: Metal Alloy
  • Finishing:Ti-Coated
  • Blade Material:Diamond
  • Segment Height:8/10/12mm
  • Segment Width:34.4mm
  • Model Number:BW-TSB-012-8
  • Product Name:Cut Off Wheel
  • Segment Thickness(mm):2.6mm
  • Production Process: Cold Pressed
  • Type:Continuous Turbo Rim Saw Blade
  • Bore Size:16/20mm,22.23mm,25.4mm,50mm
  • Application:Stone, Concrete, Ceramic, Porcelain, Tile, Masonry
Wet or Dry Use Turbo Rim Circular Diamond Tile Porcelain Stone Concrete Cutting Blade Plates Disc


Feature:

Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc

Segment Thickness:  2.6mm
 Segment Width:  34.4mm
 Size:  230m,9inch
 Production Process:  Cold Pressed
 Segment Height:  8/10/12mm
 Bore Size:  16/20mm,22.23mm,25.4mm,50mm
 Application:  Stone, Concrete, Ceramic, Porcelain, Tile, Masonry
 Machinery:  Angle Grinder,Circular Saw,Table Saw, Etc.

1.Diamond cutting disc are designed for cutting granite, marble, stone, masonry, hard brick etc.
contruction materials

2.Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc can effectivly remove the chips to enhance the cutting speed.

3.And the cooling holes can cool down the blades to protect the diamond blades for a longer lifespan.

4.This granite diamond cutting disc is characterized by fast cutting and no chipping.

Specification:

The following are normal specifications Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc:

Diameter  Bore Segment
Segments
  Segment
Inch/mm  Size
(mm)
 Width
(mm)

Thickness
(mm)
 Height
(mm)
4 105 16/20
22.23
25.4
50
35 1.8  8/10/12
4.3 110 32.3 1.8  8/10/12
4.5 115 38.5 1.8  8/10/12
5 125  37.5 2.0   8/10/12
150  33.5 2.2   8/10/12
180  35 2.4   8/10/12
8 200 39.2 2.4   8/10/12
9  230 34.4 2.6   8/10/12

The above specifications is only for reference, other specifications may be available as per customer's demand.


Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc

Advantage:

Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc

1. Hot pressed blade provide long life.

2. Professional qualtiy, very fast cutting.

3. Wet and Dry cutting, chip-free.

4. Can reduce cutting friction a lot, improve slab flatness, save energy.

Factory=Quality Control=Competitive Price=Own technology=OEM
Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc
Description:

Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc is a particularly stable and mature diamond saw blade, especially suitable for cutting ceramics, porcelain, vitrified tiles, granite, stoneware, hard tiles and other stone.

Attention when use:

1.  Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
 when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools.

2. Do not use any saw blade that has been deformed for being pressed of crashed.

3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on

4. Electric tools shall have protective cover.

Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc
Applications:

Hot Sintered, Dry or Wet Use!

Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc
is suitable for kinds of granite,stone, limestone, sandstone,basalt ,natural stone lava stone etc.

Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc

Applications Machine:

Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc is use for angle grinder,circular saw,masonry saw,table saw
Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc
Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc


Related Products:
About us:

Wet or Dry Use Turbo Rim Circular 230mm Cutting Disc

115mm Turbo Smooth Cutting Plates

Packing & Delivery:
PS:
1.Tools packing in carton cases

2.By Air/Sea for batch goods, Airport/Port receiving

3.Less than 45kg, generally delivery by express(Door to Door)

4.When tools are in large quantities, they are packing in wooden cases
200mm Narrow Turbo Hot Pressed Fast Cutting Multi Holes Circular Saw Blade
Our service:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
