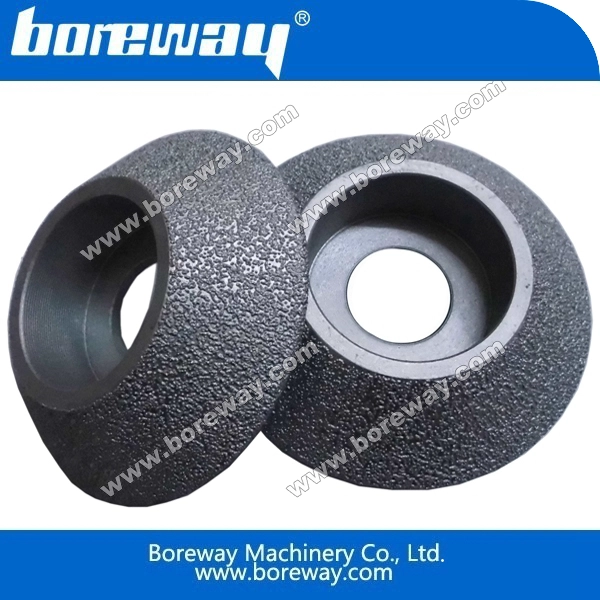

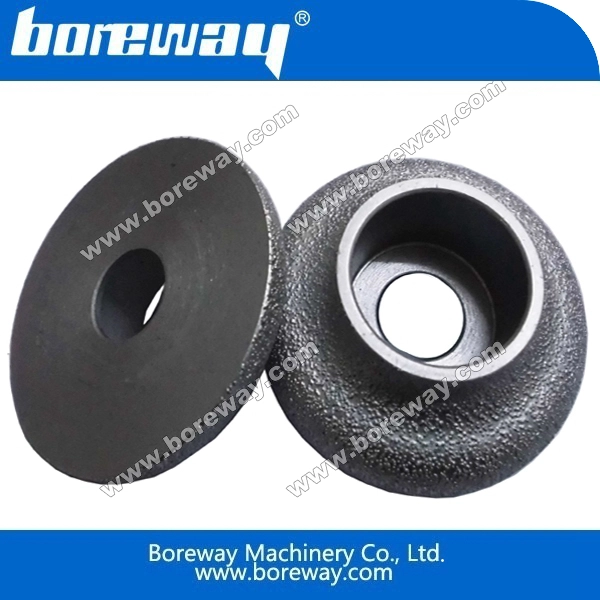

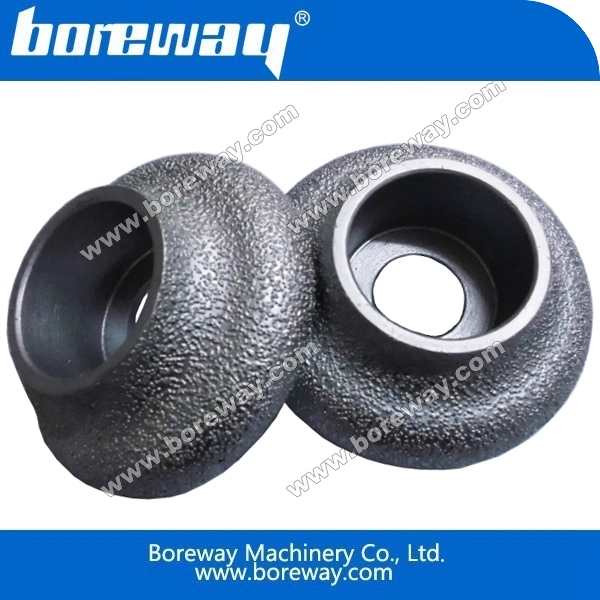

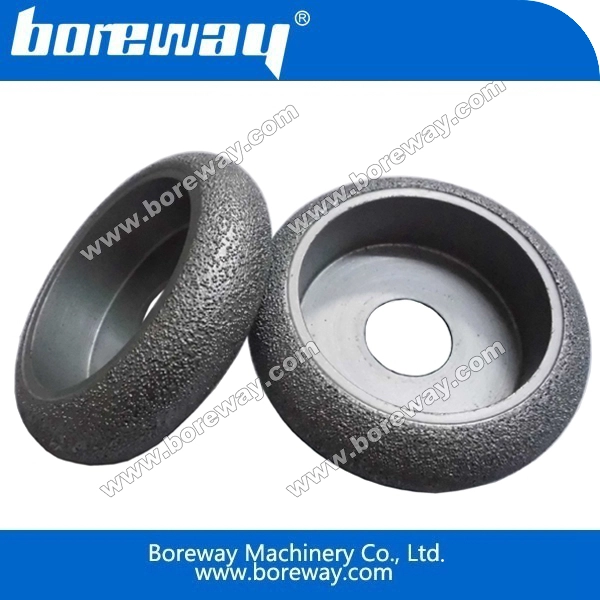

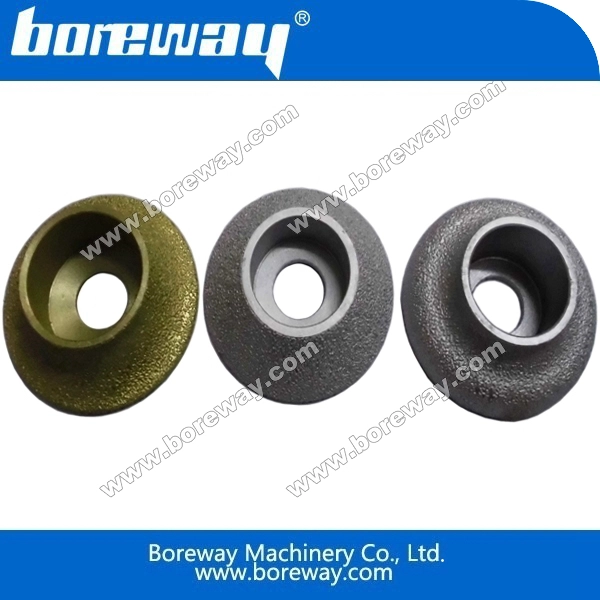

Vacuum brazed diamond profiling wheels
- Model Number: BW-VBDPW-002
- Type: Wet Use
- Diameter: 140mm to 350mm
- Segment Width: 20mm to 160mm
- Segment Grit: 40# 60# 80#
- Applications: Boreway vacuum brazed diamond profiling wheel is wet use for grinding granite marble and artificial stone etc.
- Machine: CNC machine and other grinding machine.
- Industry: Diamond grinding tools
- Welding method: Vacuum brazed
- Advantage: Good sharpness and Long lifespan.
Introduction:
Diamond vacuum brazed profiling wheels are used for processing shaped stone,their merits are extremely high efficiency of production,and high accuracy in shape and size.Different shapes and specifications are available upon clients’ requests.
Features:
1.Shaping of various special-shaped stones with extremely high efficiency.
2.Small metamorphose and good balance,accuracy in shapes and sizes.
3.Smooth profiling,stable performance.
4.Wide application range for soft and hard stone.
Specifications:
The followings are the normal specifications of our diamond vacuum brazed profiling wheels:
|
Product Name |
Diameter(mm) |
Width/Thickness (mm) |
Arbor/Inner Hole (mm) |
Grit |
Applications |
|
Diamond Vacuum Brazed Profiling Wheel |
Ø140-Ø350 |
20-160 |
30 50 |
40 60 80 |
Granite Marble Artificial stone etc. |
Other specifications can be ordered by customers.
