China M14 thread dia.5mm-120mm Vacuum brazed diamond core drill bit for tile porcelain and stone factoryChina M14 thread dia.5mm-120mm Vacuum brazed diamond core drill bit for tile porcelain and stone factoryChina M14 thread dia.5mm-120mm Vacuum brazed diamond core drill bit for tile porcelain and stone factoryChina M14 thread dia.5mm-120mm Vacuum brazed diamond core drill bit for tile porcelain and stone factoryChina M14 thread dia.5mm-120mm Vacuum brazed diamond core drill bit for tile porcelain and stone factoryChina M14 thread dia.5mm-120mm Vacuum brazed diamond core drill bit for tile porcelain and stone factory

China M14 thread dia.5mm-120mm Vacuum brazed diamond core drill bit for tile porcelain and stone factory

  • Type: Core Drill Bit
  • Connection: M14
  • Size: 5MM-120MM
  • Material: Diamond
  • Usage: Dry cutting
  • Process: Vacuum Brazed
  • Diamond grit: 35/40#, 40/50#, 50/60#
  • Application: tile marble granite
Introduction:

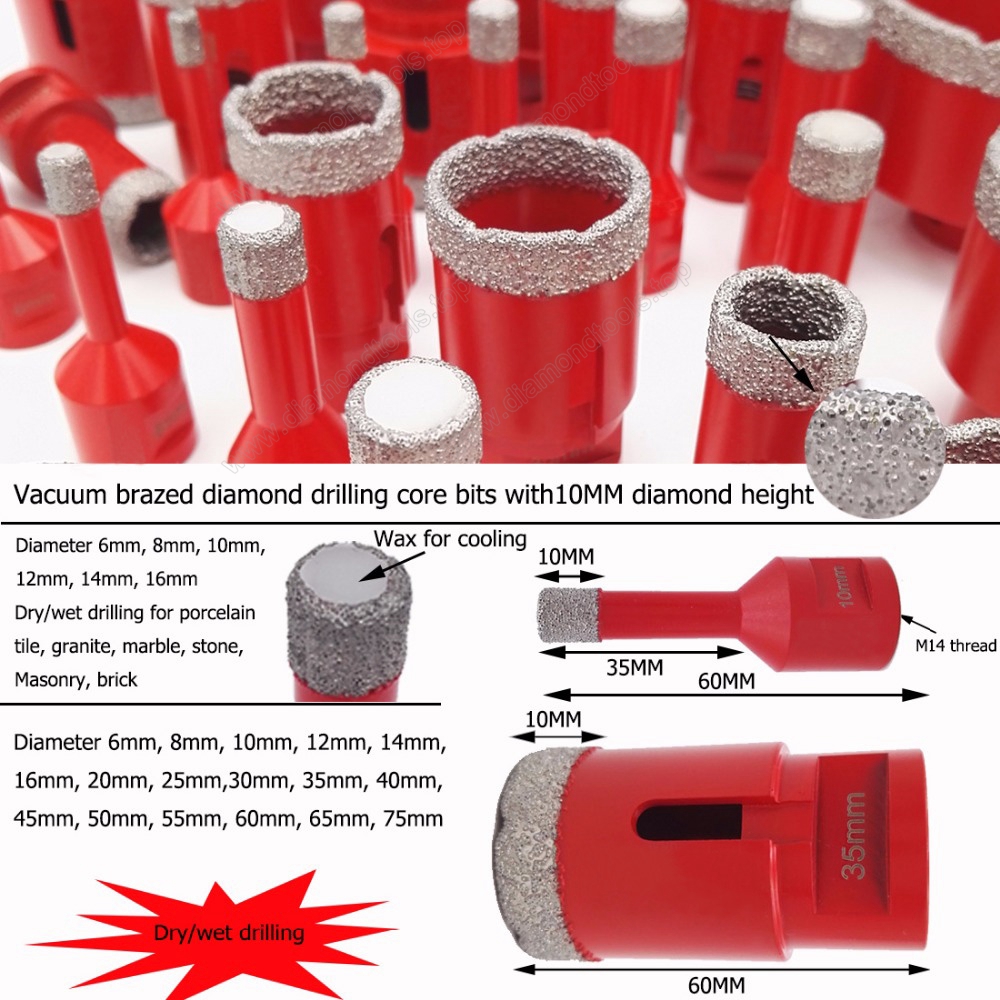

Product Name: Vacuum brazed diamond drilling core bits with10MM diamond height

Application: Vacuum brazed diamond core drill suitable for drilling Porcelain tile, Granite, Marble, Stone, Ceramic,Masonry, Brick and other hard materials.

Specification:
Diameter: 5mm,8mm,10mm,12mm,14mm,16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm,68mm, 75mm,120mm
Diamond grit: 35/40#, 40/50#, 50/60#
Connection: M14,  5/8”-11, M10, Round, Hex shank
Diamond height: 3mm,5mm, 10mm, 15mm upon request
Usage: Wet or dry use, silver welded is better for wet use and laser welded is better for dry use
Machinery: Suitable for stand drilling machines or Electrical hand-held drillers or CNC machines
Recommended drilling speed:6800 rpm with diameter of 5-14mm,10000 rpm with diameter from 20-120mm

Feature:

1.Long lifetime

2. Less Chipping

3.Better finish quality

4. Less loss of material

5. Less heat generation

6. Fast and Smooth drilling

7. Minimizing any breakage

8. Perfect safety, excellent fast, high efficiency and complicated shape.


Parameter: Vacuum brazed diamond drilling core bit

 Diameter(mm)  Working thickness(mm)
 5 10
6 10
8 10
10 10
12 10
 27  10/15
 35  10/15
 50  10/15
 60  10/15
 75  10/15
 120  10/15


Other diameters are available upon request.



Picture:

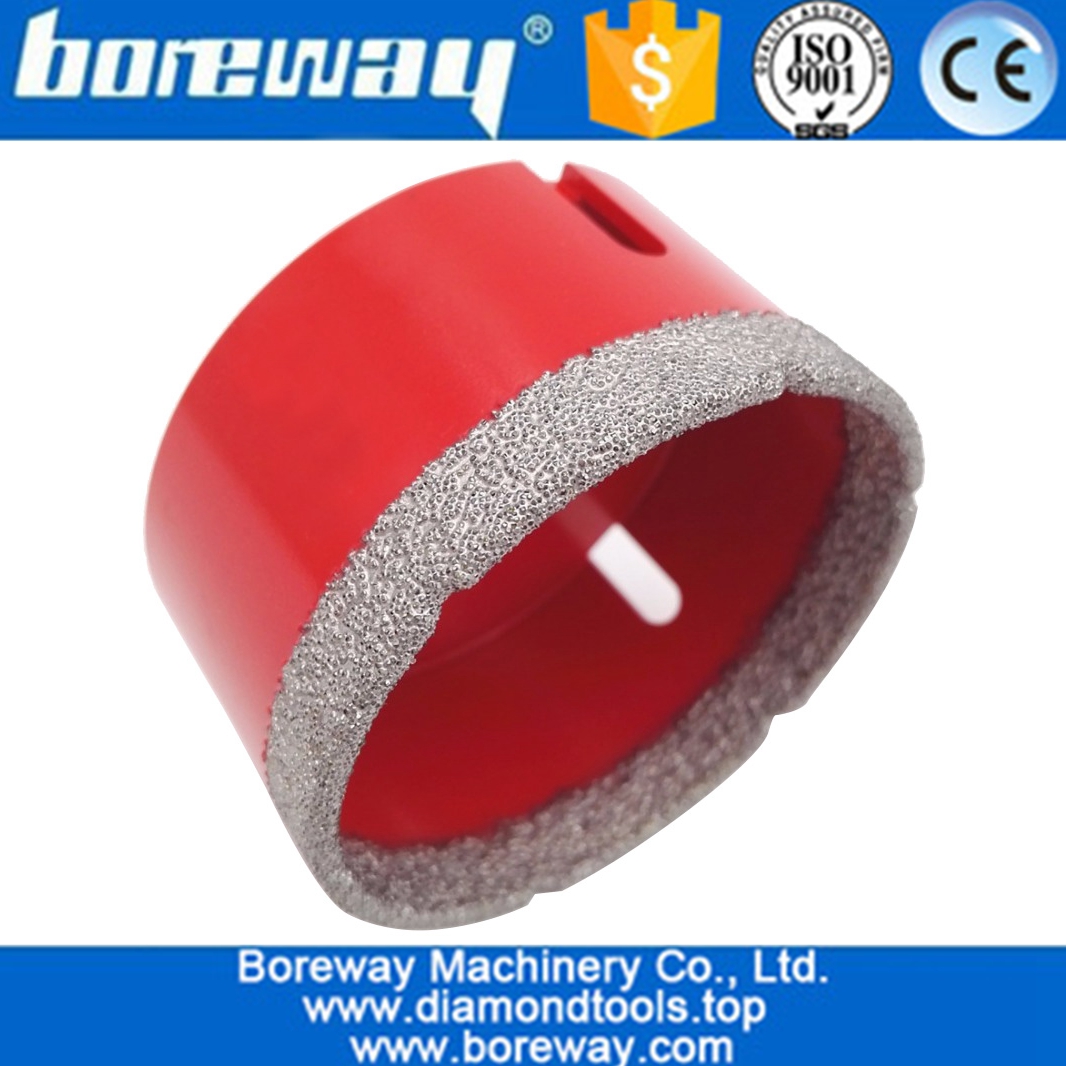

M14 thread dia.5mm-120mm Vacuum brazed diamond core drill bit for tile porcelain and stone factory

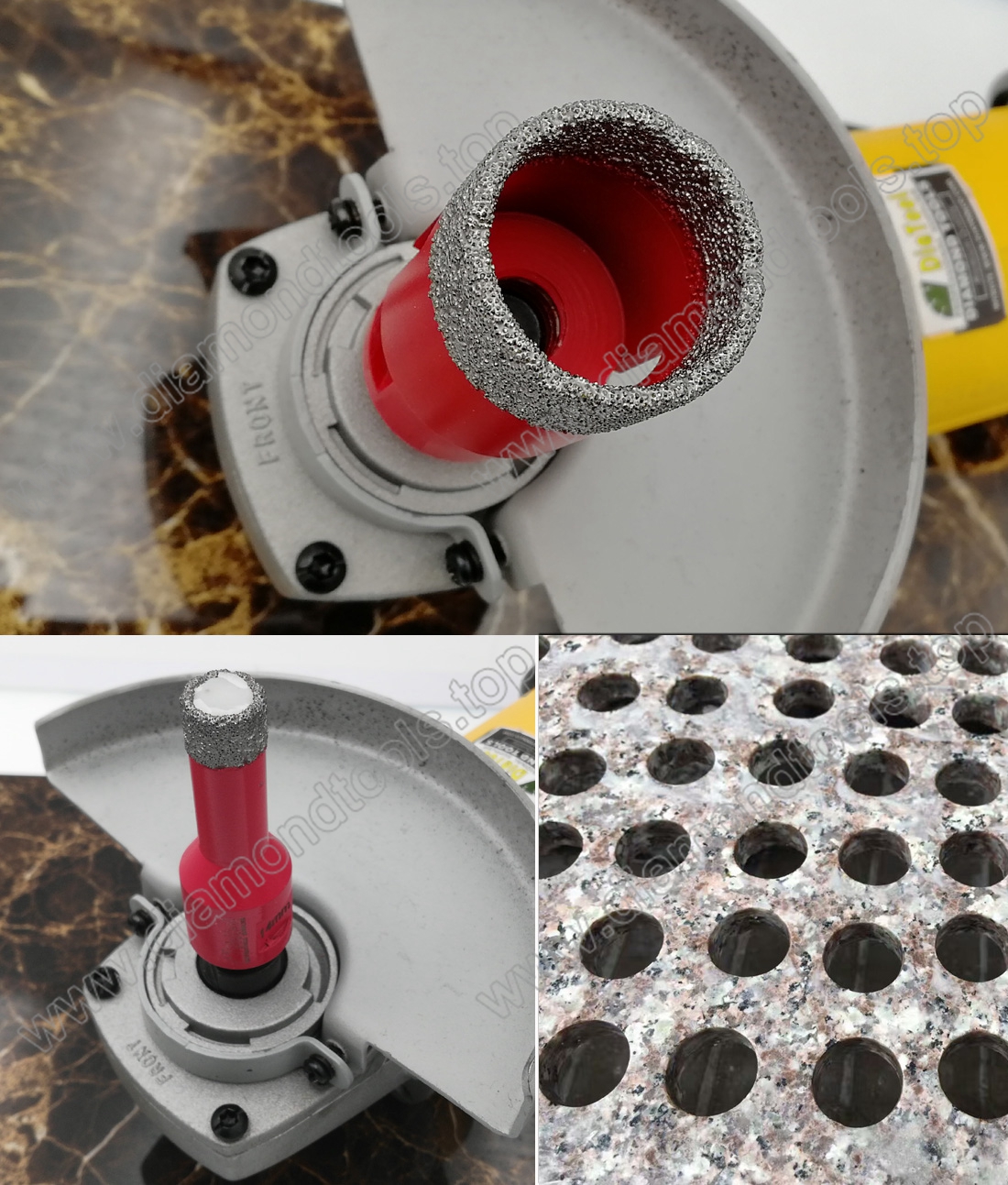

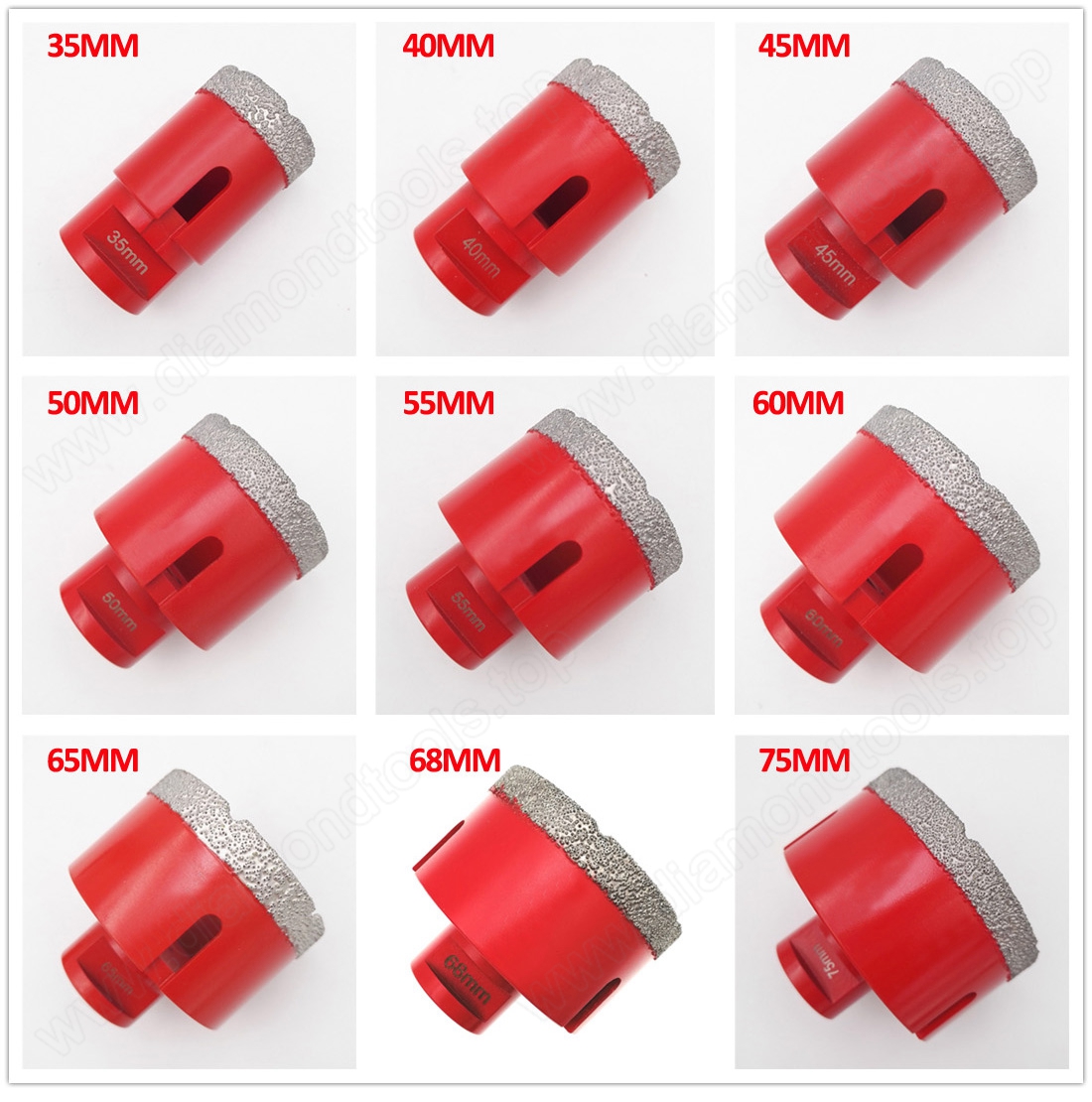

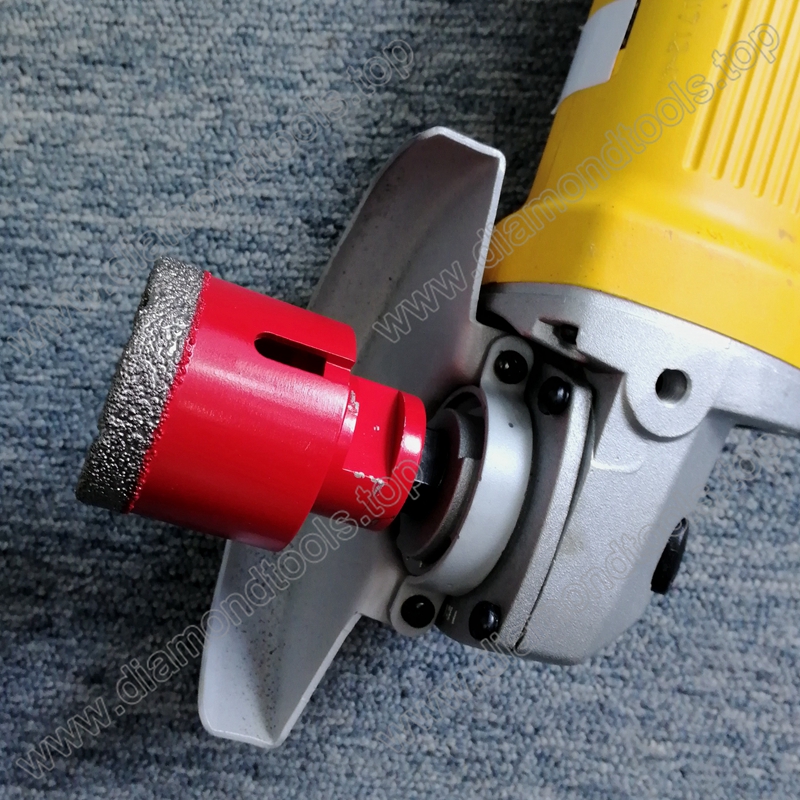

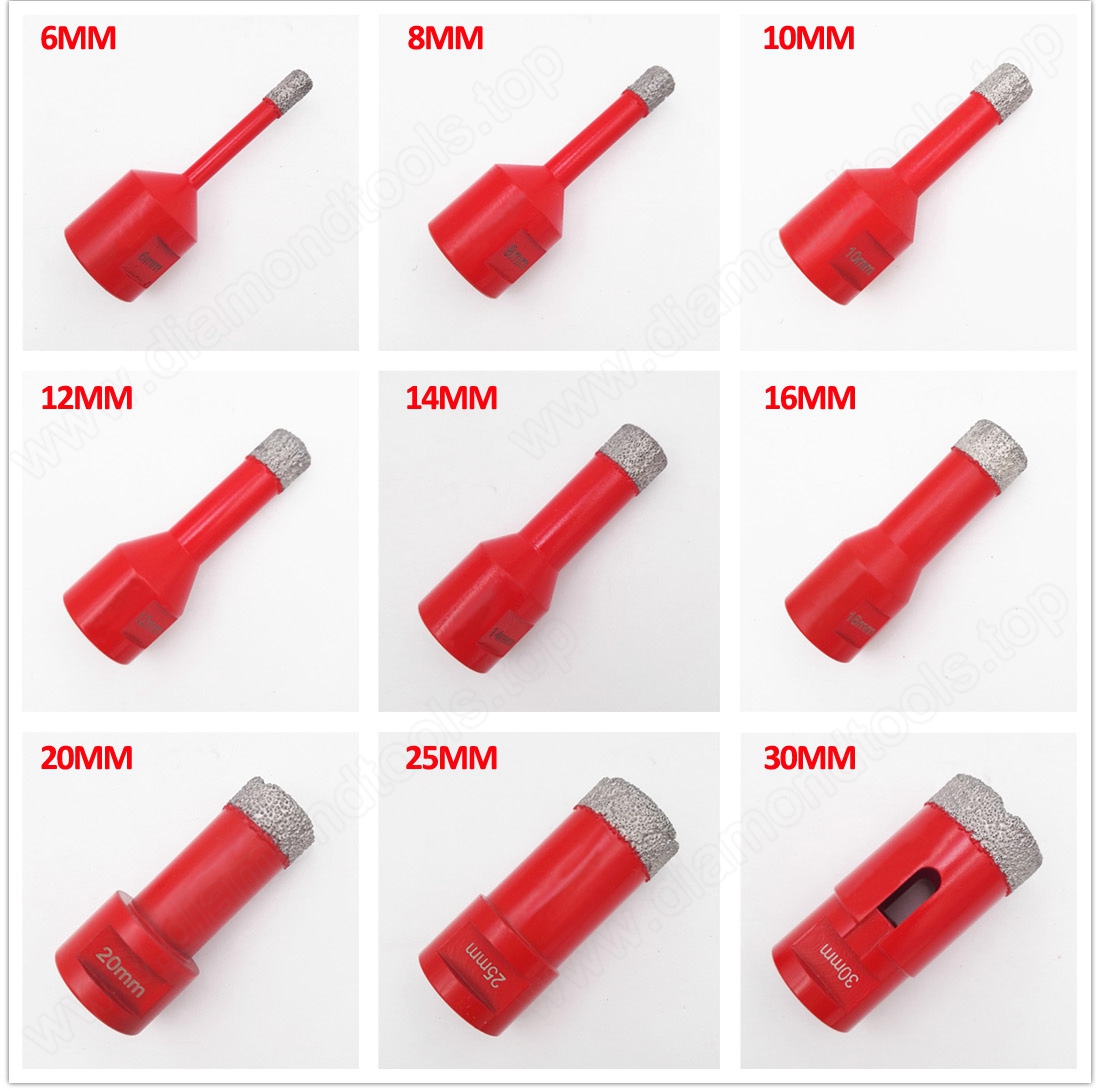

Vacuum brazed diamond core drill bit for tile porcelain and stone drill hole saw M14 thread 5MM-120MM
Vacuum brazed diamond core drill bit for tile porcelain and stone drill hole saw M14 thread 5MM-120MMVacuum brazed diamond core drill bit for tile porcelain and stone drill hole saw M14 thread 5MM-120MM
Vacuum brazed diamond core drill bit for tile porcelain and stone drill hole saw M14 thread 5MM-120MM
Vacuum brazed diamond core drill bit for tile porcelain and stone drill hole saw M14 thread 5MM-120MM

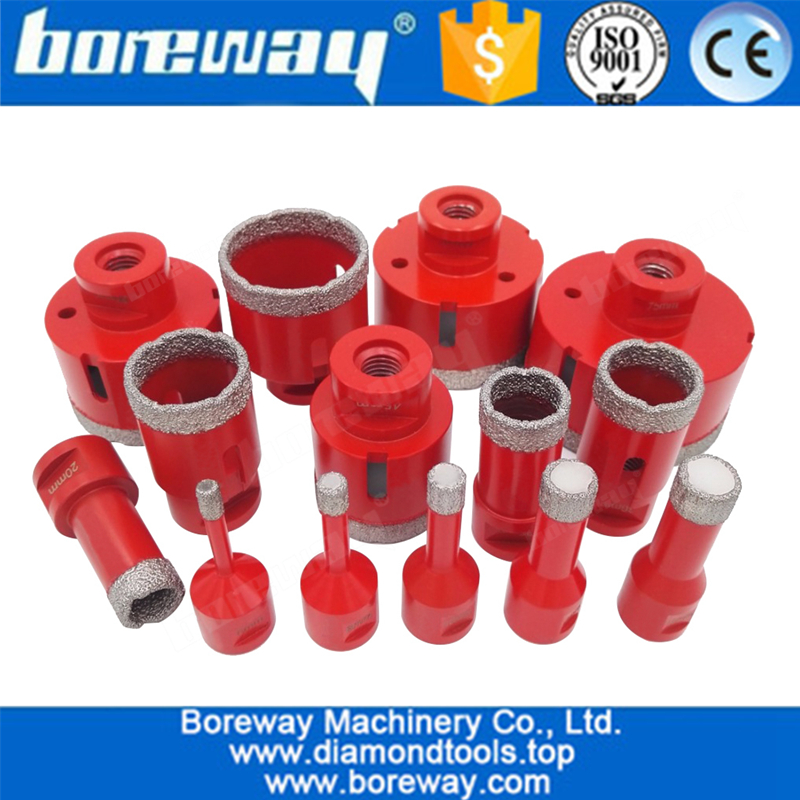

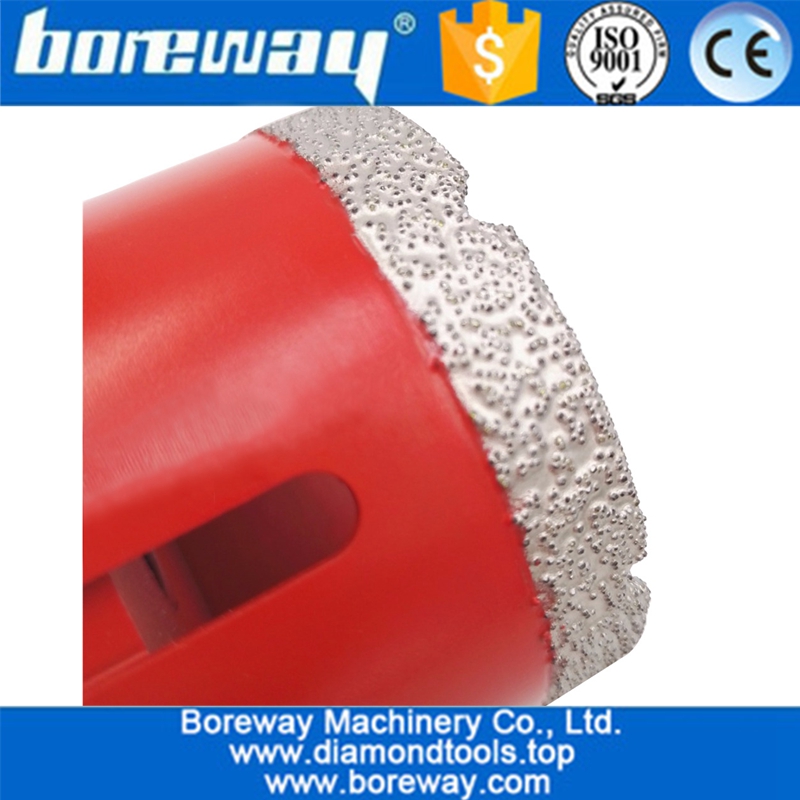

vacuum brazed diamond core drill bit
vacuum brazed diamond core drill bit
The above specifications & photos is only for Reference, other or special specification can be ordered by customers.
Go to the page of Stone Drill Tools

Packing & Delivery:

1.Tools packing in carton cases;

2.Large machines packing in wooden cases;

3.When tools are in large quantities, they are packing in wooden cases.

diamond tools packing and delivery
