Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core BitsManufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core BitsManufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core BitsManufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core BitsManufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core BitsManufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits

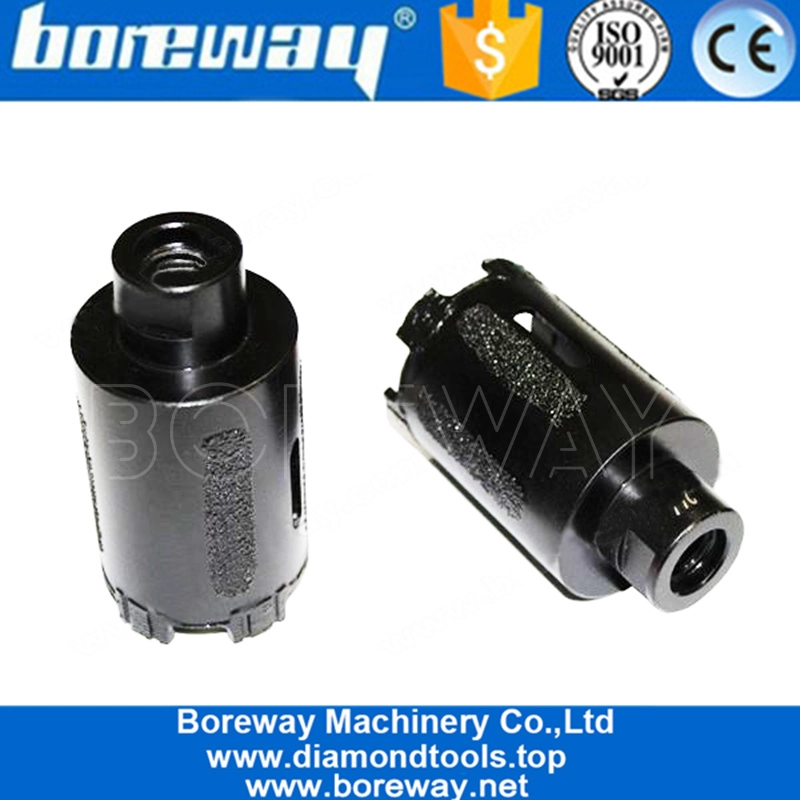

Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits

  • Model Number: BW-DDB-S07
  • Type: Dry Use
  • Diameter: 20mm To 127mm
  • Pipe Length: 100mm Or 85mm
  • Segment Height: 8mm To 10mm
  • Technology: Sintering+ Welding
  • Industry: Diamond Drilling Tools
  • Advantage: Good Sharpness And Long Lifespan.
  • Machine: Hand-Held Drill And Other Drilling Machine.
  • Applications: Boreway Brazed Tooth Dry Diamond Drilling Bit Is Dry Use For Drilling Granite Marble Artificial Stone And Quartz Etc.
Product Description:

Welding Type: Silver Welding

Applications: Kinds of granite or hard stone.

Machinery: Suitable for stand drilling machines or Electrical hand-held drillers or CNC machines.Wet or dry use, this type drill bit is specially designed for dry use.

Brazed Tooth Dry Diamond Drilling Bits Supplier
are suitable for stand drilling machine,electrical hand-held drillers to dry drilling granite and other construction materials.

The vacuum brazed processing
method proves the advantages as high efficiency and long lifespan.

Diamond Core Drill Bits with Turbo segments and pipe diamond vacuum brazed for dry drilling granite or hard stone, common uses would be small projects such as drilling out sink holes for faucets or small holes on slabs.
Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits 01


Feature:

1.Excellent cutting speed with a long lifespan.

2.Ideal design of protective tooth can offer high efficiency dry drilling.

Product Specification:

The followings are the normal specifications of our Vacuum Brazed Diamond Dry Core Bits:

Code No. Diameter  Segment Size   Use  Pipe Length  Welding Method  Adaptor
  BW-DDB-S07                     20mm (3/4") 17/12x3x10  Dry  100mm
Or 
 85mm
Silver Welding
Or
Laser Welding
5/8"-11
 M14
 1/2"Gas
22mm(7/8")  17/12x3x10
25mm (1")  17/12x3x10
29mm(11/8")  17/12x3x10
32mm(11/4")  16x3x10
35mm(1-1/4")  16x3x10
38mm(1-3/8")  16x3x10
42mm(1-1/2")  16x3x10
45mm(1-5/8")  16x3x10
50/51mm(2") 16x3x10
57mm(2-1/4")  22x3.5x10
60mm(2-3/8")  22x3.5x10
63mm(2-1/2")  22x3.5x10
70mm(2-3/4")  22x3.5x10
76mm(3")  22x3.5x10
80mm(3-1/8") 22x3.5x10
89mm(3-1/2") 22x3.5x10
102mm(4")  22x3.5x10
110mm(4-3/8")  22x3.5x10
127mm(5")  24x4x10

The above specifications are for reference, other Diamond Dry Core Drill Bit Manufacturer specifications can be ordered by customers.


Product show

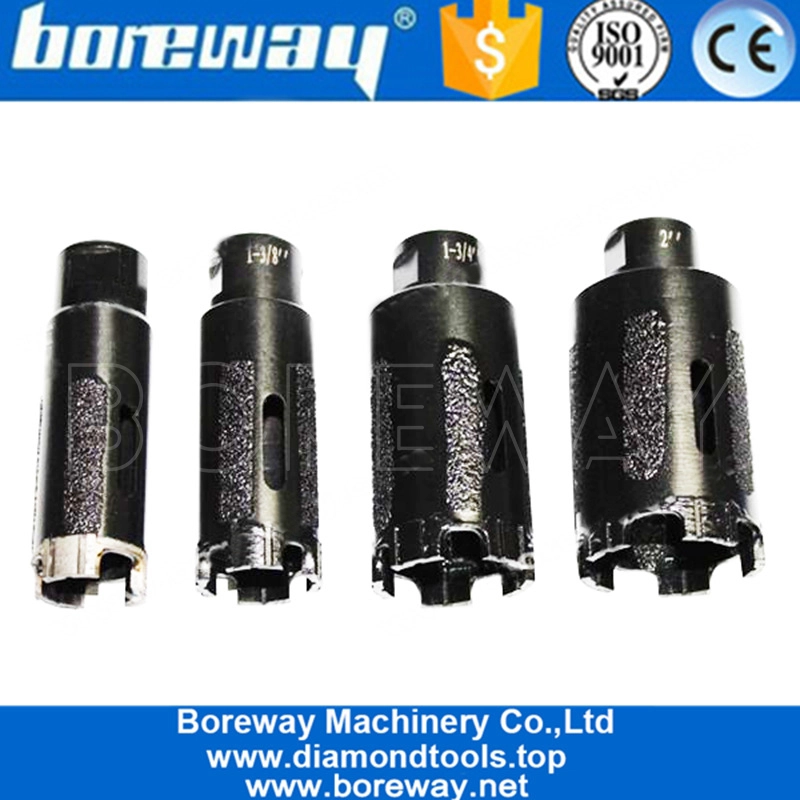

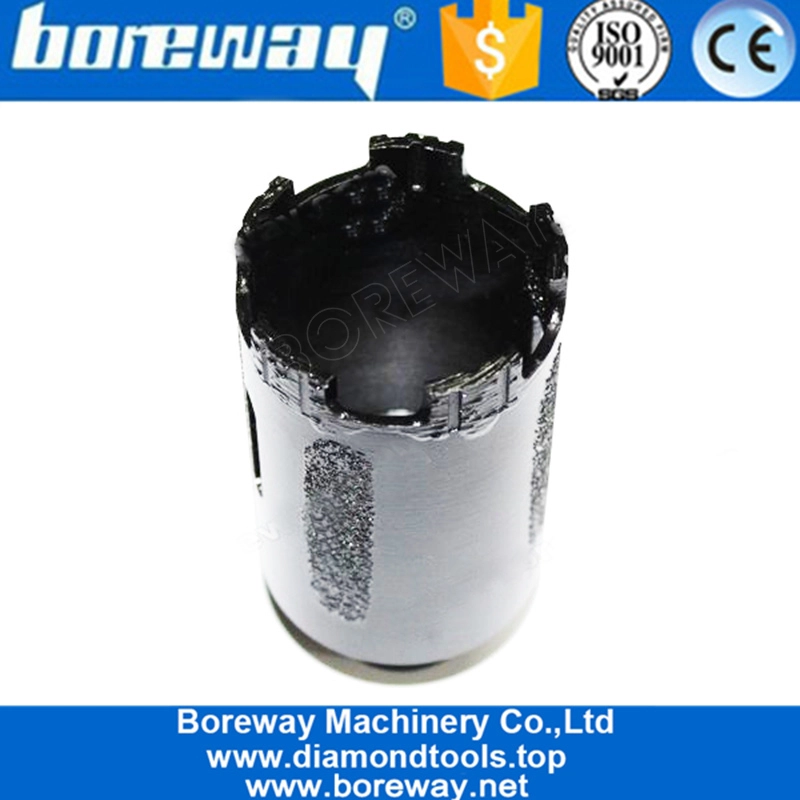

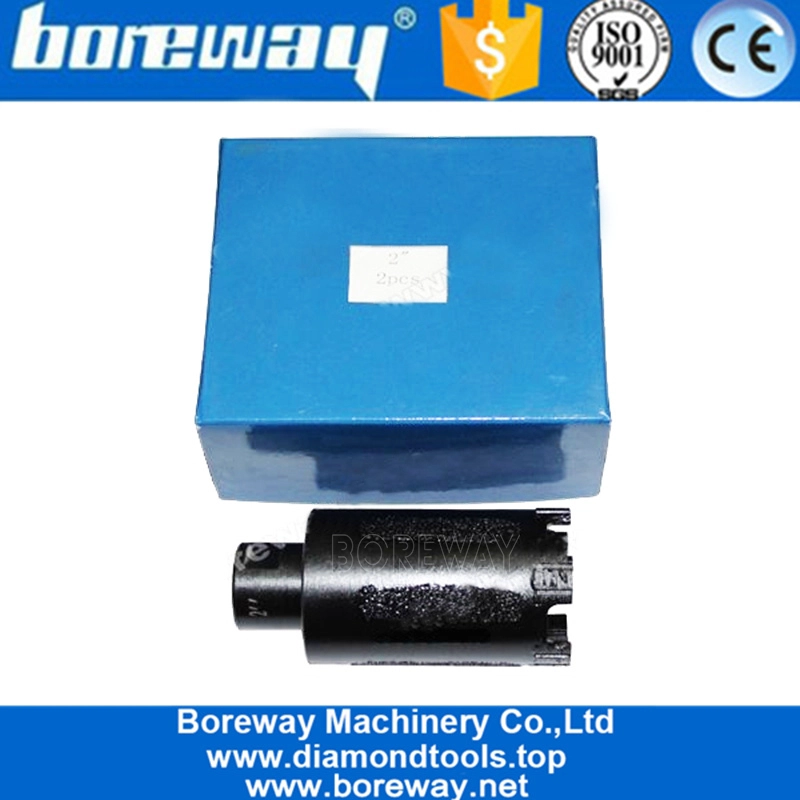

Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits

Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core BitsManufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits
Manufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core BitsManufacturer of 20MM-128MM Vacuum Brazed Diamond Dry Core Bits
