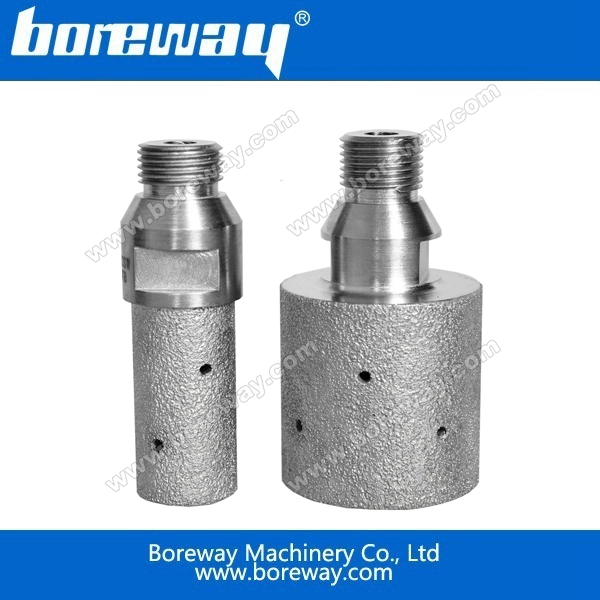

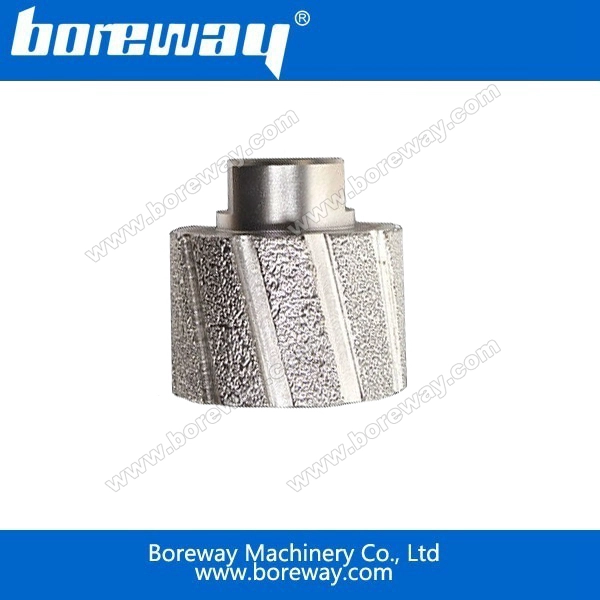

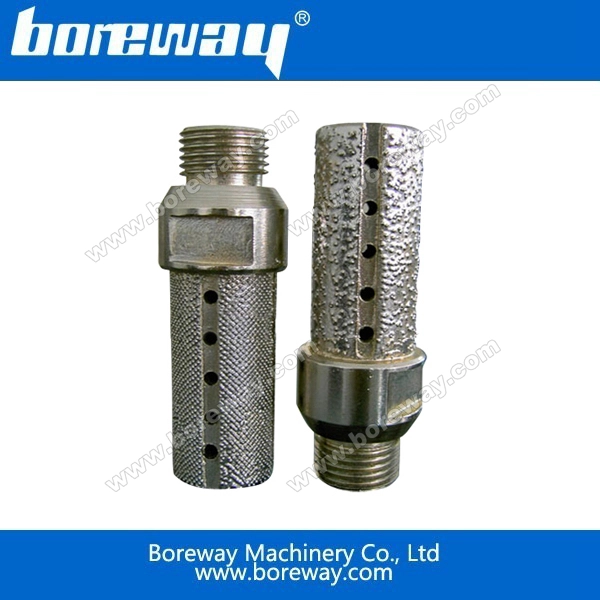

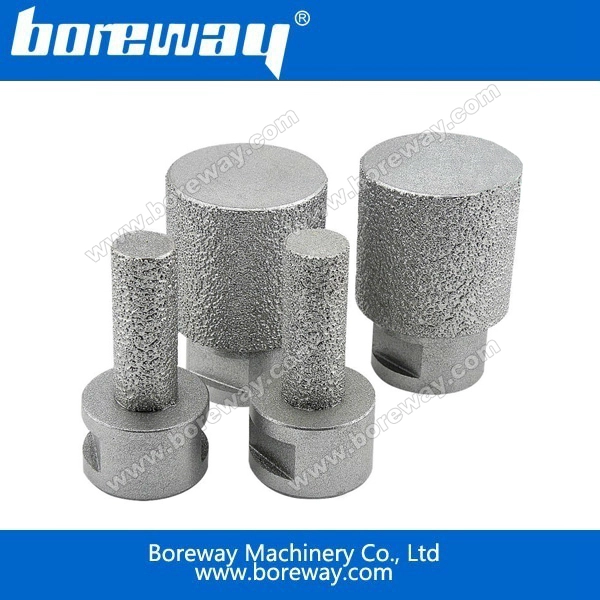

Vacuum brazed finger bit、sink wheel
- Model Number: BW-VBFB-001
- Type: Wet Use
- Diameter: 16mm-75mm
- Segment Height: 35mm-60mm
- Segment shape: Continuous rim
- Applications: Boreway vacuum brazed finger bit is wet use for drilling and grinding.
- Machine: The sink wheel is used in hand-held machine.
- Industry: Diamond tools
- Welding method: Vacuum brazed
- Advantage: Good sharpness and Long lifespan.
Introduction:
1.Vacuum brazed are used to cut soft materials like Marble and Limestone;
2. Smooth and Fast Milling on soft materials at a very affordable price;
3.Grooved water channel design offers necessary lubrication while removing slurry from the cutting surface;
4.Fast speed at 6,000 to 7,000 rpm and 400 to 800 mm/min feeding;
5.Available with connection of M14, 5/8" -11 and G1/2’’ thread to fit different machine and models.
Features:
1.combined,diamond tool
2.punching punctual well
3.perfect package
4.reasonable price
Specifications:
The followings are the vacuum brazed finger bit/sink wheel ：
|
Product |
Diameter |
Segment Height |
Grit No. |
Connection |
|
Finger Bit |
ø16 |
35-60 |
30#~60# |
M14 / 5/8" -11 / G1/2" |
|
Finger Bit |
ø20 |
35-60 |
30#~60# |
M14 / 5/8" -11 / G1/2" |
|
Finger Bit |
ø25 |
35-60 |
30#~60# |
M14 / 5/8" -11 / G1/2" |
|
Sink Wheel |
ø25 |
35-60 |
30#~60# |
M14 / 5/8" -11 / G1/2" |
|
Sink Wheel |
ø50 |
35-60 |
30#~60# |
M14 / 5/8" -11 / G1/2" |
|
Sink Wheel |
ø75 |
35-60 |
30#~60# |
M14 / 5/8" -11 / G1/2" |
Other specifications available upon request
