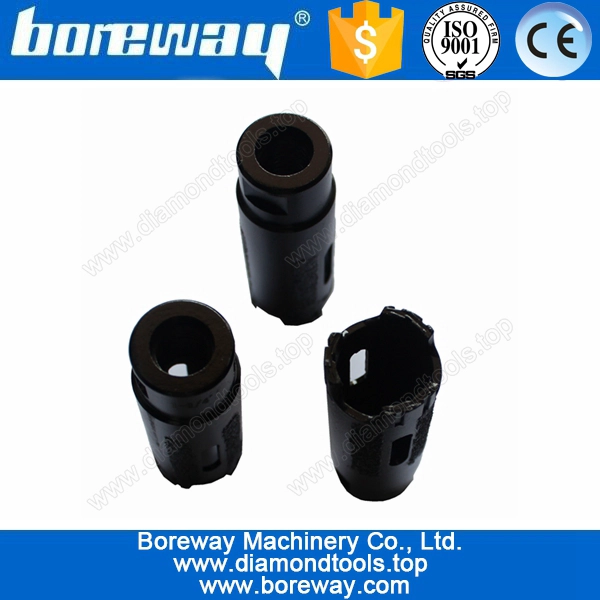

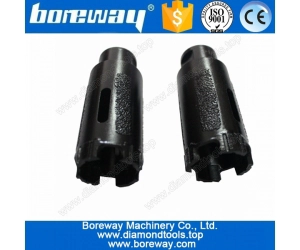

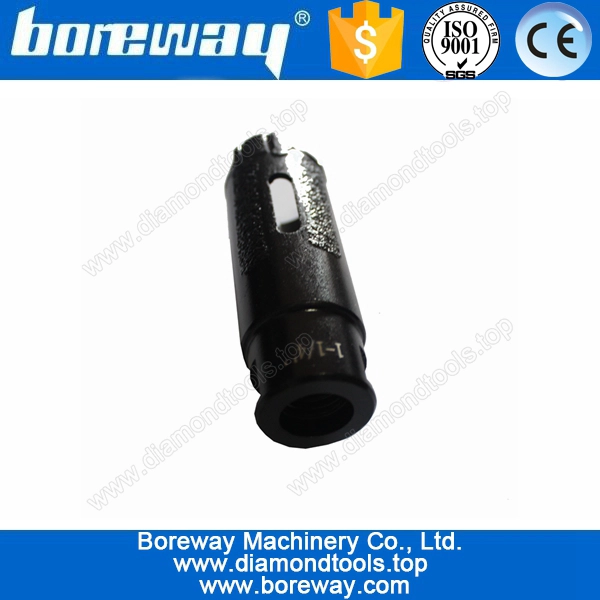

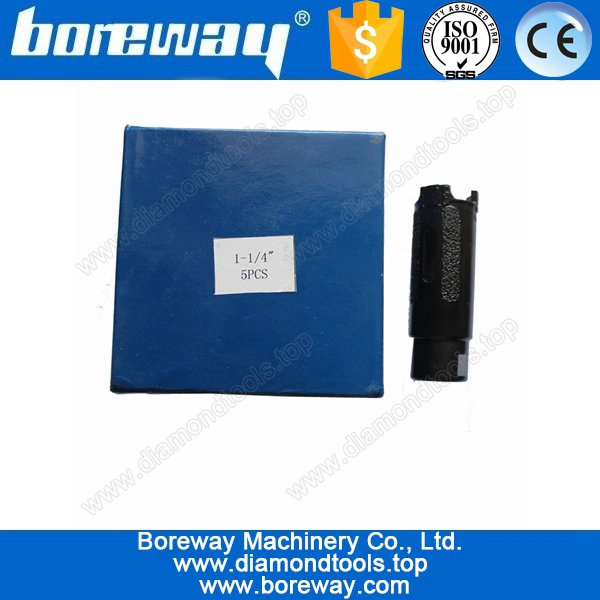

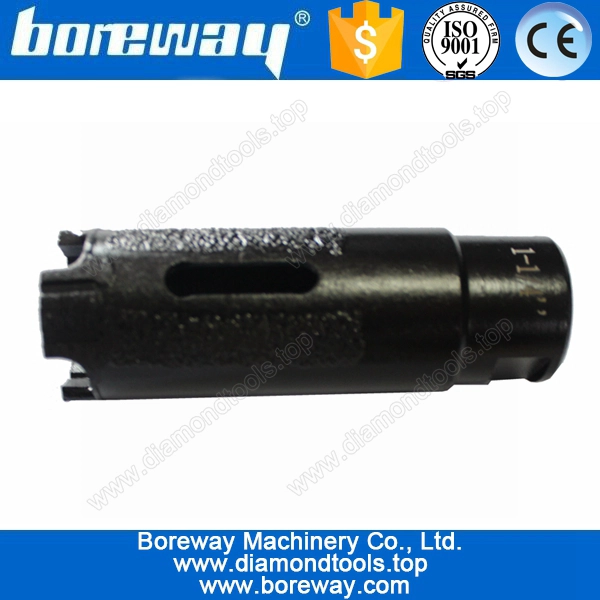

Turbo segment vacuum brazed drill
- Model: BW-DDB-S07-02
- Type: Dry use
- Specification: 1-1/4"
- Applications: Dry use for granite,marble and many other stone for drilling holes.
- Adaptation machines: Stand drilling machines or electrical hand-held drillers or CNC machine
- Advantages: Good stable and long lifespan.
Introduction:
Diamond core drill bits with turbo segments and pipe diamond vacuum brazed are produced by silver welding.
It can be suitable for stand drilling machines or electrical hand-held drillers or CNC machine.Be dry used for granite
or hard stone, common uses would be small projects such as drilling out sink holes for faucets or small holes on slabs.
It can be dry or wet use,but this type drill bit is specifically designed for dry use.
Features:
1.Designed for drilling holes.
2.Provide faster drilling speed than normal drill bits.
3.Good stable and long lifespan.
Specification:
The following is the normal size of our turbo segment vacuum brazed drill:
|
Code No. |
Diameter |
Segment Size |
Use |
Pipe Length |
Welding Method |
Adaptor |
|
CD-DDB-S07 |
29mm (1-1/8") |
16x2.5x10 |
Wet or Dry |
4" (100mm) |
Silver Welding or Laser Welding |
5/8"-11 M14 1/2 Gas |
|
32mm (1-1/4”) |
16x3x10 |
|||||
|
35mm (1-3/8”) |
16x3x10 |
|||||
|
38mm (1-1/2”) |
16x3x10 |
|||||
|
42mm (1-5/8") |
16x3x10 |
|||||
|
45mm (1-3/4”) |
16x3x10 |
|||||
|
50/51mm (2”) |
16x3x10 |
|||||
|
57mm (2-1/4”) |
22x3.5x10 |
|||||
|
60mm (2-3/8”) |
22x3.5x10 |
|||||
|
63mm (2-1/2”) |
22x3.5x10 |
|||||
|
70mm (2-3/4”) |
22x3.5x10 |
|||||
|
76mm (3”) |
22x3.5x10 |
|||||
|
80mm (3-1/8” |
22x3.5x10 |
|||||
|
89mm (3-1/2”) |
22x3.5x10 |
|||||
|
102mm (4”) |
22x3.5x10 |
|||||
|
110mm (4-3/8”) |
22x3.5x10 |
|||||
|
127mm (5”) |
24x4x10 |
The above specification just a reference for customer.Other specification can be ordered by clients.
