Supply T Shape Convex Diamond Cutting Saw Blade With Flange D125*M14
- Model Number: BW-CSB-02-02
- Diameter:125mm
- Connection:M14
- Machine:Portable cutting machine,radial arm machine
- Applications: T Shape Convex Diamond Cutting Saw Blade With Flange D125*M14 are used for cut granite,engineered stone and marble and other material
- Advantage:High efficiency and long lifespan.
Introduction:
T Shape Convex Diamond Cutting Saw Blade With Flange D125*M14 diameter from 4"-7" for cutting circles or curved line on the slab,counter top etc.
The protection on the both in-and-out "side provided faster cutting on kinds of Hard,Medium Hard,Soft stone like granite,marble,sandstone,lineston ect.
Feature:1.Universal dry or wet cutting blade.
2.Unique design of segments allows ideal debris removal,better cooling and protecting steel core,and provide extremely fast cutting.
3.Fast and smooth cutting,high performance/price ratio.
Specifications:
The following are the normal specifications about T Shape Convex Diamond Cutting Saw Blade With Flange D125*M14 :
Code No
Diameter
Bore
Segment Height
BW-CSB-02-01
105mm(4")
20mm 22.23mm(7/8")
8mm
BW-CSB-02-02
125mm(5"）
20mm 22.23mm(7/8")
8mm
BW-CSB-02-03
150mm（6"）
20mm 22.23mm(7/8")
8mm
BW-CSB-02-04
180mm（7"）
20mm 22.23mm(7/8")
8mm
The above specifications are for reference, other specifications can be ordered by customers.
Picture:

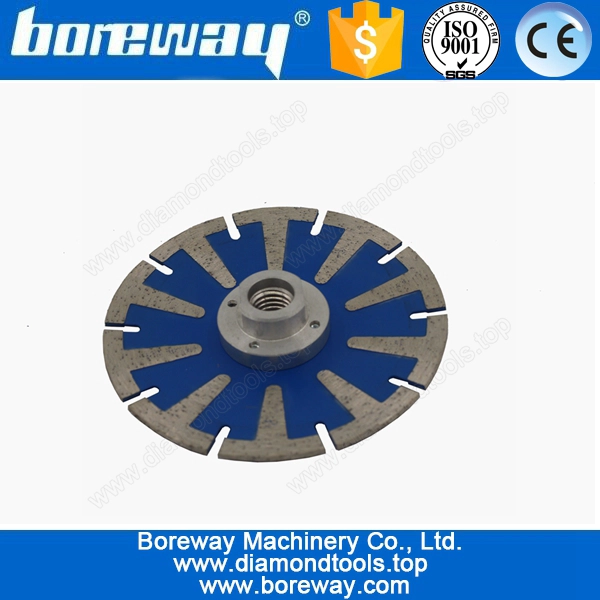

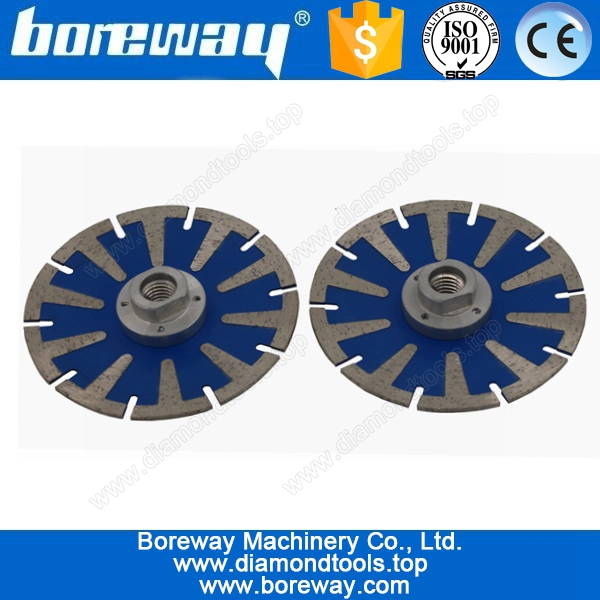

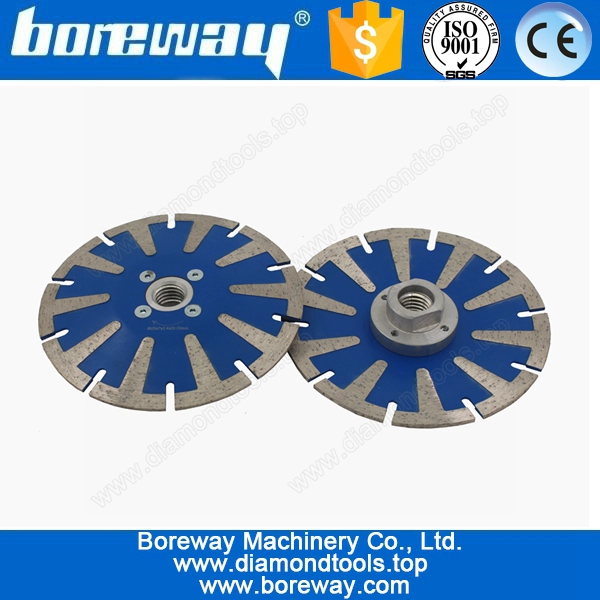

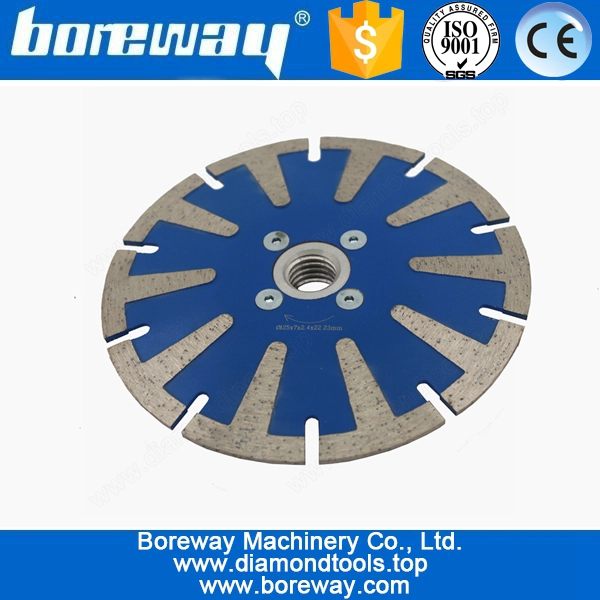

T Shape Convex Diamond Cutting Saw Blade With Flange D125*M14
