No Edge Collapse Three Step T Shape Diamond Segment for Granite Cutting
- Shape:T
- Material:Diamond
- Brand Name:Boreway
- Model Number: BW-DSG-T3-15
- Application:Granite Cutting
- Place of Origin:Fujian, China
- Use Type:Wet Word For Granite
- Semgnet Size:L20× T3.6/3.3/3.0× H15(20)mm
- Product name:T Shape Segment for Stone Cutting
| Product Description： |
.This unique “T”design of no edge collapse diamond segment side face allows ideal debris removal and better cooling, which also improves the sharpness and cutting efficiency. Besides, this design reduces blade stone interface while cutting that will minimize cutting friction and noise.
Compared to the long segment, this short segment design makes better cutting efficiency. Also this segment will not allow easy edge collapse, tapered slab etc.
| Feature: |
1.T shape diamond segment with three steps,good self-sharpness. With stable processing efficiency.
2.Shape diamond segment for granite.Dry & Wet cutting segment. welds easily.good sharpness. save the stone.
3.Stable Performance: in the outer and inner layers are carefully designed to ensure cutting stability.
4.The T-shaped design reduces the interface friction of the blade, makes the diamond exposed quickly, has high efficiency, and has good debris removal and better cooling effect.
5.t shape stone cutting segment,cooling effect is good. The three-step design has low side friction resistance, which is not only beneficial to protect the blanck body, but also greatly improves chip removal and cooling of the segment.
| Product Specification: |
The Following Are Normal Specifications No Edge Collapse Diamond Segment Supplier:
Segment Shape |
Blade Specification |
Core Thickness |
Segment Size |
Segment Number |
Application |
T Shape |
12 inch 300mm |
2.2/2.0 | 20× 3.6/3.3/3.0× 15(20) | 21 | Granite Stone Cutting |
| Blade Specification |
Core Thickness |
Segment Dimension |
Segment Number |
|
| 12 inch | 300mm | 2.2/2.0 |
20× 3.6/3.3/3.0× 15(20) | 21 |
| 14 inch | 350mm | 2.4/2.2 |
20× 3.6/3.3/3.0× 15(20) | 24 |
| 16 inch | 400mm | 2.8/2.4 |
20× 4.0/3.7/3.4× 15(20) | 28 |
| 18 inch | 450mm | 2.8/2.6 |
20× 4.3/4.0/3.7× 15(20) | 32 |
| 20 inch | 500mm | 3.2/2.8 |
20× 4.3/4.0/3.7× 15(20) | 36 |
| 22 inch | 550mm | 3.2/3.0 |
20× 5.0/4.7/4.4× 15(20) | 38 |
| 24 inch | 600mm | 3.6/3.2 |
20× 5.0/4.7/4.4× 15(20) | 42 |
| 26 inch | 650mm | 4.0/3.6 |
20× 5.0/4.7/4.4× 15(20) | 46 |
| 28 inch | 700mm | 4.0/3.8 |
20× 5.4/5.1/4.8× 15(20) | 50 |
| 32 inch | 800mm | 4.5/4.2 |
20× 6.0/5.7/5.4× 15(20) | 57 |
The above specifications is only for reference, other specifications may be available as per customer's demand.

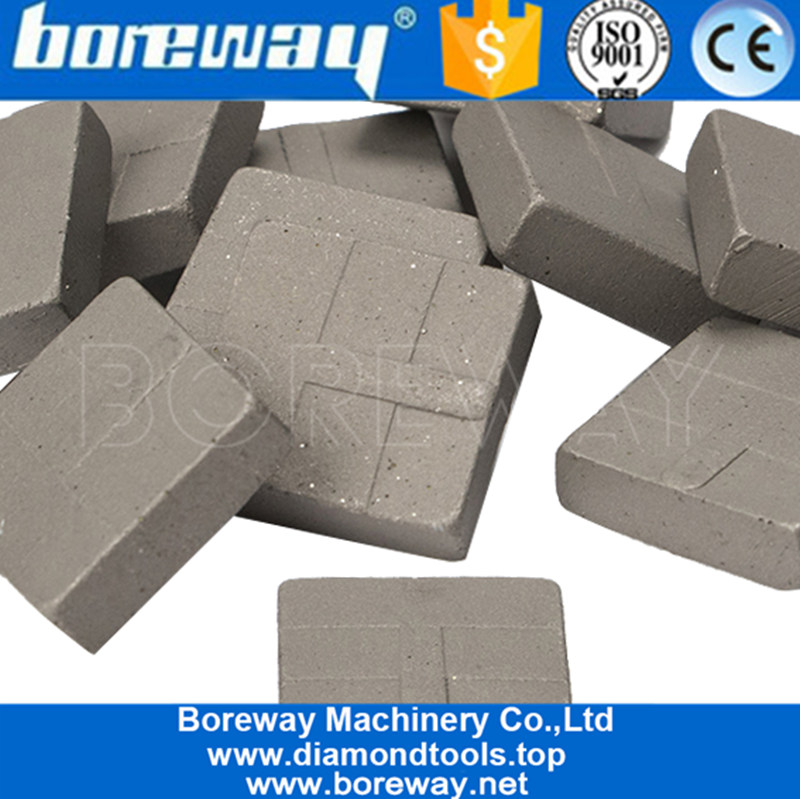

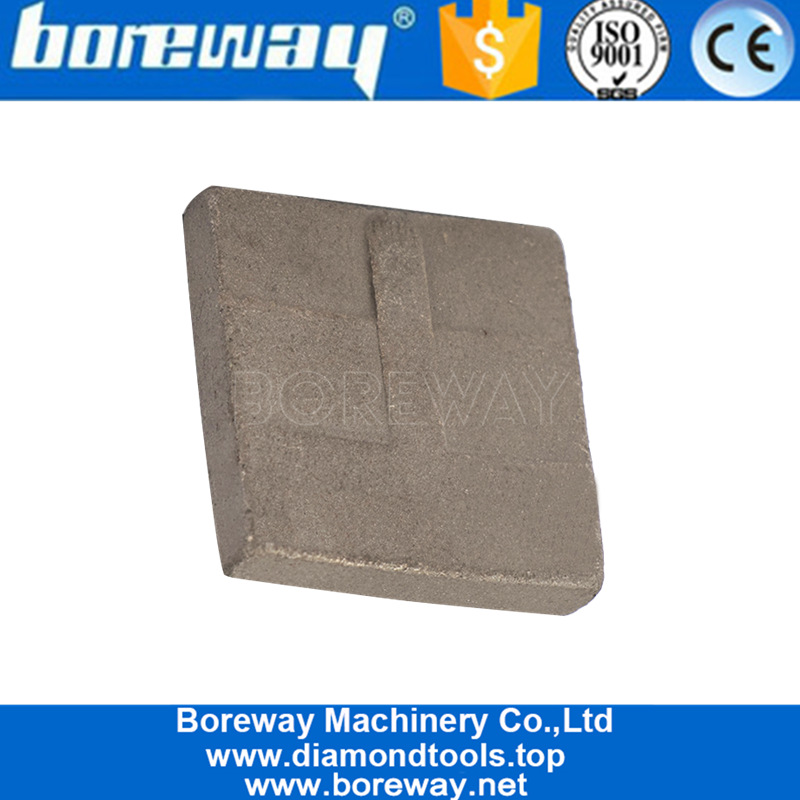

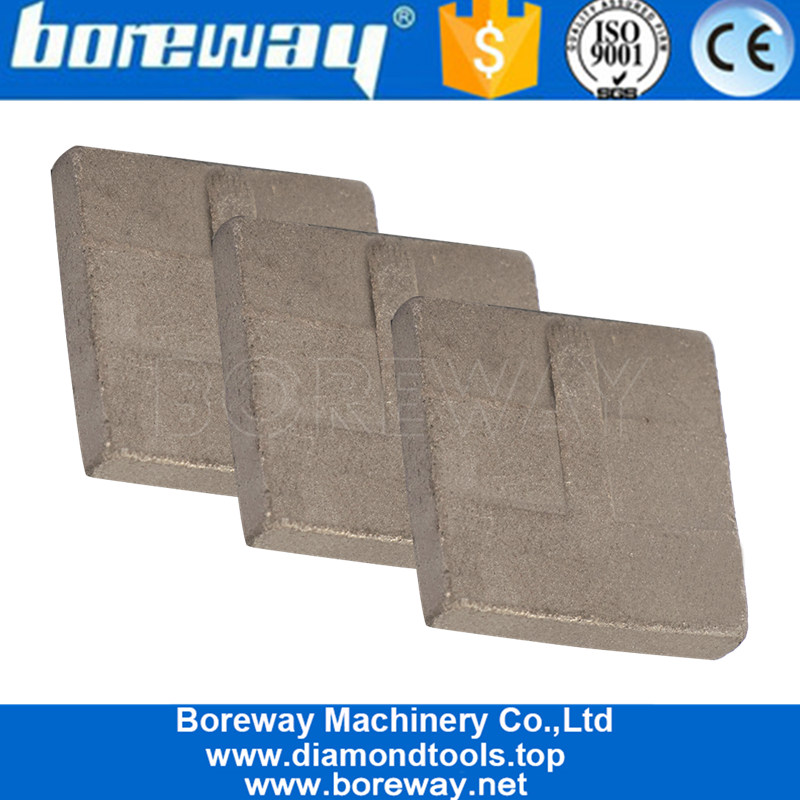

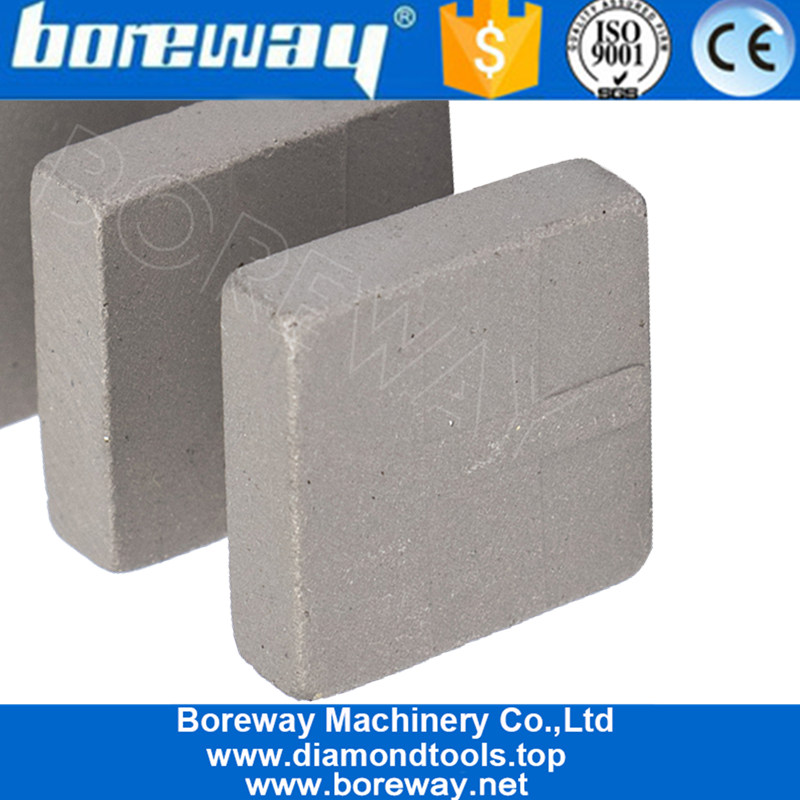

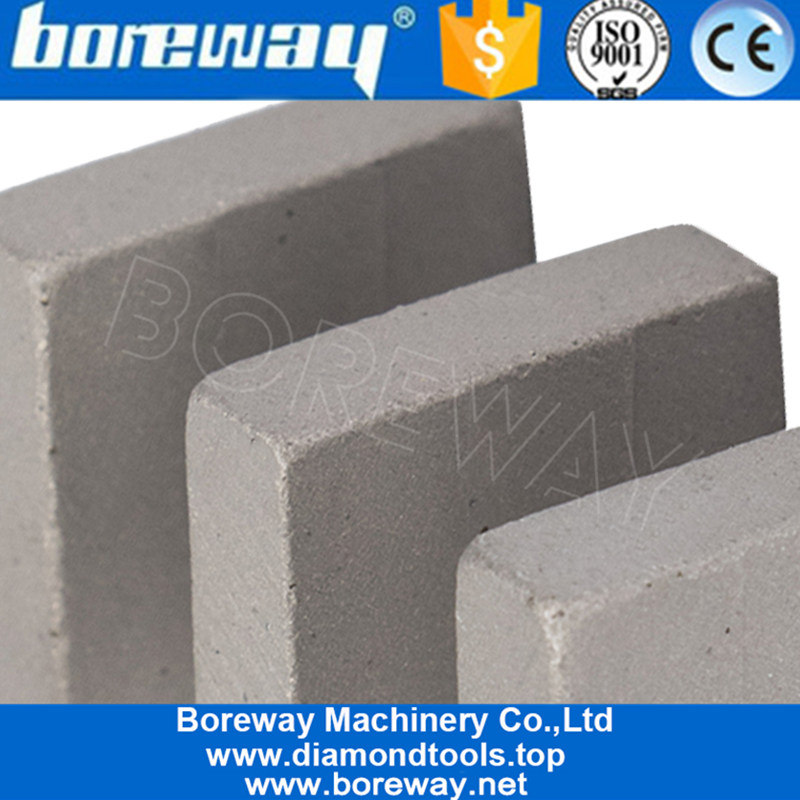

| Product show |
| Application: |
T shape diamond segments from professional supplier,the blade has good sharpness in the cutting process, high efficiency and long service life.
The design with unique T step of segment side face allows ideal debris removal and better cooling, improves the sharpness and cutting efficiency. Besides, this design reduces blade stone interface while cutting that will minimize cutting friction and noise. Good cutting result. This special design will not allow easy edge collapse, break, tapered slab etc.

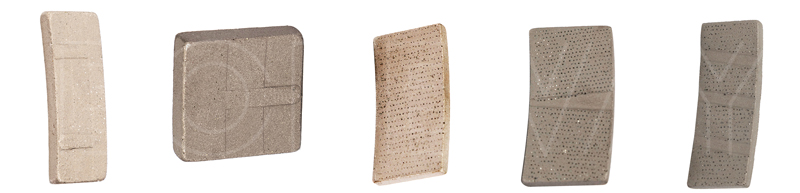

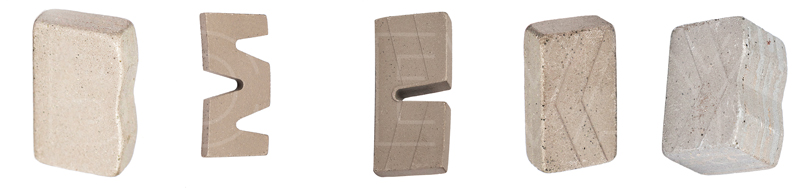

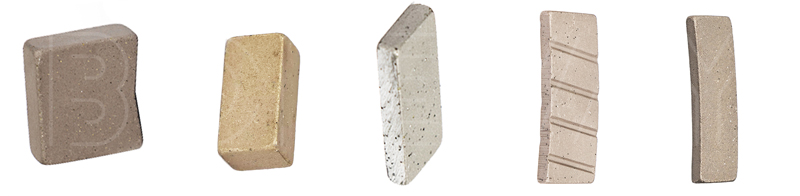

| Other Types Of Cutter Segment: |
| FAQ |
1. How long is the delivery time of the product?
Different products have different delivery times. For small orders, the delivery time is only about 7-15 days.
For large and medium-sized orders, our sales staff will confirm the delivery time with you after the order is confirmed.
2.What is your terms of payment?
We accept DHL,Fedex,TNT, UPS , etc.
3.Do you provide samples? Is it free or extra?
Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.
