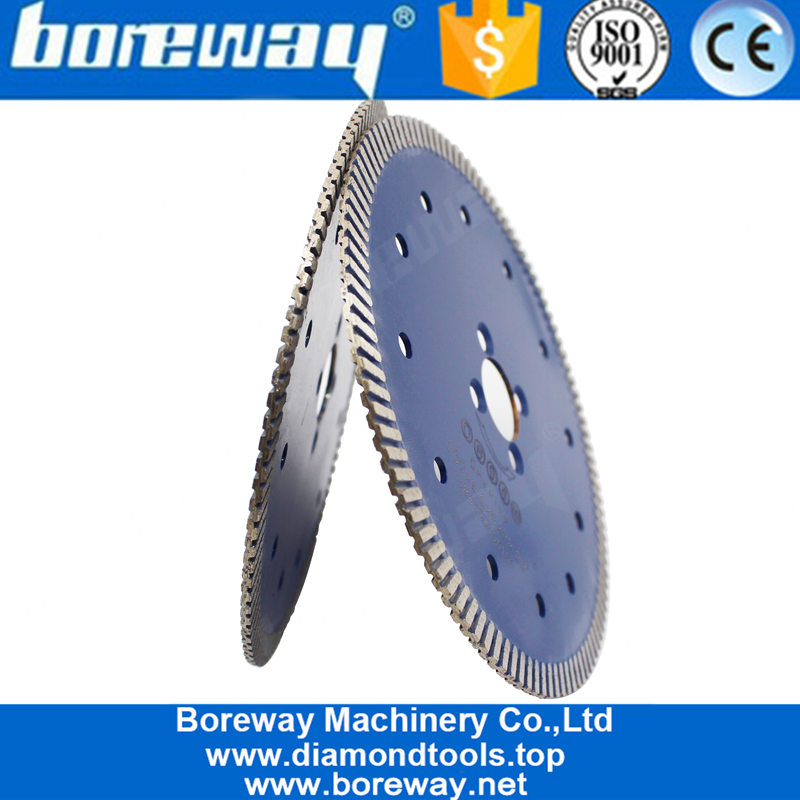

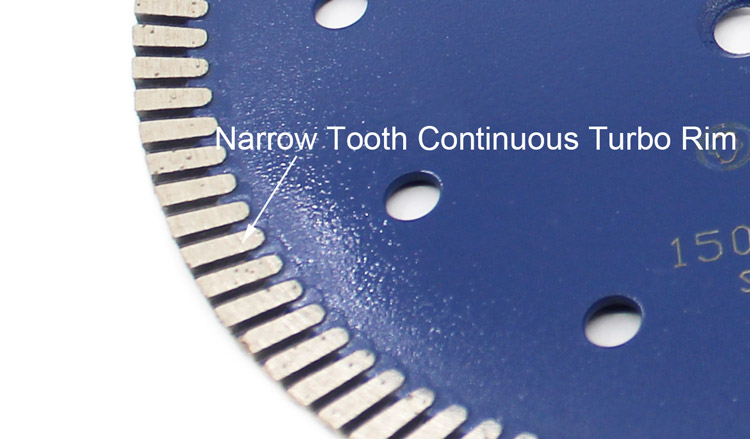

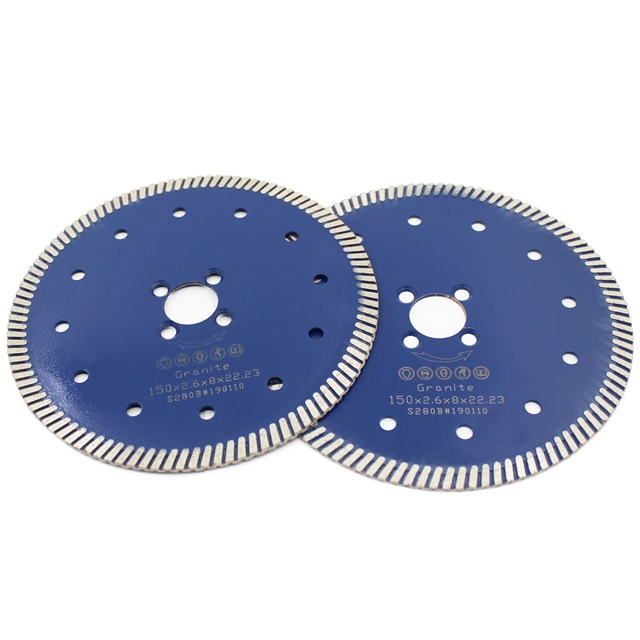

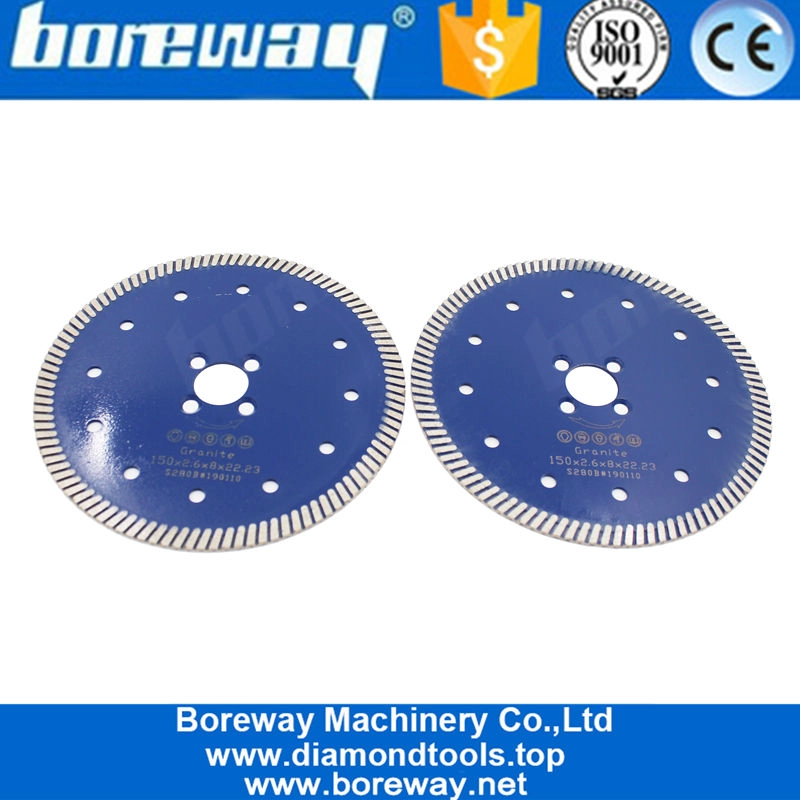

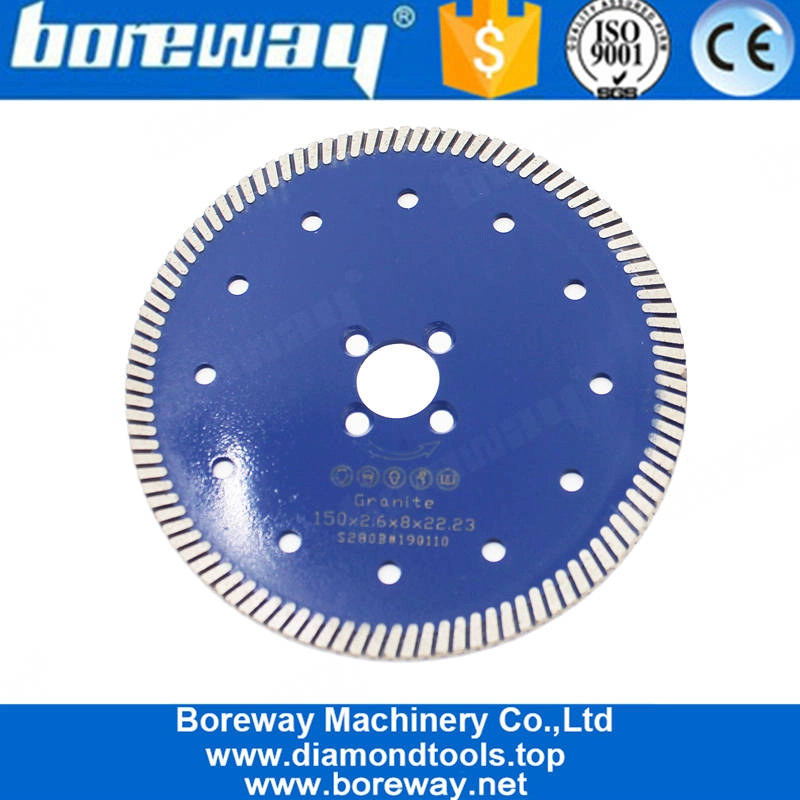

Narrow Turbo Rim Fast Cutting Multi Holes Circular Saw Blade Cutting Wheel Plates for Ceramic Tile Granite (8 sizes)
- Size:105mm-230mm
- Diameter:4-9inch
- Type:Cut Disc
- Brand Name:Boreway
- Finishing:Ti-coated
- Blade Material:Diamond
- Segment Height:8/10/12mm
- Segment Width:35-39.2mm
- Model Number:BW-TSB-012
- Product Name:Cut Off Wheel
- Place of Origin:Fujian, China
- Welding Technology:Cold Pressed
- Bore Size:16/20mm,22.23mm,25.4mm,50mm
- Application:Stone, Concrete, Ceramic, Porcelain, Tile, Masonry
Narrow Turbo Rim Fast Cutting Multi Holes Circular Saw Blade Cutting Wheel Plates for Ceramic Tile Granite (8 sizes)
| Advantage: |
Factory=Quality Control=Competitive Price=Own technology=OEM
1.Great adaptability
3.Fast cutting & long life & Stable performance.
4.Working safe,quiet,and precise.reducing cutting & working time.
5.Fast Cutting Multi Holes Circular Saw Blade can reduce cutting friction a lot, improve slab flatness, save energy.
| Description: |

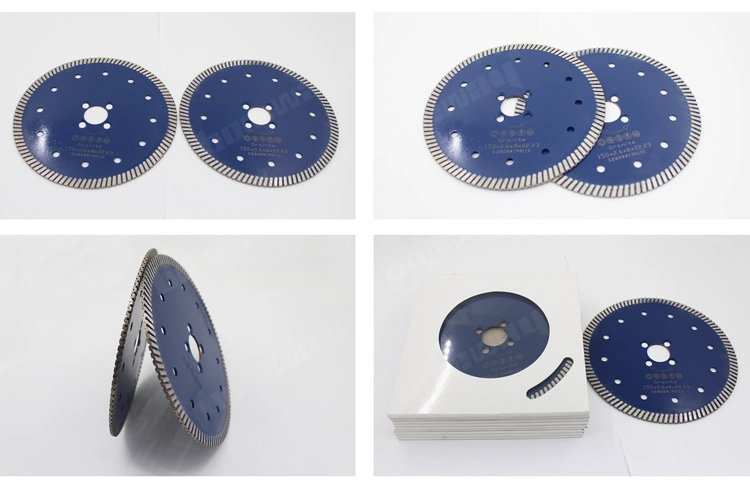

Fast Cutting Multi Holes Circular Saw Blade is a particularly stable and mature diamond saw blade, especially suitable for cutting ceramics, porcelain, vitrified tiles, granite, stoneware, hard tiles and other stone.
| Feature: |
Fast Cutting Multi Holes Circular Saw Blade
1.Wet and Dry cutting
2.Hot pressed blade provide long life Professional qualtiy, very fast cutting
3.Multi-holes help to reduce the weight and cooling the steel core and lower noise when cutting
| Specification: |
The following are normal specifications Fast Cutting Multi Holes Circular Saw Blade:
| Diameter | Bore | Segment |
Segments |
Segment | |
| Inch/mm | Size (mm) |
Width (mm) |

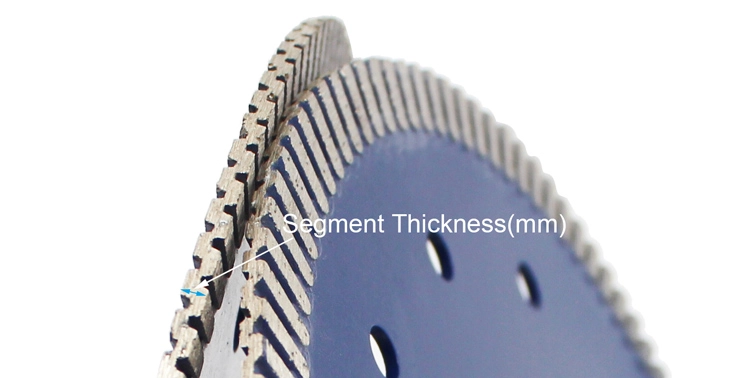

Thickness (mm) |
Height (mm) |
|
| 4 | 105 | 16/20 22.23 25.4 50 |
35 | 1.8 | 8/10/12 |
| 4.3 | 110 | 32.3 | 1.8 | 8/10/12 | |
| 4.5 | 115 | 38.5 | 1.8 | 8/10/12 | |
| 5 | 125 | 37.5 | 2.0 | 8/10/12 | |
| 6 | 150 | 33.5 | 2.2 | 8/10/12 | |
| 7 | 180 | 35 | 2.4 | 8/10/12 | |
| 8 | 200 | 39.2 | 2.4 | 8/10/12 | |
| 9 | 230 | 34.4 | 2.6 | 8/10/12 | |
The above specifications is only for reference, other specifications may be available as per customer's demand.
Attention when use:
1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools.
2. Do not use any saw blade that has been deformed for being pressed of crashed.
3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on
4. Electric tools shall have protective cover.
| Applications: |
Fast Cutting Multi Holes Circular Saw Blade is suitable for kinds of granite,stone, limestone, sandstone,basalt ,natural stone lava stone etc.
| Applications Machine: |
Hot Sintered, Dry or Wet Use!

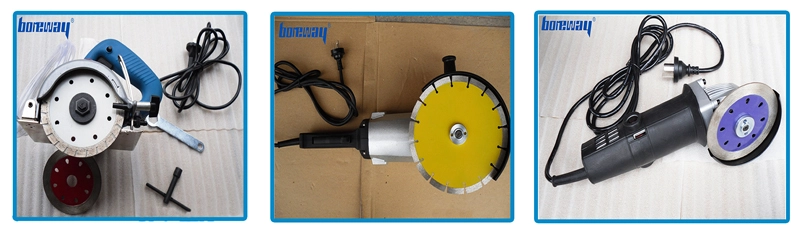

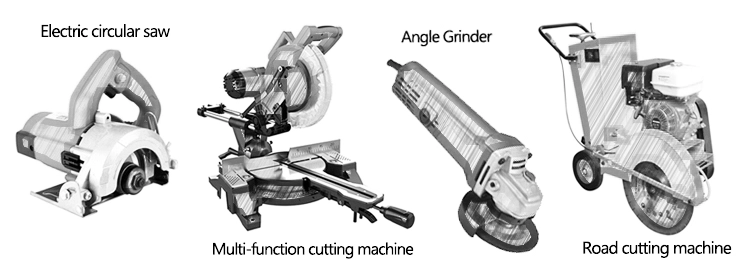

Fast Cutting Multi Holes Circular Saw Blad use for angle grinder,circular saw,masonry saw,table saw
| Related Products: |
| About us: |
| Packing ＆ Delivery: |
PS:
1.Tools packing in carton cases
2.By Air/Sea for batch goods, Airport/Port receiving
3.Less than 45kg, generally delivery by express(Door to Door）
4.When tools are in large quantities, they are packing in wooden cases
| Our service: |
1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.
| FAQ: |
1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.
3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.
2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.
3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.
| Please note: |
Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
