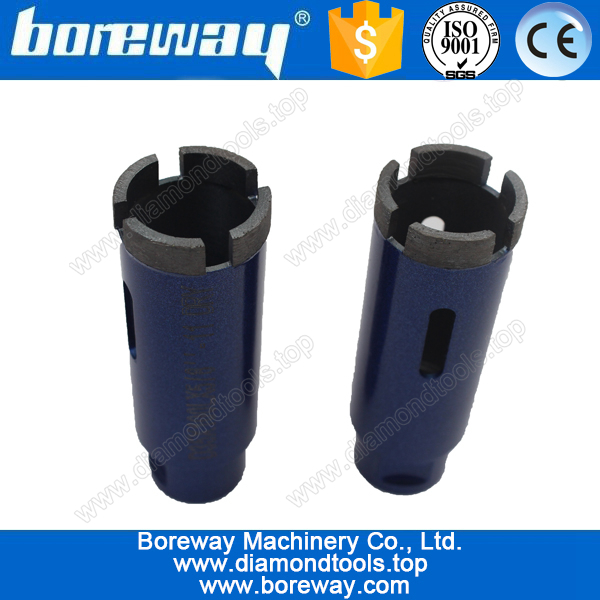

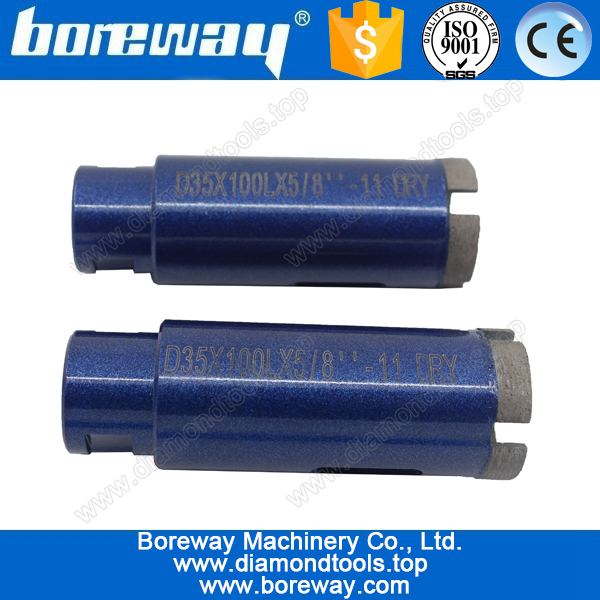

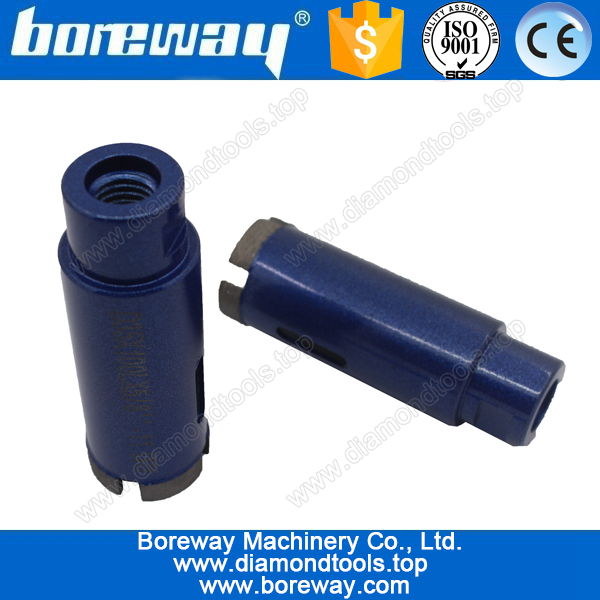

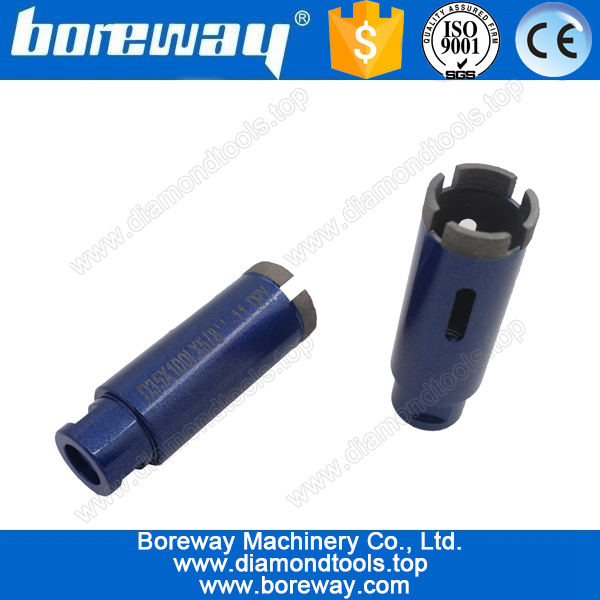

High quality D35*100L*5/8"-11 laser welding dry use diamond core drill bits for drilling granite
- Name:Dry use diamond drill bits
- Model:BW-DDB-D
- Usage:Dry use
- Length:100mm
- Diameter:35mm
- Connection:5/8"-11
- Processing:Laser welding
- Segment size:16*3*10mm
- Application machines:Electrical driller and CNC driller
- Application materials:Granite,marble,concrete and other materials
- Place of origin:China
| Products Description |
D35*100L*5/8"-11 dry use diamond core drill for granite are produced by silver or laser welding.It can be suitable for stand drilling machines or electrical hand-held drillers or CNC machine.For drilling kinds of granite marble or hand stone.Silver welded is better for wet use and laser welded is better for dry use.
Features:
1, Professional for dry drilling design.
2, Laser welding,more suitable for dry drilling.
3, Provide faster drilling speed than normal drill bits.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
The specification of dry use diamond core drill bits:

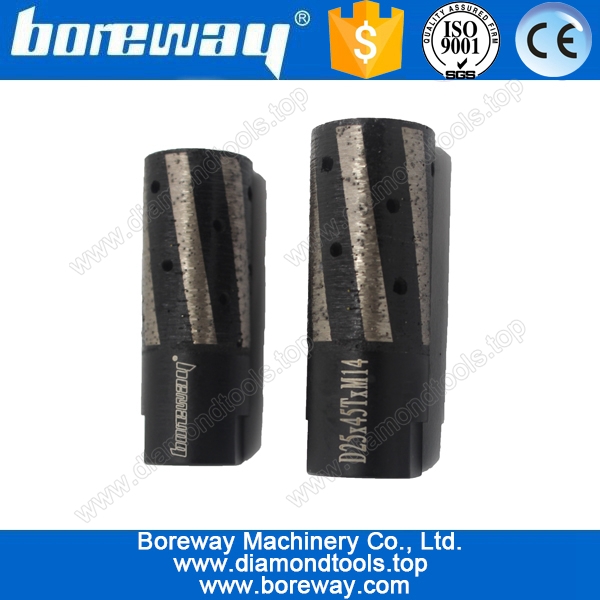

D25*45T*M14 resin filled diamond finger bits for grinding stone hole
Diamond drill bits packing in the carton.
We can also pack the diamond drill bits according to your requirements.
Special specifications need to be negotiated for delivery times.
Fujian Nanan Boreway Machinery Co.,Ltd.
Address: Shuitou Town,Quanzhou, Fujian, China
Post Code: 362342
TEL: (+86)595-86990206/(+86)18250633812
FAX: (+86)595-86990220
WhatsApp:+86-18359335376
Facebook:ChoisDong
Email:borewa05@boreway.net
Other specifications can be customized according to requirements.
| Products Details |
|
Code No. |
Diameter |
Segment Size |
Usage |
Pipe Length |
Welding Method |
Adaptor |
|
BW-DDB-D |
28mm (1-1/8") |
16x2.5x10 |
Wet or Dry |
3"(80mm) 4"(100mm) 5"(125mm) |
Silver Welding or Laser Welding |
M10 M12 M14 5/8"-11 1/2-G |
|
32mm (1-1/4”) |
16x3x10 |
|||||
|
35mm (1-3/8”) |
16x3x10 |
|||||
|
38mm (1-1/2”) |
16x3x10 |
|||||
|
42mm (1-5/8") |
16x3x10 |
|||||
|
45mm (1-3/4”) |
16x3x10 |
|||||
|
50/51mm (2”) |
16x3x10 |
|||||
|
57mm (2-1/4”) |
22x3.5x10 |
|||||
|
60mm (2-3/8”) |
22x3.5x10 |
|||||
|
63mm (2-1/2”) |
22x3.5x10 |
|||||
|
70mm (2-3/4”) |
22x3.5x10 |
|||||
|
76mm (3”) |
22x3.5x10 |
|||||
|
80mm (3-1/8”) |
22x3.5x10 |
|||||
|
89mm (3-1/2”) |
22x3.5x10 |
|||||
|
102mm (4”) |
22x3.5x10 |
|||||
|
110mm (4-3/8”) |
22x3.5x10 |
|||||
|
127mm (5”) |
24x4x10 |
The following shows only part of the product,other products can be customized according to c needs
If you do not find the product you want,please contact us for more products details.
If you do not find the product you want,please contact us for more products details.
Notice:
1.Before purchase, please provide the model of the machine.
2.Please provide the processed material before purchase.
3.Other specifications can be customized according to requirements.
1.Before purchase, please provide the model of the machine.
2.Please provide the processed material before purchase.
3.Other specifications can be customized according to requirements.
