Multi Hole Steel Core Fast Cutting Lower Noise Sintered Diamond Cutting  Granite Concrete Ceramic Disc For SuppliersMulti Hole Steel Core Fast Cutting Lower Noise Sintered Diamond Cutting  Granite Concrete Ceramic Disc For SuppliersMulti Hole Steel Core Fast Cutting Lower Noise Sintered Diamond Cutting  Granite Concrete Ceramic Disc For SuppliersMulti Hole Steel Core Fast Cutting Lower Noise Sintered Diamond Cutting  Granite Concrete Ceramic Disc For Suppliers

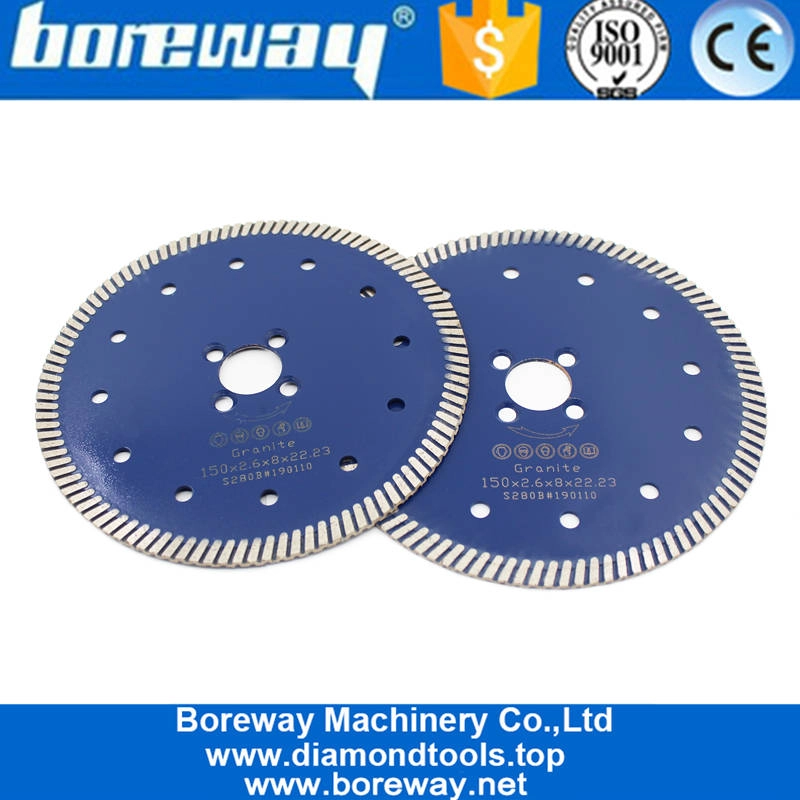

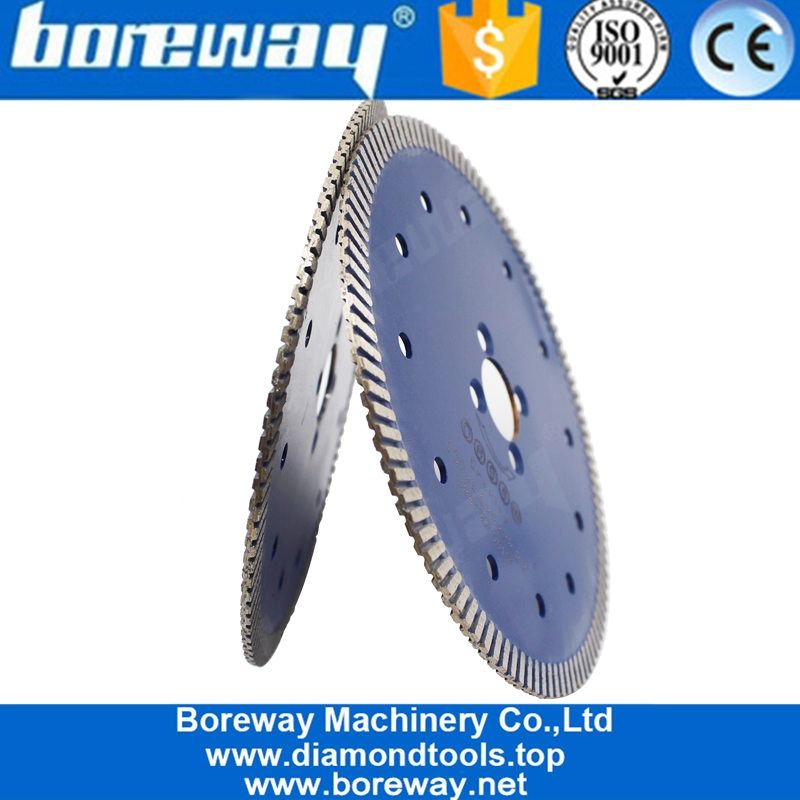

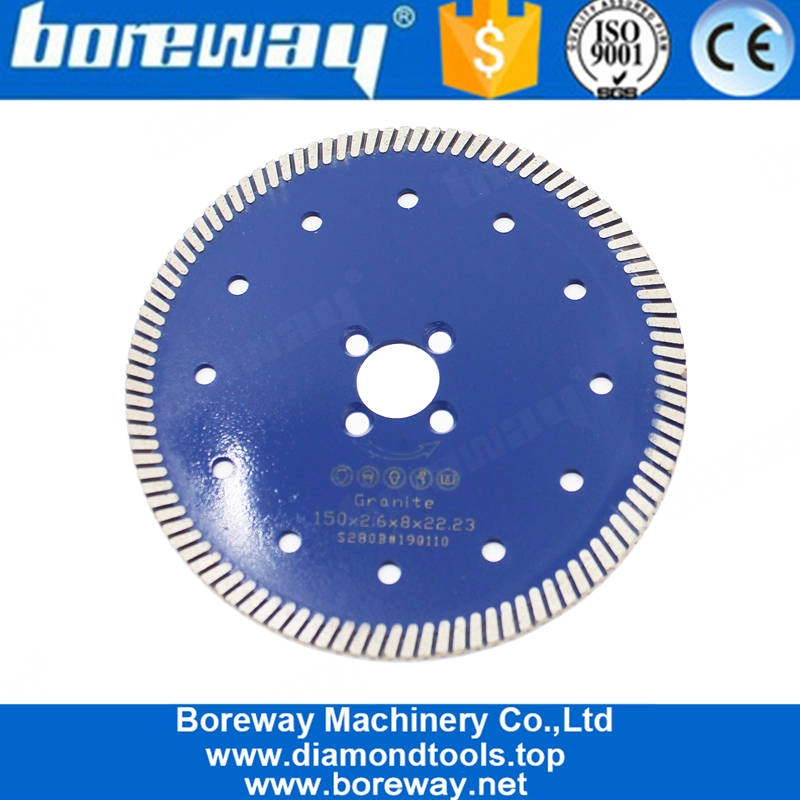

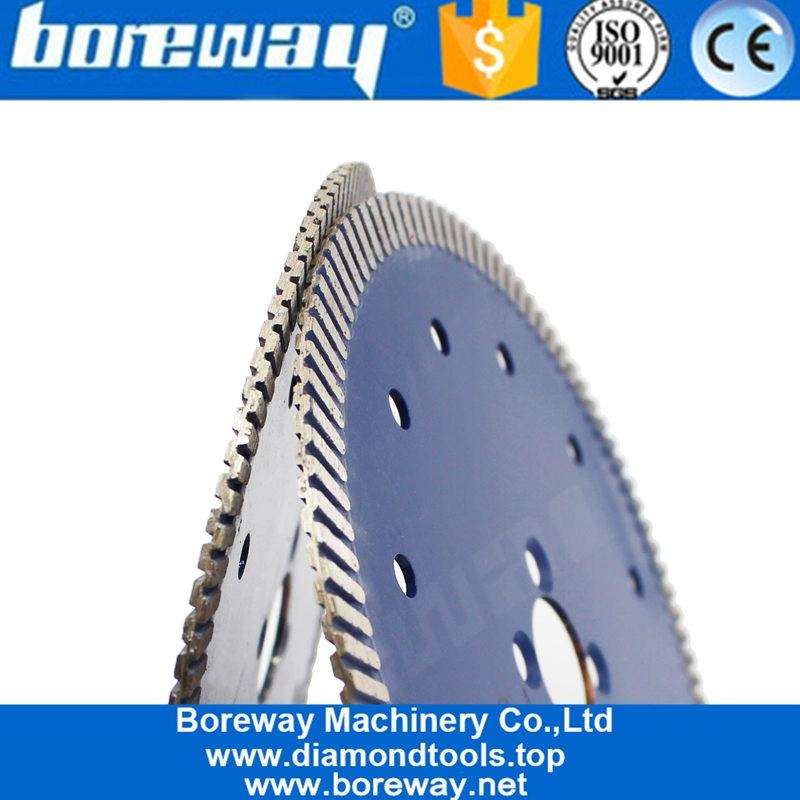

Multi Hole Steel Core Fast Cutting Lower Noise Sintered Diamond Cutting Granite Concrete Ceramic Disc For Suppliers

  • Size:180m,7inch
  • Type:Saw Blade
  • Finishing:Ti-coated

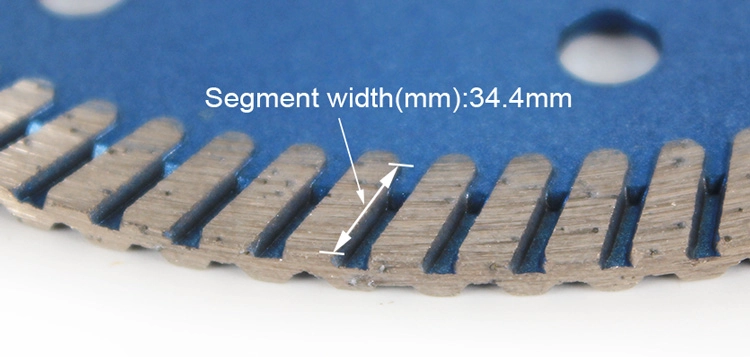

  • Segment Width:35mm
  • Segments Thickness:2.4mm
  • Segment Height:8/10/12mm
  • Product Name:Cut Off Wheel
  • Model Number:BW-TSB-012-6
  • Welding Technology:Cold Pressed
  • Cutting Condition:Wet Cut, Dry Cut
  • Feature:Cold Press Technology, But Hot Press Performance
  • Application:Stone, Concrete, Ceramic, Porcelain, Tile, Masonry

Factory Supply 105mm-230mm Circular Blade Disc Wheel For Cutting Marble Granite Stone Concrete Tile and Ceramic 


Description:

Sintered Diamond Cutting Porous Disc is a particularly stable and mature diamond saw blade, especially suitable for cutting ceramics, porcelain, vitrified tiles, granite, stoneware, hard tiles and other stone.

Sintered Diamond Cutting Porous Disc
Feature:

Sintered Diamond Cutting Porous Disc

1. High quality industrial diamond grain was used in sege

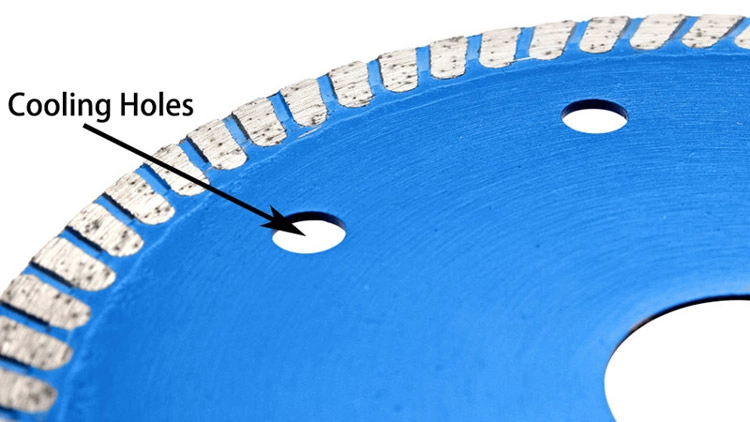

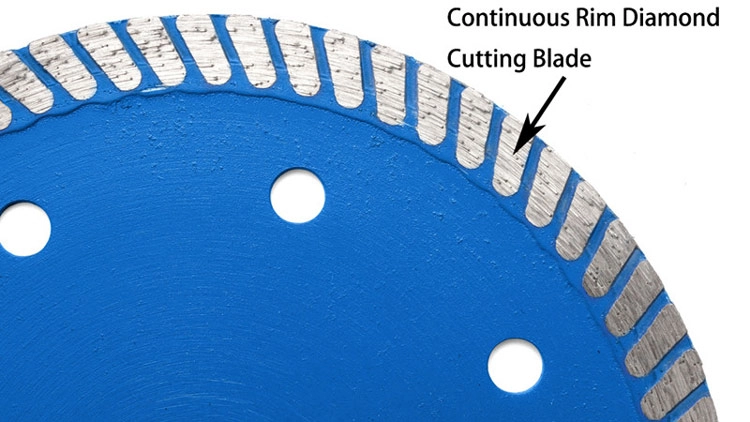

2. New Design of Mesh turbo rim segment, the meshe

3. Hot-pressed sintered blades provide long working lifements which can cutting multi materials

4.Ultra-thin(1. 2mm at cutting edge) for fast cutting andow wasteHard material, granite marble tile ceramic brick ect

Sintered Diamond Cutting Porous Disc is usually for cutting Ceramic or Porcelain Tiles.

Sintered Diamond Cutting Porous DiscSintered Diamond Cutting Porous DiscSintered Diamond Cutting Porous Disc
Sintered Diamond Cutting Porous Disc
Advantage:


1.Cutting method:Wet cutting,Dry cutting.

2.Fast cutting & long life & Stable performance.

3.
Working safe,quiet,and precise.reducing cutting & working time.

4.Sintered Diamond Cutting Porous Disc great adaptability.

5.Can reduce cutting friction a lot, improve slab flatness, save energy.

Factory=Quality Control=Competitive Price=Own technology=OEM
Sintered Diamond Cutting Porous Disc
Specification:

The following are normal specifications Sintered Diamond Cutting Porous Disc:

Diameter  Bore Segment
Segments
  Segment
Inch/mm  Size
(mm)
 Width
(mm)

Thickness
(mm)
 Height
(mm)
4 105 16/20
22.23
25.4
50
35 1.8  8/10/12
4.3 110 32.3 1.8  8/10/12
4.5 115 38.5 1.8  8/10/12
5 125  37.5 2.0   8/10/12
150  33.5 2.2   8/10/12
180  35 2.4   8/10/12
8 200 39.2 2.4   8/10/12
9  230 34.4 2.6   8/10/12

The above specifications is only for reference, other specifications may be available as per customer's demand.

Sintered Diamond Cutting Porous Disc

Attention when use:

1.  Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
 when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools.

2. Do not use any saw blade that has been deformed for being pressed of crashed.

3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on

4. Electric tools shall have protective cover.

Applications:

Sintered Diamond Cutting Porous Disc is suitable for kinds of granite,stone, limestone, sandstone,basalt ,natural stone lava stone etc.

Hot Sintered, Dry or Wet Use!
Sintered Diamond Cutting Porous Disc

Applications Machine:

Sintered Diamond Cutting Porous Discuse for angle grinder,circular saw,masonry saw,table saw
Sintered Diamond Cutting Porous Disc
Sintered Diamond Cutting Porous Disc






Related Products:
About us:

Sintered Diamond Cutting Porous Disc

Sintered Diamond Cutting Porous Disc

Packing & Delivery:
PS:

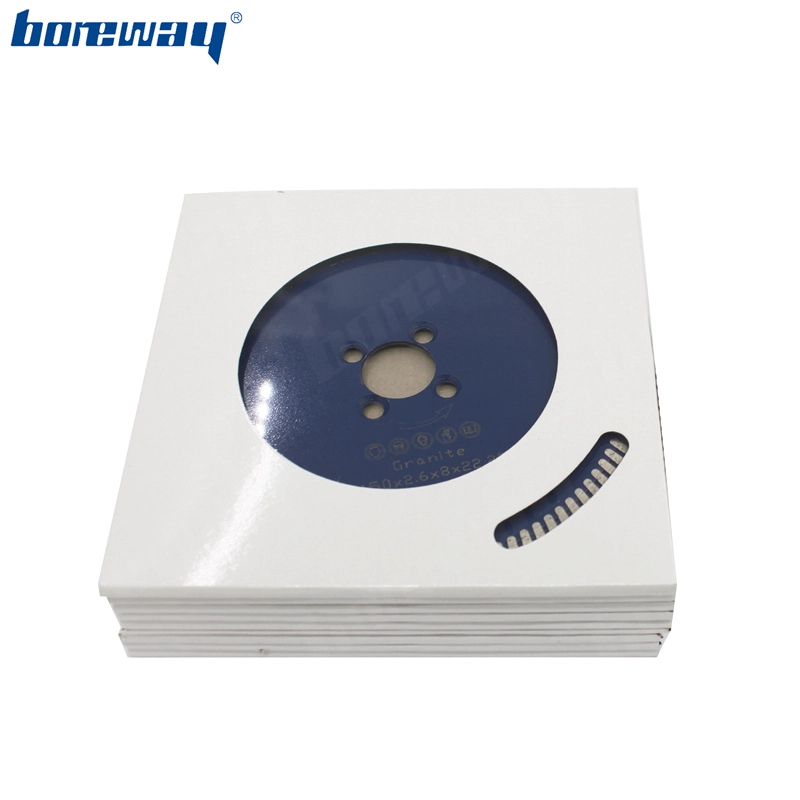

1.Tools packing in carton cases

2.By Air/Sea for batch goods, Airport/Port receiving

3.Less than 45kg, generally delivery by express(Door to Door)

4.When tools are in large quantities, they are packing in wooden cases
Sintered Diamond Cutting Porous Disc
Our service:

1. Low order quantity: It can meet the test order you need.

2. Fast delivery: We get great discounts from freight forwarders.

3. OEM Acceptable: We can produce according to your samples or drawings.

4. Good quality: We have a strict quality control system. Has a good reputation in the market.

5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.

FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
