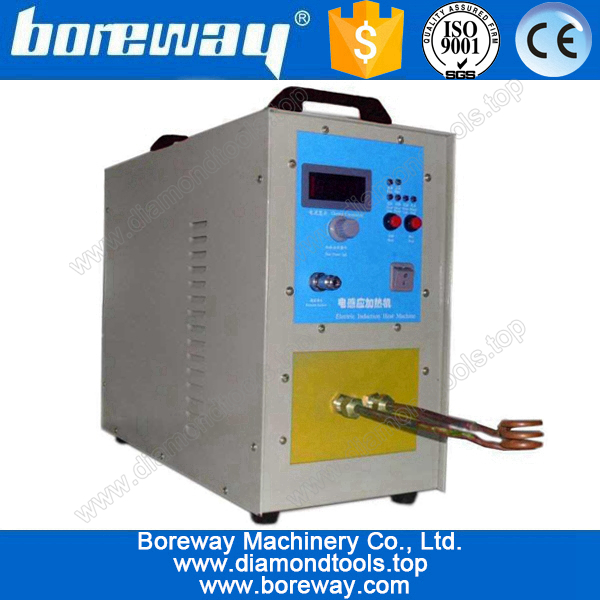

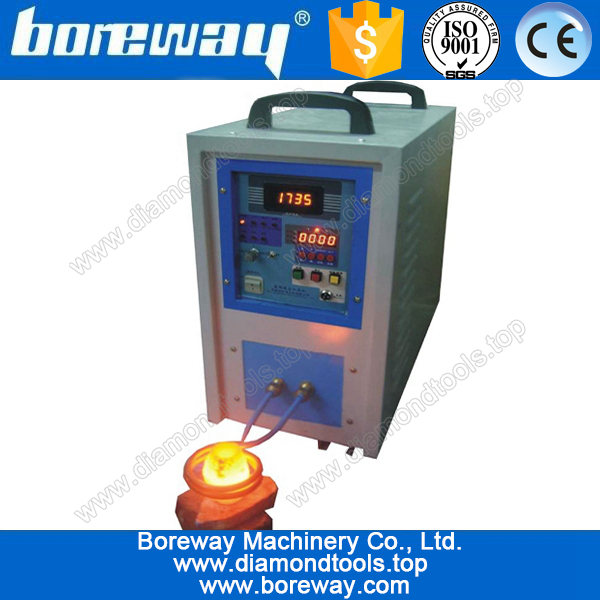

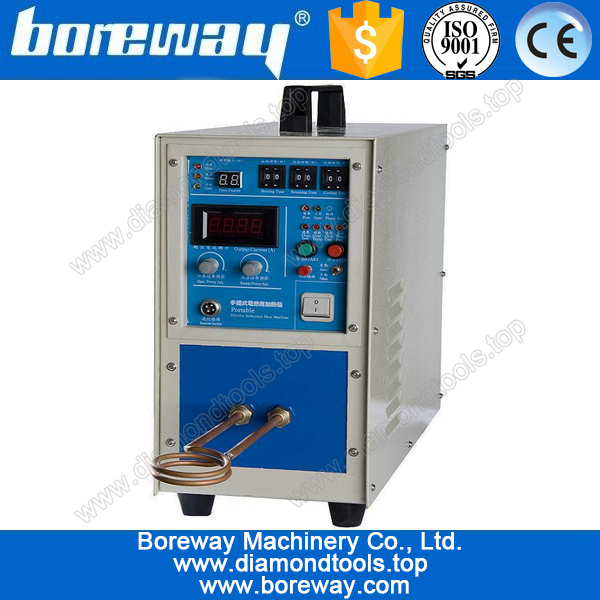

Energy saving hf induction welding machine for copper tube welding
- Name:High frequency induction welding machine
- Model:BWM-GP
- Power:20-30KW
- Out current:200-1500A
- Work frequency:30-100KHZ
- Rated duty cycle:100%
- Power factor:≥95
- Temperature of cooling water:≤40°C
- Cooling water Pressure:0.06-0.12 Mpa
- Cooling watering flow:7.5 L/min
- Place of origin:China
| Product description: |
The high frequency induction heating machine uses a series resonant circuit , the resonant output low voltage , high current frequency power by high-frequency transformer ; This high frequency welding machine is our newest generation products, using MOSFET power devices and our newest generation variable flow control technology, equipment a very simple structure , high reliability , low maintenance, customer self- maintenance convenience , is currently one of the most widely used welding machine.
Features:
1.Under the same conditions, saving a double electric energy than traditional ones.
2.Can be used in pipeline operations, the small ext machine occupies a small counter top space, easy to move.
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability and durability.
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability and durability.
4. Applied to the workplace with poor environment, you can put the main host machine in clean space, reducing the host's repair rate, increase the reliability of the device.
5.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement, automatic temperature control, improve the heating quality and simplify the manual operation.
5.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement, automatic temperature control, improve the heating quality and simplify the manual operation.
Advantage:
Our high frequency welding machine export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , more than 20 different countries . In these overseas markets,our welding machine enjoy a good reputation, we get good feedbacks after their corresponding test result, so, we are confident in our products quality.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

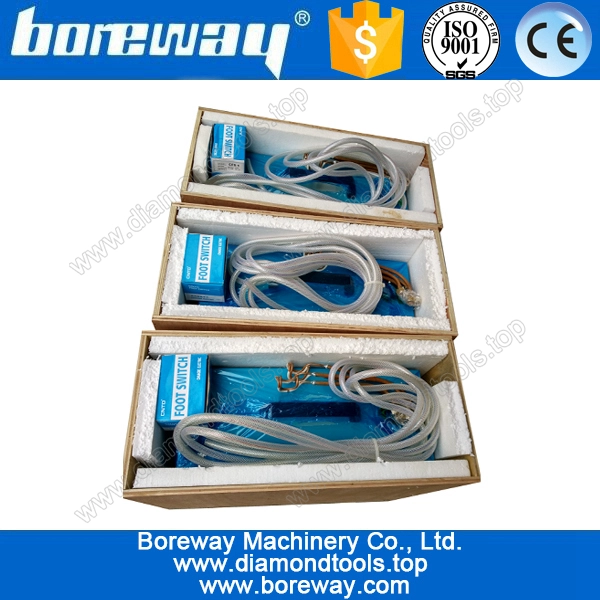

High frequency induction welding machine packing in the wooden.
We can also pack the welding machine according to your requirements.
Special specifications need to be negotiated for delivery times.
Our high frequency welding machine export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia , more than 20 different countries . In these overseas markets,our welding machine enjoy a good reputation, we get good feedbacks after their corresponding test result, so, we are confident in our products quality.
All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.
| Details: |
Specification of High frequency induction welding machines:
| Parameters | Numerical | ||
| Input voltage | Single-phase 220V 50/60HZ | Three phase 380V, 50/60HZ | Three-phase 380V |
| The operating voltage | 220 V | 340-430 V | 380V |
| Power | 20 KW | 25 KW | 30 KW |
| Out current | 200-1050 A | 200-1200 A | 400-1500 A |
| Work frequency | 30-100 KHZ | 30-80 KHZ | 30-80 KHZ |
| Rated duty cycle | 100% | 100% | 100% |
| Power factor | ≥95 | ≥95 | ≥95 |
| Temperature of cooling water | ≤ 40°C | ≤ 40°C | ≤ 40°C |
| Cooling water Pressure | 0.06-0.12 Mpa | 0.06Mpa-0.12Mpa | 0.06Mpa-0.12Mpa |
| Cooling watering flow | 7.5 L/min | 7.3 L/min | 7.5 L/min |
| Main host size and weight | 620mm*290mm*500mm 25kg | 560*220*590mm 22kg | 600*255*540mm 35Kg |

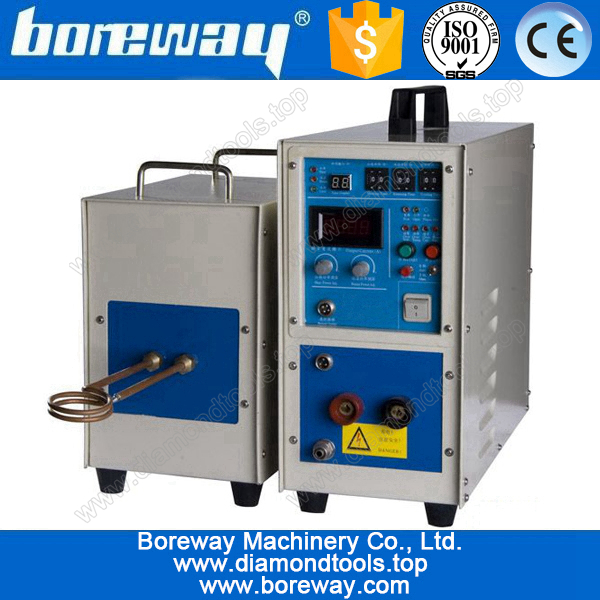

| Extension size and weight | Optional | Optional | 450*255*390mm 30KG |
The following shows only part of the product,other products can be customized according to your needs
If you do not find the product you want,please contact us for more products details.
Annex:Foot switch/hand-press switch,heating coil(can be customized),water pipes,water pumps(need to buy).
Other specifications can be customized according to requirements.
Before purchasing the machine, please provide the specifications of the welding workpieces.
| Packing: |
We can also pack the welding machine according to your requirements.
Special specifications need to be negotiated for delivery times.
