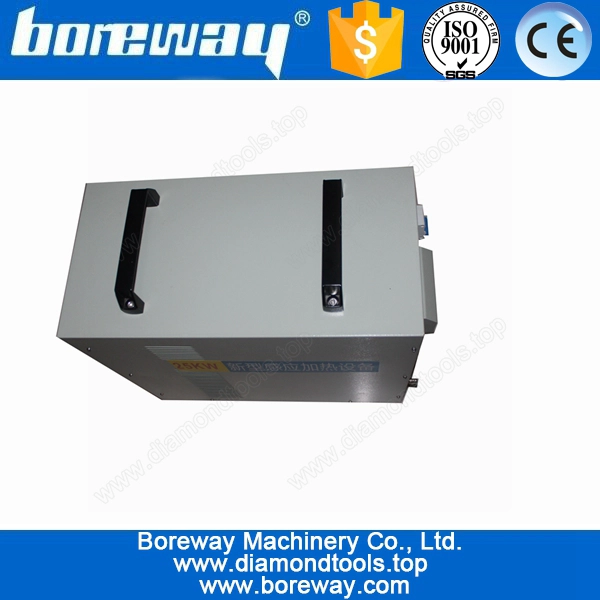

Supply 25KW 380V High Frequency Induction Heating Machine For Welding
- Model:BWM-GP-25KW
- Power:25KW
- Out current:380V,50/60HZ
- Out current:200-1500A
- Work frequency:30-100KHZ
- Rated duty cycle:100%
- Power factor:≥95
- Temperature of cooling water:≤40°C
- Cooling water Pressure:0.06-0.12 Mpa
- Cooling watering flow:7.3 L/min
Features:
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability and durability.
5.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement, automatic temperature control, improve the heating quality and simplify the manual operation.
Specification:
The normal specification of 25KW 380V High Frequency Induction Heating Machine For Welding we supply:
The above specification just a reference.Other specification can be ordered by customers.
Parameters
Numerical
Input voltage
Single-phase 220V 50/60HZ
Three phase 380V, 50/60HZ
Three-phase 380V
The operating voltage
220 V
340-430 V
380V
Power
20 KW
25 KW
30 KW
Out current
200-1050 A
200-1200 A
400-1500 A
Work frequency
30-100 KHZ
30-80 KHZ
30-80 KHZ
Rated duty cycle
100%
100%
100%
Power factor
≥95
≥95
≥95
Temperature of cooling water
≤ 40°C
≤ 40°C
≤ 40°C
Cooling water Pressure
0.06-0.12 Mpa
0.06Mpa-0.12Mpa
0.06Mpa-0.12Mpa
Cooling watering flow
7.5 L/min
7.3 L/min
7.5 L/min
Main host size and weight
620mm*290mm*500mm 25kg
560*220*590mm 22kg
600*255*540mm 35Kg
Extension size and weight
Optional
Optional
450*255*390mm 30KG

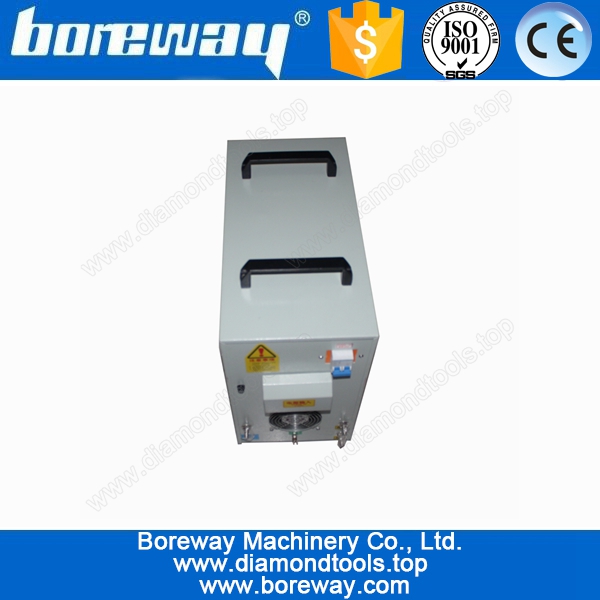

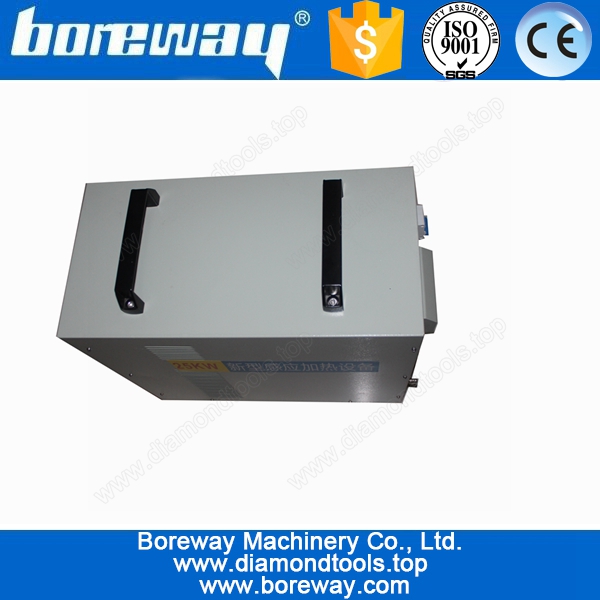

Picture:
25KW 380V High Frequency Induction Heating Machine For Welding
