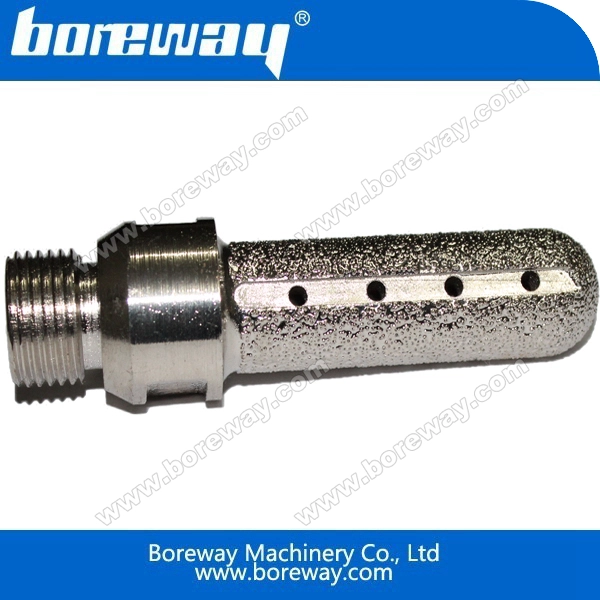

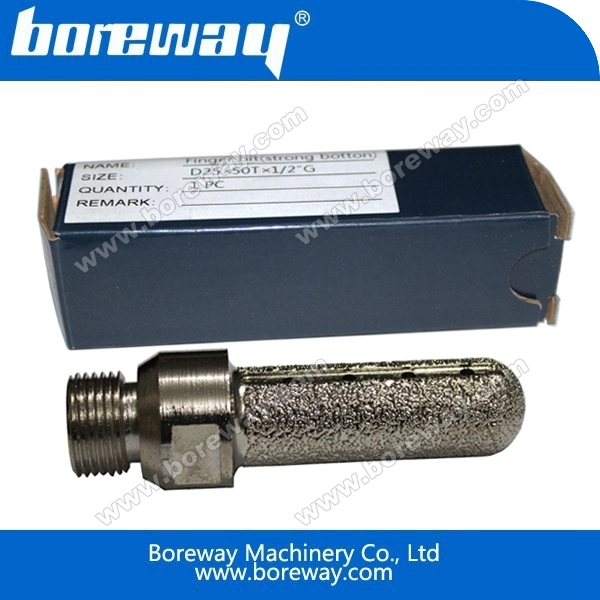

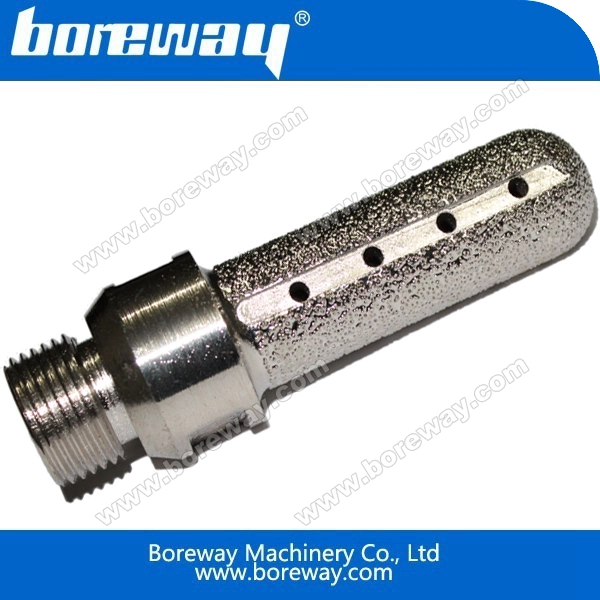

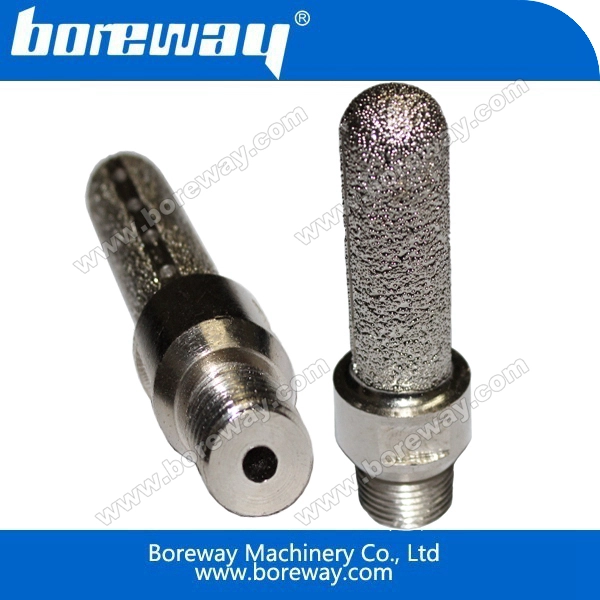

Diamond vacuum brazed finger router bits for stone,vacuum brazed finger bit
- Model Number: BW-DVBFRB-003
- Type: Wet Use
- Diameter: 22mm to 35mm
- Segment Length: 20mm to 50mm
- Applications: Boreway diamond vacuum brazed finger fputer bit is wet use for grinding and milling stone.
- Machine: Hand-held machine and CNC machine.
- Industry: Diamond grinding and milling tools
- Welding method: Vacuum brazed
- Advantage: Good sharpness and long lifespan.
Introduction:
Vacuum brazed finger router bits are widely equipped with CNC machines for cutting,grinding and
milling the edge of stone kitchen tops, vanity tops,counter tops,table tops etc. The unique design of our
finger bit allows better cooling and easy dust removal, good sharpness and long life.
Features:
1.High efficiency,long lifespan and fast milling speed.
2.Good balance and stable performance.
3.Strengthened bottom is available upon clients’ demands.
Specifications:
The followings are the normal specifications of diamond vacuum brazed finger router bits for stone:
|
Product Name |
Type |
Diameter |
Segment Length |
Segment No. |
Connection |
|
Vacuum Brazed Diamond Finger Bit |
Segmented |
22mm 24mm 25mm 30mm 35mm |
20mm 30mm 40mm 50mm |
5 Segments |
5/8’’-11 1/2’’ Gas |
|
Resin Filled |
5+1 Segments (Strengthened Bottom) |
The above specifications are for reference, other specifications can be ordered by customers.
Quality:Premium.
