Diamond segmented router bit for granite,diamond segmented router bit,router bit sharpening,granite router bit

Model Number: BW-DSRB
Diameter: 50mm-125mm
Segment Thickness: 20mm-50mm

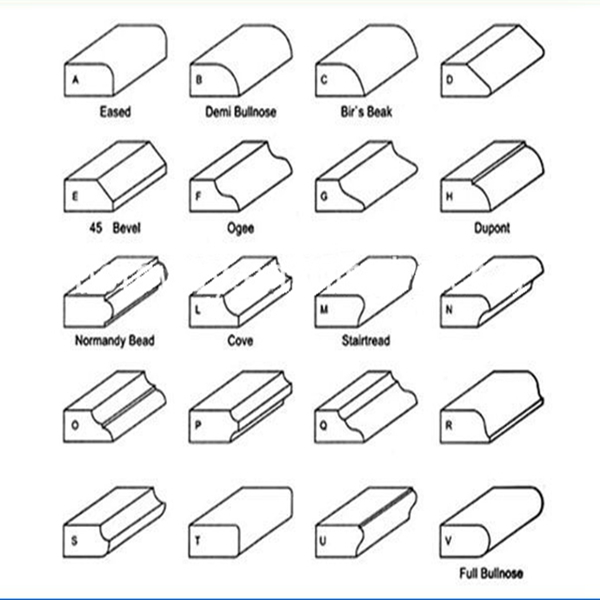

Stone Shape: A,B,D,E,F,G,H,I,L,M,N,O,P,Q,S,T,U,V,WF,DD,DC etc.
Spindle: M8,M10,M14,1/2"G
Machine: Portable profiling machine
Industry: Diamond grinding tools
Grinding Result: High flatness and smooth
Advantage: Good sharpness and long lifespan.
Applications: Diamond router bit for portable profiling machine are used in edge of stone counter tops,table tops etc.

Introduction:

This diamond segment router bit is widely used on portable profiling machines for processing

the edge of stone kitchen tops, vanity tops,counter tops,table tops etc. We offer a

wide range & shapes with different sizes to satisfy your exact profiling needs.

Features:

1.Different shapes and sizes are available.

2.Good balance and stable performance.

3.Sintered segment is aggressive for easy and quick stock removal.

Specifications:

The followings are the normal specifications of our diamond segment router bit:

Product Name	Position	Grit	Diameter	Thickness	Stone Shape	Spindle
Diamond Segment Router Bit	Pos1	30/40#	50-125mm	20mm 30mm 40mm 50mm	A, B, D, E,F, G, H, I, L, M,N, O,P,Q,S,T,U, V,WF,DD,DC etc.	M8 M10 M14 1/2 "Gas
	Pos2	40/50#
	Pos3	80/100#
	Pos4	170/200#
	Pos5	400#
	Pos6	600#
	Pos7	1000#
	Pos8	Optional

The above specifications are for reference, other specifications can be ordered by customers.
