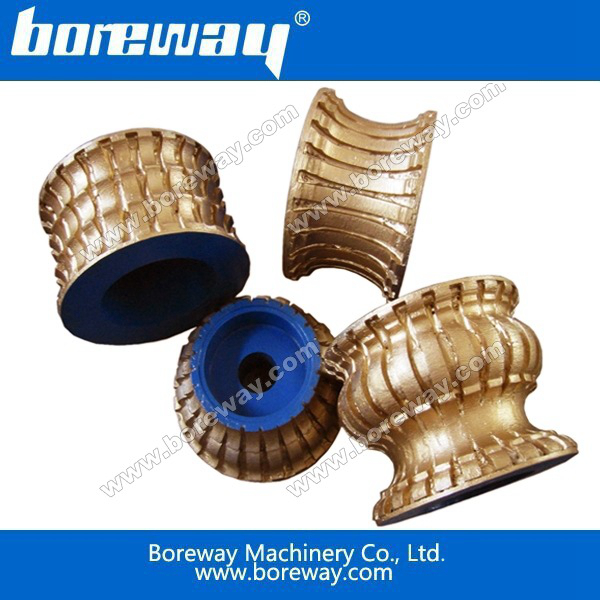

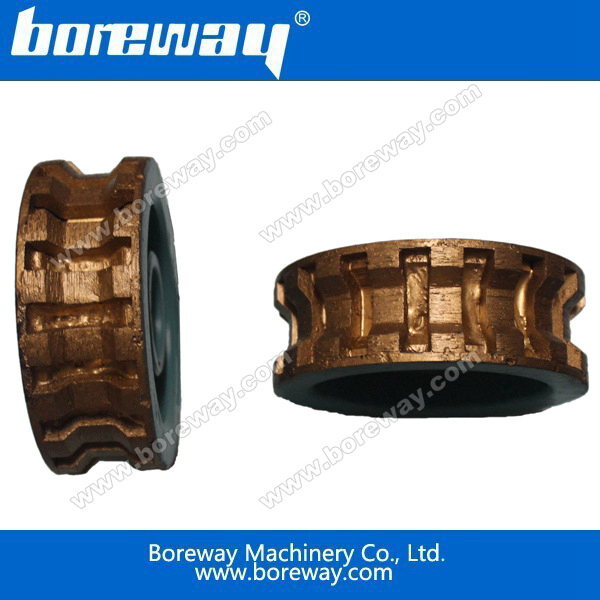

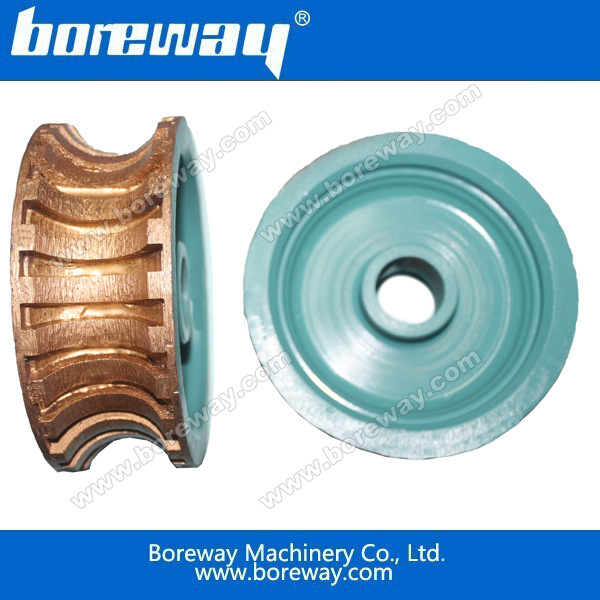

Diamond profiling wheel
- Model Number: BW-DPW-001
- Type: Wet Use
- Diameter: 150mm-300mm
- Segment Width: 20mm,40mm,60mm,80mm,100mm,120mm,140mm,160mm
- Arbor: 30mm/50mm
- Segment Grit: 40#-60#
- Applications: Cured reinforced concrete with hard to soft aggregates, green concrete or abrasive material.
- Machine: Hydraulic power drilling machines, Electric hand-held drills.
- Industry: Diamond tools
- Welding method: Silver welding
- Advantage: Good sharpness and Long lifespan.
Description:
1. Shaping of various Special-shaped stones with high efficiency . Accuracy in shapes and Sizes.
2. Small metamorphosis , long life and good balance , less difference profiling specification
Simple workstage ,high adjuestedrates.
3. Application for 2 to 16 cm thickness of stone.
4. For Granite,marble,Engineered stone and various stone.
Specifications
|
Product Number |
Item |
Diameter |
Width |
Grit |
Arbor |
|
Profiling |
BP-02/04 06/08/10 12/14/16 |
150-300 |
20/40/60 80/100/120 140/160 |
40/60 |
30/50 |
Other specifications are available upon request.
