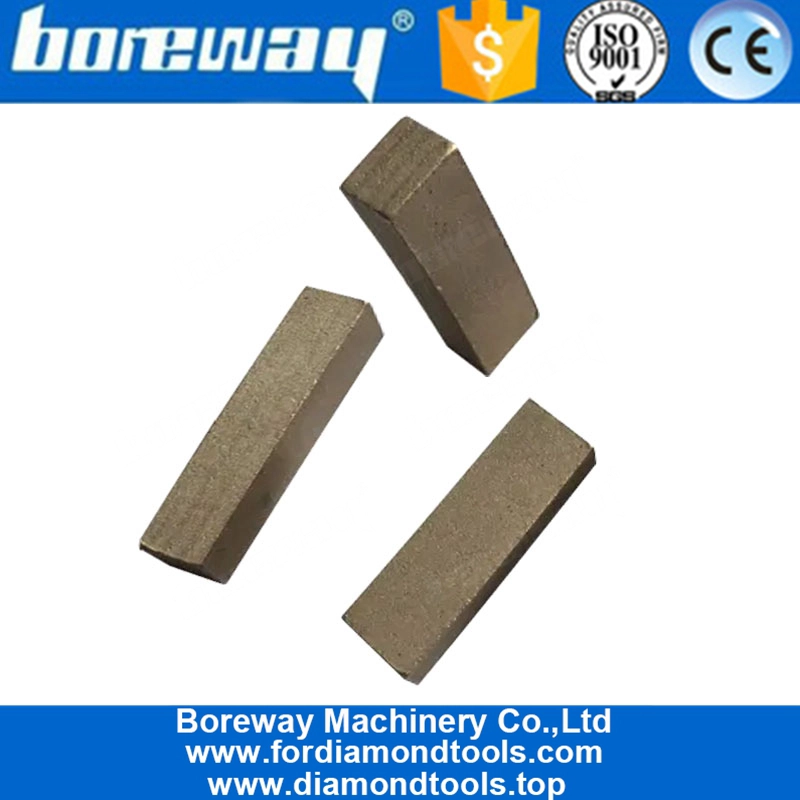

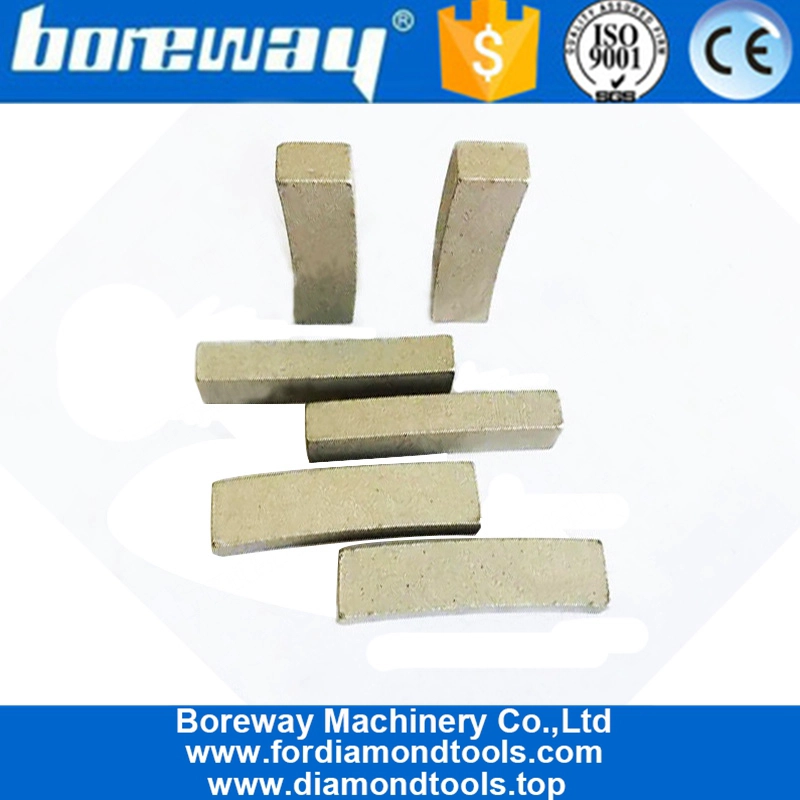

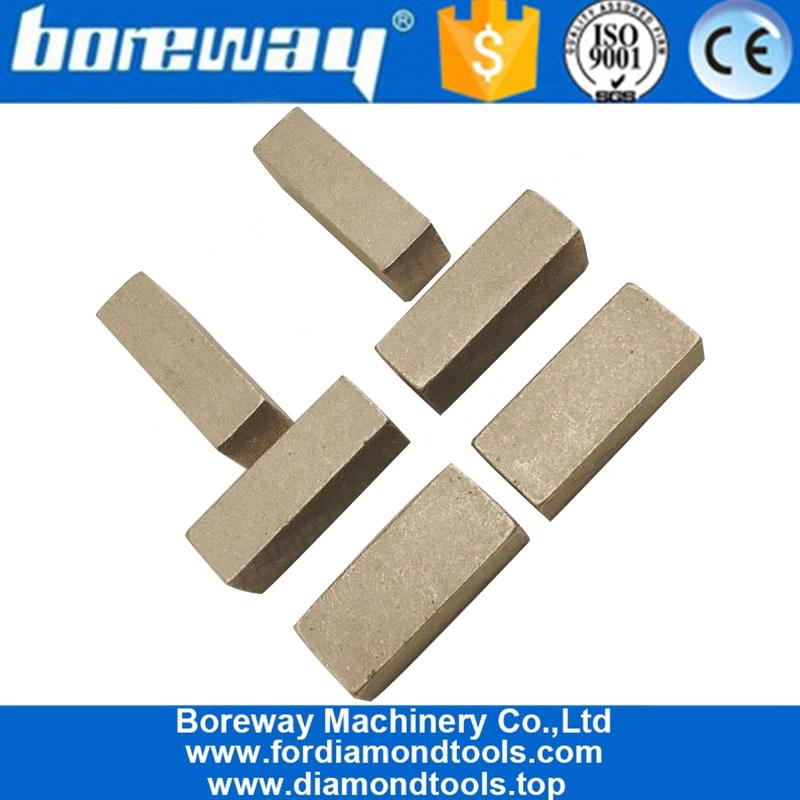

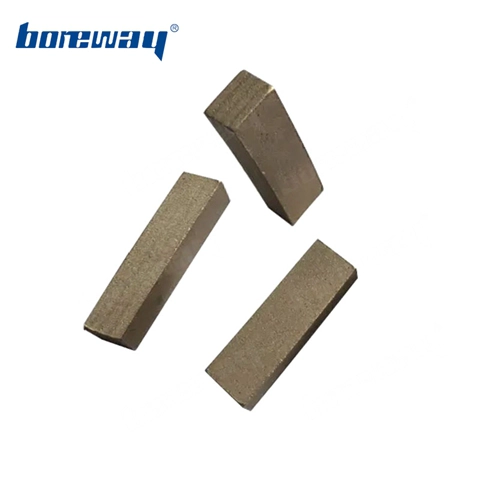

Wet Use Sandwich Structure Slab Stone Diamond Edge Cutting Marble Segment

  • Port: Xiamen
  • Brand Name: Boreway
  • Model Number: BW-DSEMB-01
  • Type: Wet use only
  • Service: OEM & ODM
  • Segment Height: 8, 10mm
  • Application: Marble Edge Cutting
  • Cutting result: Flat surface and even size
  • Machine: Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine
  • Usage: for slab edge cutting of marble, limestone, slate, various soft stone without quartz

Descriptions:

Wet Use Sandwich Structure Slab Stone Diamond Edge Cutting Marble Segment:

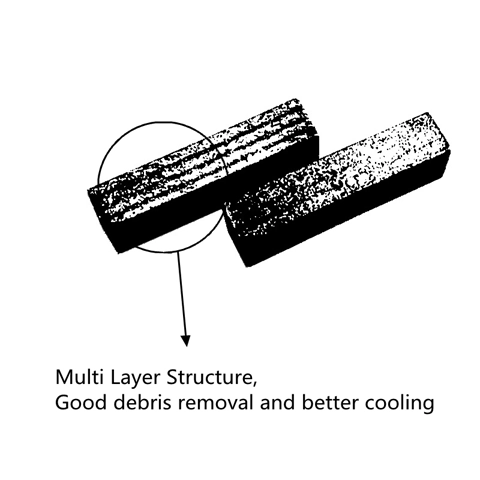

The design of Diamond Edge Cutting Marble Segment allows ideal debris removal and bettering cooling.

Our Diamond Edge Cutting Marble Segment are made by high-quality diamond powder and metal powder mixture,produced by pressing and sintering, diamond powder and metal powder combine closely, the quality is higher and the effect is better.


Such diamond segment are highest ratio of performance to price!


Specifications:

We are instrumental in providing to our valuable customers excellent quality
Diamond Edge Cutting Marble Segment which are available with following specification:

     Marble Edge Cutting Segment Dimension
  Specification  Steel Core    Dimension of Segment(L*W*H)  No.of teeth
 300  2.2/2.0  40  3.6/3.3/3.0  8/10  21
 350  2.4/2.2  40  3.6/3.3/3.0  8/10  24
 400  2.8/2.4  40  4.0/3.7/3.4  8/10  28
 500  3.2/2.8  40  4.3/4.0/3.7  8/10  36
 600  3.6/3.2  40  5.0/4.7/4.3  8/10  42
 700  4.0/3.8  40  5.5/5.2/4.9  8/10  50
 800  4.5/4.2  40  6.0/5.7/5.4  8/10  57

Besides Wet Use Sandwich Structure Slab Stone Diamond Edge Cutting Marble Segment, All of our
products have been strictly tested before access to market. Other specifications can be customized according to requirements.

Product Details:

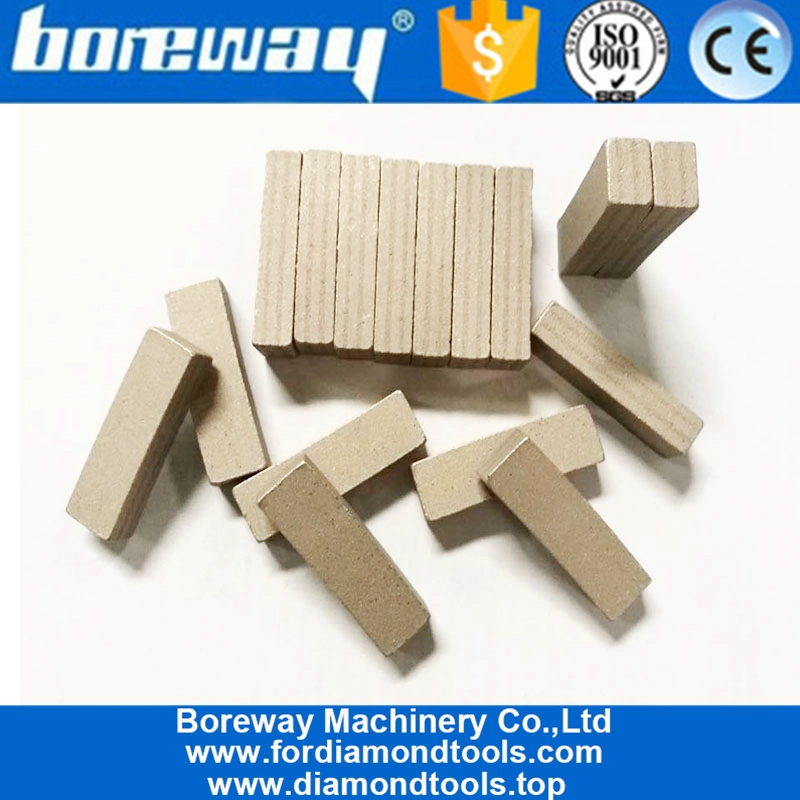

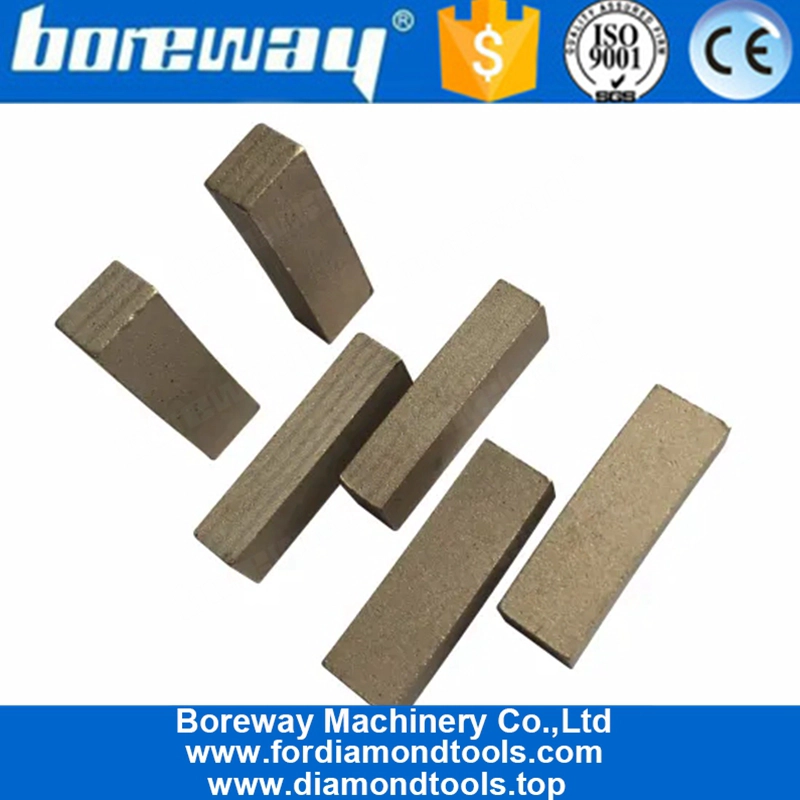

Wet Use Sandwich Structure Slab Stone Diamond Edge Cutting Marble Segment:

  

Applications:

Wet Use Sandwich Structure Slab Stone Diamond Edge Cutting Marble Segment. Diamond Segments for for slab edge cutting of marble, limestone, slate, various soft stone without quartz.

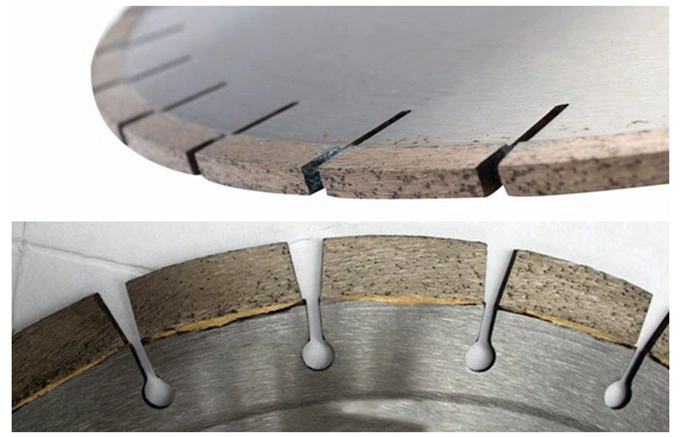

Cutting Effect:


Advantages:

1.Ideal edge trimming quality best .

2.Excellent comprehensive cutting performance.

3.High cutting efficiency, meanwhile, it has a long lifespan.

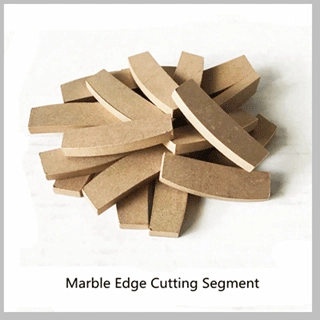

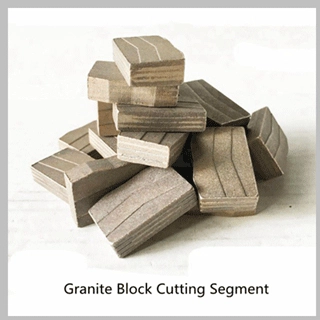

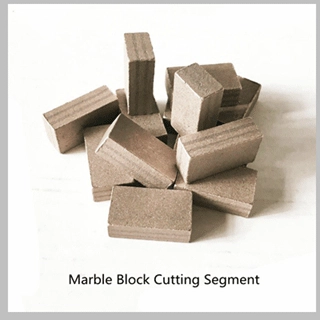

Related Products:
     
                                          

About us:

We have a strict quality control system:

270MM Bush Hammered Plate For HTC Grinders

Packing & Delivery:
Packing:

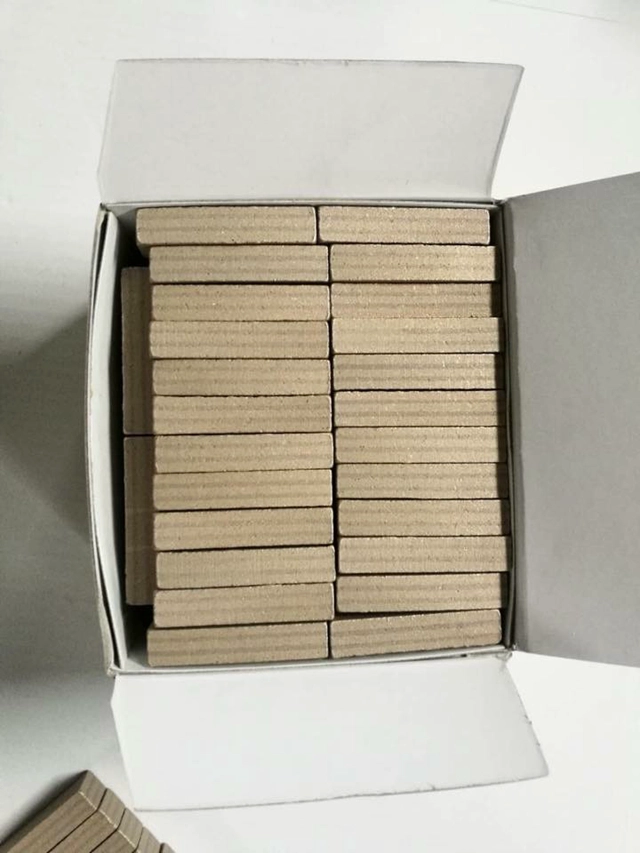

Packing in carton cases:

Delivery:

Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1.If we want to buy diamond segment, how could we know the quality?
You can buy diamond segment with a small quantity first, test the quality and our service, it will be much better for our long term cooperation. For small quantity, you don’t need to take risk in case the quality doesn’t fit your market.

2.What could we do if we find your diamond segment are not in good performance?
Please tell us the detailed information of the cutting, for example:

1). The RPM of the machine, the cutting object.
2). The detail picture of diamond segment after use, e.g. the cutting side of diamond segment.
3). Do you feed enough cooling water.

3. What is the delivery way?
Express Courier Service, Sea Cargo and so on. We give the advice according to actual situation for customers make decision.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
