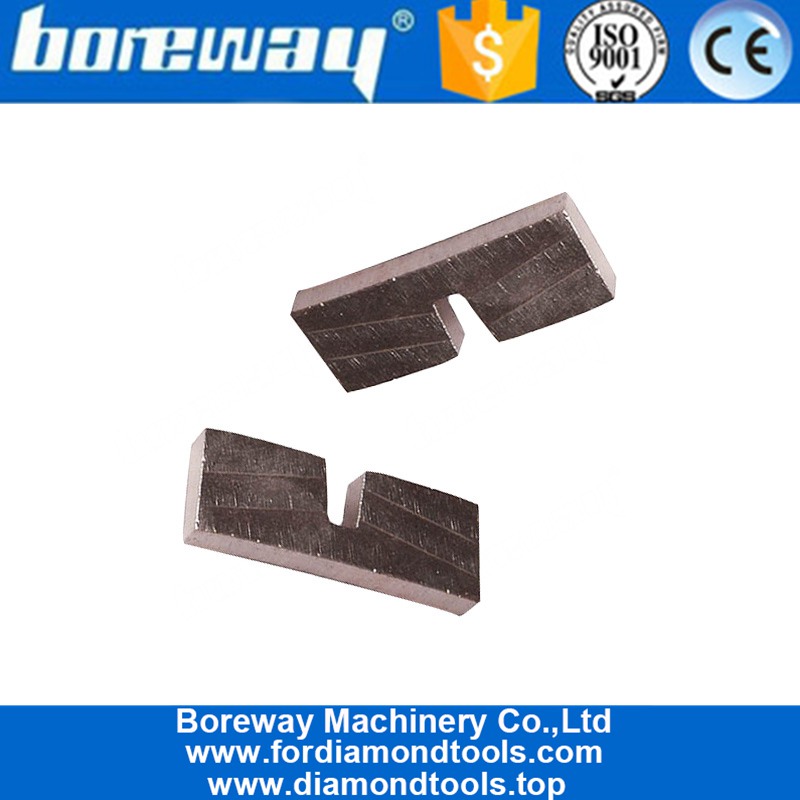

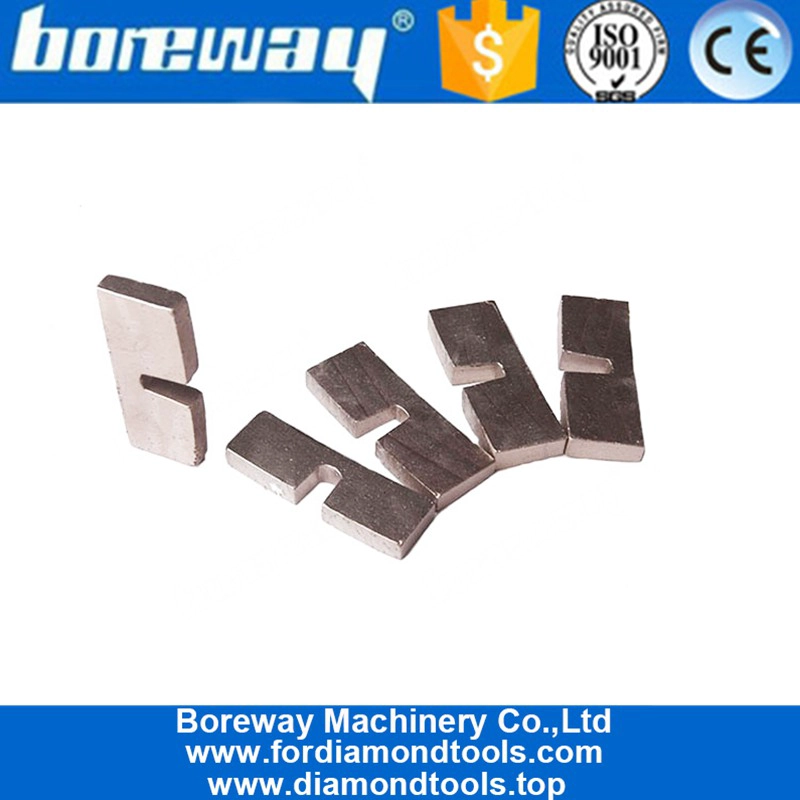

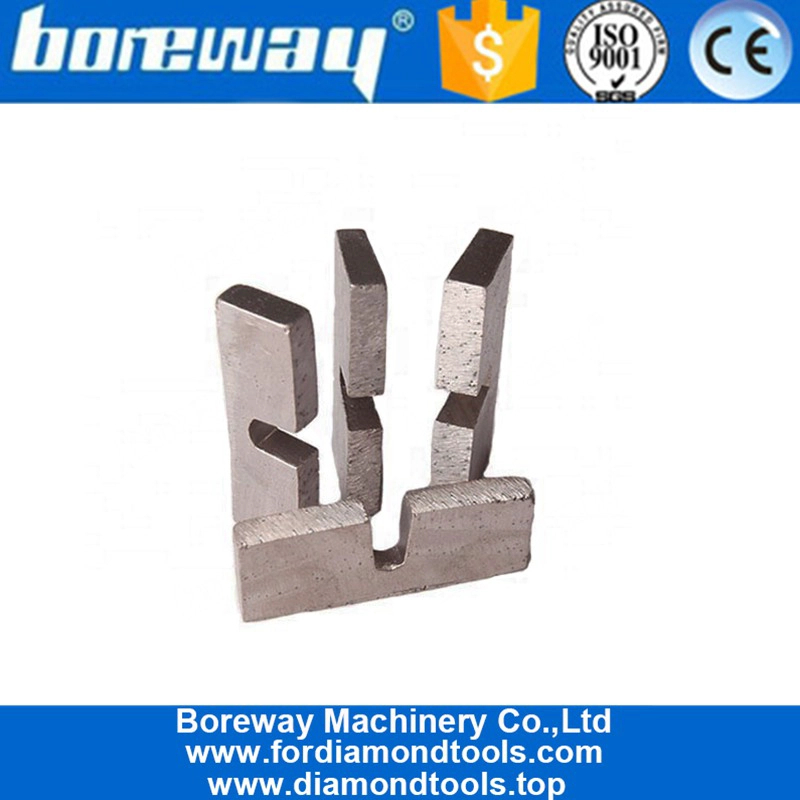

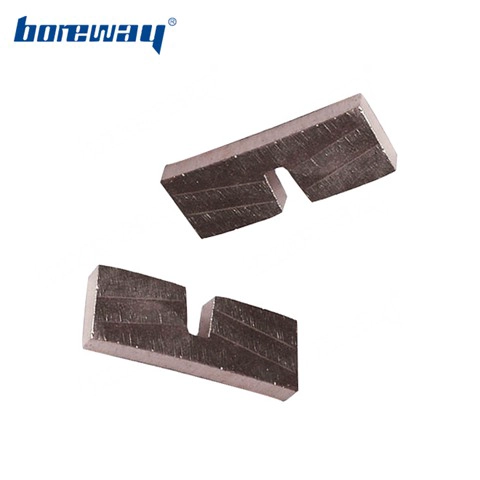

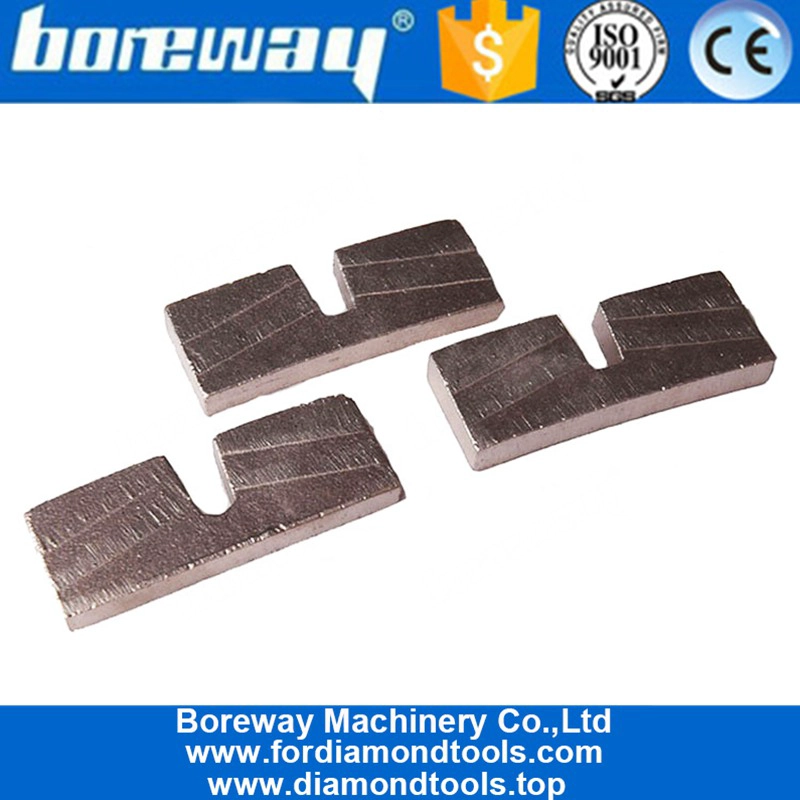

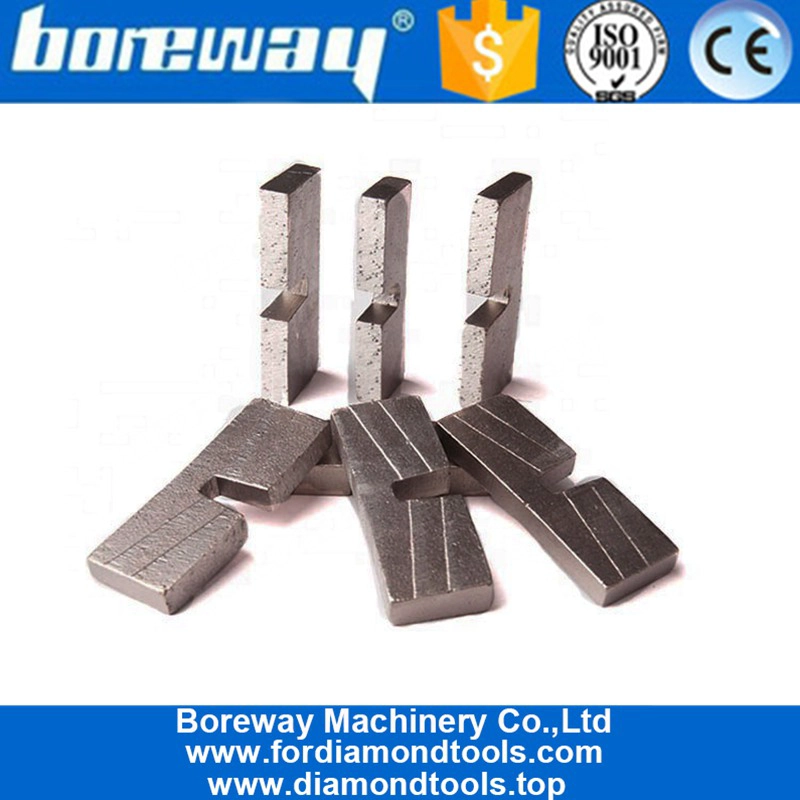

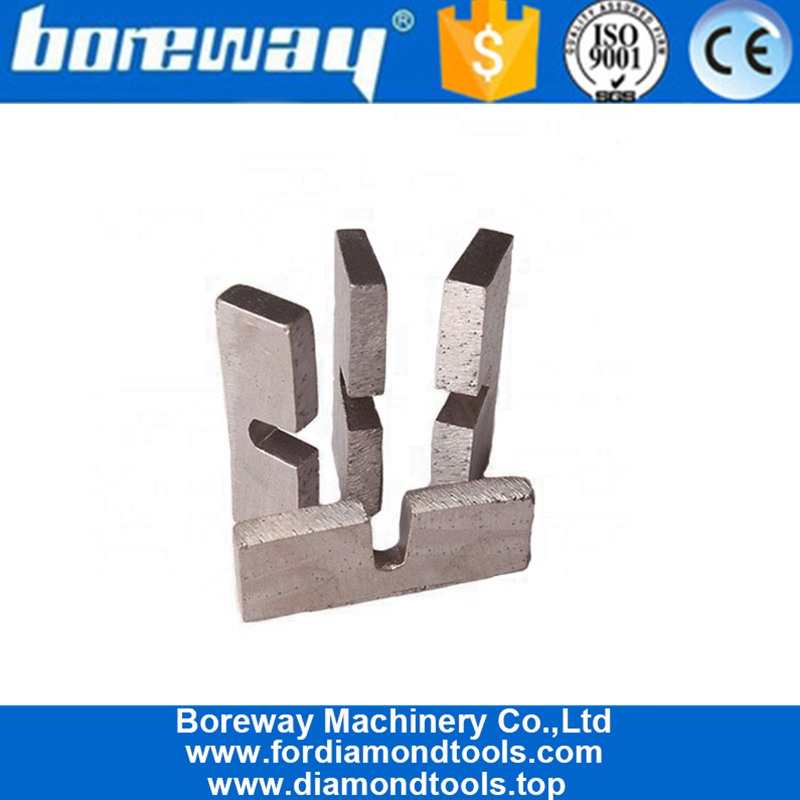

BOREWAY U Slot Silver Welding Edge Cutting Diamond Segment Manufacturer

  • Port: Xiamen
  • Brand Name: Boreway
  • Model Number: BW-DSEMB-00
  • Type: Wet Use Only
  • Service: OEM & ODM
  • Segment Height: 12, 15mm
  • Application: Marble Edge Cutting
  • Cutting Result: Flat Surface and Even Size
  • Machine: Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine
  • Usage: For Slab Edge Cutting of Marble, Limestone, Slate, Various Soft Stone Without Quartz



Fast Cutting U Slot Silver Welding Edge Cutting Diamond Segment for Marble:

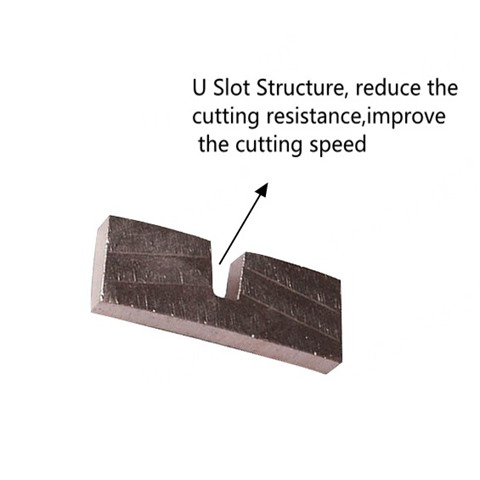

Under same segment bond condition, short length means less resistance, Edge Cutting Diamond Segment for Marble is good to reduce the cutting resistance from the stones, thus it help to improve the cutting speed. With the improving of the cutting speed, this design give very smooth cutting.


Our Edge Cutting Diamond Segment for Marble are made by high-quality diamond powder and metal powder mixture,produced by pressing and sintering, diamond powder and metal powder combine closely, the quality is higher and the effect is better.

Such diamond segment are highest ratio of performance to price!(Diamond Segment Silver Welding Solder Supplier)


We are instrumental in providing to our valuable customers excellent quality
Edge Cutting Diamond Segment for Marble which are available with following specification:

     Marble Edge Cutting Segment Dimension
  Specification  Steel Core    Dimension of Segment(L*W*H)  No.of teeth
 300  2.2/2.0  40  3.6/3.3/3.0  12/15  21
 350  2.4/2.2  40  3.6/3.3/3.0   12/15  24
 400  2.8/2.4  40  4.0/3.7/3.4  12/15  28
 500  3.2/2.8  40  4.3/4.0/3.7  12/15   36
 600  3.6/3.2  40  5.0/4.7/4.3  12/15  42
 700  4.0/3.8  40  5.5/5.2/4.9  12/15  50
 800  4.5/4.2  40  6.0/5.7/5.4  12/15  57

Besides U Slot Silver Welding Edge Cutting Diamond Segment for Marble, All of our
products have been strictly tested before access to market. Other specifications can be customized according to requirements.

Click To View More Models:High Frequency Welding V Cut Saw Blade

Product Details:

Fast Cutting U Slot Silver Welding Edge Cutting Diamond Segment for Marble:

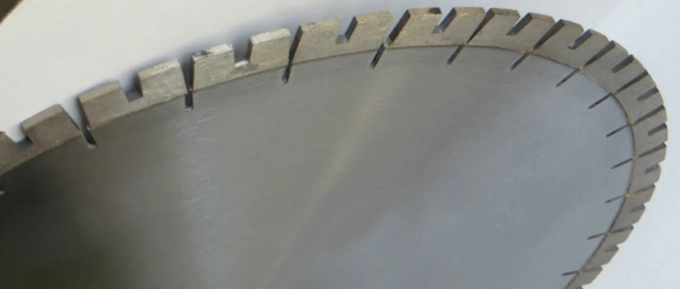

Fast Cutting U Slot Silver Welding Edge Cutting Diamond Segment for Marble. Diamond Segments for for slab edge cutting of marble, limestone, slate, various soft stone without quartz.

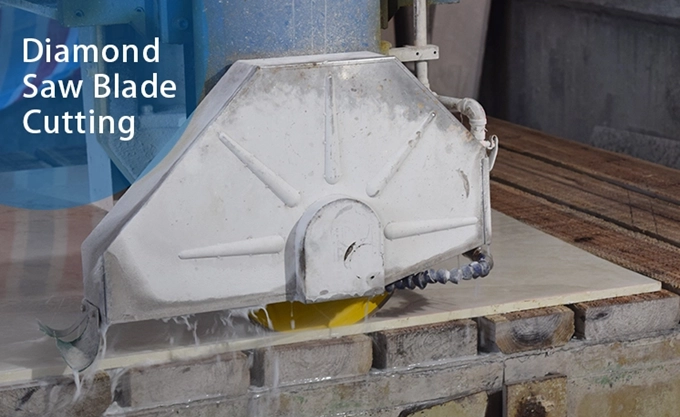

Cutting Effect:


1.Ideal edge trimming quality best .

2.Excellent comprehensive cutting performance.

3.High cutting efficiency, meanwhile, it has a long lifespan.

About us:
We have a strict quality control system:

270MM Bush Hammered Plate For HTC Grinders
Packing & Delivery:

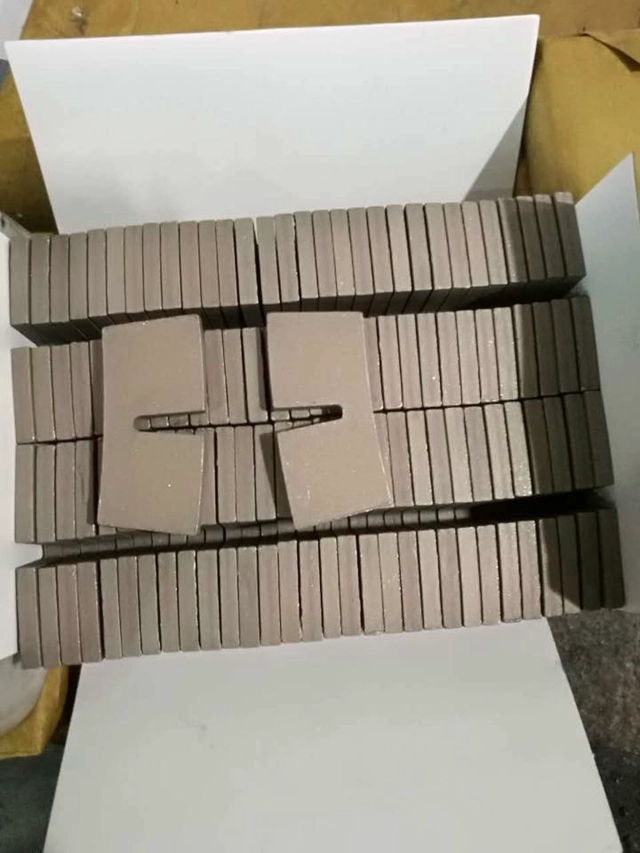

Packing in carton cases:

Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


1.If we want to buy diamond segment, how could we know the quality?
You can buy diamond segment with a small quantity first, test the quality and our service, it will be much better for our long term cooperation. For small quantity, you don’t need to take risk in case the quality doesn’t fit your market.

2.What could we do if we find your diamond segment are not in good performance?
Please tell us the detailed information of the cutting, for example:

1). The RPM of the machine, the cutting object.
2). The detail picture of diamond segment after use, e.g. the cutting side of diamond segment.
3). Do you feed enough cooling water.

3. What is the delivery way?
Express Courier Service, Sea Cargo and so on. We give the advice according to actual situation for customers make decision.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
