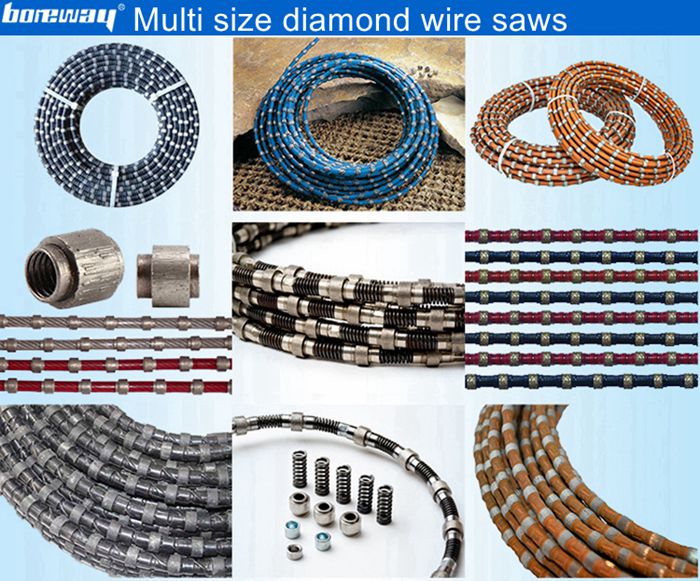

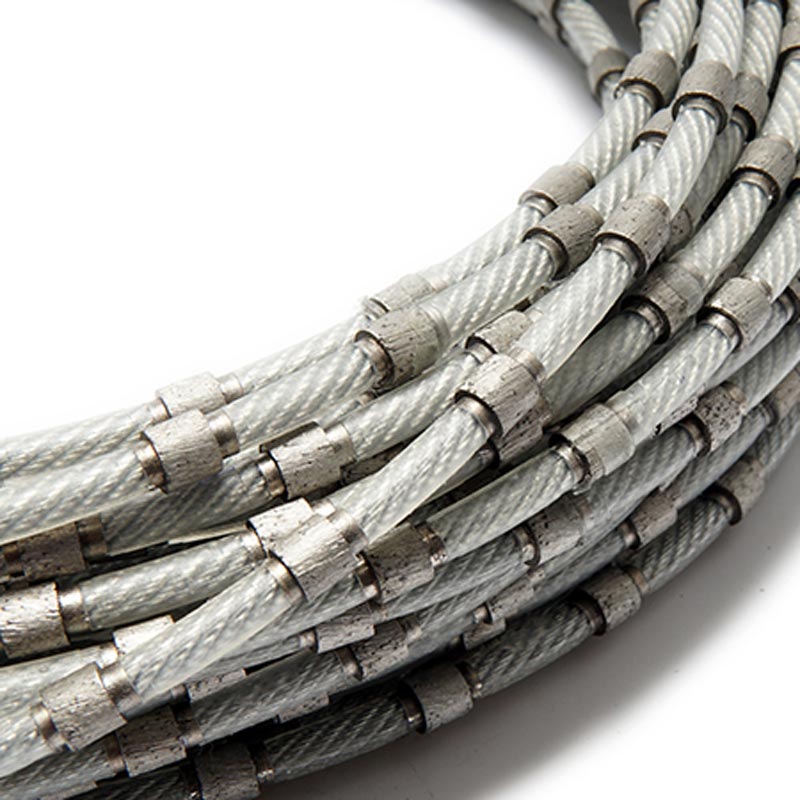

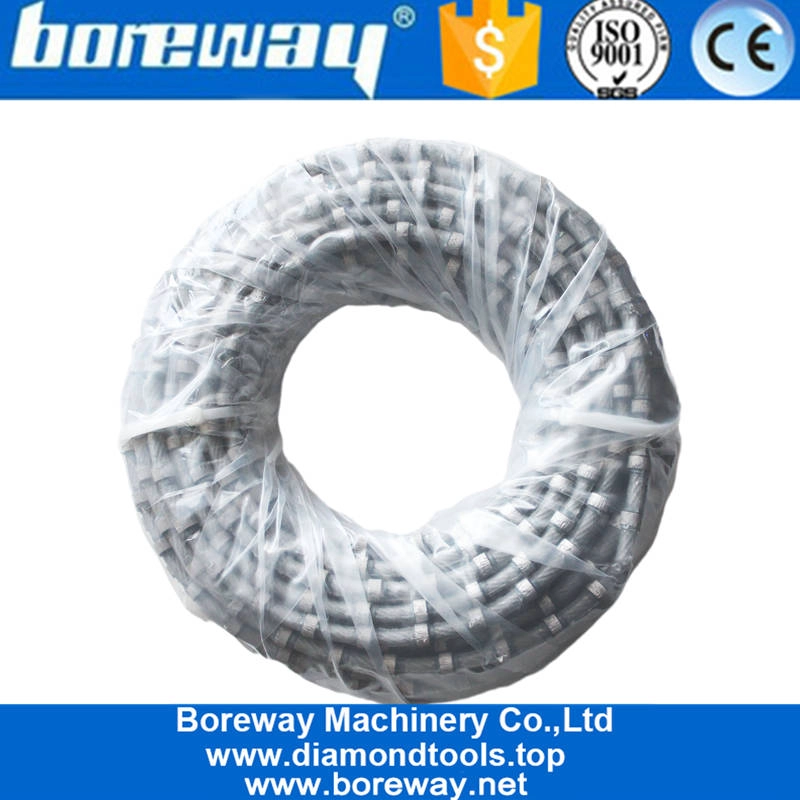

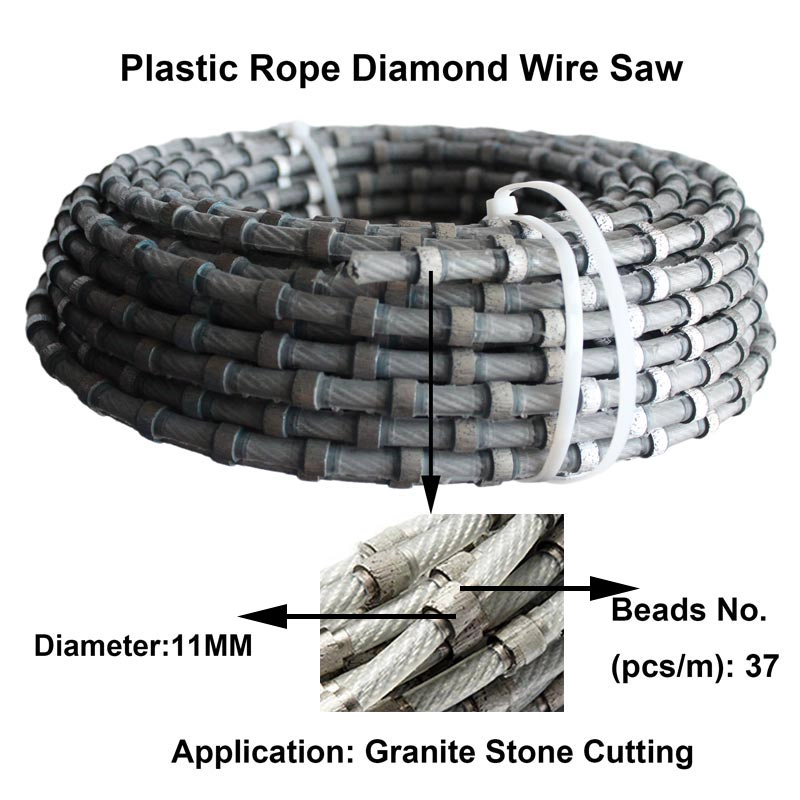

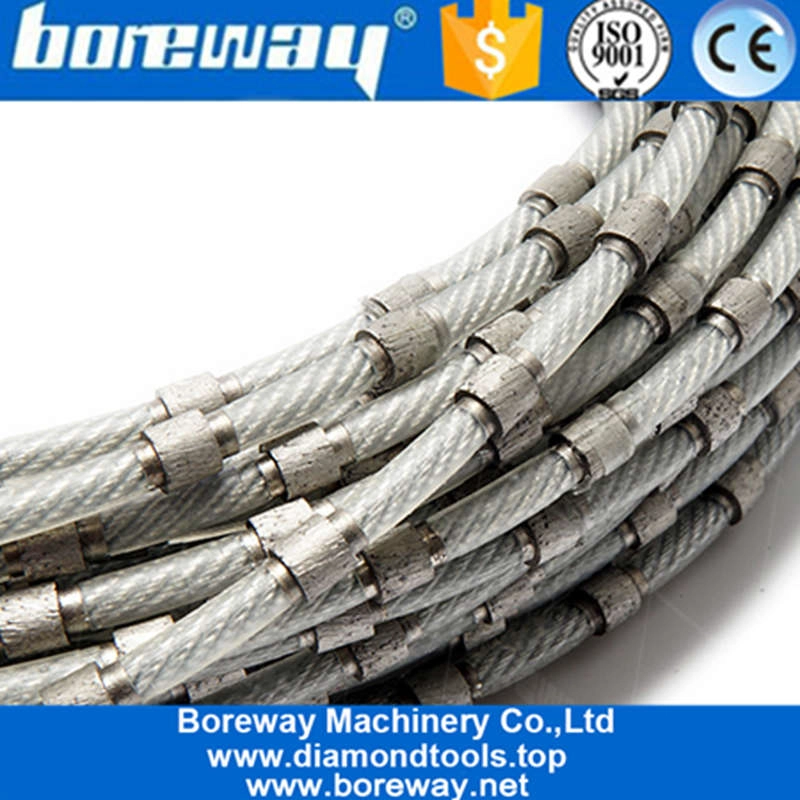

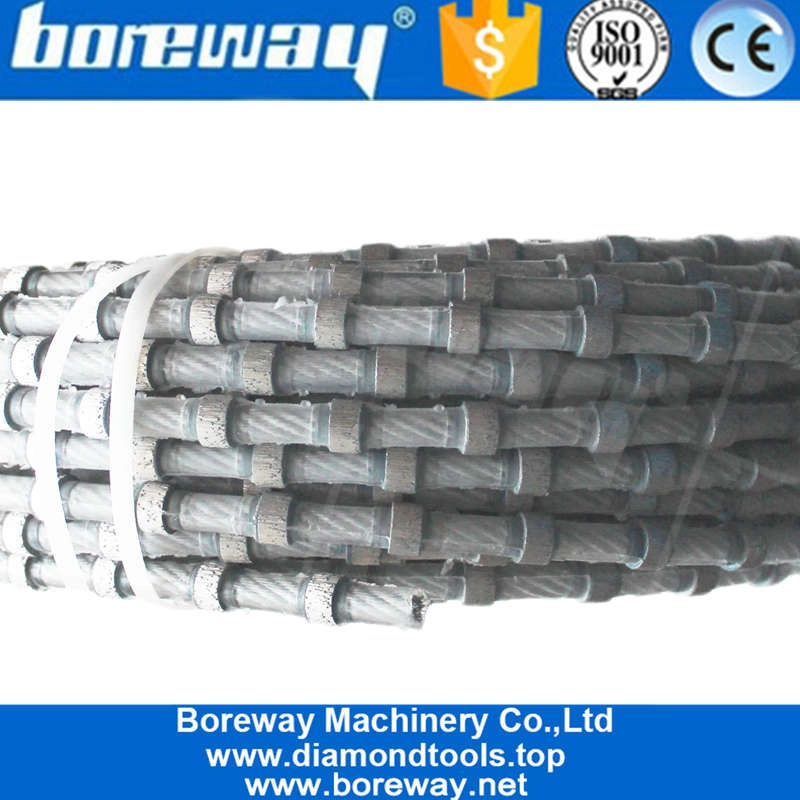

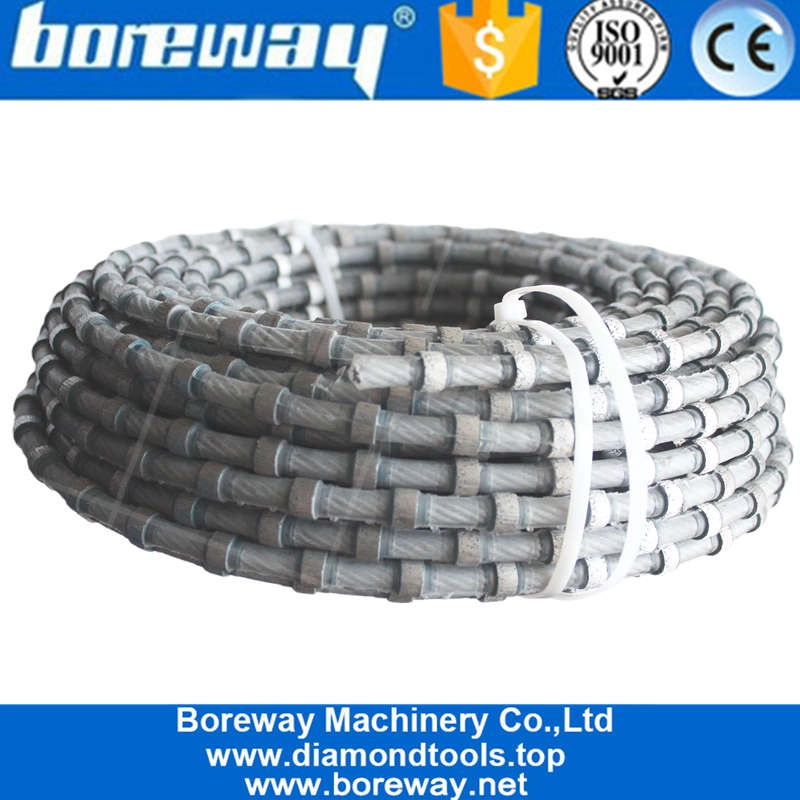

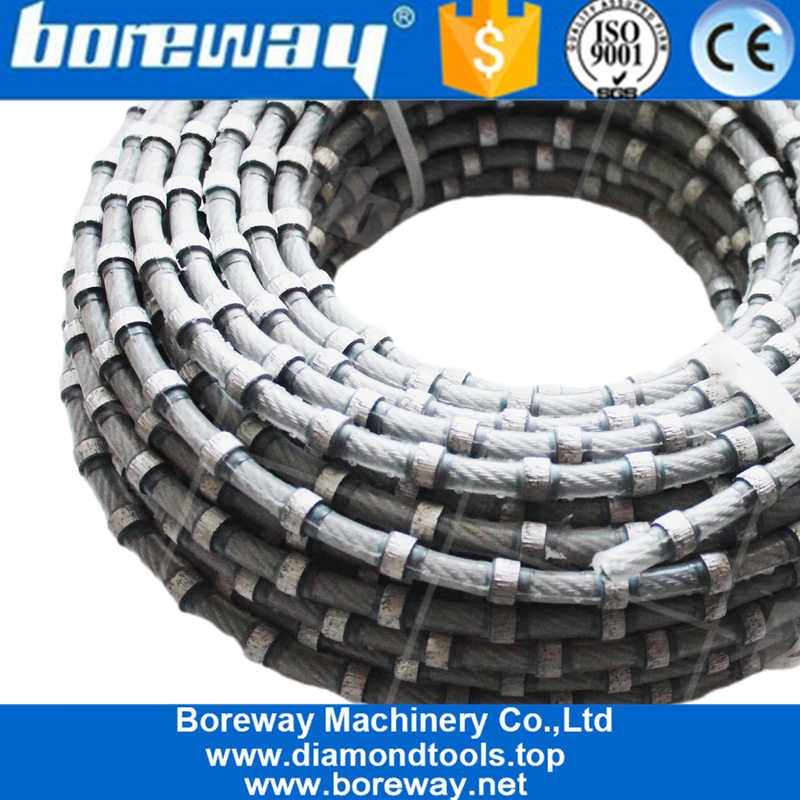

Diameter 11mm Plastic Rope Diamond Wire Saw For Cutting Granite Stone Suppliers

  • Diameter:11MM
  • Model: BW-DWS
  • Coating Type: Plastic
  • Beads No. (pcs/m): 37 Pins
  • Industry: Diamond Cutting Tools
  • Application: Granite Stone Cutting
  • Machine: Large Cutting Machine For Wire.
  • Advantage: Good Sharpness And Long Lifespan.

Product Description:

China Diamond Wire Saw For Cutting Stone For Suppliers Wire Saw possess good sharpness and high efficiency during the process of cutting, as well as long lifespan.

Safety Plastic China Diamond Wire Saw For Cutting Stone for Granite Cutting.

Feature:

1. Competitive price and stable quality.
2. Finishing: rust proofing titanium coated.
3. Matured formula designing and testing system.
4. Good cutting result: Diamond Wire Saw For Cutting Stone smooth cutting, flat surface and even size.
5. China Diamond Wire Saw For Cutting Stone stable cutting and narrow cutting gap to ensure minimum stone waste.

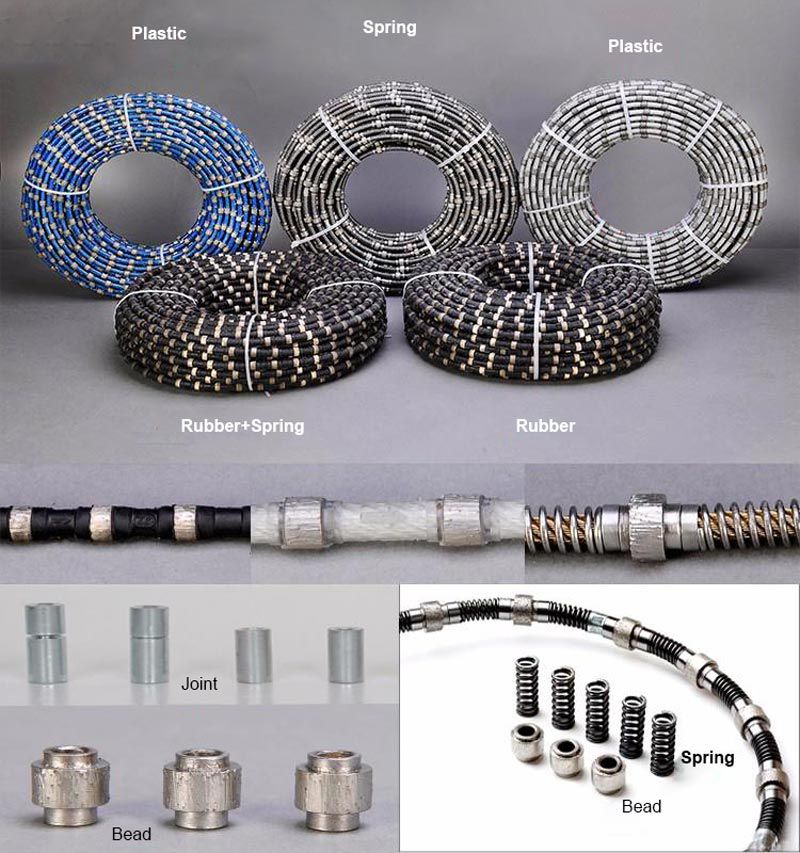

Specifications:

Specification of Diamond Wire Saw Manufacturer China:


 Diameter  Connecting
Material
 Beads/
Meter
 Applications
 11mm  Plastic  37 Pins  Granite
Block Cut


 Diameter/
mm
 Applications  Connecting
Material
 Beads/
meter
 11.5    Concrete Engineering  Rubber  40
 11.5  Granite mine  Rubber  40
 11  Concrete Engineering  Rubber/plastic  40
 11  White
marble mine
 Spring  28-30
 11  Green
marble mine
 Spring  28-30
 11  Granite mine  Rubber/plastic  40
 11  Granite
block cut
 Plastic  37
 10.5  Concrete Engineering  Rubber  40
 10.5  Granite
block cut
 Plastic  37
 10.5  Marble
block cut
 Plastic  30
 9  Marble  Plastic  33
 9  Granite  Plastic  37
 8.8  Granite  Plastic  37
 8.8  Marble  Plastic  33
 8.5  Granite  Plastic  37
 8.5  Marble  Plastic  33
  Other specification can be customized


The above specifications are for reference, other specifications can be ordered by customers.

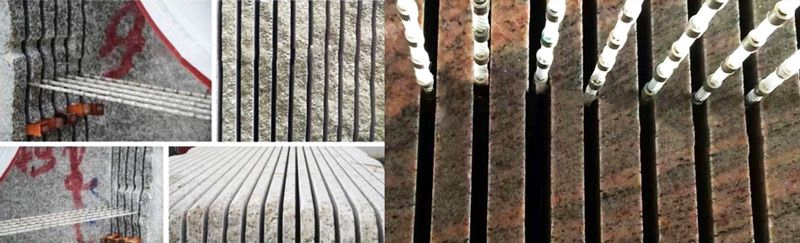

Application:

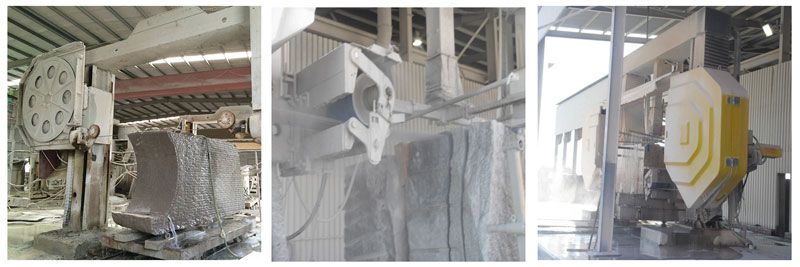

Diamond Wire Saw For Cutting Stone for Wire Large Cutting Machine.

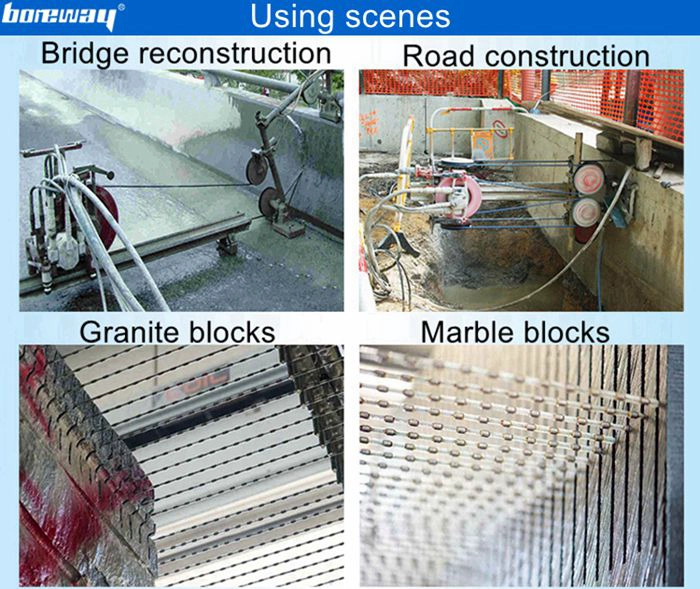

Diamond Wire Saw For Cutting Stone can be used in construction cutting, bridge and under-water construction cutting, including green concrete, cured concrete, reinforced concrete,Granite quarrying,Marble quarrying,Granite and marble block profiling,Stone slabs cutting,Concrete cutting. etc.

1.Diamond Wire Saw For Block Trimming:
Plastic wire is recommended, it can be used to trim marble, granite and other stones. It could cut the blocks accurately with small inter-space.

2.Diamond Wire Saw For Quarry:
Rubber wire is recommended, it can protect the wire saw rope very well and increase the wire’s strength. Rubber possesses excellent characteristic of temperature resistance, and it can be used under situation of water deficient. Strong flexibility can also reduce the cut-in-one-side problem.

3.Diamond Wire Saw For Profiling :
Plastic wire is recommended for shaping operations, it could provides a huge range of possibilities. It makes smooth surface and accurate sizes with small inter-space. Stone columns and special shape stone material for building industry can be processed in a much more economic way.

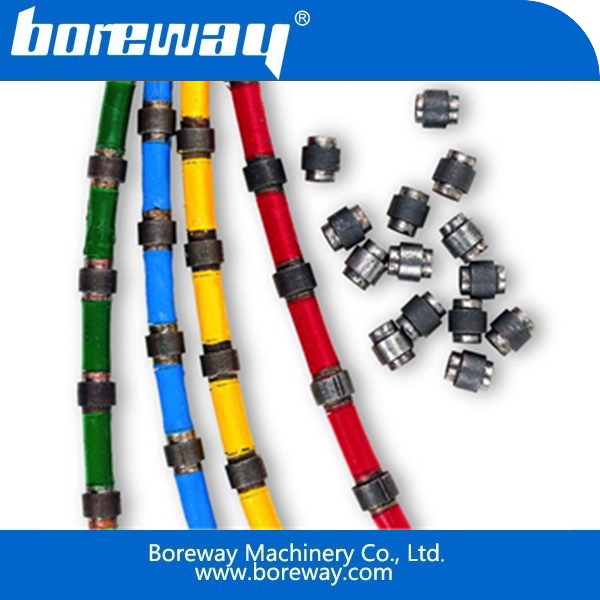

4.Diamond Wire Saw For Reinforce Concrete Cutting:
Diameter 10.5/11.5mm Rubber and Spring wire is recommended. The wires are widely used in the reinforced concrete with more than 5% steel inside. It is used in the building constructions, cutting for houses, bridges, cement pipes and under water buildings.

5.Diamond Multi-Wire Saw For Slab Cutting:
Diamond multi-cutting wire saws are suitable for cutting different types of large granite slabs with excellent efficiency.












About us:

270MM Bush Hammered Plate For HTC Grinders

Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.




Logistics:

Sample order ship by DHL, UPS, FedEx, TNT, EMS etc
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer’s forwarder or ours


FAQ:

1.How could we know the quality, if we want to order your products?
Please just test them with a very small order, then you will know the quality. At present,so many people in the world to use Chinese products, because of the high quality and most competitive prices. We are professional manufacturer in supplying diamond tools for more than 8 years. Anyway, confirming our products quality, a small trial order for testing will be necessary.

2.Can you offer free samples?
We don’t offer free samples, according to our many years experience, we think people get the samples by paying, they will cherish and appreciate more what they get. But we are willing to give our potential customers a special discount which they are used to do a testing. It is very important to give us feedback, we appreciate it.

3.Does your company accept custom-made?
Surely, we accept it. Including differentcolor, grit etc. We also can mark your ownlogo and brand on the pad. Any new productsyou want us to produce for you, just send us your drawing or sample, we will produce the same one. We will not sell this kind of products to other customers only if we get your permission.

Please note:

1. Please provide items before purchase.
2. Please provide the model number before purchase.
3. Other specifications can be customized according to requirements.
