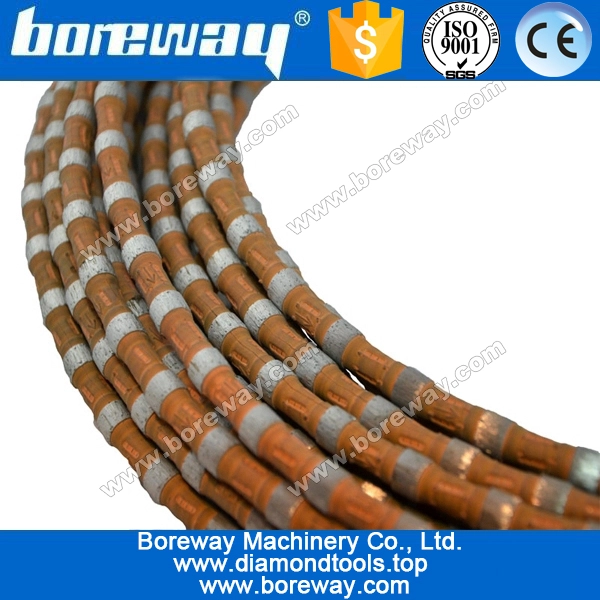

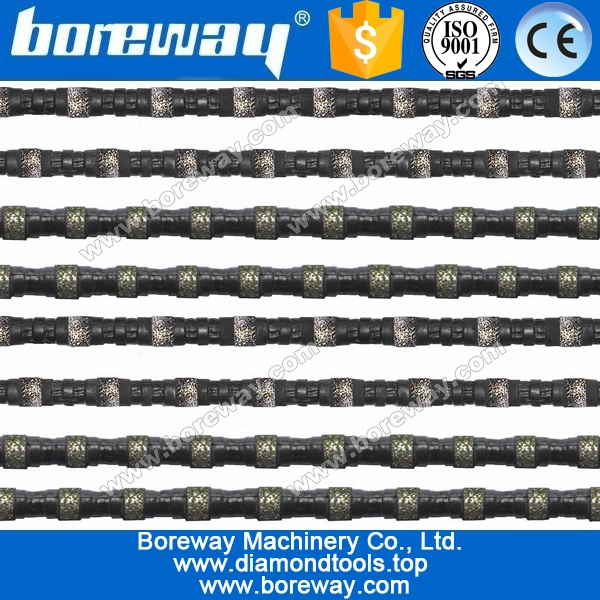

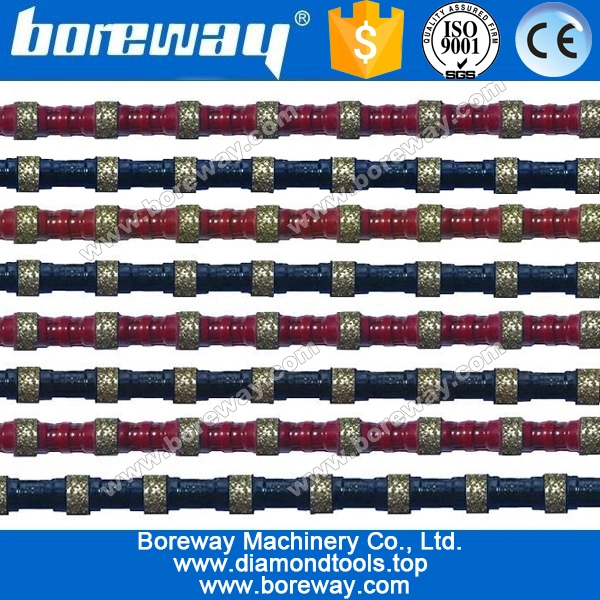

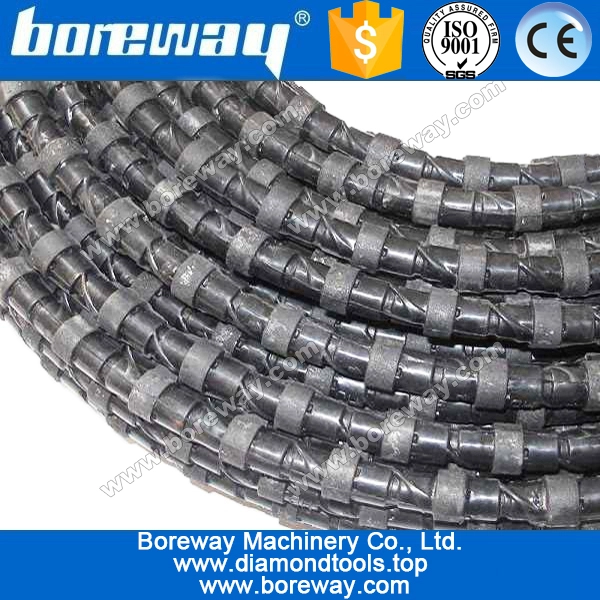

Boreway diamond wire and beads for concrete

  • Model Number: BW-DWBC-001
  • Type:          Wet Use
  • Diameter: 9.5mm or 10.5mm or 11mm
  • Application:     RC or ERC or ARC
  • Wire speed:      20m/s to 30m/s
  • Cutting life:    1m²/M to 5m²/M
  • Machine: Diamond cutting wire machine.
  • Industry: Diamond cutting tools
  • Advantage: High quality,good sharpness and long lifespan.
  • Applications: Boreway diamond wire and beads is wet use for cutting concrete and stone.

Introduction:

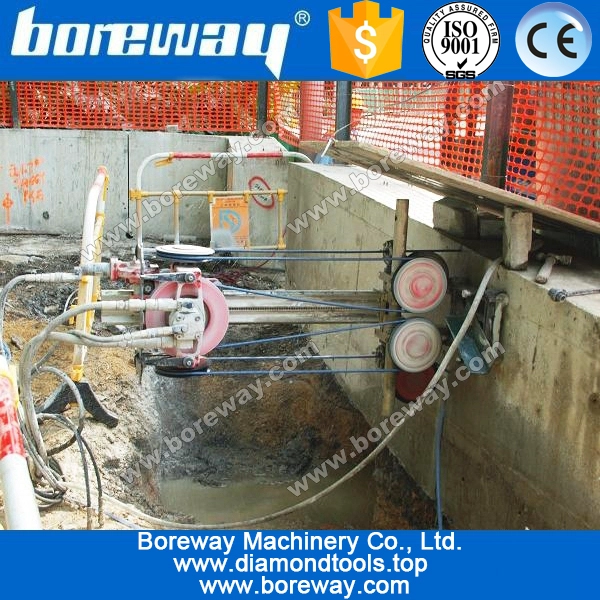

These diamond wire and beads are used for wet cutting various kinds of concrete,for removing

large concrete such as bridges,foundations,thick walls etc.



Features:

1.Universal wet cutting wire for various kinds of concrete.

2.The synthetic rubber adheres extremely well to the beads,wire and spring. This design protects

against wear and prevents slurry from contaminating the spring and wire.

3.These wires can provide very fast,smooth and low noise cutting. The smaller bead diameter also

allows using as a problem-solving wire to finish a difficulty.



Specifications:

The followings are the normal specifications of our diamond wire and beads for concrete:

Diameter

Beads

Attachment

Application

Power

Wire Speed

Efficiency

Cutting Life

mm

pcs/M





kw

m/s

m²/h

m²/M

9.5

40

Rubber+Spring

RC

8~25

20~30

1~4

1~5

10.5

40

Rubber+Spring

RC

8~25

20~30

1~3

1~5

10.5

40

Rubber+Spring

ERC

10~35

20~30

1~3

1~5

11

40

Rubber+Spring

ARC

10~35

20~30

0.5~3

1~5

RC: Reinforced concrete;    ERC: Extra reinforced concrete;   Class ARC: Abrasive reinforced concrete.

The above specifications are for reference, other specifications can be ordered by customers.
