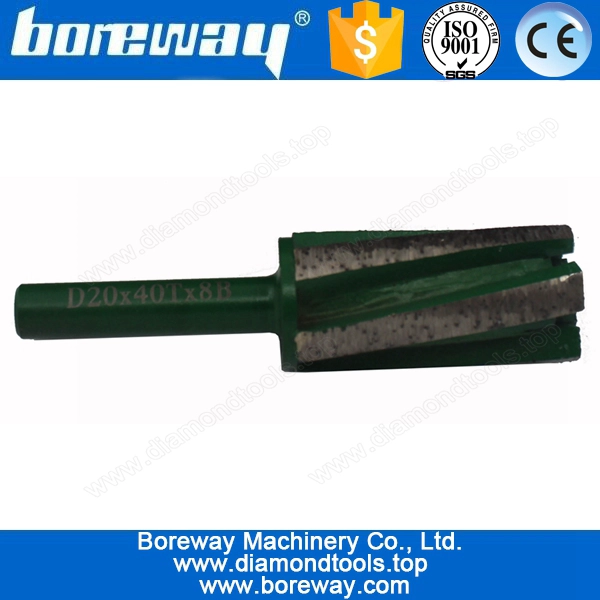

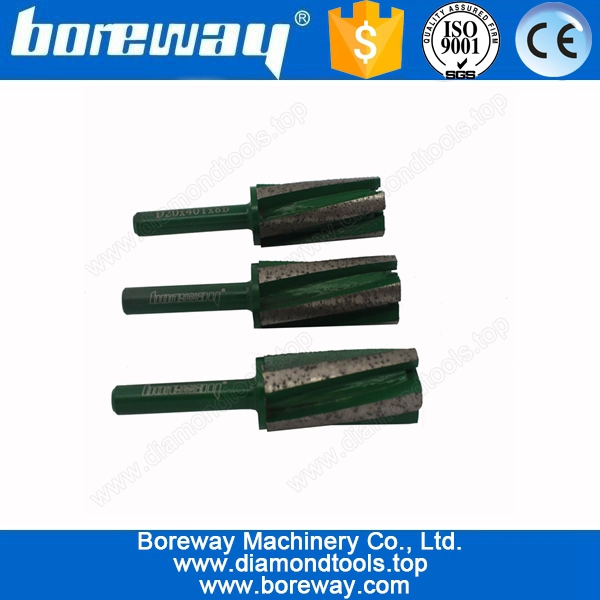

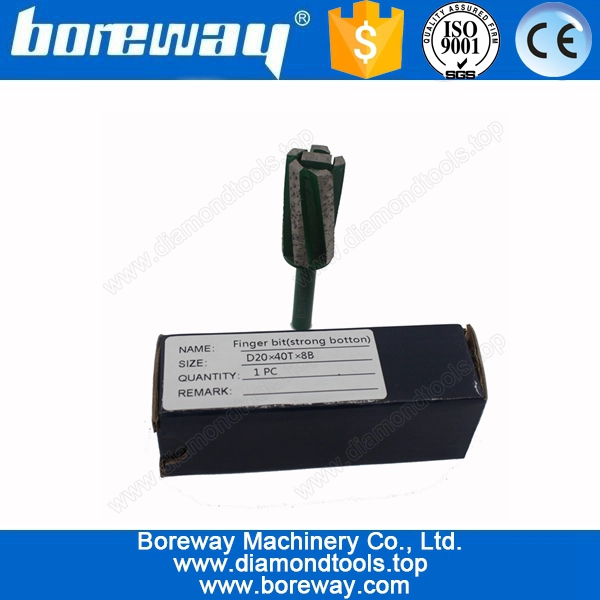

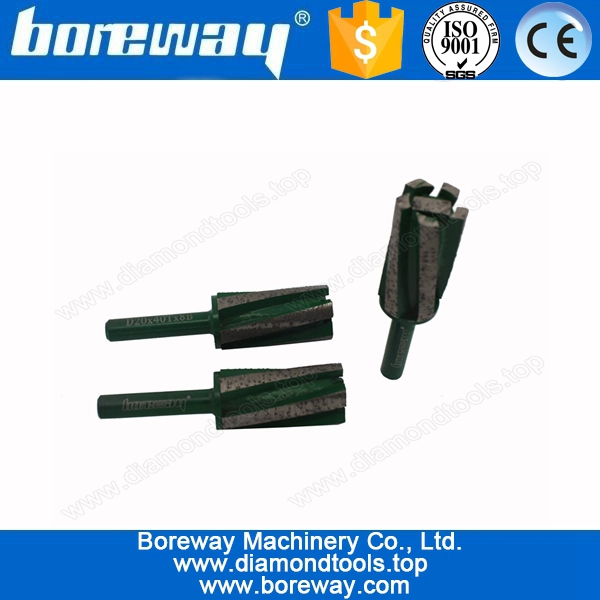

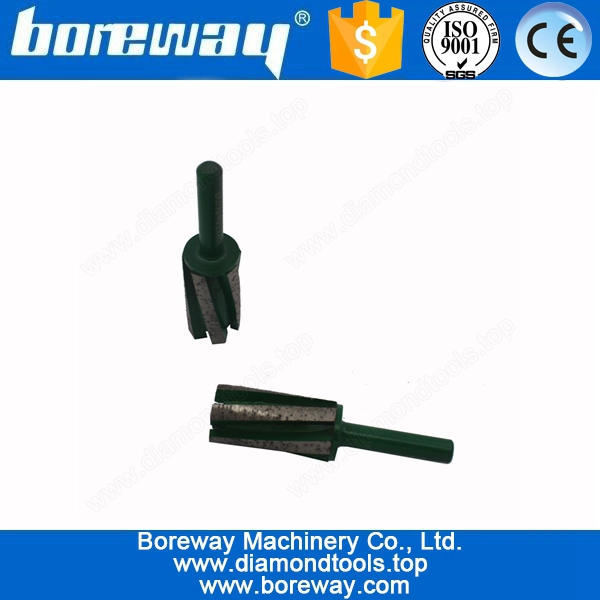

D20*40T*8B Diamond Milling Cutter With Shank For Grinding Slab
- Model Number:BW-DRB-20(40T)
- Type:Wet Use
- Diameter:20mm
- Length:40mm
- Connection:8B
- Recommend Speed:4500 Rpm
- Machine:CNC machine,radial arm machine
- Applications:D20*40T*8B Diamond Milling Cutter With Shank For Grinding Slab are used for cut granite,engineered stone and marble and other material
- Advantage:High efficiency and long lifespan.
| Introduction: |
2.They are ideal for fast stock removal as well as truing up saw lines, which is designed to cut granite, engineered stone and marble,counter tops, kitchen tops and basins.
3.Usually mounted on CNC or Radial Arm machines, for hole grinding, anchor and blind hole.
4.Center water feed holes in each bit.
5.Please vertical using and add water when grinding,mostly for side grinding.
| Features: |
1.Faster Speed and Lasting longer
2. Less Noise and Low Ampere
2. Less Noise and Low Ampere
| Specification: |
| Diameter | Bore (mm) | Segment Length |
Segment No. |
| 20mm (3/4") | 1/2 Gas (Male Thread) M14 5/8"-11 |
40mm 45mm 50mm 60mm |
4-6pcs |
| 25mm (1") | |||
| 30mm (1-1/4") | |||
| 35mm (1-3/8") | |||
| 40mm (1-5/8") | |||
| 50mm (2") | |||
| 60mm (2-3/8") |
| Images: |
