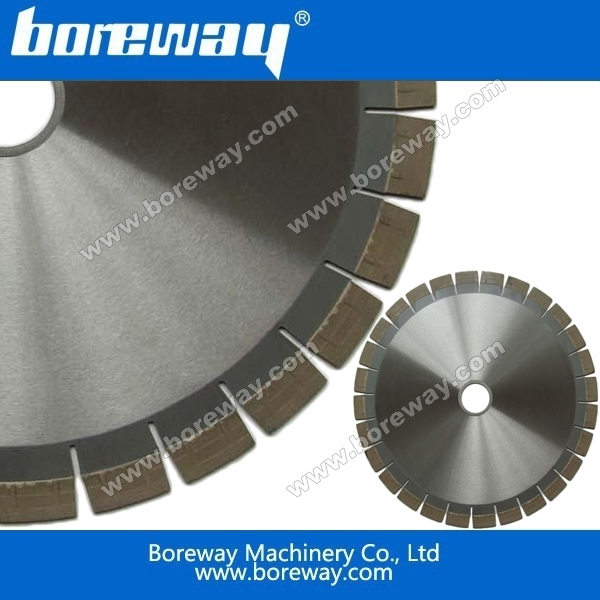

Boreway fan edge cutting blade with three-step segment
- Model Number: BW-FECBTSS-001
- Type: Wet Use
- Diameter: 300mm to 850mm
- Steel core: 2.2mm to 4.5mm
- Applications: Boreway fan edge cutting blade with three-step segment is wet use for cutting granite.

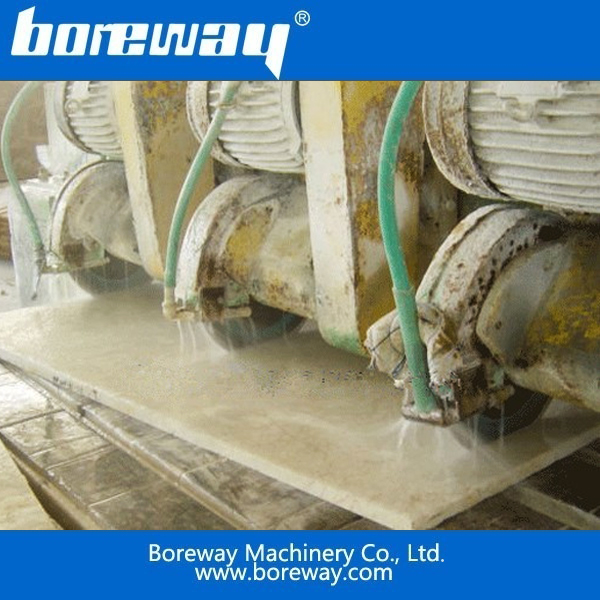

- Machine: Bridge cutting machine and other large cutting machine.
- Industry: Diamond cutting tools
- Welding method: Sinter welding
- Advantage: Good sharpness and long lifespan.
Introduction:

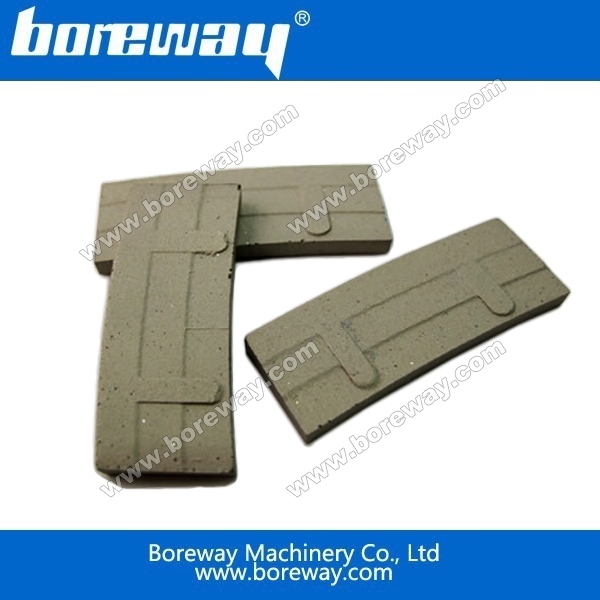

Diamond edge cutting blade with there-step segment,the unique T side face allows ideal debris
removal and better cooling,improves the sharpness and cutting efficiency. Besides,this design
reduces blade stone interface while cutting that will minimize cutting friction and noise.
Features:
1.Good continuity,effectively reduce the distance between teeth.
2.Further Strengthen the effect of trimming,reduce the loss of stone.
3.This segment will improve the sharpness and cutting efficiency.
4.High cutting efficiency,meanwhile,it has a long lifespan.
Specifications:
The followings are the normal specifications of our fan edge cutting blade with three-step segment:
|
Product Name |
Diameter |
Steel Core (mm) |
Segment Dimension (mm) |
Segment Number |
Application |
|
Edge Cutting Blade For Granite |
Ø300 |
2.2 |
43/40*3.2*10(15,20) |
21 |
Granite |
|
Ø350 |
2.2 |
43/40*3.2*10(15,20) |
24 |
||
|
Ø400 |
2.6 |
43/40*3.6*10(15,20) |
28 |
||
|
Ø450 |
3.0 |
43/40*4.0*10(15,20) |
32 |
||
|
Splitting Blade For Granite |
Ø500 |
3.0 |
40*4.0*10(15,20) |
36 |
|
|
Ø550 |
3.6 |
40*4.6*10(15,20) |
40 |
||
|
Ø600 |
3.6 |
40*4.6*10(15,20) |
42 |
||
|
Ø650 |
4.0 |
40*5.0*10(15,20) |
46 |
||
|
Ø700 |
4.0 |
40*5.0*10(15,20) |
50 |
||
|
Ø750 |
4.0 |
40*5.0*10(15,20) |
54 |
||
|
Ø800 |
4.5 |
40*5.5*10(15,20) |
57 |
||
|
Ø850 |
4.5 |
40*5.5*10(15,20) |
58 |
The above specifications are for reference, other specifications can be ordered by customers.
