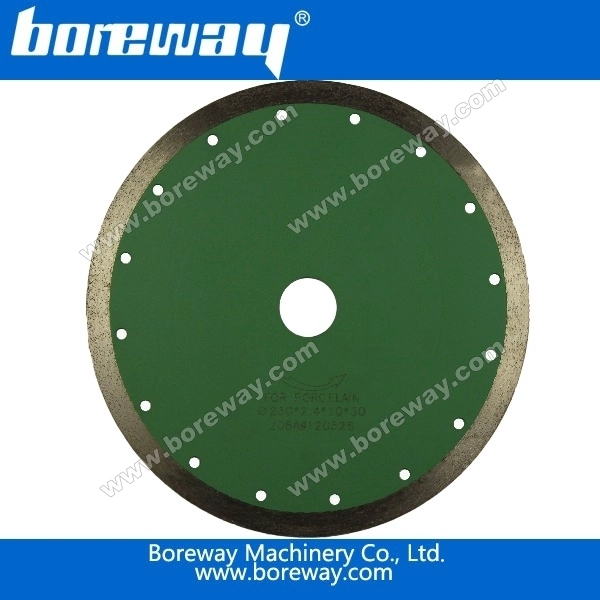

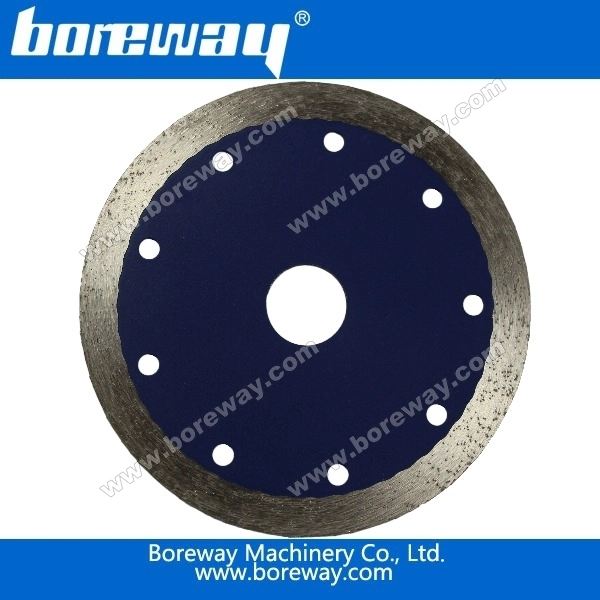

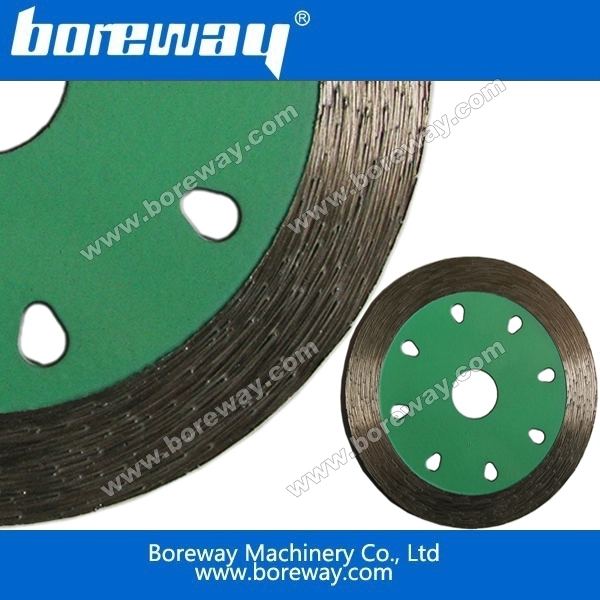

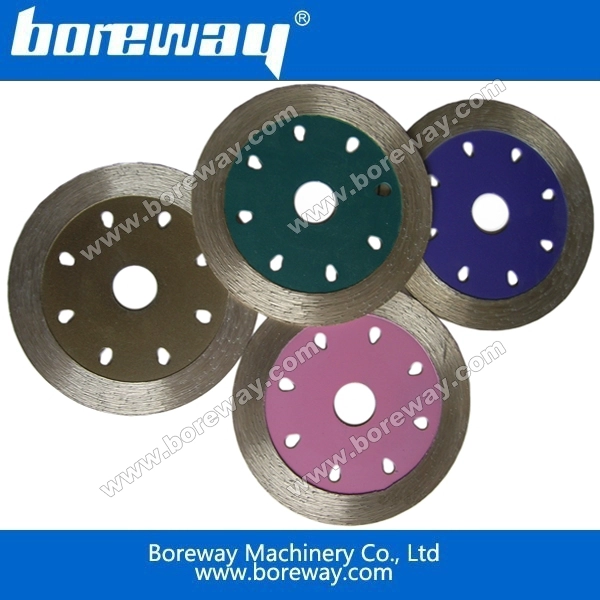

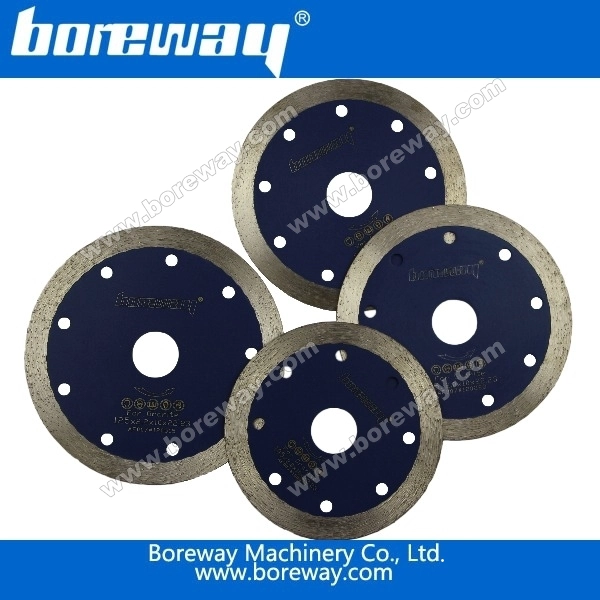

Boreway diamond sintered continuous rim blades
- Model Number: BW-DSCRB-001
- Type: Dry Use
- Diameter: 105mm to 229mm
- Segment Width: 1.8mm to 2.8mm
- Segment Height: 5mm to 8mm
- Applications: Boreway diamond sintered continuous rim blades is dry use for cutting marble granite porcelain and tiles.
- Machine: Hand-held machine and other cutting machine.
- Industry: Diamond cutting tools
- Welding method: Pressing
- Advantage: Good sharpness and long lifespan.
Introduction:
These diamond sintered continuous rim blades are widely used on manual hand held cutting
machines for wet cutting and nondestructive grooving on marble,granite,ceramic tile,concrete
and many other general construction materials.
Features:
1.Good continuity,good cutting sharpness and high cutting efficiency.
2.Designed for hand held circular saws and most angle grinders.
3.Fast and smooth cutting,free chipping,high performance/price ratio.
Specifications:
The followings are the normal specifications of our diamond sintered continuous rim blades:
|
Product Name |
Outer Diameter |
Segment Width |
Arbor |
Segment Height |
Applications |
||
|
Diamond Sintered Continuous Rim Blade |
inches |
mm |
inches |
mm |
mm |
mm |
Marble Granite Porcelain Tiles |
|
4’’ |
105 |
0.070’’ |
1.8 |
16/20 22.23 25.4/50 |
5mm |
||
|
4.3’’ |
110 |
0.070’’ |
1.8 |
5mm |
|||
|
4.5’’ |
115 |
0.080’’ |
2.0 |
12mm |
|||
|
5’’ |
127 |
0.080’’ |
2.0 |
8mm |
|||
|
6’’ |
152 |
0.085’’ |
2.2 |
8mm |
|||
|
7’’ |
178 |
0.095’’ |
2.4 |
8mm |
|||
|
8’’ |
203 |
0.095’’ |
2.4 |
8mm |
|||
|
9’’ |
229 |
0.110’’ |
2.8 |
8mm |
|||
The above specifications are for reference, other specifications can be ordered by customers.
Grade: Premium,Standard.
