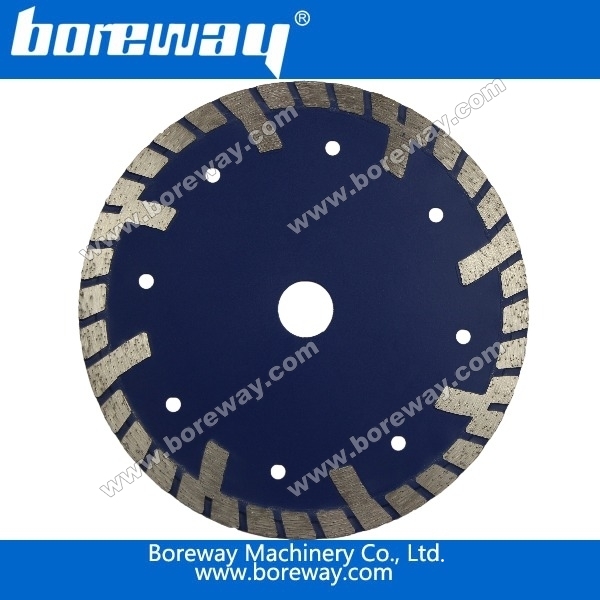

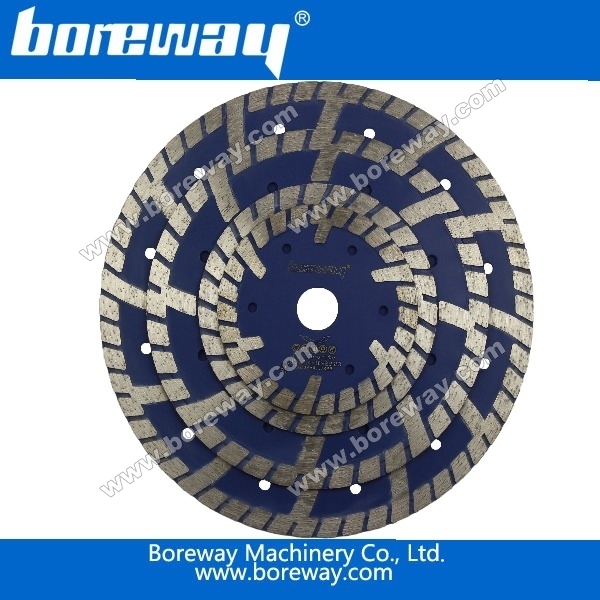

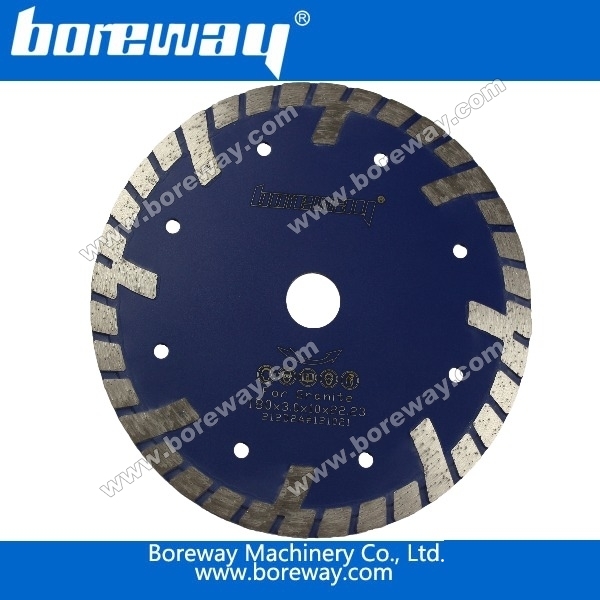

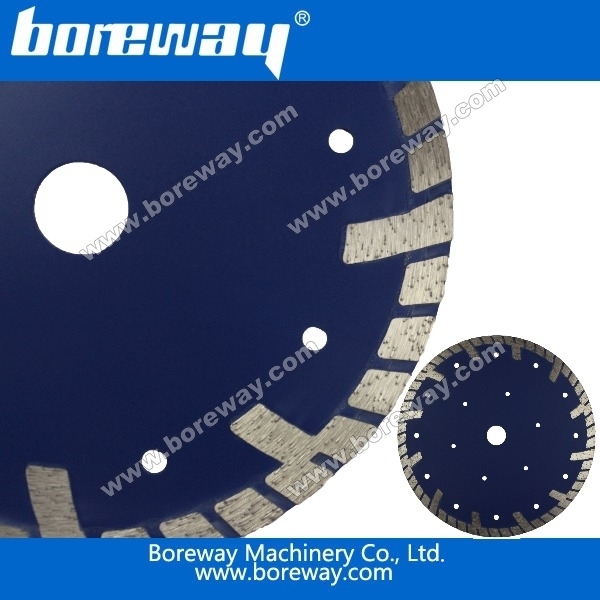

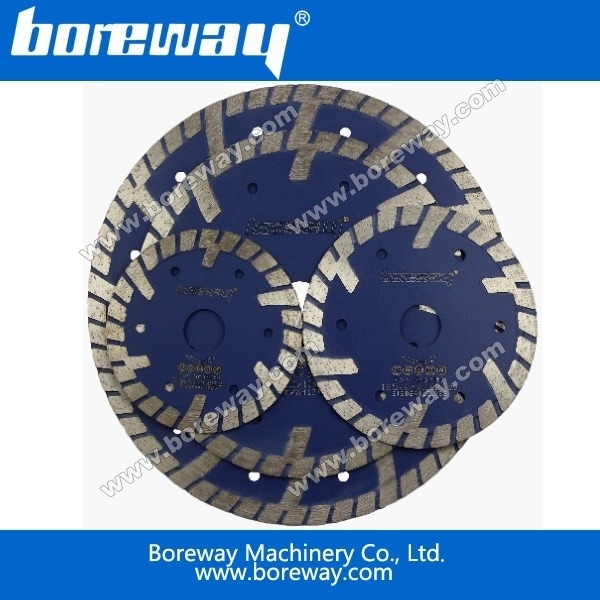

Boreway diamond sintered continuous rim bevel turbo blades
- Model Number: BW-DSCRBTB-001
- Type: Wet Use
- Diameter: 105mm to 229mm
- Segment Width: 2.0mm to 2.8mm
- Segment Height: 8mm
- Inner hole: 16mm or 20mm or 22.23mm or 25.4mm or 50mm
- Applications: Boreway diamond sintered continuous rim bevel turbo blades is wet use for cutting marble granite porcelain and tiles.
- Machine: Cutting machine.
- Industry: Diamond cutting tools
- Welding method: Sinter welding
- Advantage: Good sharpness and long lifespan.
Introduction:
These diamond sintered continuous rim bevel turbo blades are used on manual hand held
cutting machines for cutting and nondestructive grooving on marble,granite,ceramic tile,concrete
and many other general construction materials.
Features:
1.Universal dry or wet cutting blade.
2.Unique design of segments allows ideal debris removal,better cooling and protecting steel
core,and provide extremely fast cutting.
3.Turbo teeth offer fast and smooth cutting,high performance/price ratio.
Specifications:
The followings are the normal specifications of our diamond sintered continuous rim bevel turbo blades:
|
Product Name |
Outer Diameter |
Segment Width |
Arbor |
Segment Height |
Applications |
||
|
Diamond Sintered Continuous Rim Bevel Turbo Blade |
inches |
mm |
inches |
mm |
mm |
mm |
Marble Granite Porcelain Tiles |
|
4’’ |
105 |
0.070’’ |
2.0 |
16/20 22.23 25.4/50 |
8mm |
||
|
5’’ |
127 |
0.080’’ |
2.2 |
8mm |
|||
|
7’’ |
178 |
0.095’’ |
2.4 |
8mm |
|||
|
9’’ |
229 |
0.110’’ |
2.8 |
8mm |
|||
The above specifications are for reference, other specifications can be ordered by customers.
Note: These blades process only wide turbo teeth,and may be with flange.
Grade: Premium,Standard.
