Boreway 800mm Flat Types Cutting Diamond Segments For Slab Edge Cutting Of GraniteBoreway 800mm Flat Types Cutting Diamond Segments For Slab Edge Cutting Of GraniteBoreway 800mm Flat Types Cutting Diamond Segments For Slab Edge Cutting Of GraniteBoreway 800mm Flat Types Cutting Diamond Segments For Slab Edge Cutting Of Granite

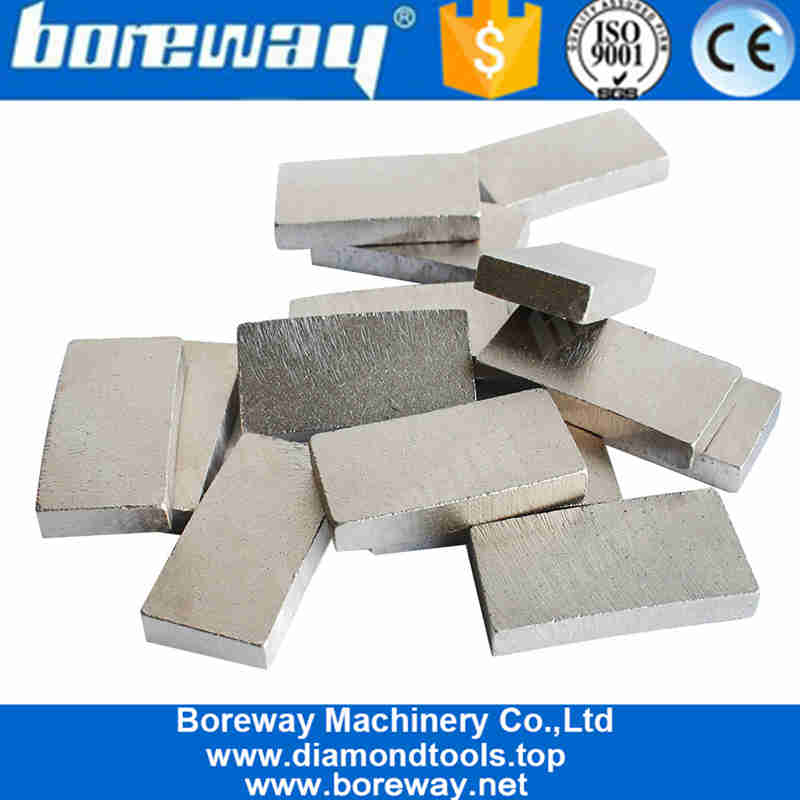

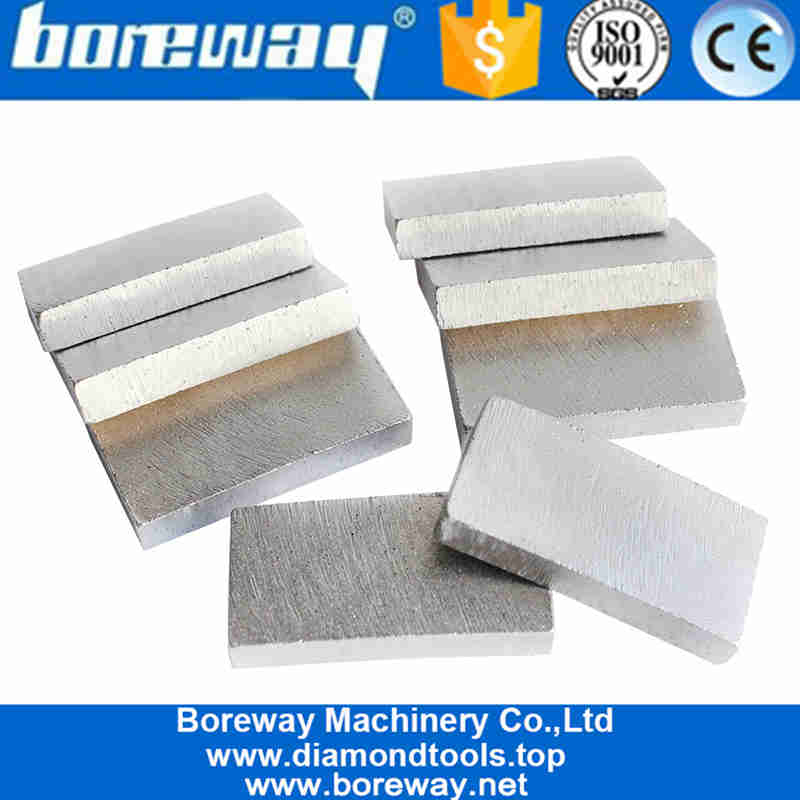

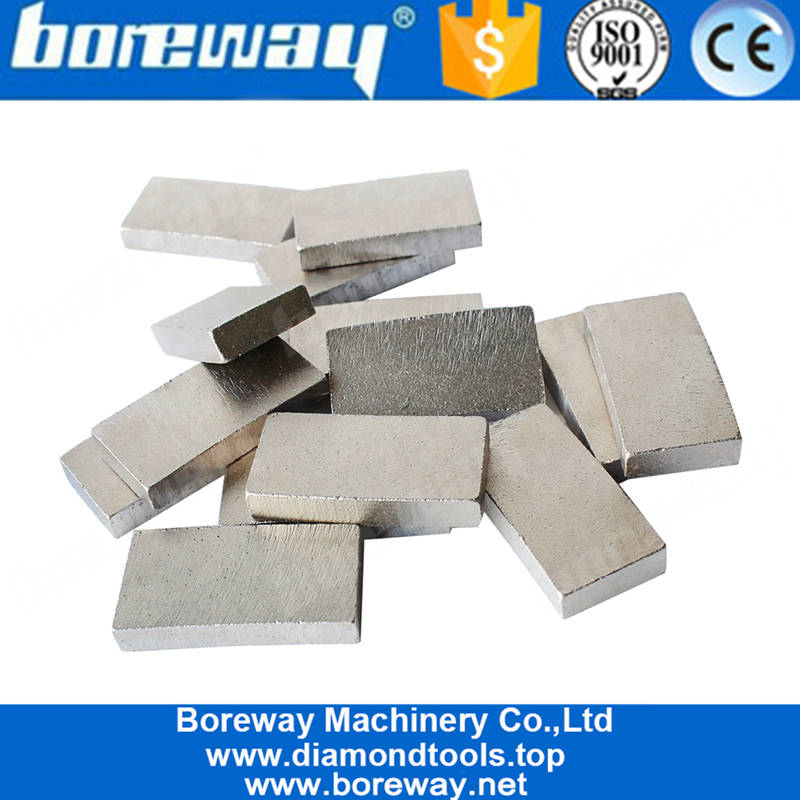

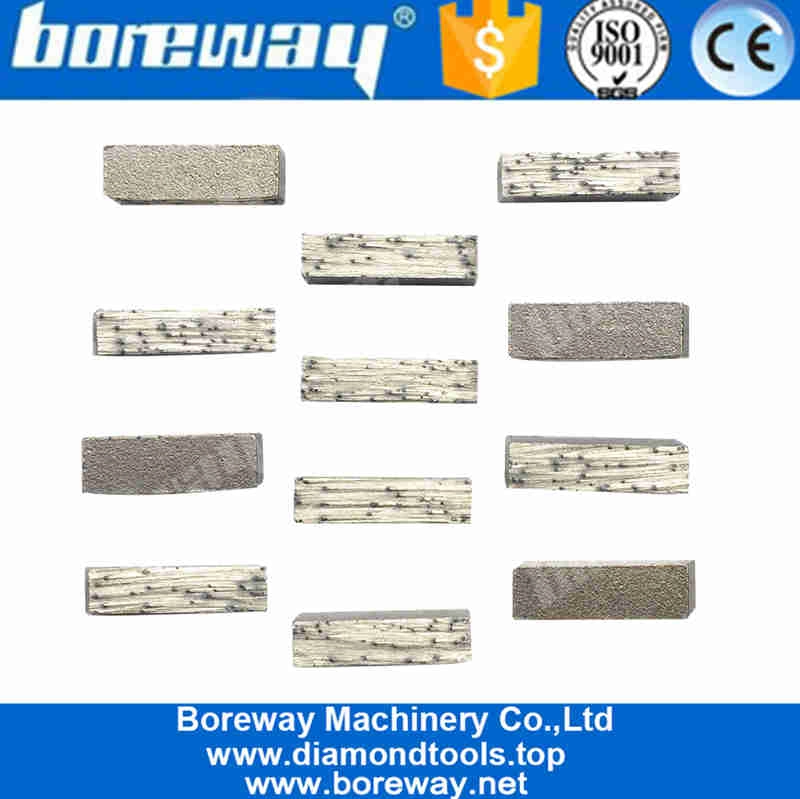

Boreway 800mm Flat Types Cutting Diamond Segments For Slab Edge Cutting Of Granite

  • Hole:50/60mm
  • Max.RPM:1200RPM
  • Diameters:800MM
  • Segment No.:57pcs
  • Shape:Normal Shape
  • Thickness:4.2(4.5)MM
  • Model Number:BW-DSG-01-08
  • Segment Size:40x5.5x10MM
  • Place of Origin:Fujian, China
  • Technology:Sintered,Hot Press
  • Machine:For bridge cutting machines
  • Cutting Material:Marble,Granite,Sandstone
  • Welding:Silver welding,High-Frequency Welding,Laser Welding
Boreway 800mm Flat Types Cutting Diamond Segments For Slab Edge Cutting Of Granite
Boreway 800mm Flat Types Cutting Diamond Segments For Slab Edge Cutting Of Granite
Advantage:

1.It has good sharpness, fast cutting speed and high cutting efficiency.

2.Good wear resistance, long service life and high comprehensive cost performance.

3.800mm Flat Types Cutting diamond segment are Fast cutting, small cutting seam, the cut stone surface is flat and even in size.

4.By changing single grinding into the combination of grinding and cutting, the sawing performance is optimized.

Specification:
The following are normal specifications 800mm Flat Types Cutting diamond segment:

Diameter  Thickness  Teeth
  Segment Size
 Hole  Max. RPM
Inch
 mm  mm  Pcs/set  L
 W H  mm  RPM
32  800  4.2(4.5) 57  40   5.5(6.0)  10/12  50/60  1200
The above specifications is only for reference, other specifications may be available as per customer's demand.

Factory=Quality Control=Competitive Price=Own technology=OEM
800mm Flat Types Cutting diamond segment
PS:A certain amount of cooling water should be added when cutting the cutter head, and the spray water flow should be large, so that it has a better cooling effect!

In addition, the speed of the combined saw blade is required to be 280-320 rpm, and the trolley can not be transported too fast!
Product Details:
800mm Flat Types Cutting diamond segment
800mm Flat Types Cutting diamond segment
Example :
Stone is soft and abrasive therefore we would use a hard bonded blade. Reinforced concrete with river pebble aggregate is hard therefore we would use a soft bonded blade.

Hard Bond
Means that the compilation of metals when sintered together forms a segment of approximately 105 to 120 HRB (hardness) and is very resistant to the soft abrasive materials being sawn, thus releasing diamond at the appropriate rate.
Hard bonds typically consist of the following metal powders – cobalt, iron, tungsten carbide and are grey to dark grey in colour.

Soft Bond
Means that the compilation of metals when sintered together forms a segment of approximately 90 to 105 HRB (hardness) and allows the segment to wear quicker thus retaining diamond on the cutting surface.
Soft bonds typically consist of the following metal powders - copper, bronze and cobalt, and are generally bronze to light silver in colour.
800mm Flat Types Cutting diamond segment

Applications:
800mm Flat Types Cutting diamond segment using in slab cutting for 250-900mm circular saw blades for cutting
Diamond segment cutting marble,granite, sandstone
Normal Flat Long Life Diamond Cutter Diamond Segment only wet use

800mm Flat Types Cutting diamond segment

Applications machine:
800mm Flat Types Cutting diamond segment used for single or multi circular saw blade from 900mm to 3500mm, cutting of granite, sandstone.

Cutting Effect:
Wet Use Bridge Cutting Diamond for Slab Edge Cutting of Sandstone
1. If the material is hard, the bond of the diamond segments should be softer.
    Because diamonds will become blunt when cutting hard material. Softer bond can be
    worn down with the blunt diamonds faster, then make new diamonds beneath be more easily exposed to participate in cutting

2. If the material is relatively softer, the bond should be harder.
  The diamonds can last longer in this care. The harder bond wears slower, so that it can hold the diamonds also longer. This can make better use of the diamonds and prolong the diamond tool's service life.

Applications machine:
Welding method: 800mm Flat Types Cutting diamond segment silver welding by high frequency welding machine
High frequency silver welded machine is recommended instead of welding by fire.
Don’t weld diamond segment for a long time, just a few minutes, otherwise the diamond inside might be damaged because of the high temperature, which will affect the cutting performance of the granite segment greatly.

800mm Flat Types Cutting diamond segment

Related Products:
     
             



800mm Flat Types Cutting diamond segment 800mm Flat Types Cutting diamond segment
Diamond Segment for Core Drill Bit Cutting Concrete 1600mm K Shape Sandwich Diamond Segment

                              


About us:

800mm Flat Types Cutting diamond segment
800mm Flat Types Cutting diamond segment
800mm Flat Types Cutting diamond segment
800mm Flat Types Cutting diamond segment
Our service:

1. Low order quantity: It can meet the test order you need.
2. Fast delivery: We get great discounts from freight forwarders.
3. OEM Acceptable: We can produce according to your samples or drawings.
4. Good quality: We have a strict quality control system. Has a good reputation in the market.
5. Good service: We regard our customers as God with a high degree of professionalism and enthusiasm.


FAQ:

1. If we want to order your product, how do we know your quality?
You can test with a small order, and then you will know the quality. Nowadays, many people in the world use Chinese products because of their high quality and high cost performance. We are a professional diamond tool manufacturer with more than 8 years of manufacturing experience.

2. Can you provide samples for free?
We do not provide free samples. Based on years of experience, we believe that customers will want them because of their reliable quality. By purchasing samples, we will cherish and appreciate them and make them get more. We are ready to offer our potential customers a special discount on samples. It's very important that you give us feedback, and we will appreciate it.

3. Does your company accept customization?
Of course, we accept customization. Including different colors, cutting objects, etc. We can also tag your own label and company brand. If you want us to make any new products for you, just send your products to us. Whether it's drawings or samples, we have the ability to produce the same products. We will not sell these products to others, only customers can get permission.

Please note:

Please use high frequency Silver Welded machine instead of Fire to make the brazing, the welding time is only a few seconds, otherwise the diamond inside the segments will probably be damaged by the high temperature, then the cutting performance will be Reduced!
