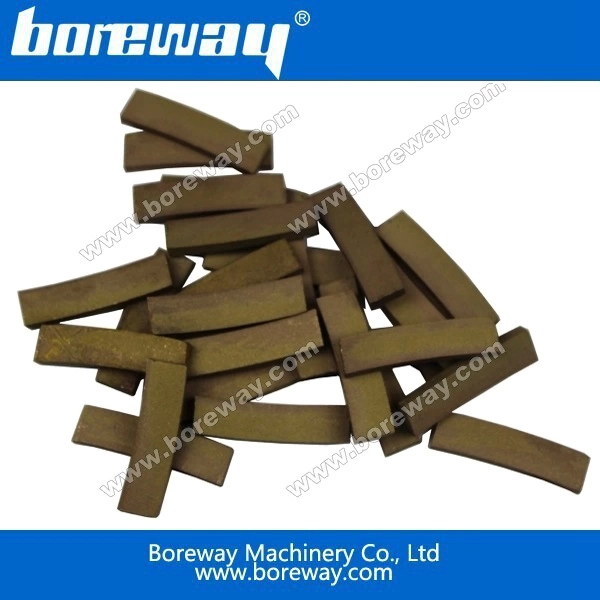

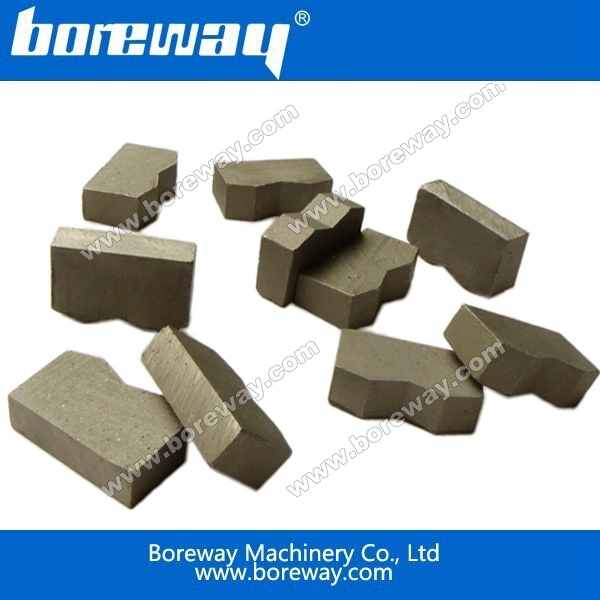

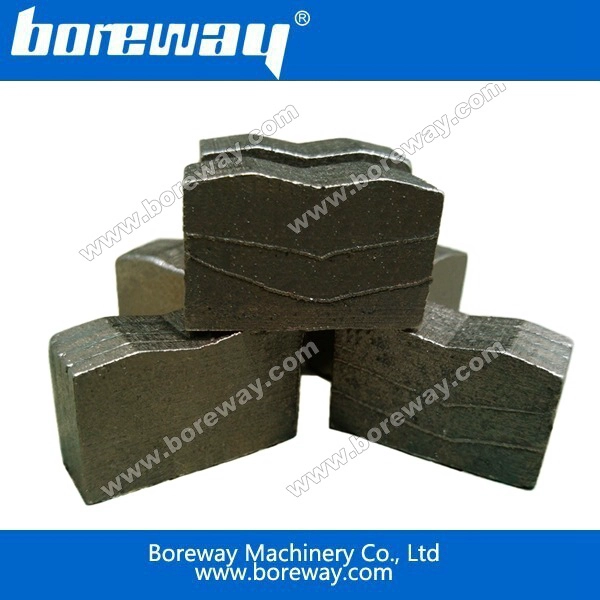

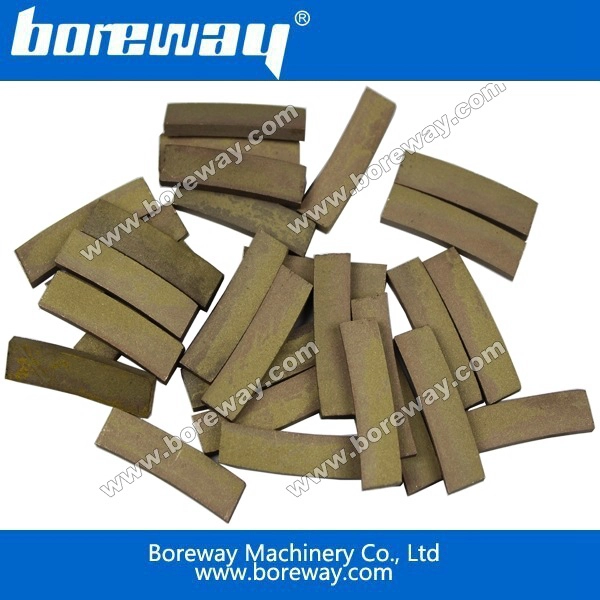

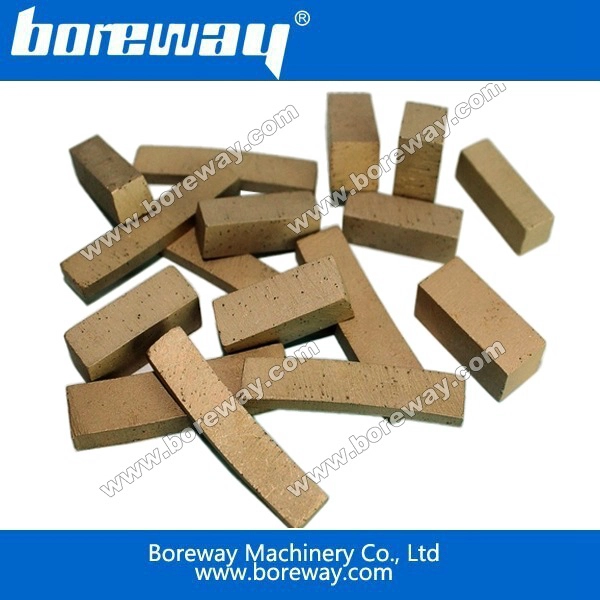

Block cutting diamond segment for marble and stone

  • Model Number: BW-DSM-001
  • Type: Wet use
  • Diameter: 900mm-3500mm
  • Segment Width: 6.1mm-12mm
  • Segment Height: 13mm-20mm
  • Segment shape: General shape
  • Applications: Be welded diamond saw blade
  • Machine: High frequency induction welding machine
  • Industry: Diamond tools
  • Welding method: Silver or copper welding
  • Advantage: Good sharpness and Long lifespan.

Introduction:
Wet use only, fast & easy cutting ,no chips , long lifespan ,and stable performance and high efficiency.
Diamond segment is made for welded on saw blade and for cutting granite and other hard stone.
Diamond segment can also be welded on drill bit for drilling stone,concrete and be welded on htc
for grinding stone and concrete floor.

Features:
1.High efficiency, long life and no breaking of segments.
2.Various specifications suitable for saw blade diameter350mm-3000mm.
3.Stable function and performance when cutting the stone,metal,concrete,wall.
4.Can be welded by high frequency welding.

Specifications:
The followings are the block cutting diamond segment for marble and stone:

Product

Name

Item

Number

Diameter

(Inch/mm)

Length

(mm)

Width

(mm)

Height

(mm)

Segment

Number

Block

Cutting

Segment

For Marble

DS02036

36”(900)

24

6.9/6.1

13

64

DS02040

40”(1000)

24

6.9/6.1

13

70

DS02044

44”(1100)

24

7.4/6.6

13

74

DS02048

48”(1200)

24

7.4/6.6

13

80

DS02052

52”(1300)

24

8.4/7.6

13

88

DS02056

56”(1400)

24

8.4/7.6

13

92

DS02064

64”(1600

24

9.2/8.4

13

108

DS02072

72”(1800)

24

9.2/9.1

13

120

DS02080

80”(2000)

24

11/10

15

128

DS020100

100”(2500)

24

12.5/11.5

20

140

DS02120

120”(3000)

24

12.5/11.5

20

160

DS02140

140”(3500)

24

13/12

20

180

Other specifications are available upon request.
